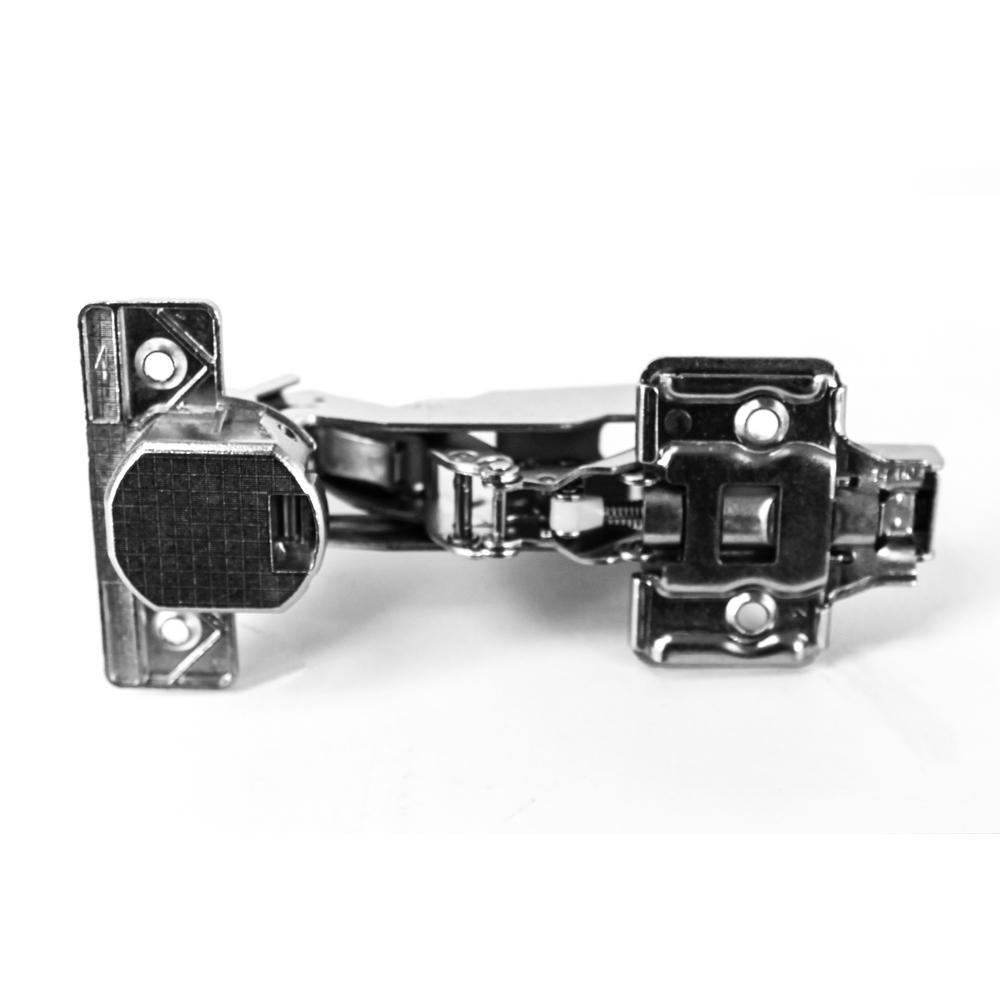

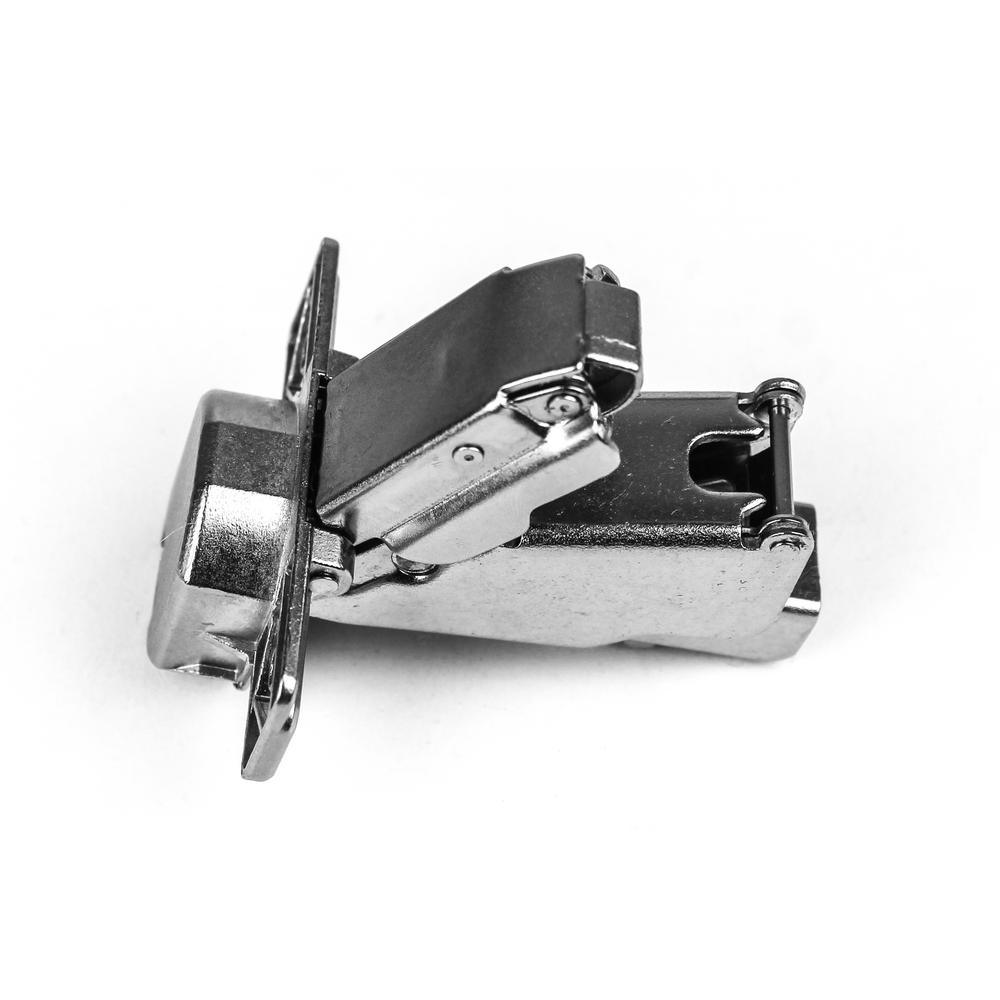

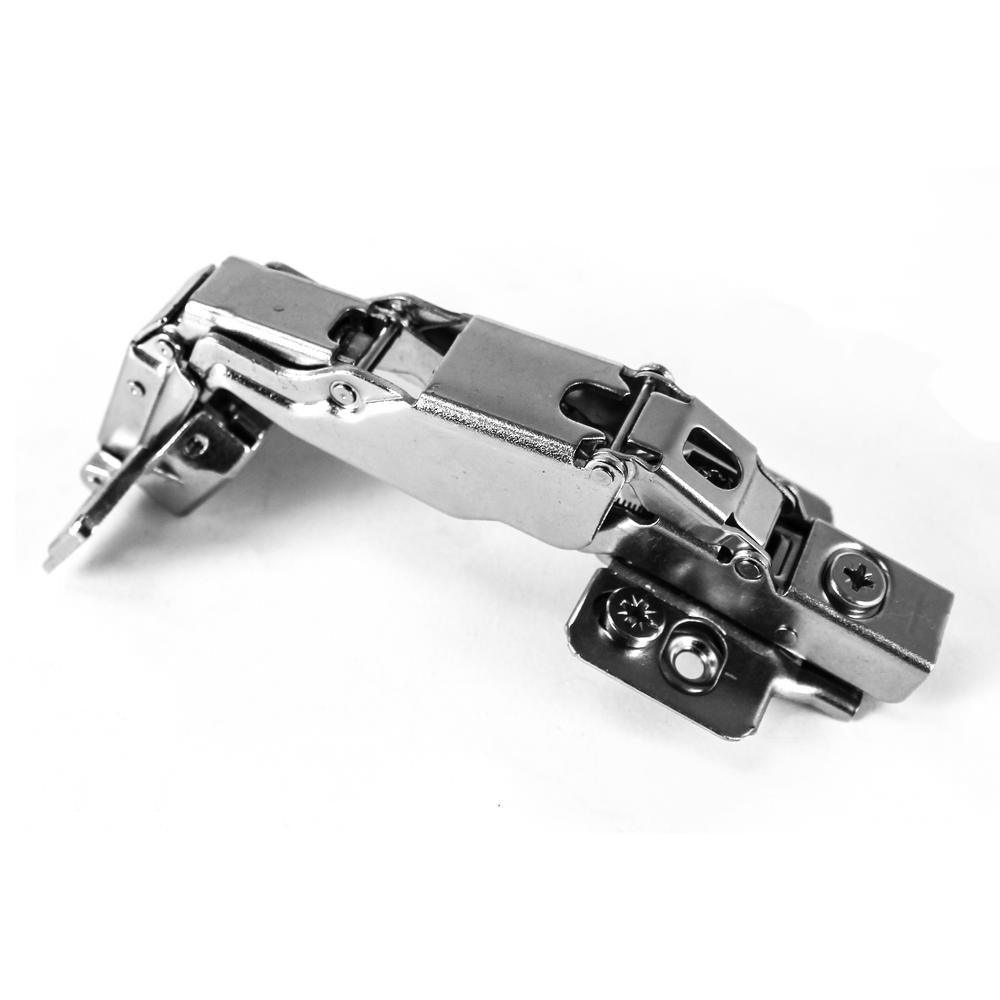

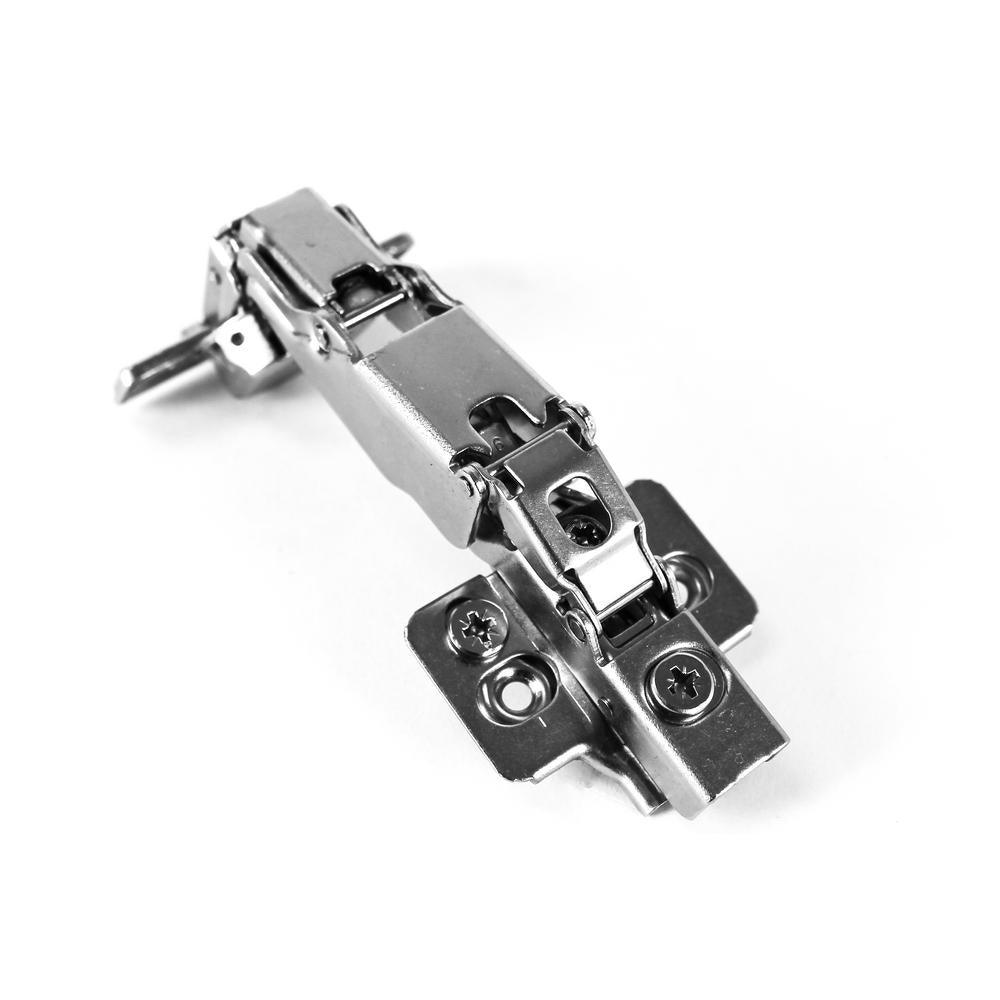

165-Degree 35 mm Full Overlay Soft Close Frameless Cabinet Door Hinges with Installation Screws (15-Pairs)
$140.99
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '312301530
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
High quality mechanism slowly pulls the door to closed position with a smooth silent motion. Reduced closing speed keep you out from unwanted sounds in the kitchen. High-temperature processing.
Features

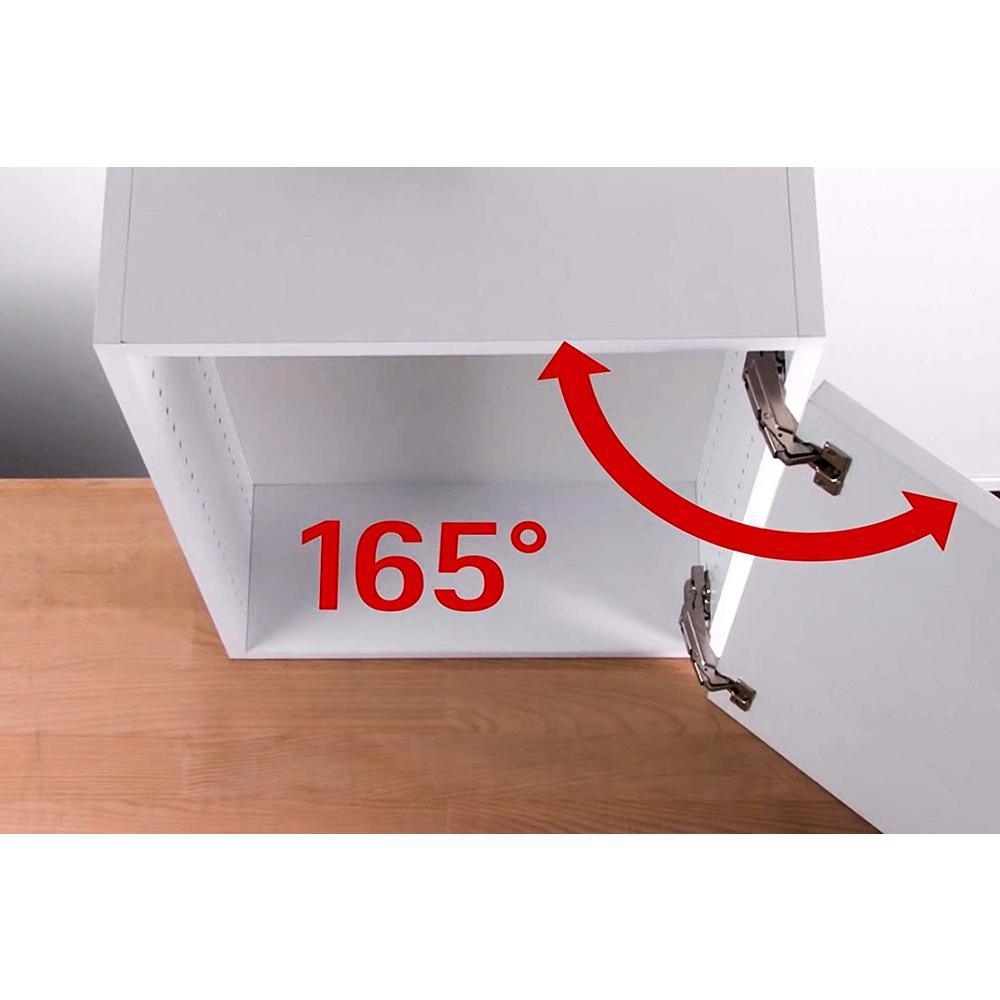

- 165° soft close kitchen cabinet hinge plus frameless plate hinge is made from nickel plated steel, our hinges are for frameless cabinets and our hinges shipped with installation screws
- Depth of cup: 13 mm (1/2 in.), cup diameter: 35 mm (1-3/8 in.), drilling distance on door: 3 mm to 8 mm (1/8 in. to 1/3 in.)
- Center-to-center screw hole: 35 mm (1-3/8 in.), suitable, door thickness: 16 mm to 24 mm (3/5 in. to 1 in.), cabinet type: frameless
- Finish: nickel plated, material: steel, installation type: screw
Features
| Item Weight | 9.9 |
| Number of Holes | 4 |
| Hinge Type | Full overlay |
| Hardware Finish Family | Nickel |
| Features | Soft Close |
| Package Quantity | 30 |
| Cabinet Frame Type | Frameless |
| Finish | Nickel Plated |
| Hinge Opening (Degrees) | 165 |
| Returnable | 180-Day |
| Material | Stainless Steel |
| Builders Hardware Product Type | Cabinet hinge |
| Product Height (in.) | 3.5 in |
| Product Width (in.) | 2.2 in |
| Product Depth (in.) | 0.5 in |
| Manufacturer Warranty | Yes |
