Siemens

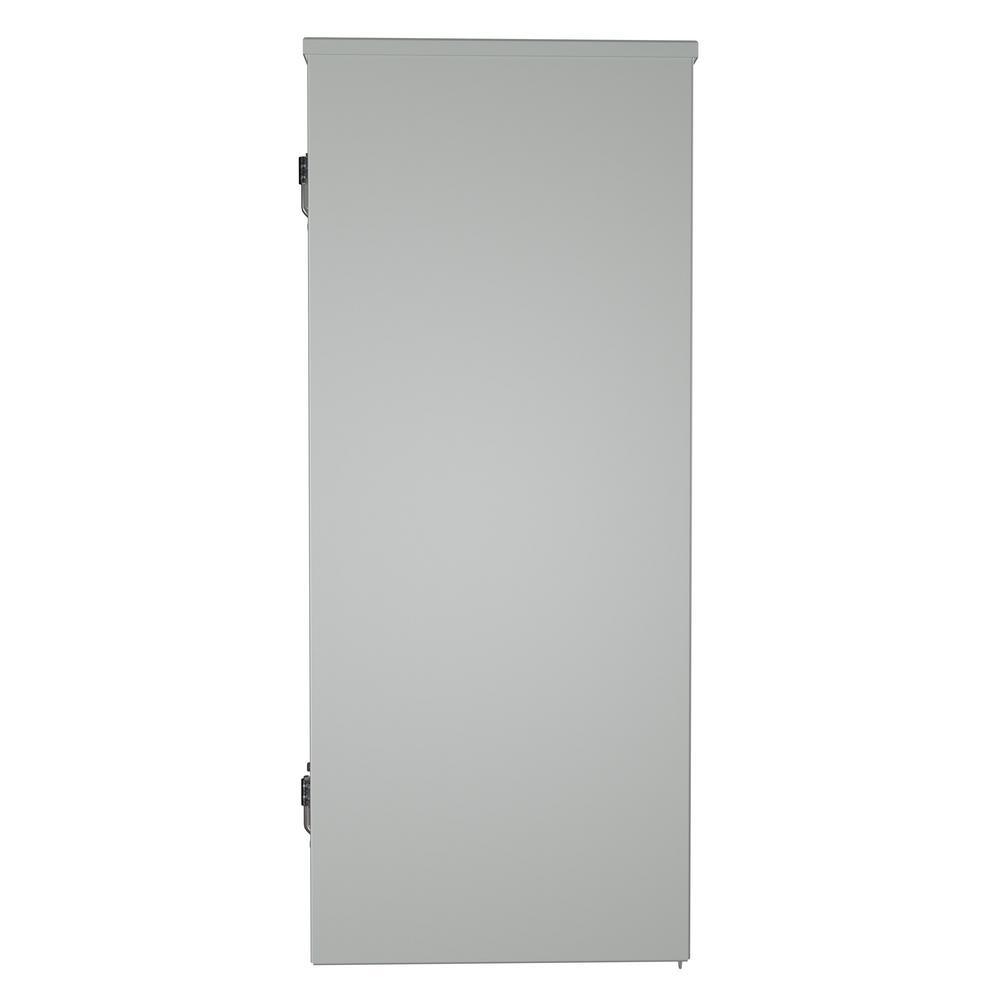

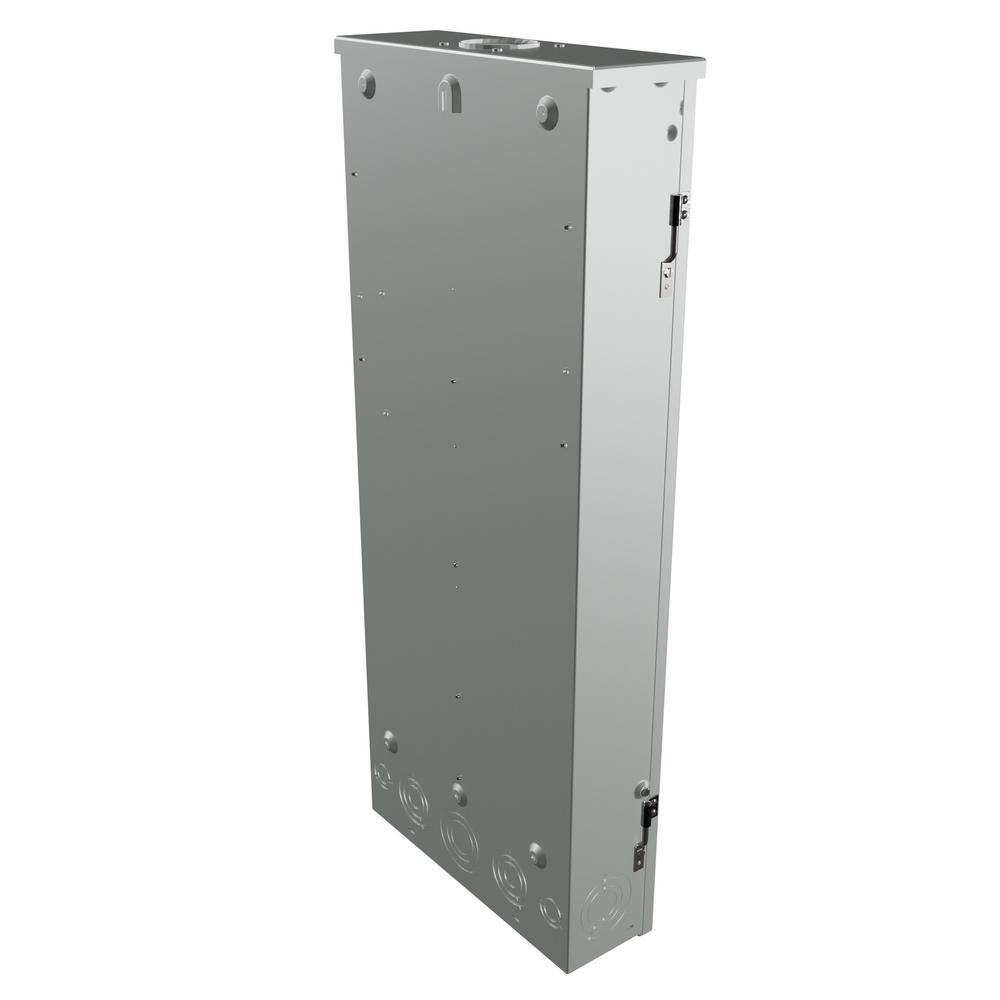

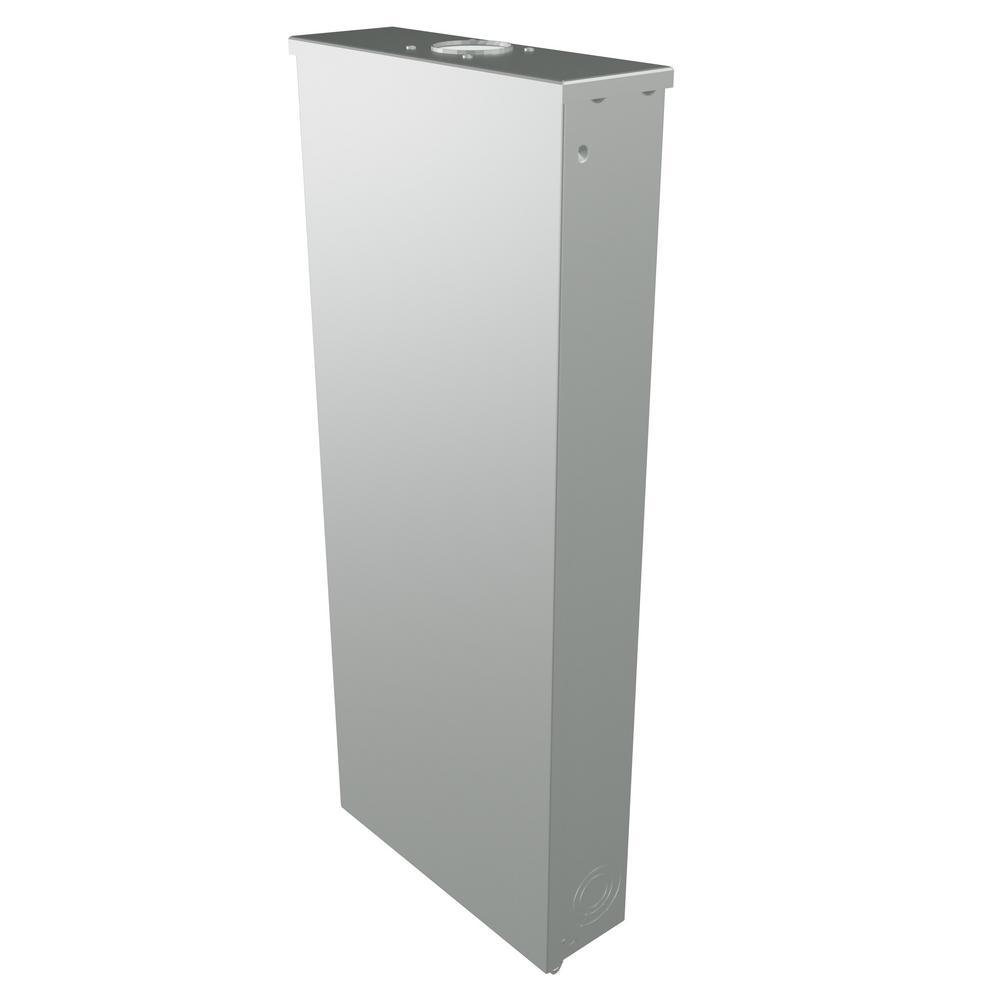

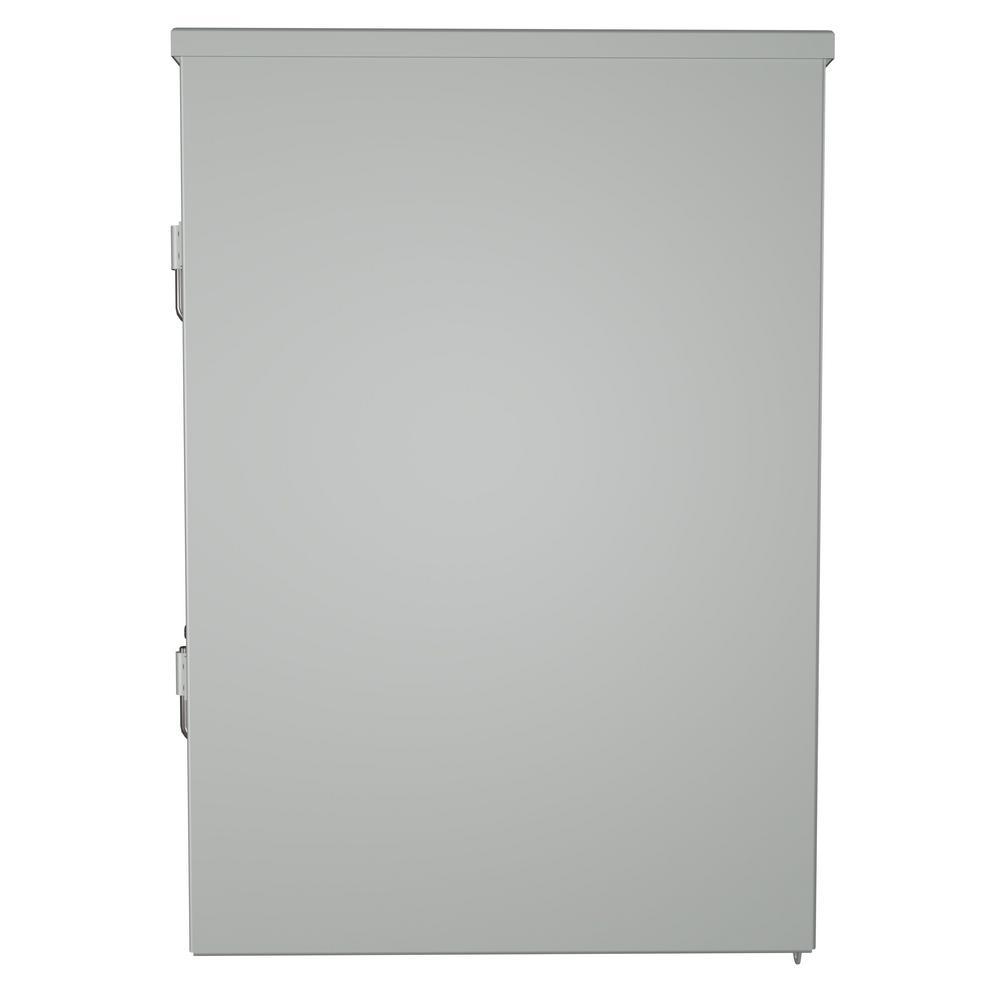

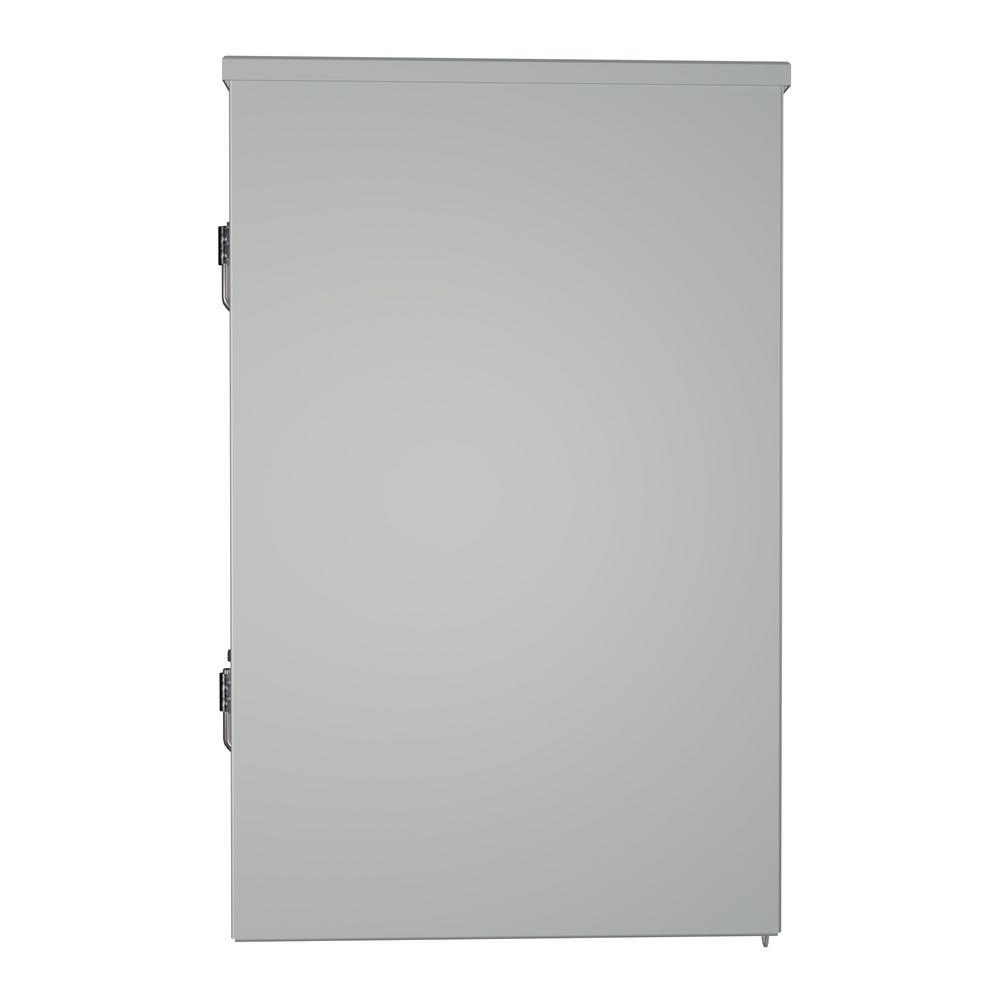

PN Series 200 Amp 20-Space 40-Circuit Main Breaker Plug-On Neutral Load Center Outdoor with Copper Bus

Not priced yet

Gone — not just here.

Substitutes below — from the same aisle.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Siemens introduces PN Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the Plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.

Features siemens plug-on neutral, for simple quick installation, that is spacious with over 4 in. of wire bending space, and a secure reliable installation method
PN Series plug-on neutral load center includes 2 factory installed ground bars
Single phase load center
Tin plated copper bus
NEMA Type 3R enclosure

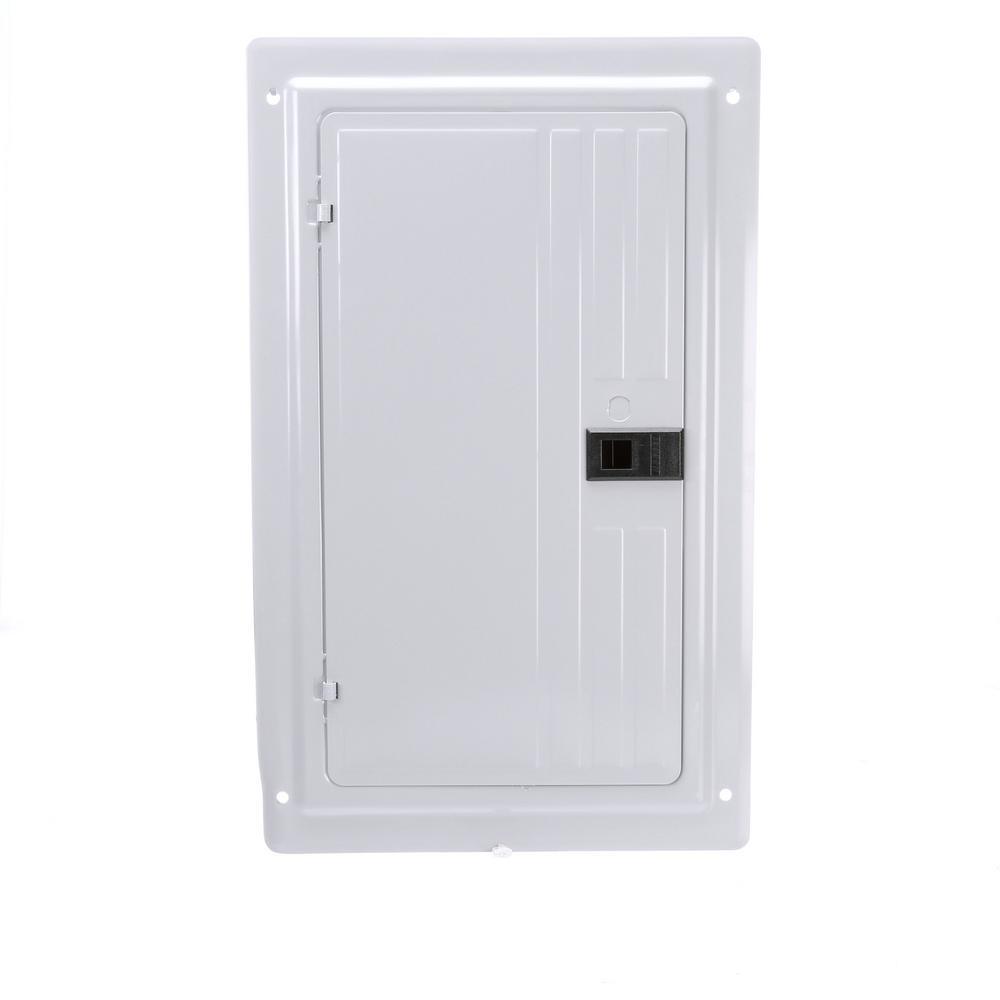

Grey trim
Interrupt rating: 22000 AIC

Features

Item Weight	33.223
Number of Spaces	20
Load Center Mounting Type	Flush,Surface
Voltage (volts)	120/240
Load Center Type	Main Breaker
Mounting Type	Plug-On Neutral
Electrical Product Type	Load Center
Indoor/Outdoor	Outdoor
Number of Circuits	40
Returnable	180-Day
Phase Type	1 Phase
Product Weight (lb.)	33.223
Maximum Amperage (amps)	200
Load center height (in.)	28.63
Load center depth (in.)	5
Load center width (in.)	15.5
Certifications and Listings	UL Listed
Manufacturer Warranty	LIFETIME
