Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Surge SPD

$0.00

/
Shipping calculated at checkout.

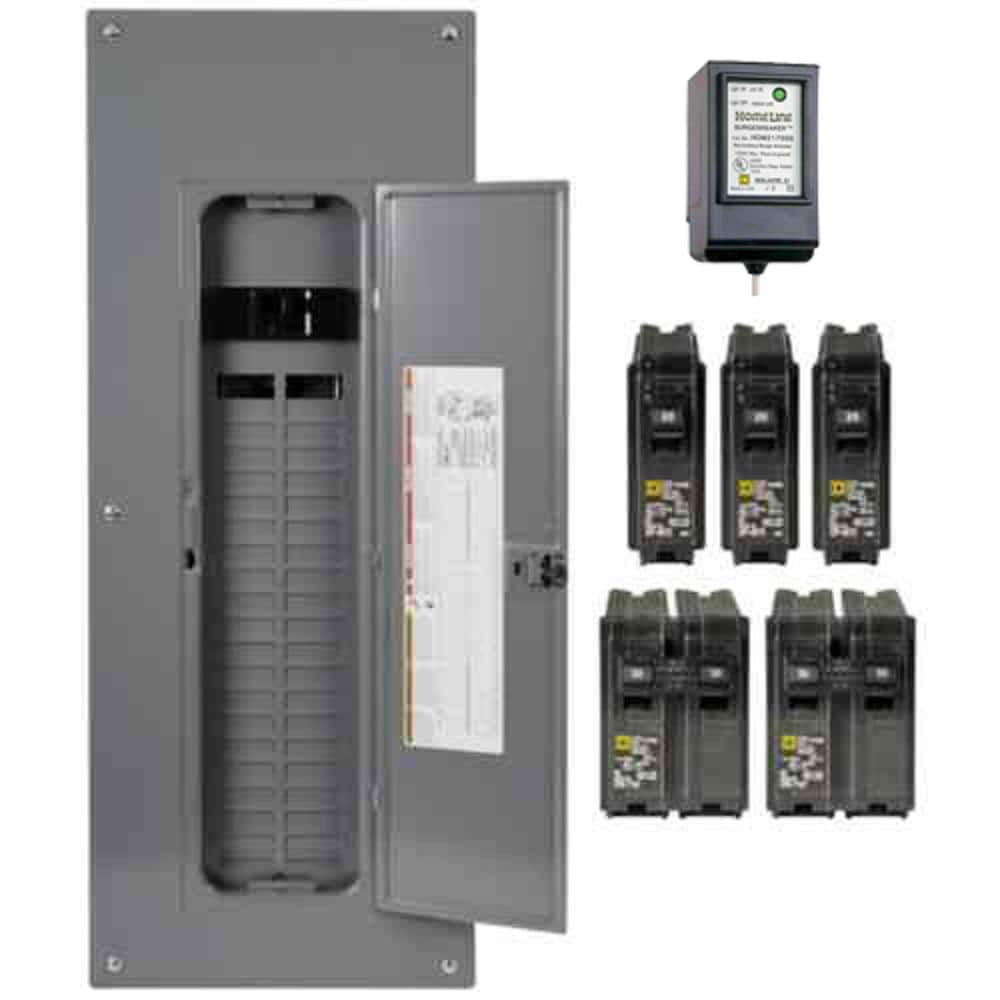

The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings. The Homeline Surge Breaker Surge Protective Device is designed as a quick plug-on unit for use in Homeline load centers and CSED devices. The SPD requires 2 pole spaces. This unit has 22,500 Amp Maximum Surge Capacity and has a 150 VAC line-to-ground maximum providing protection from electrical surges. This bundle is composed of Schneider model numbers HOM4080M200PCVP and HOM2175SB.
  • California residents
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240-Volt AC and 22,000 air short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Equal protection to circuits and receptacles throughout home
  • Includes an LED indicator
  • Can be used in service entrance locations, CSEDs and Homeline load centers





Features
Item Weight 40.11
Electrical Product Type Load Center and Breaker Kit
Voltage (volts) 120/240
Product Weight (lb.) 40.11
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Load Center Mounting Type Surface
Indoor/Outdoor Indoor
Number of Circuits 80
Number of Spaces 40
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 200

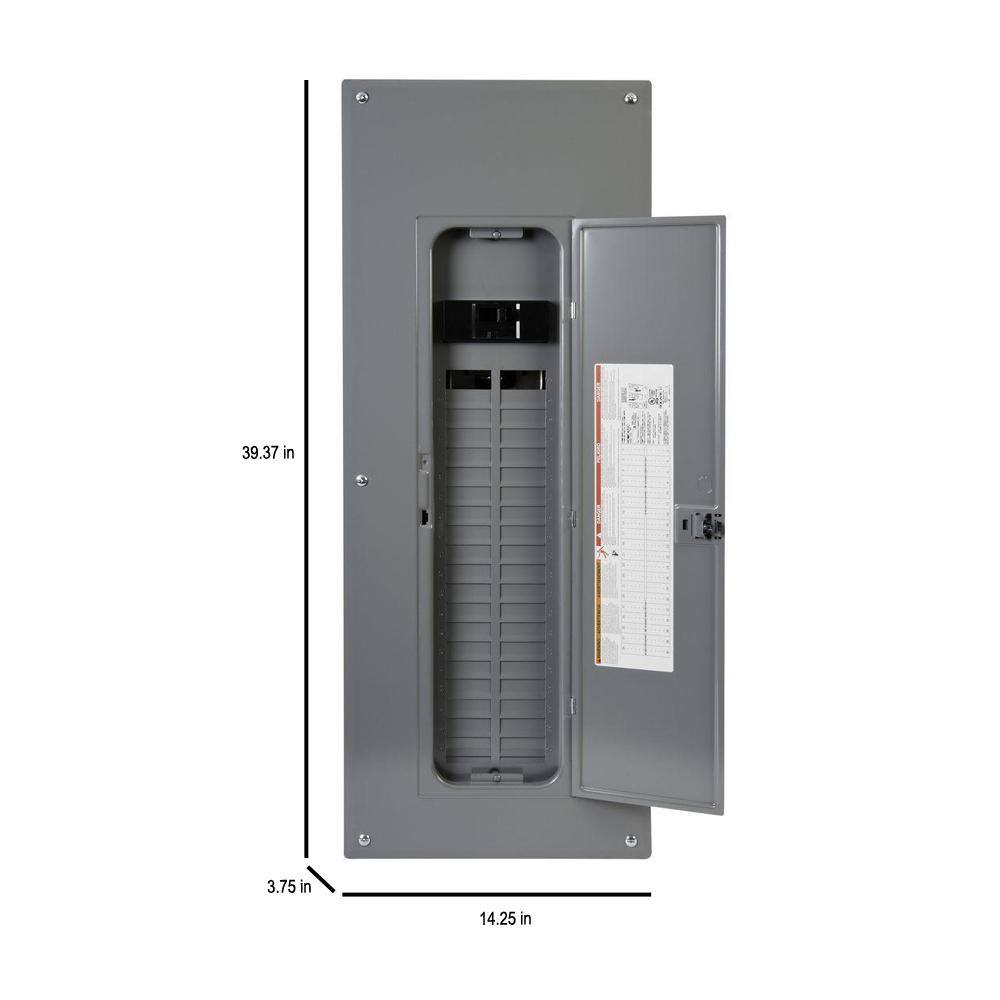

Load center width (in.) 14.25
Load center depth (in.) 3.75
Load center height (in.) 39.37
Manufacturer Warranty Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Certifications and Listings UL Listed
