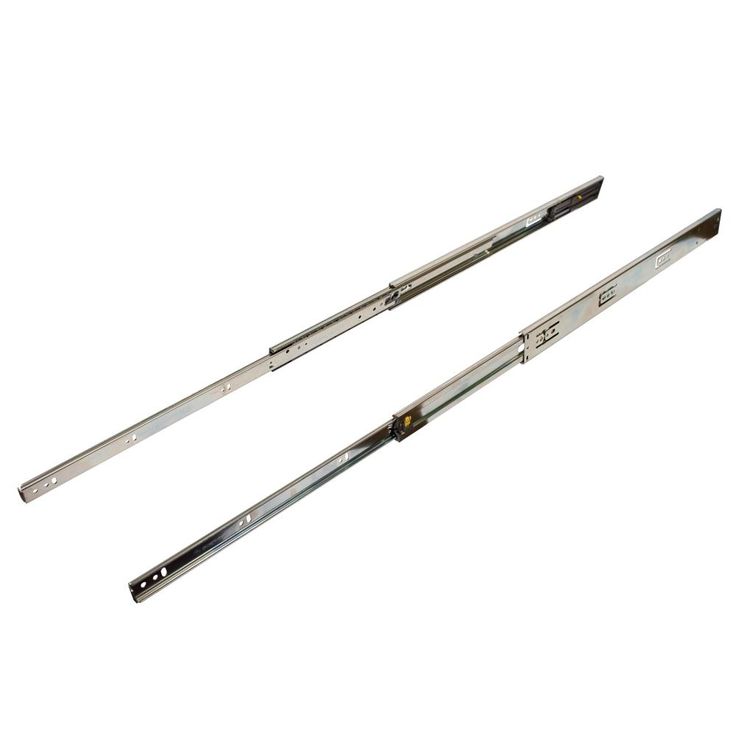

28 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide

In Stock Hardwarestore Delivery

28 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide

from $14.81

Published price — same for everyone

Out of stock — available on backorder

SKU 300243509

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

The 1145 Soft-Close Drawer Slide Series features a smooth ball bearing operation with an integrated soft-close mechanism. The 1145 series Soft-Close slides is perfect for Kitchen, Bath, Furniture upgrades and many other useful applications. The 1145 series Soft-Close slides come in a range of length of sizes from 14 in. to 28 in. in a clear zinc chromate finish.
  • Hardware fasteners not included due to application capacity and variances
  • Long soft close stroke of 2-3/8 in.
  • 100 lbs. load capacity per pair
  • Exceeds ANSI/BIFMA tests
  • Reinforced slide members
  • 1/2 in. side clearance per side
  • Actual slide spec dimension 700 mm (27-9/16 in.) x 45.6 mm (1-3/4 in.) H
  • 32 mm hole pattern metric slide
  • Steel ball bearings
  • Non-handed
  • Easy lever disconnect for removing drawer box
  • Side mount only-not recommended for flat mount
  • Fasteners for wood applications use the following: truss head screw # 8 x length needed
  • Optional back socket for face-frame applications use model number 39.1145
  • Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket


Features
Item Weight 4.62
Features Soft Close
Slide System Full Extension
Material Steel
Finish Family Zinc
Weight load per set (lb.) 100
Mount Type Side Mount
Package Quantity 2
Returnable 180-Day
Builders Hardware Product Type Drawer Slides
Drawer Slide Type Ball Bearing
Maximum Expandable Length (in.) 28
Product Height (in.) 1.75
Product Width (in.) 0.5
Slide Length (In.) 28
Manufacturer Warranty One Year
