Siemens

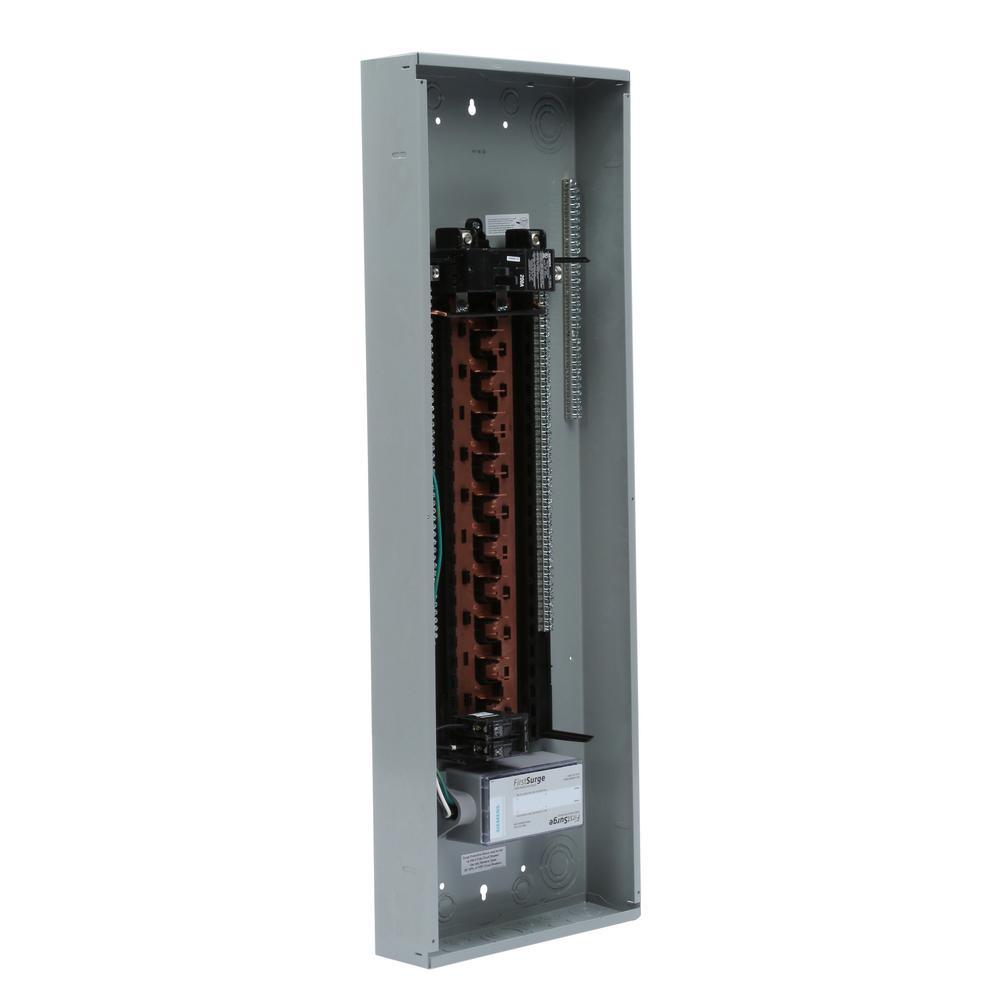

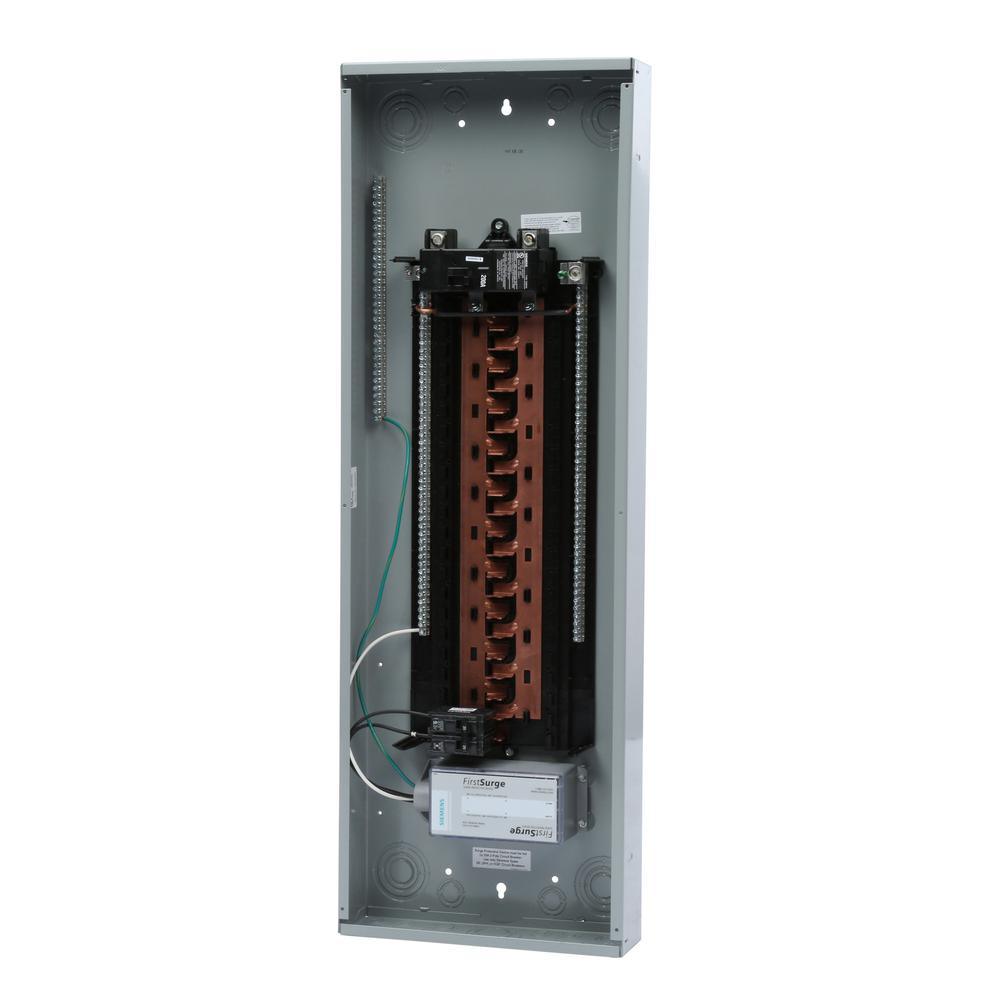

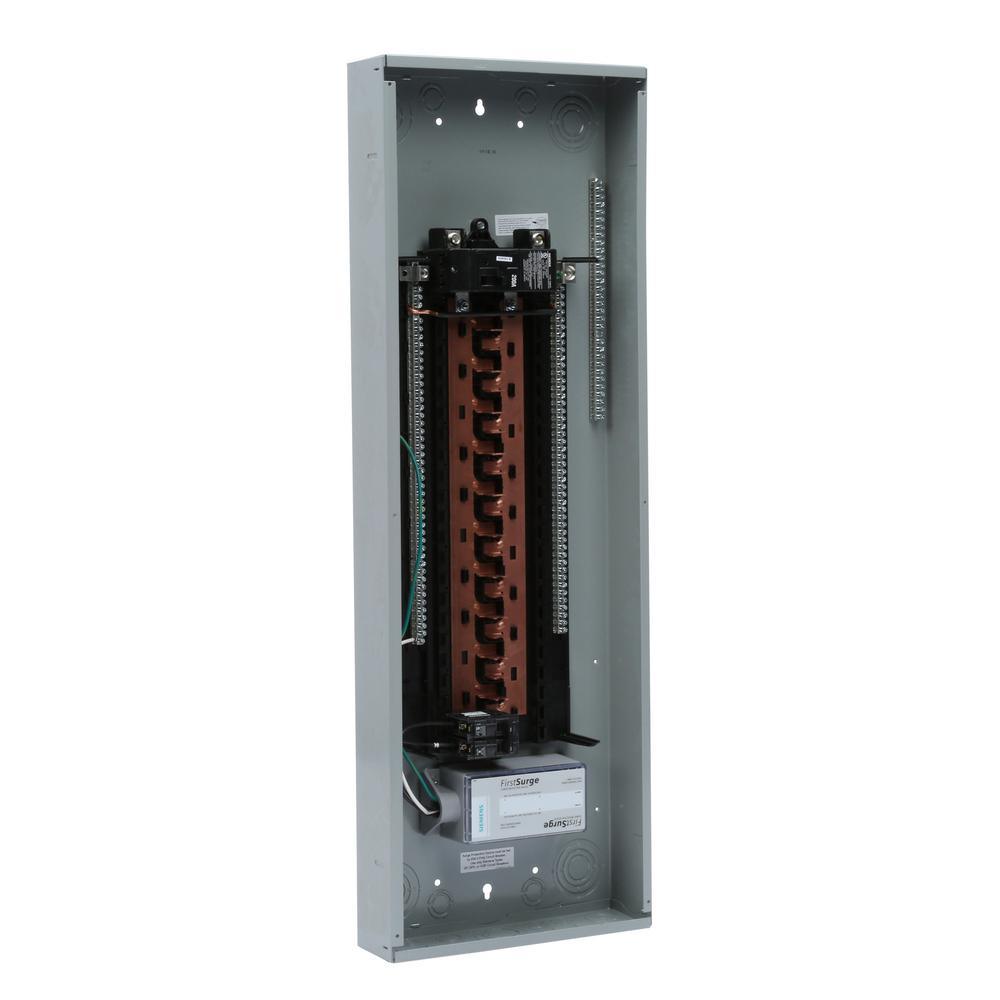

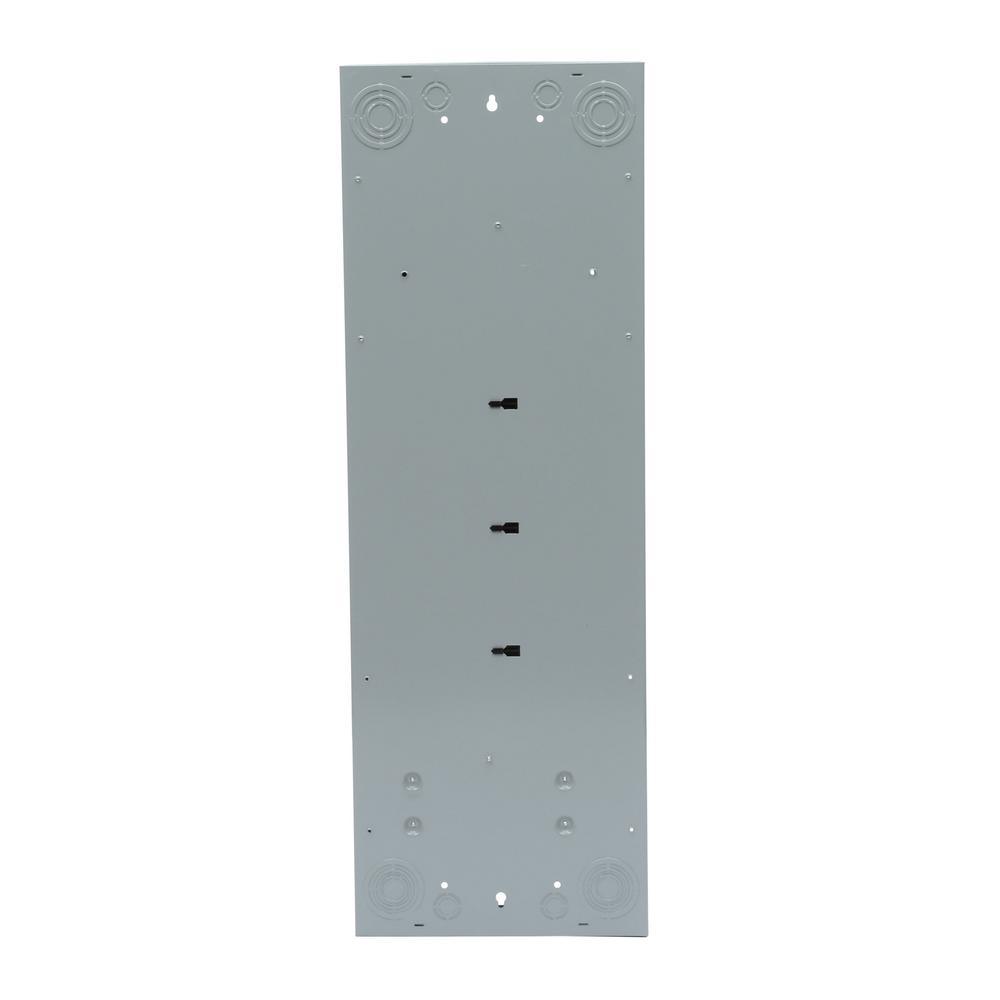

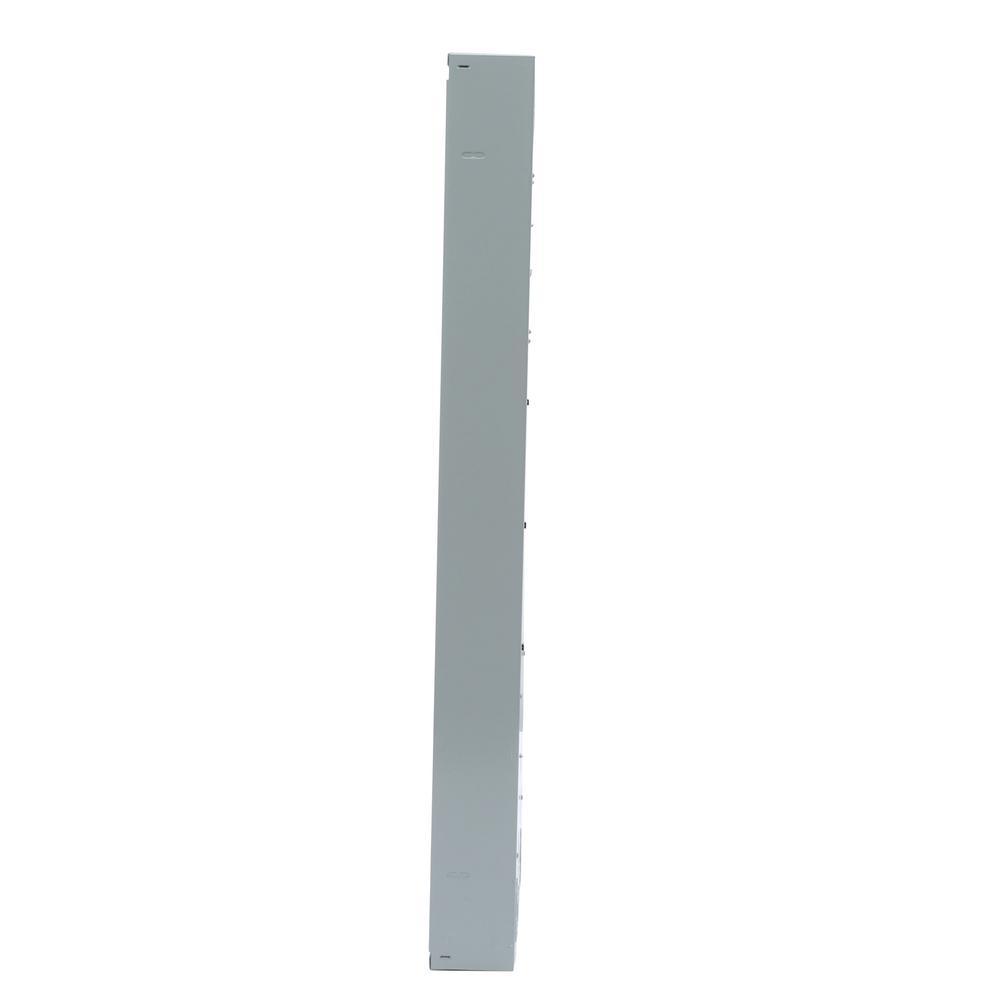

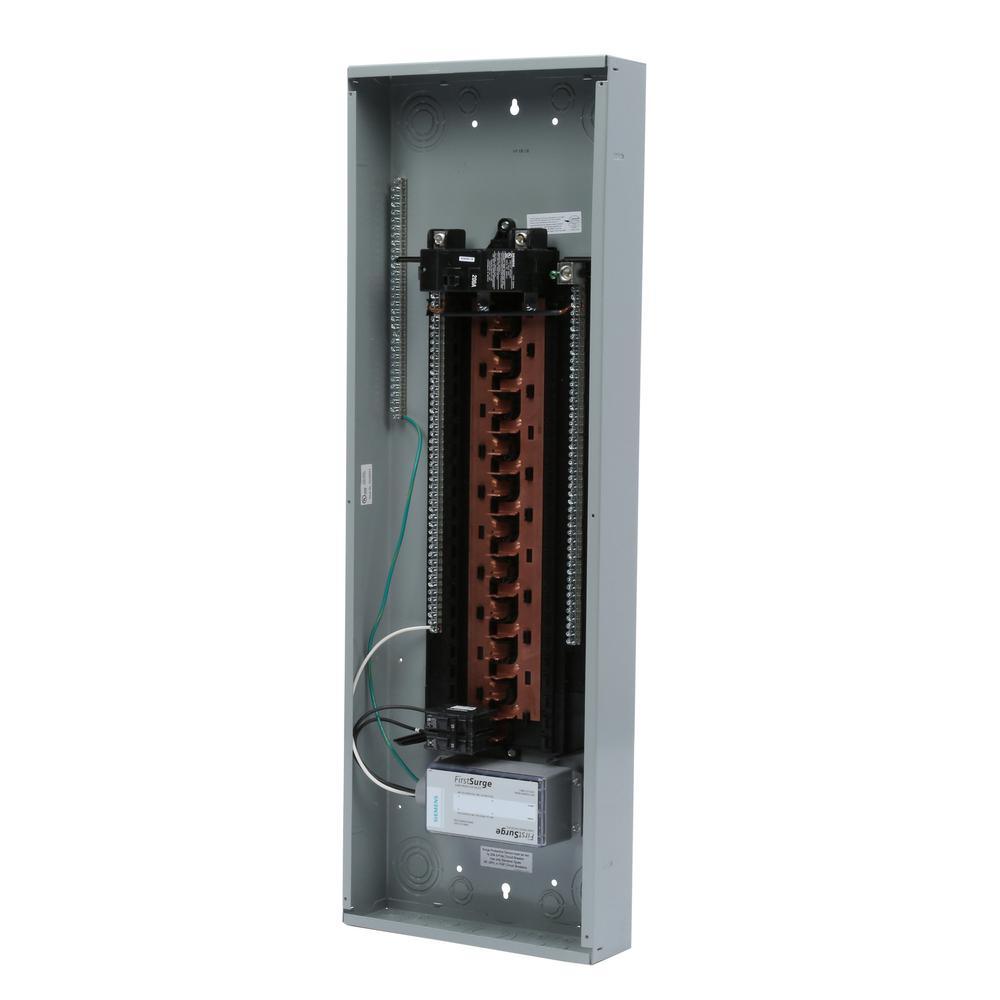

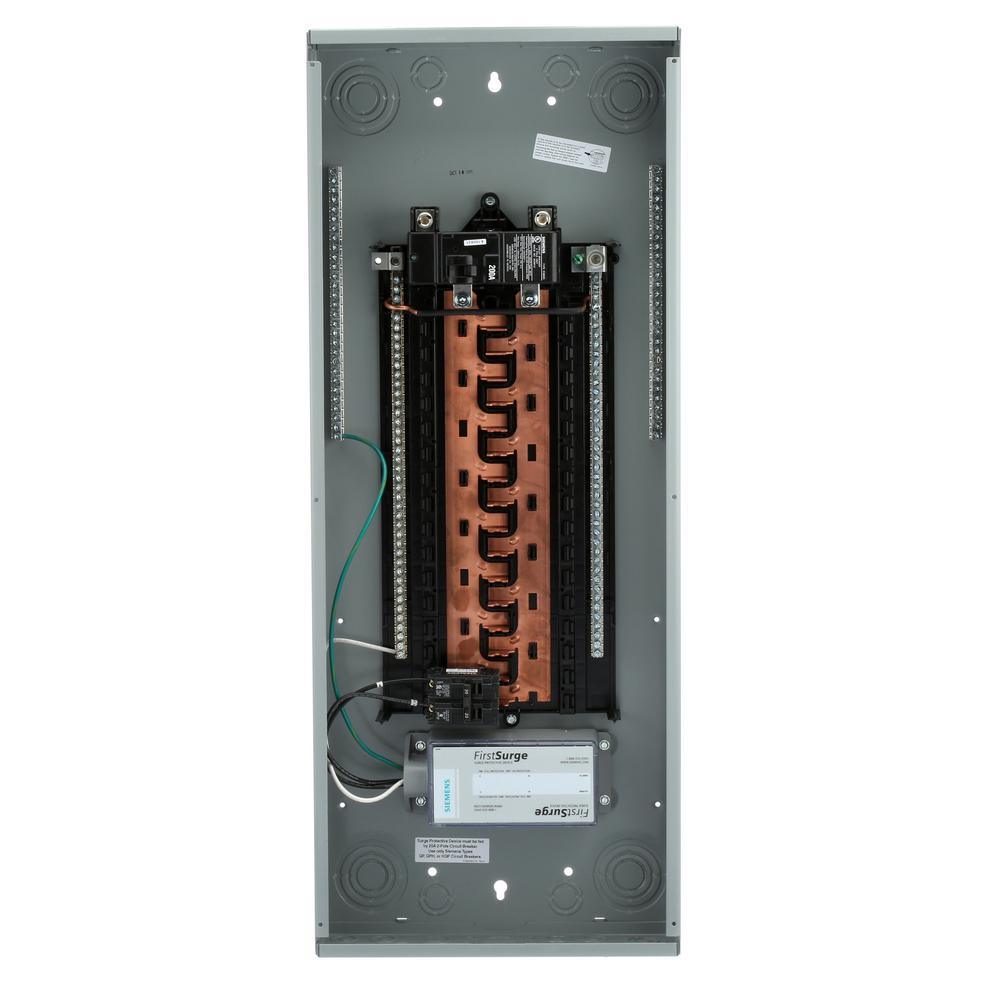

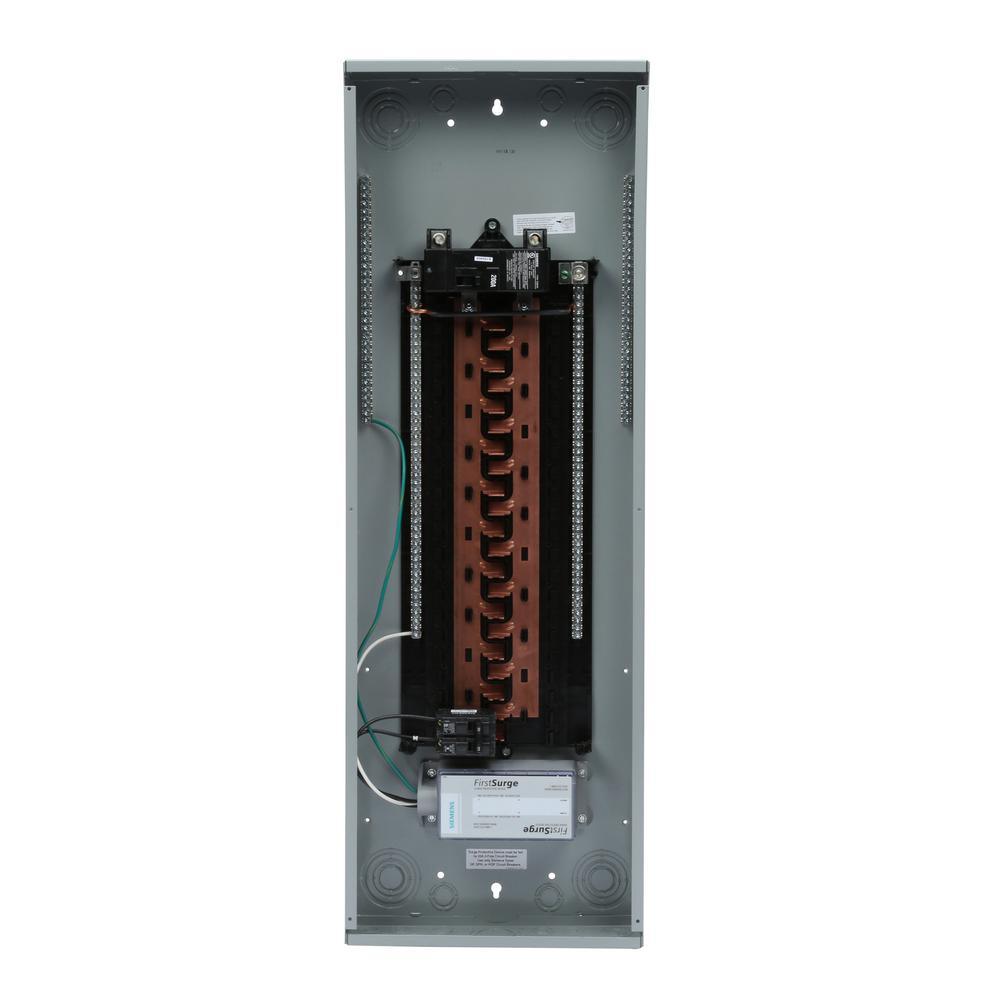

PL Series 200 Amp 40-Space 60-Circuit Main Breaker Load Center with 140kA FirstSurge Device Installed
Not priced yet
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Siemens introduces PL series load centers a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim these features were specifically engineered to decrease installation time and increase flexibility.
Features
- PL series panel includes a FirstSurge whole home surge protection device (FS140) factory installed
- FS140 commercial quality surge protective device that has both audible and visual status alerts comes pre-installed
- Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
- Copper bus
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- All PL series devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
- A rigid, sturdy base pan provides the ruggedness required for the harshest applications
- NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
- PL Series Single Phase load centers are being phased out, and replaced by the new PN Series Plug-On Neutral load centers, P4060B1200S140 equivalent is the new PN4060B1200S14
Features
| Item Weight | 44.69 |
| Mounting Type | Bolt On |
| Number of Circuits | 60 |
| Load Center Mounting Type | Flush,Surface |
| Voltage (volts) | 120/240 |
| Number of Spaces | 40 |
| Load Center Type | Main Breaker |
| Electrical Product Type | Load Center |
| Product Weight (lb.) | 44.6 lb |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |
| Load center depth (in.) | 5.6 |
| Load center height (in.) | 44.1 |
| Load center width (in.) | 15.5 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Lifetime |
