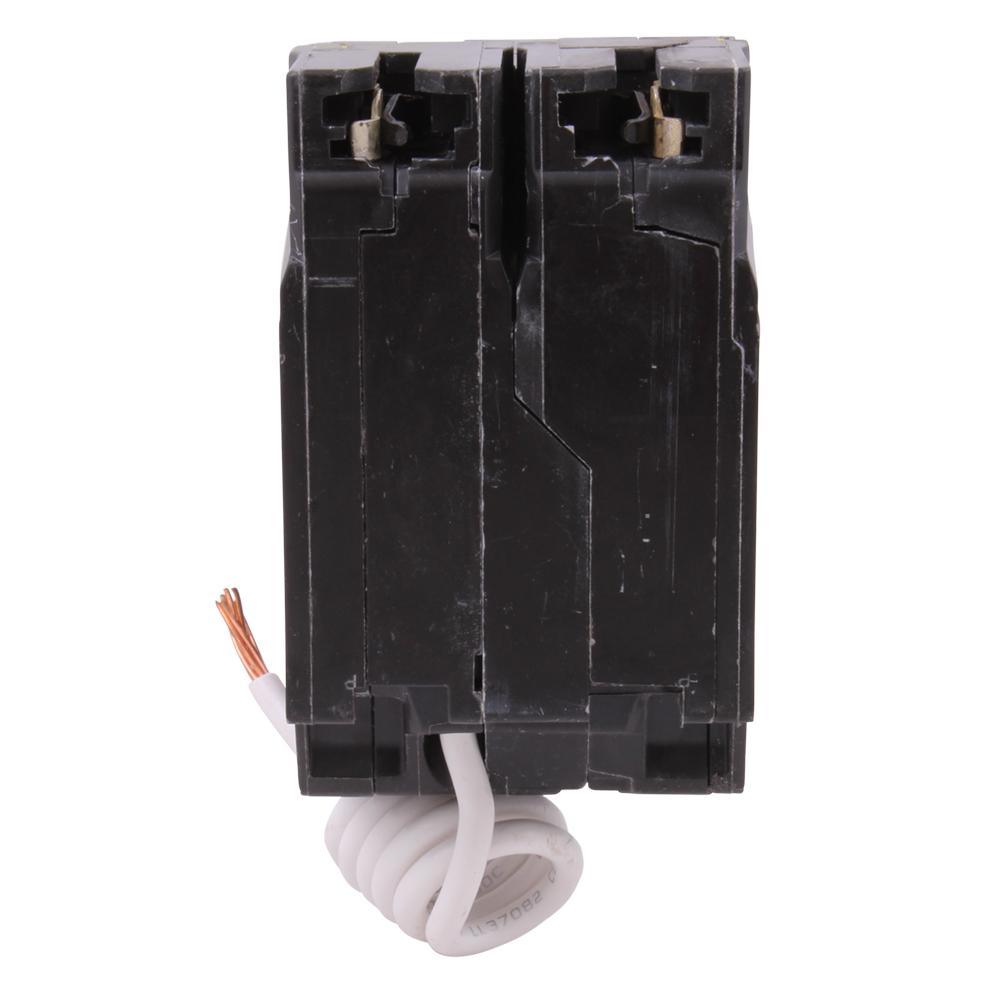

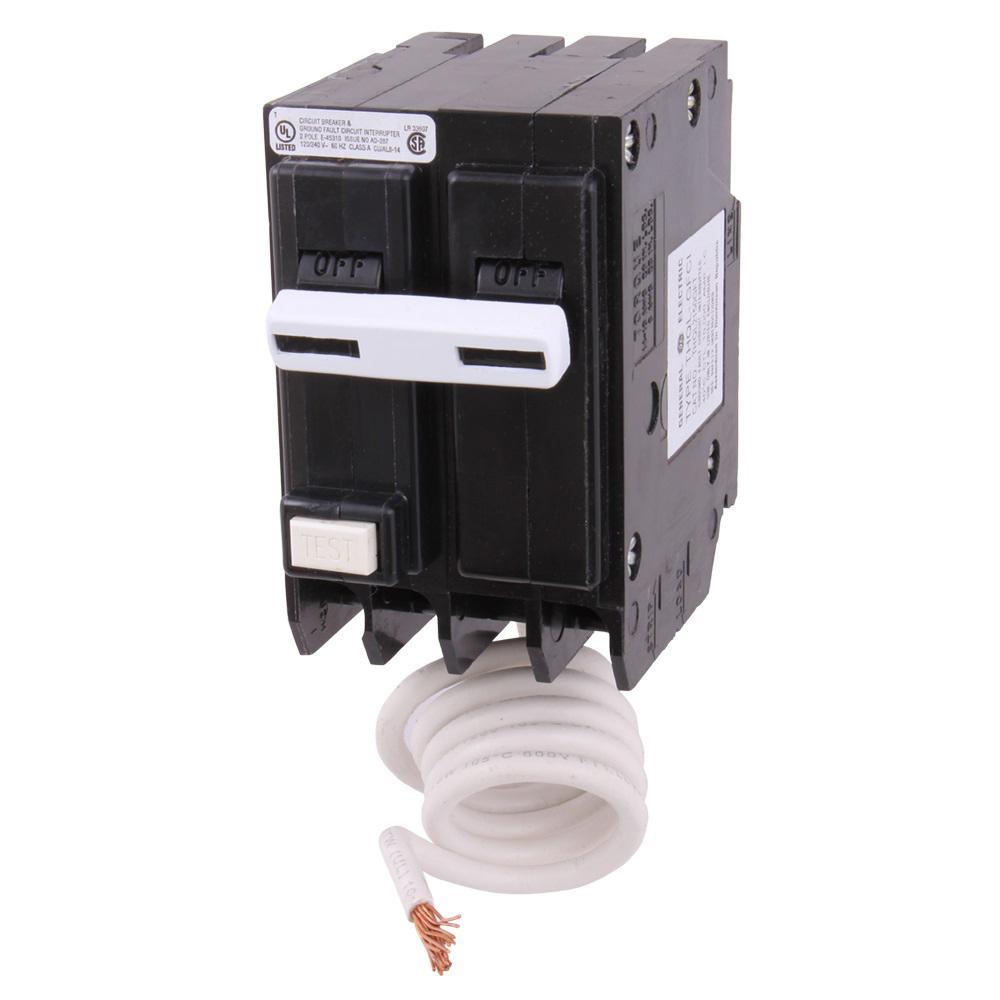

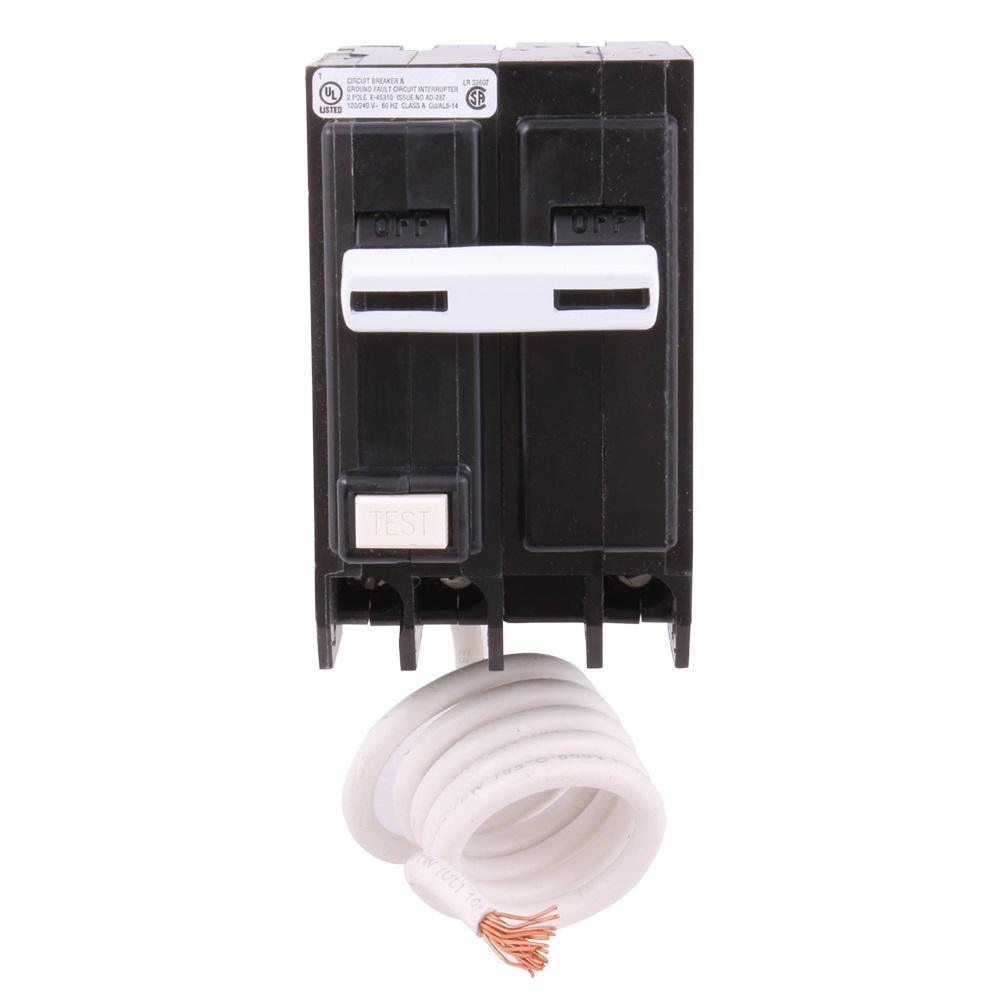

30 Amp Double Pole Ground Fault Breaker with Self-Test
from $91.67
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 206602328
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The GE 30 Amp Double Pole Ground Fault Circuit Breaker with Self-Test has a tin plated copper stab to create a reliable, permanent and corrosion resistant connection. The Self-Test functionality is a UL requirement on all GFCI devices commencing in June 2015. This variant of the GFCI ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced.
Features
- Unit provides protection against overloads, short circuits and ground faults
- Detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
- Class A 5mA ground fault circuit interrupter
- Wire range is #14-8 AWG CU/#12-8 AWG AL
- UL listed no. E51075
Features
| Item Weight | .858 |
| Voltage (volts) | 240 |
| Maximum Amperage (amps) | 30 |
| Number of Poles | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.899 |
| Interruption Type | GFCI |
| Returnable | 180-Day |
| Mounting Type | Plug-On |
| Breaker Type | Double Pole |
| Electrical Product Type | Breaker |
| Product Width (in.) | 5.38 |
| Product Depth (in.) | 6.75 |
| Product Height (in.) | 2.25 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
