VIAIR

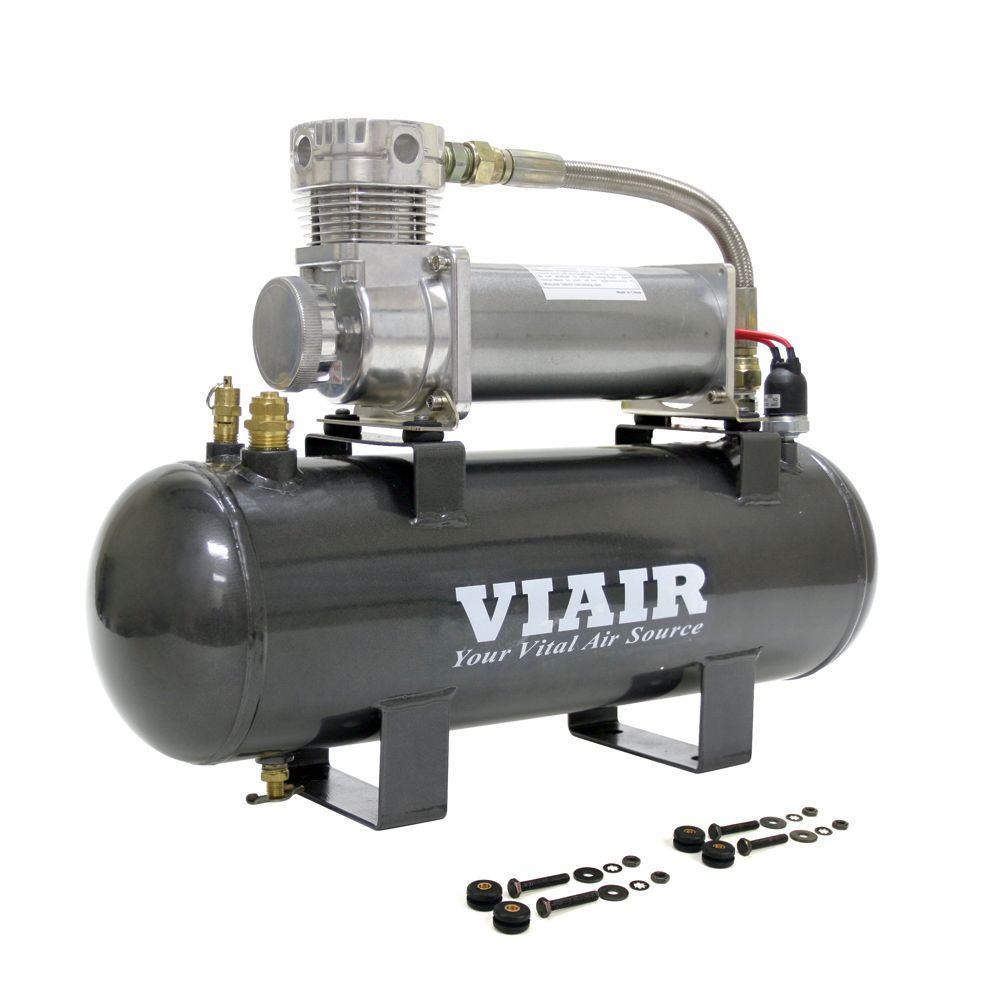

2 Gal. 12-Volt 200 psi High-Flow Air Source Kit
$365.95
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '206170334
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
VIAIR High-Flow 200 psi Air Source Kits come with a powerful, low amp-draw 480-degreeC VIAIR compressor mounted on a 200 psi-rated 2.0 Gal. air tanks with 5 ports. All 200 psi Air Source kits come with a pre-wired 165/200 psi pressure switch. Both kits not only come with the industry’s leading 200 psi compressors but also come with a drain cock, safety valve, 1/2 in. port compression fitting for 3/8-in. airline pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an airline to the compression fitting. A 40 Amp relay and an appropriately-rated fuse are recommended for use with this unit.
Features
- California residents
- Air source kit comes with a VIAIR 480-degreeC air compressor which builds 200 psi and has a flow rate of 1.76CFM at 0 head pressure
- Largest VIAIR air source kit for powering air horns just connects your air horn's airline to our system, then follow your air horn wiring diagram
- Vehicle's engine must be running before turning on the compressor
- (Optional) you can also tap into the air tank to use the air source kit as a tire inflator
- Follow the wiring diagram in the instructions or visit our website for the schematic
Features
| Item Weight | 28 |
| Lubrication Type | Oil Free |
| Decibel Rating (Outdoor) | Not Measured |
| Horsepower (hp) | 0 hp |
| Voltage (v) | 12v |
| Product Weight (lb.) | 28 |
| Compressor Volume Rating | Not Measured |
| Power Type | Corded Electric |
| Amperage (amps) | 23 |
| Voltage (volts) | 12 |
| Maximum Pressure (psi) | 200 |
| Included | No additional components or accessories are included |
| Air Delivery SCFM @ 40PSI | 1.4 |
| Tools Product Type | Air Compressor Kit |
| Compressor/Air Tool Features | Oil Free Compressor |
| Compressor Tank Capacity (Gal.) | 2 Gal. |
| Compressor Tank Capacity (Gallons) | 2 |
| Portable | No |
| Tank Style | Hot Dog |
| Application Use | Inflation |
| Returnable | 180-Day |
| Air Delivery SCFM @ 90PSI | 1.1 |
| Compressor Type | Garage & Industrial |
| Tank Material | Steel |
| Power Source | Electric |
| Stage Count | Single Stage |
| Product Depth (in.) | 23 |
| Product Height (in.) | 9 |
| Product Width (in.) | 16 |
| Manufacturer Warranty | VIAIR One Year Manufacturer's defect warranty with proof of purchase. |
| Certifications and Listings | No Certifications or Listings |
