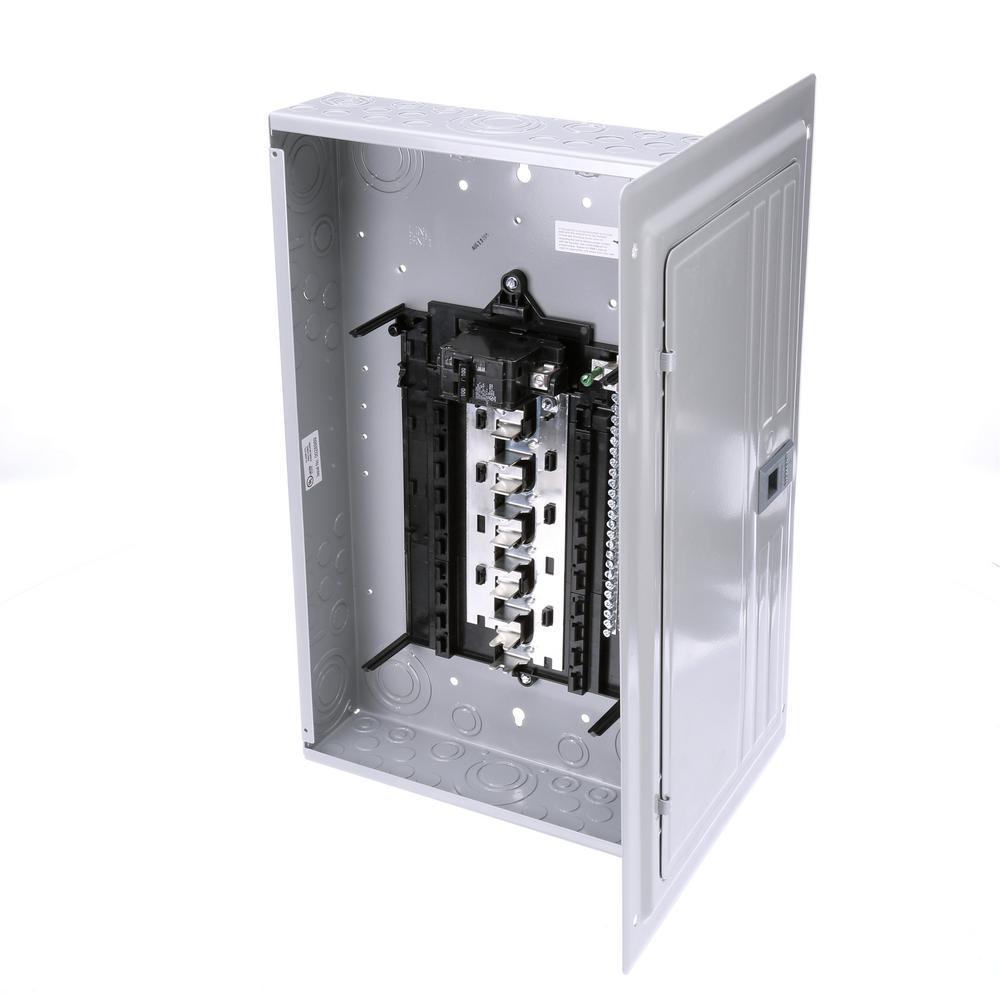

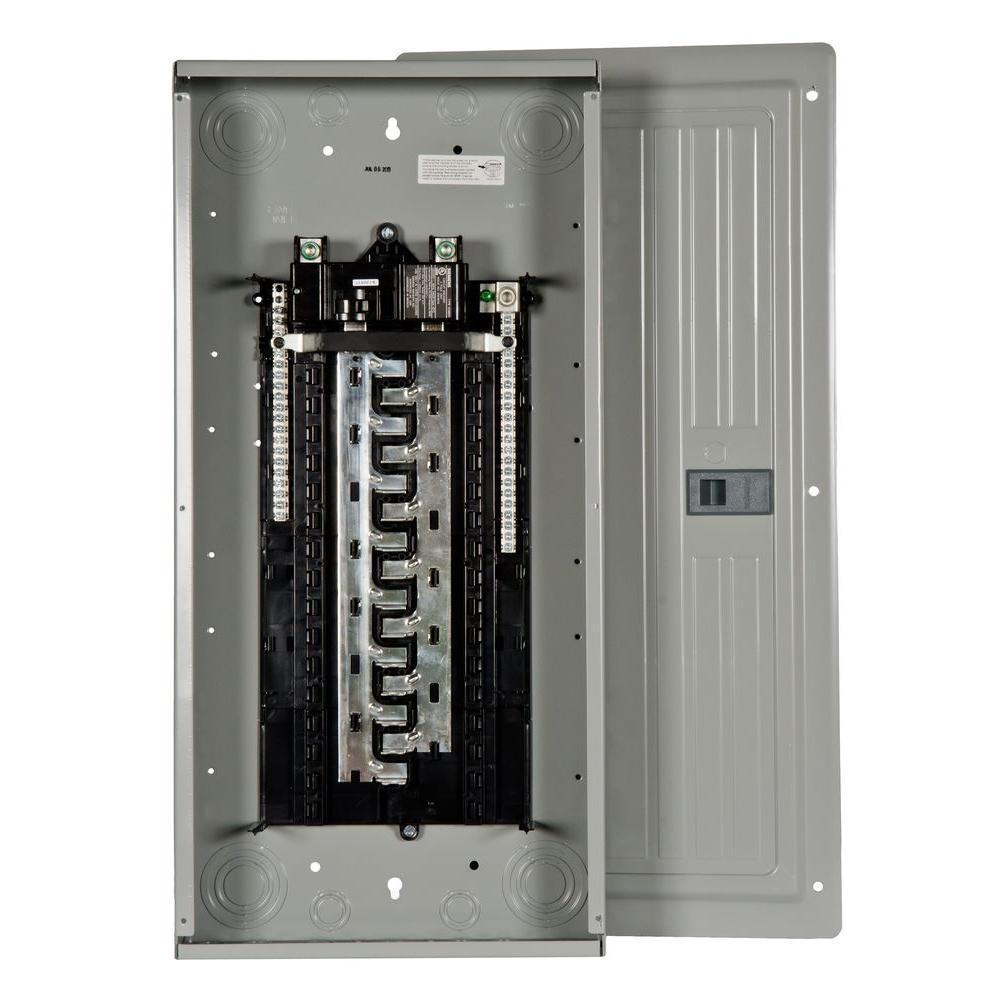

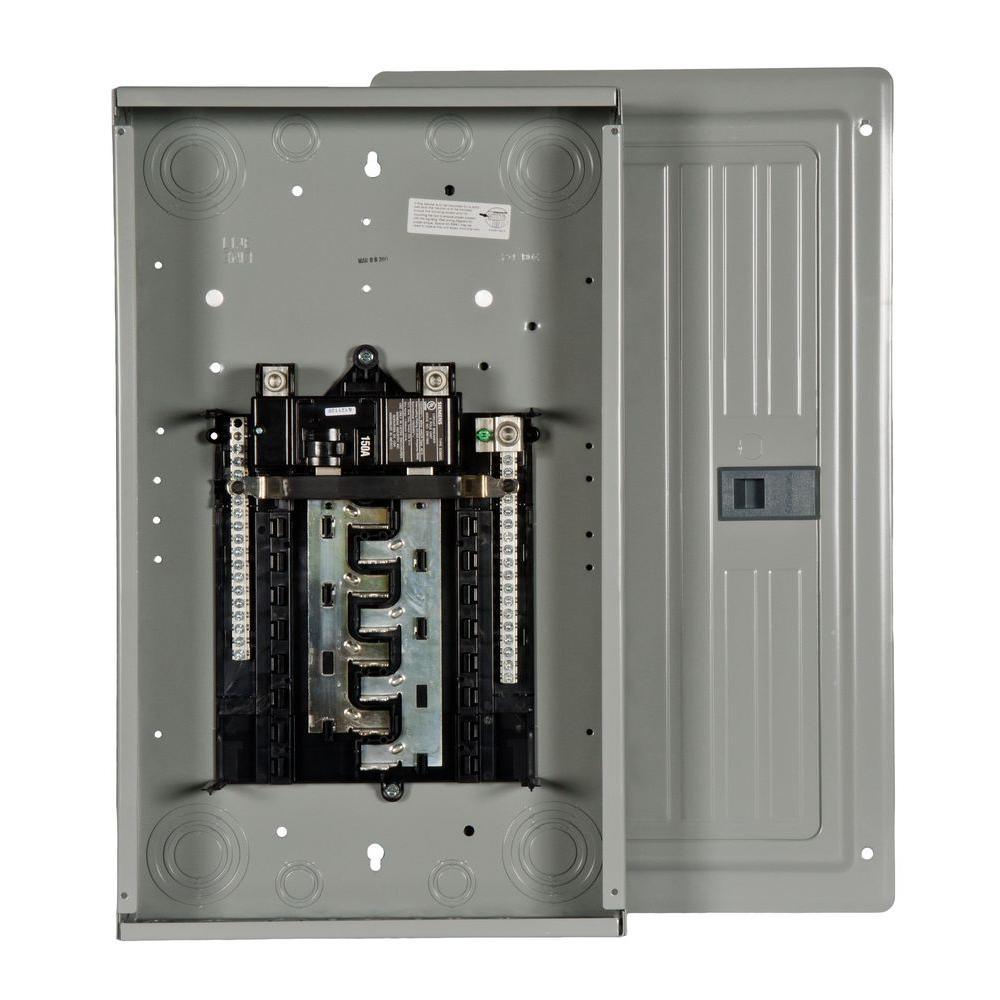

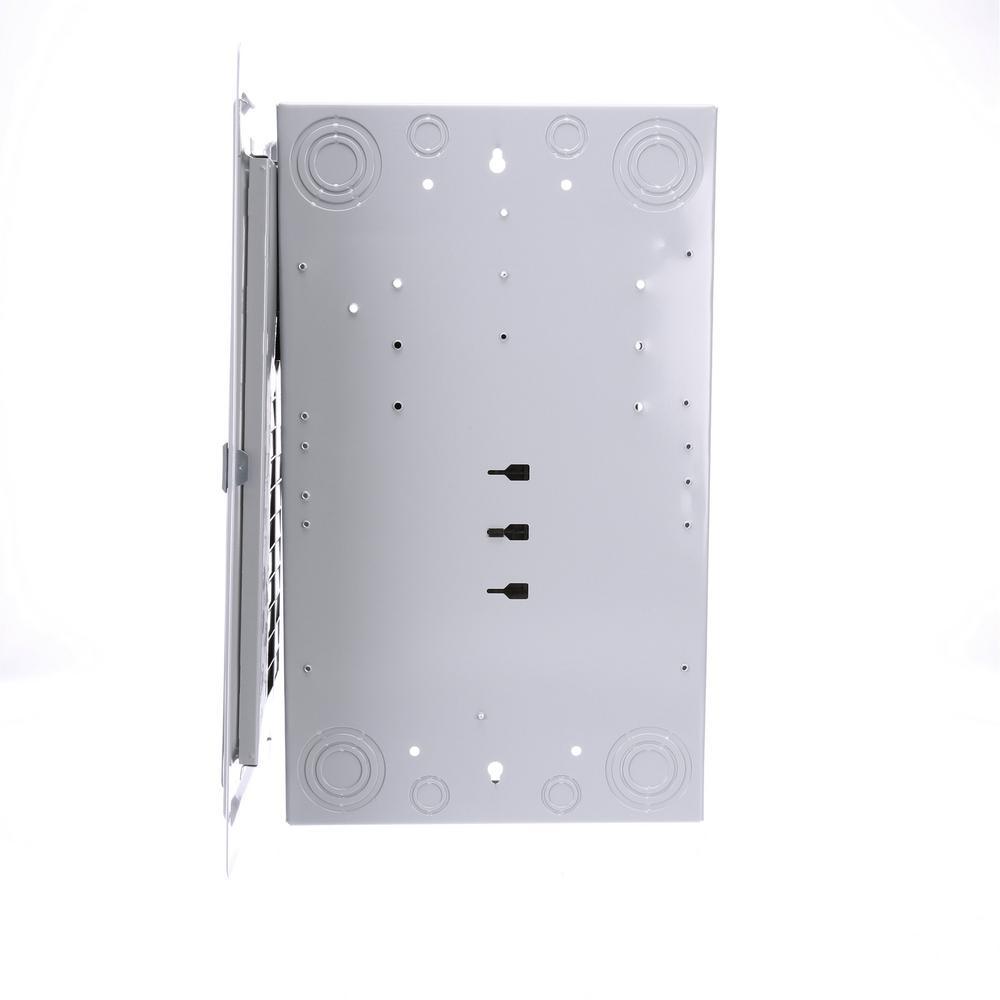

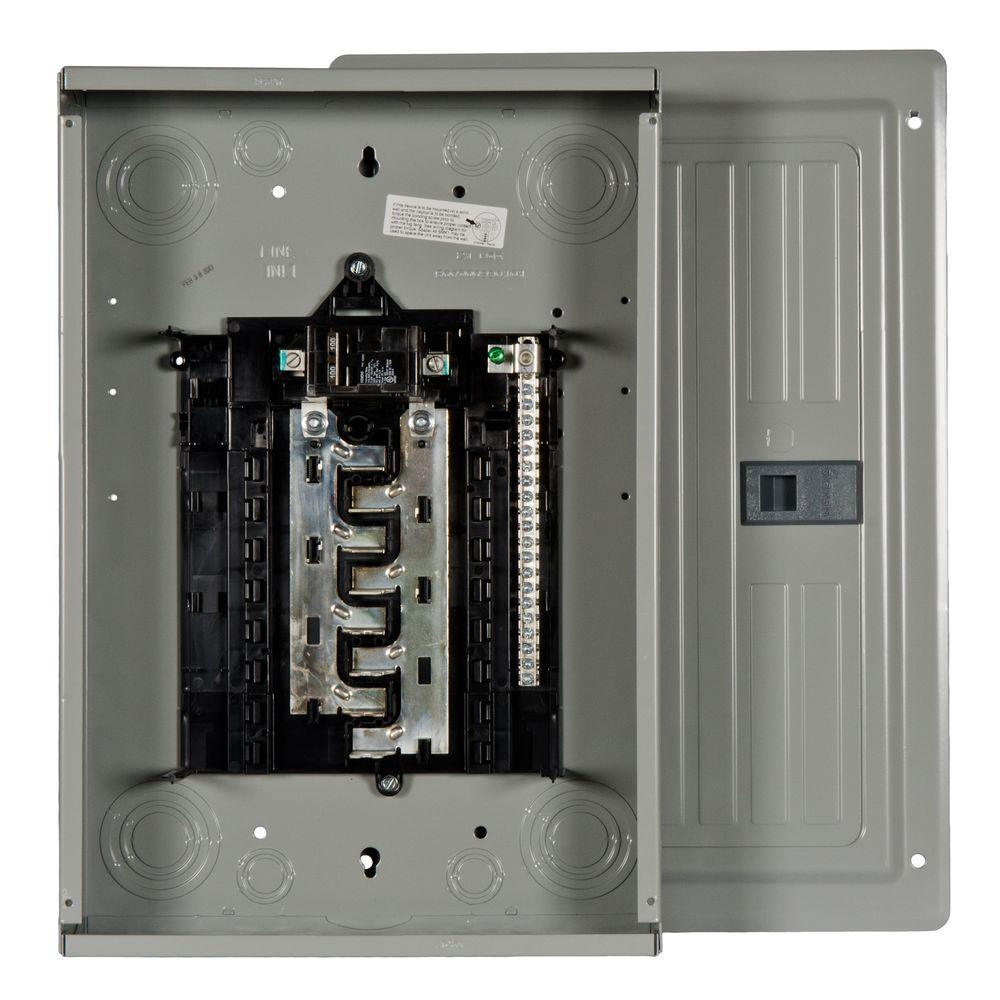

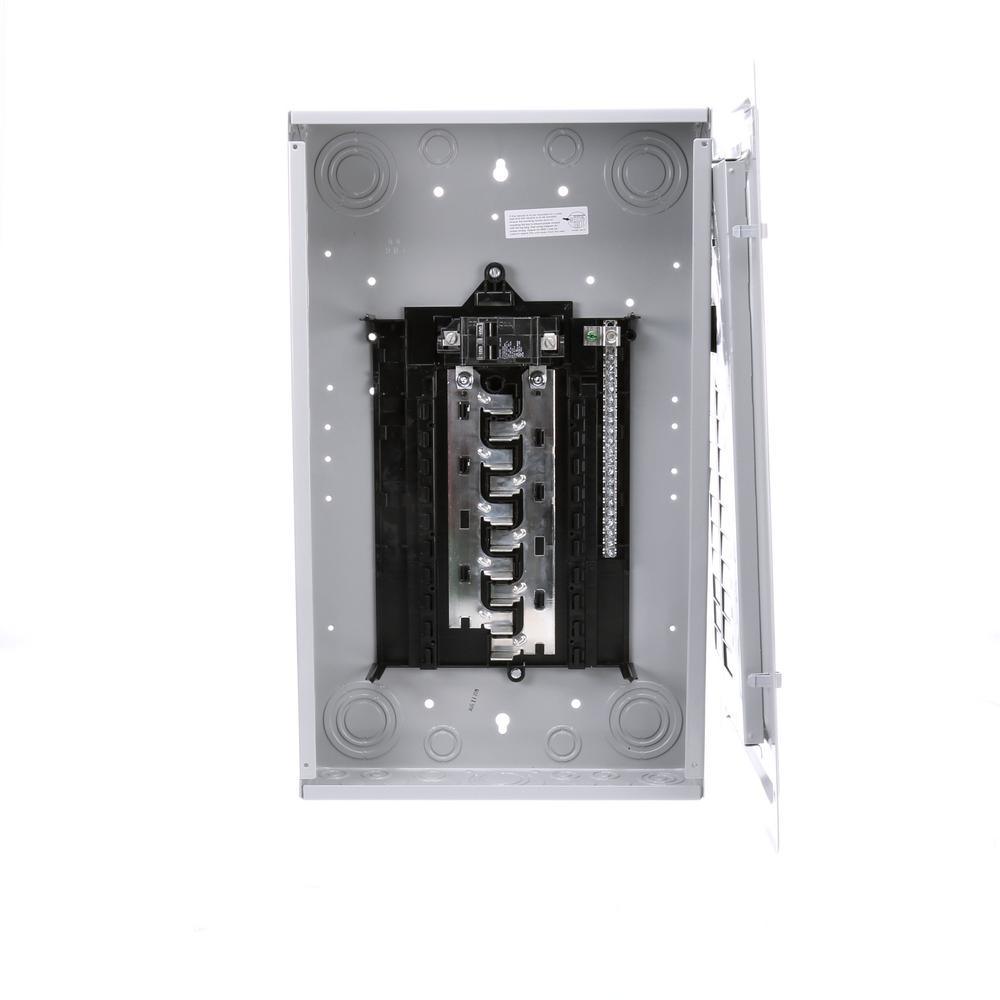

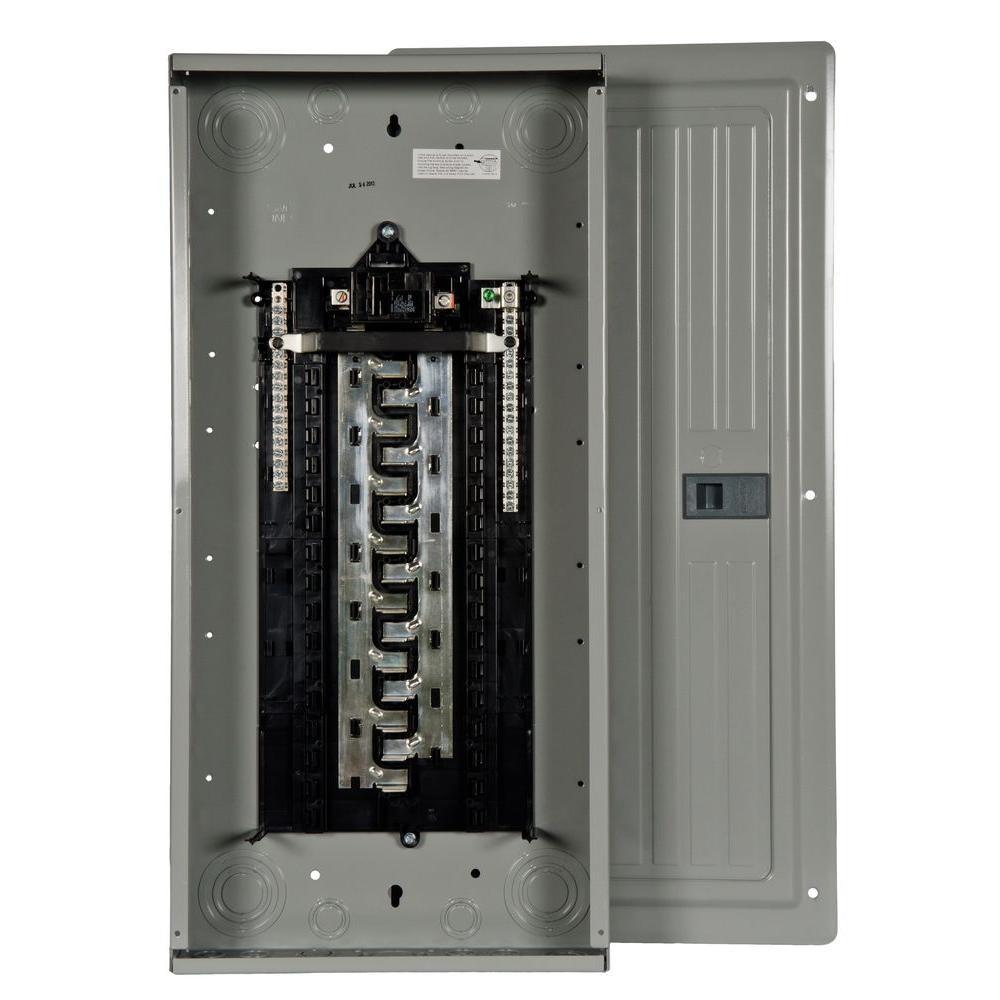

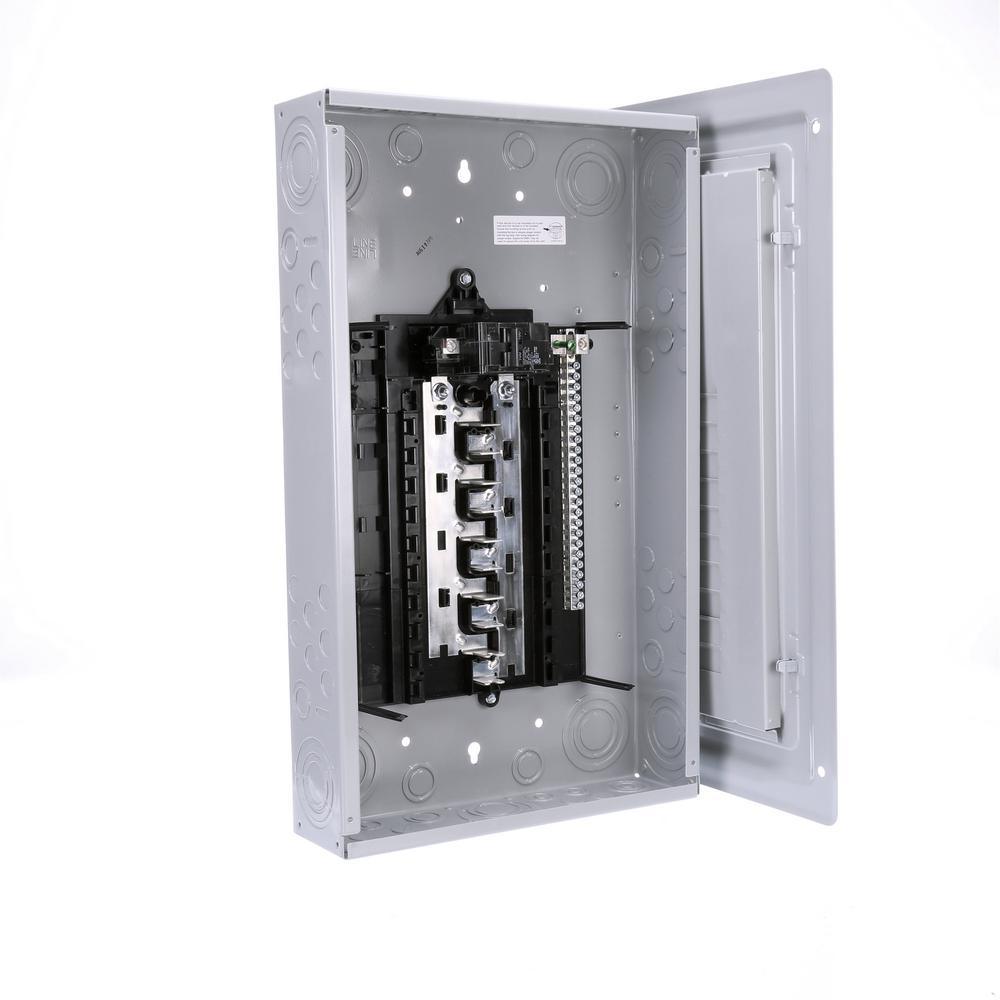

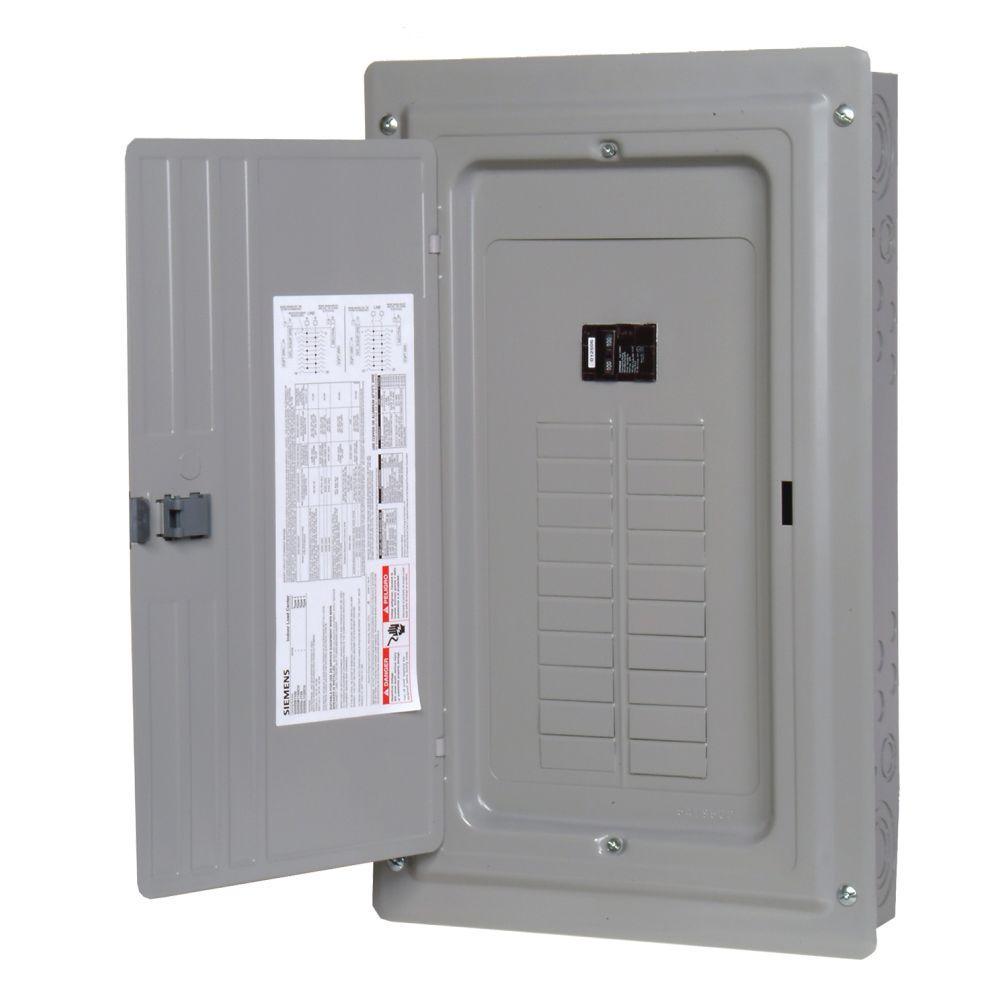

ES Series 100 Amp 20-Space 24-Circuit Main Breaker Indoor Load Center

$72.93

Published price — same for everyone

Gone — not just here.

Substitutes below — from the same aisle.

SKU 205862798

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
  • Single phase, 120/240-Volt, 100 Amp main breaker load center with 20-spaces/24-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Single side inboard neutral

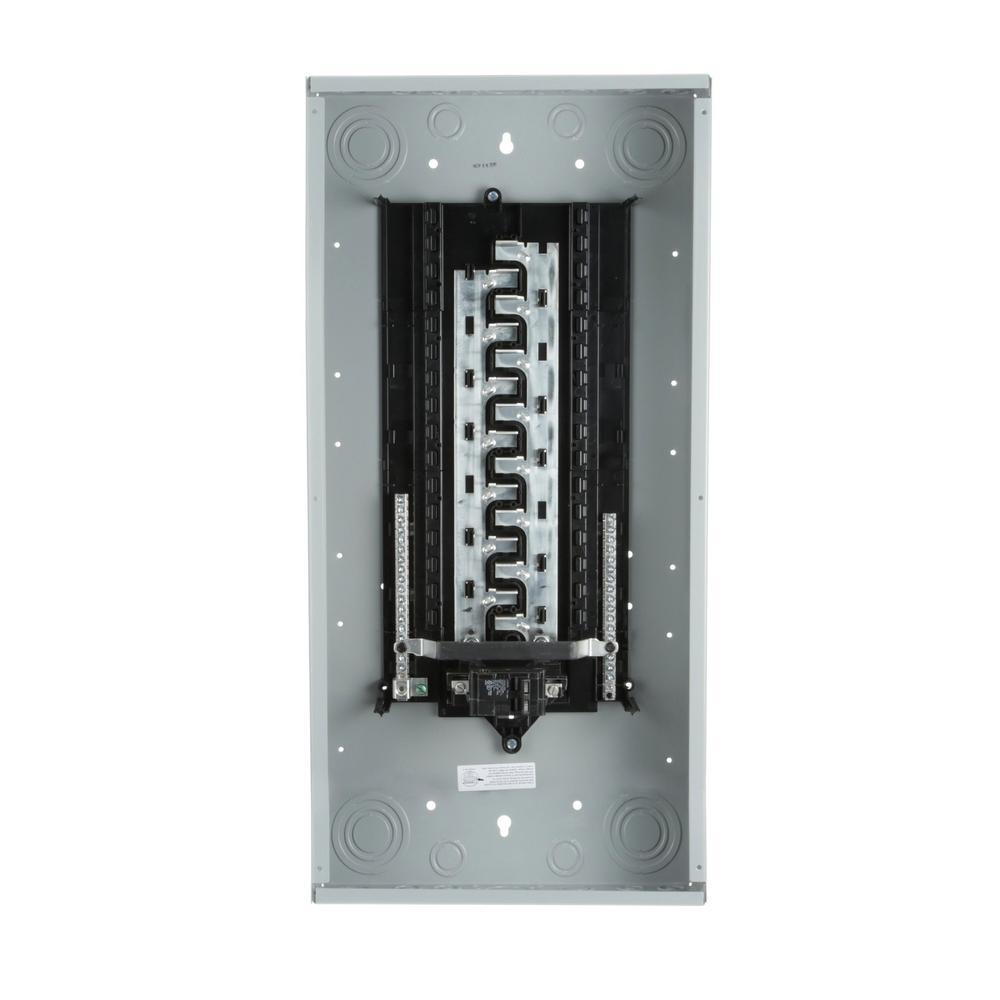

  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa

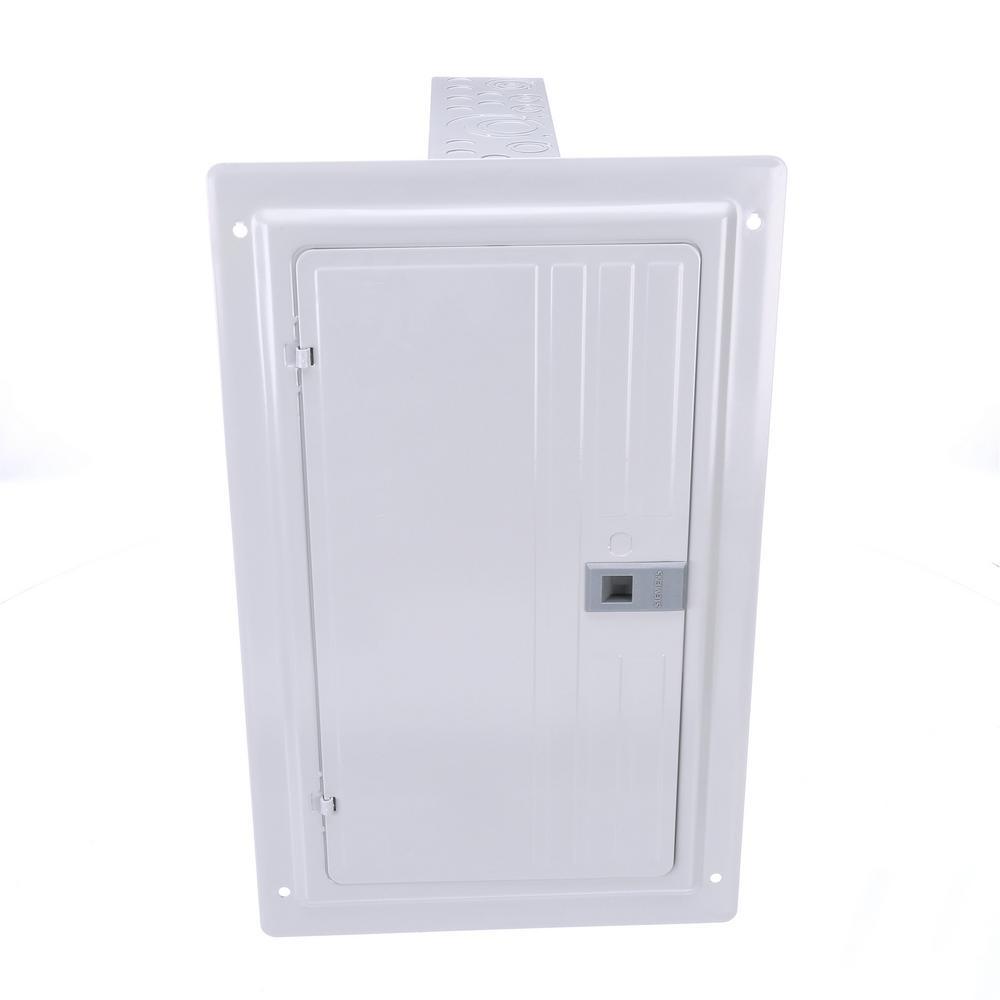

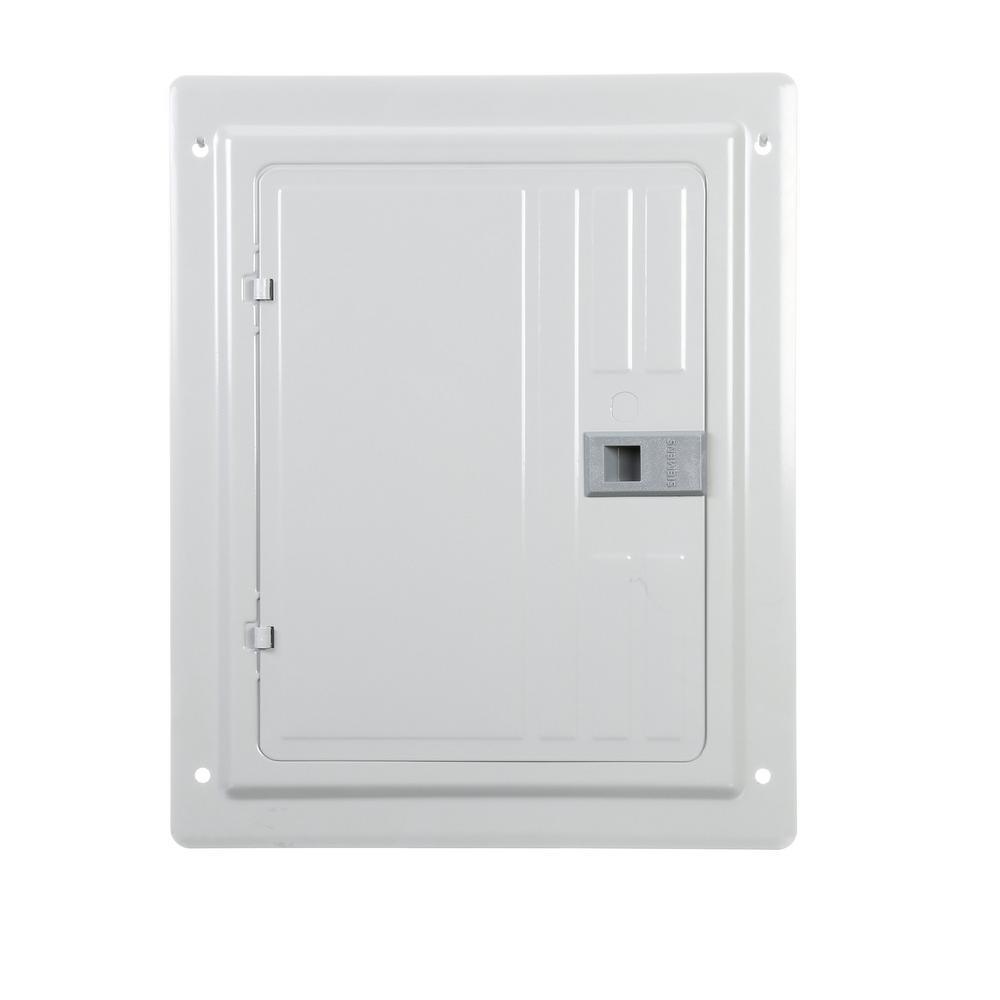

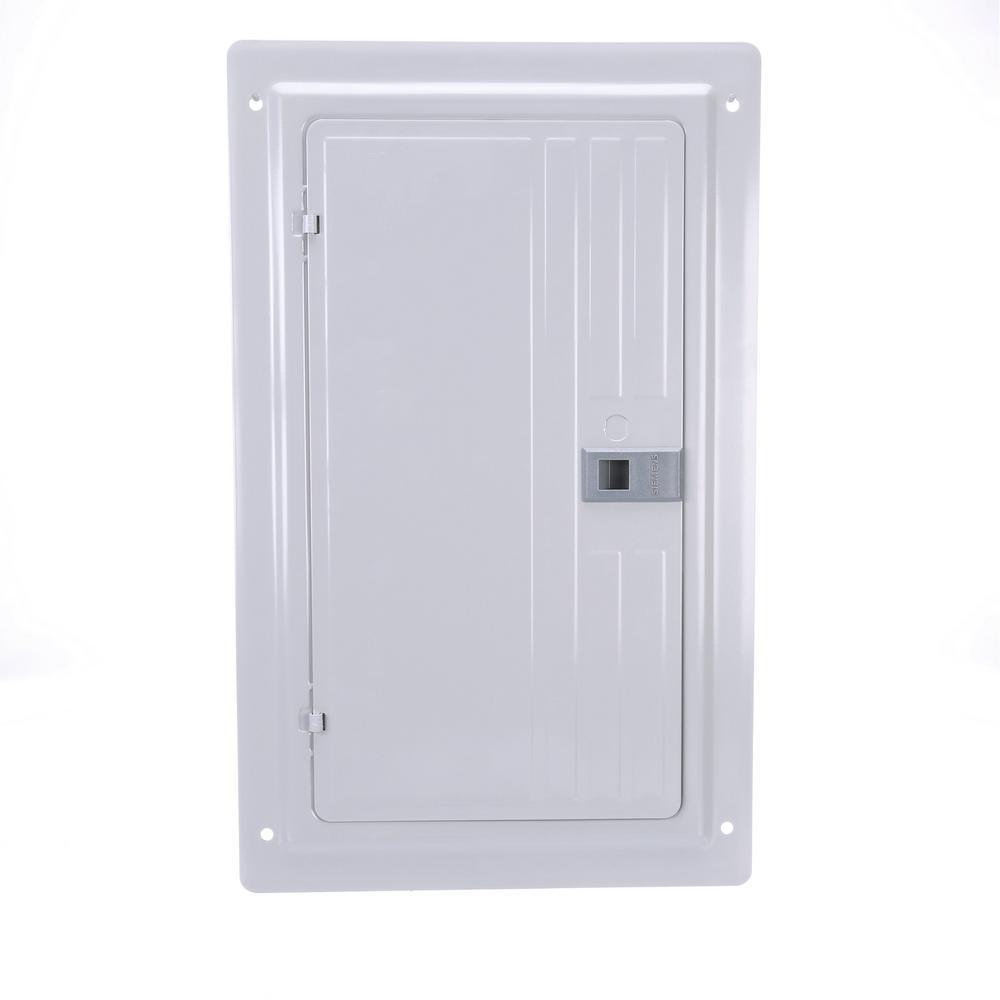

  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies and reduce the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • ES Series Single Phase load centers are being phased out, and replaced by the new SN Series Plug-On Neutral load centers, S2024B1100 equivalent is the new SN2040B1100


Features
Item Weight 30
Maximum Amperage (amps) 100
Number of Spaces 20
Mounting Type Bolt On
Product Weight (lb.) 30
Load Center Mounting Type Flush,Surface
Voltage (volts) 120/240
Load Center Type Main Breaker
Electrical Product Type Load Center
Indoor/Outdoor Indoor
Returnable 180-Day
Phase Type 1 Phase
Number of Circuits 24
Load center depth (in.) 5
Load center width (in.) 15.875
Load center height (in.) 28.5
Certifications and Listings UL Listed
Manufacturer Warranty 10 Year
