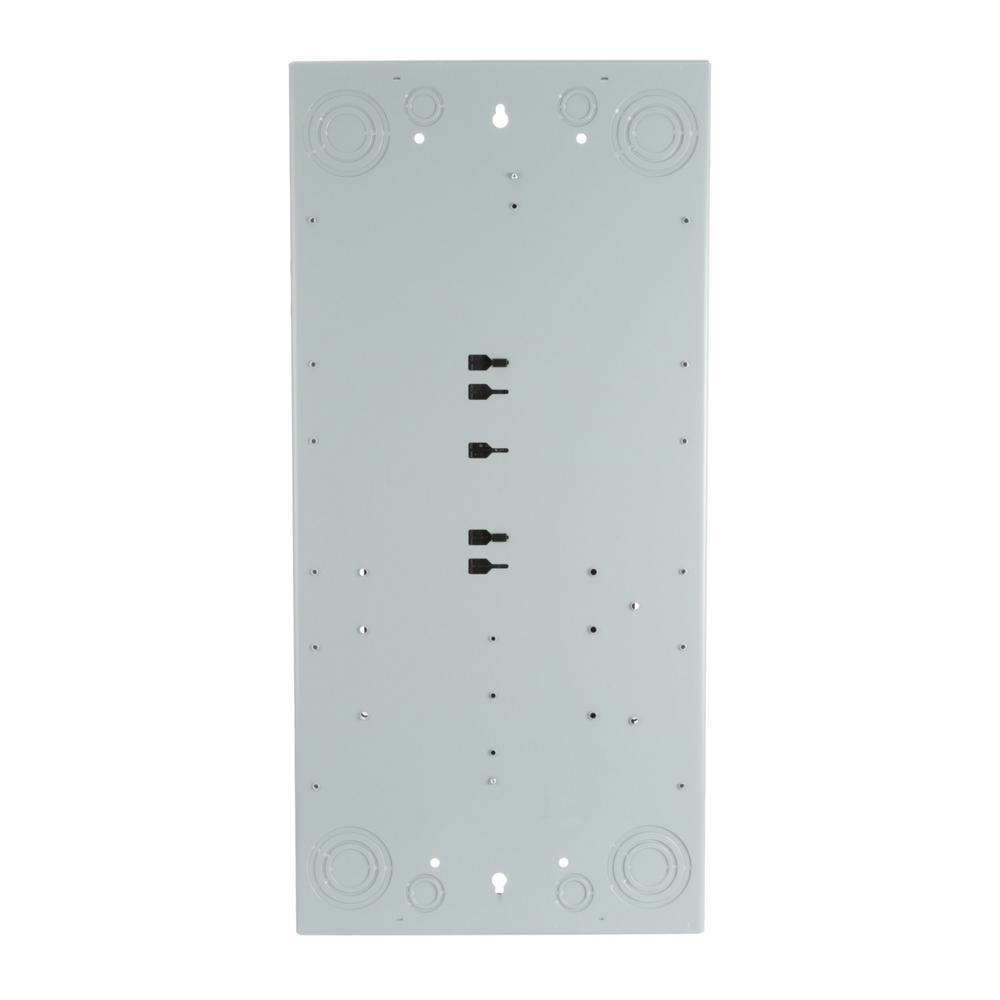

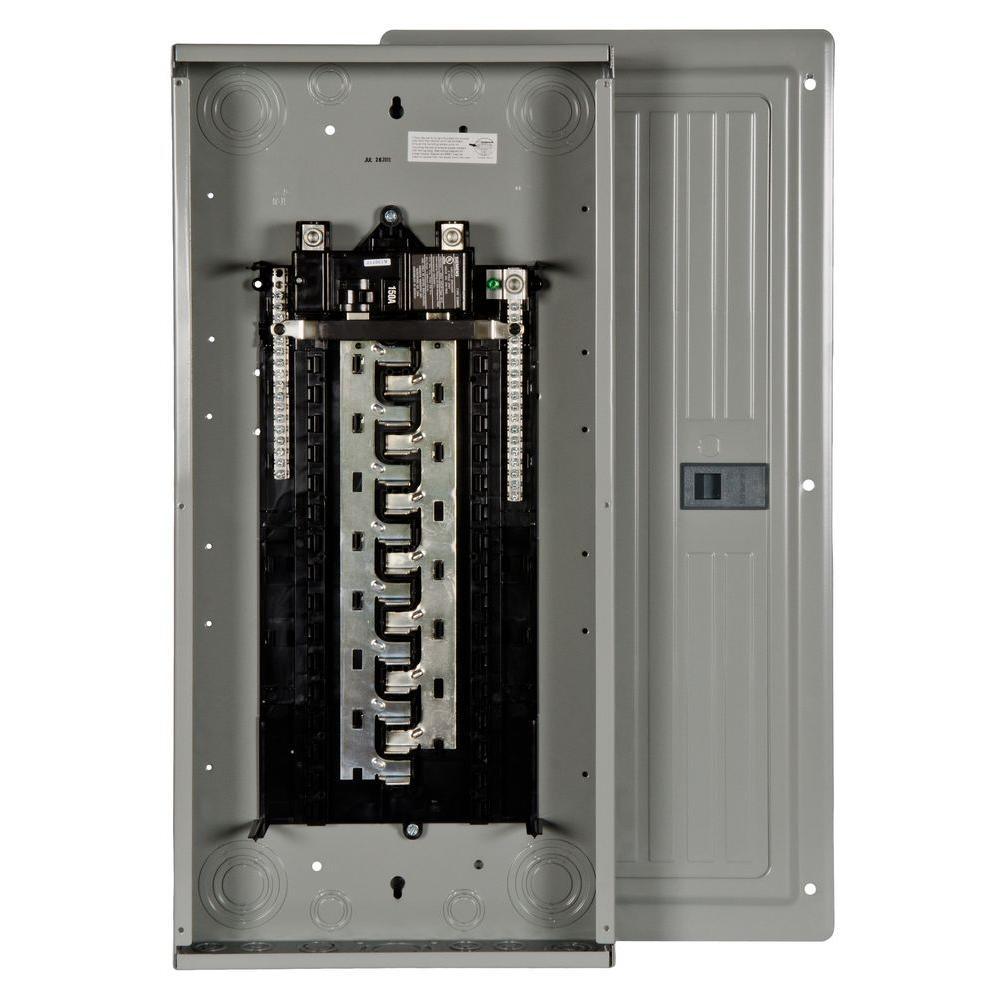

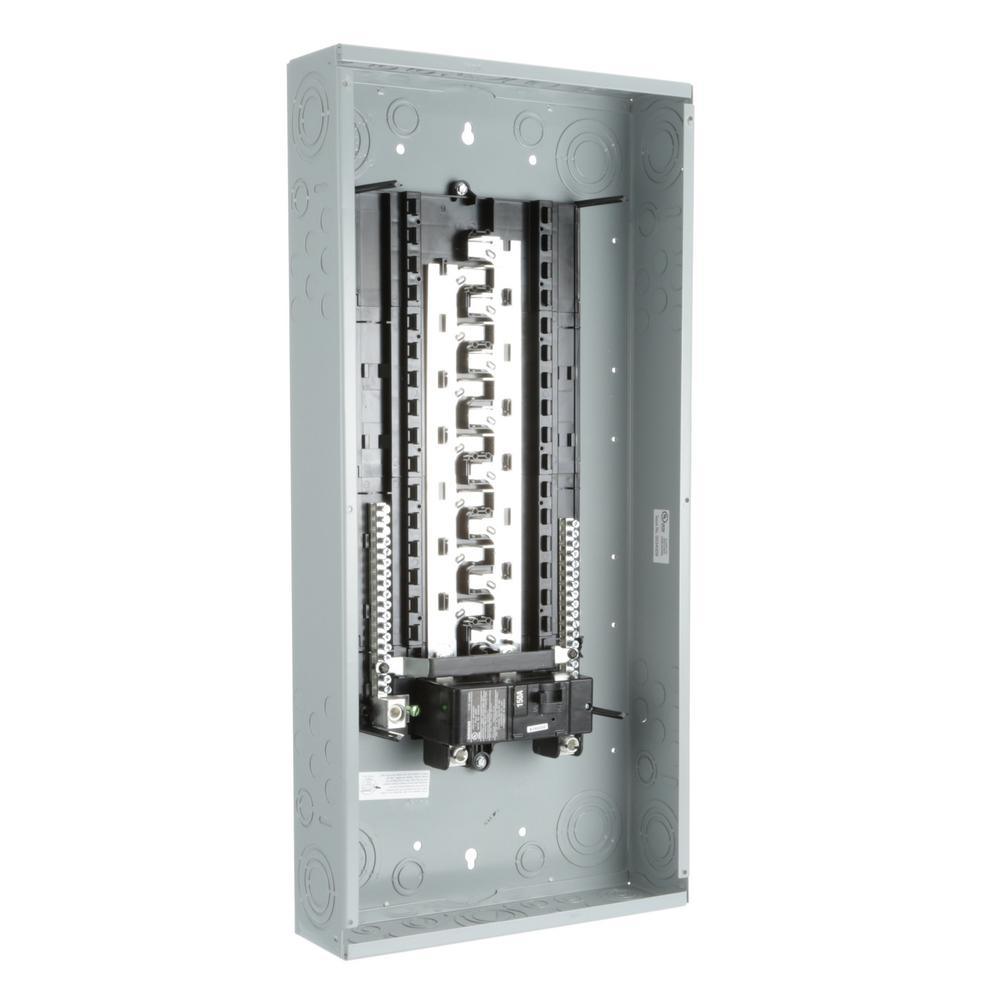

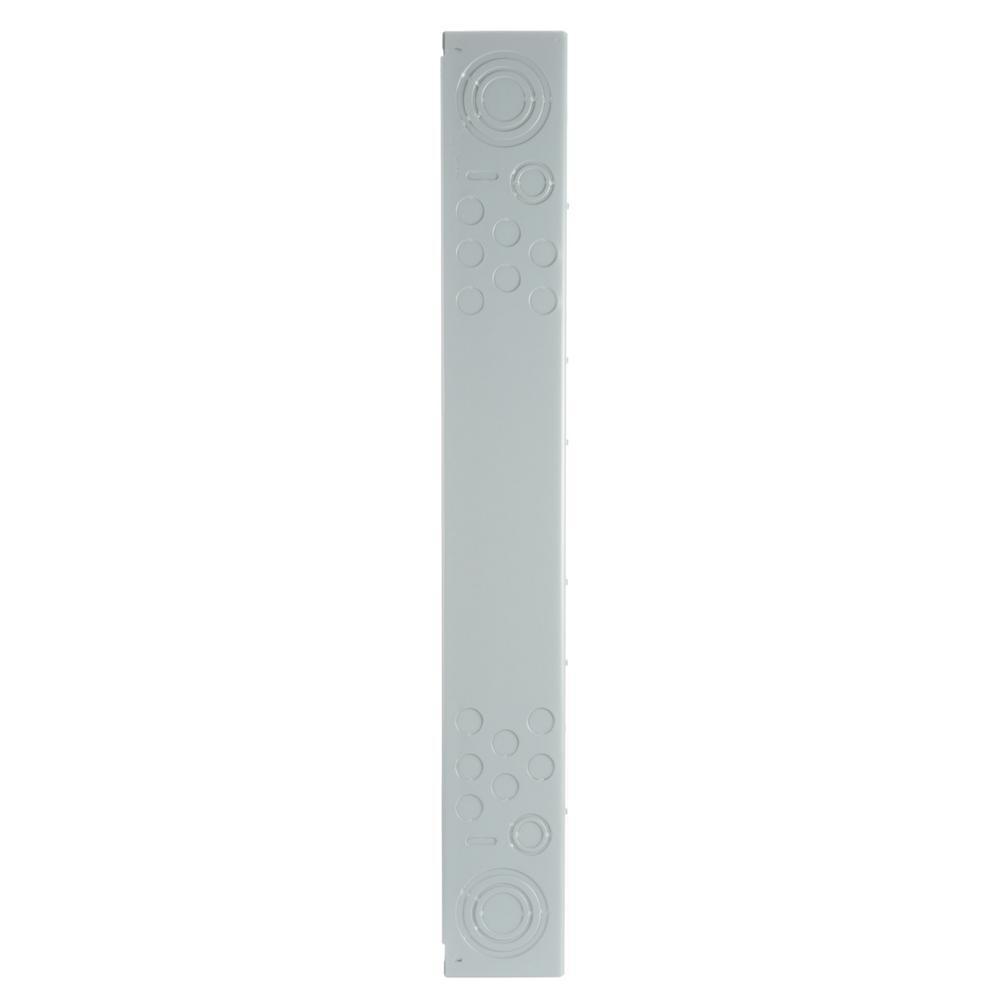

ES Series 150 Amp 30-Space 30-Circuit Main Breaker Load Center
Regular price $0.00/
Shipping calculated at checkout.
The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
Features
- A single phase, 120/240-Volt, 150-Amp main breaker load center with 30-spaces/30-circuits
- Aluminum bus
- Ground bar field installed
- Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- Dual side inboard neutral
- Invertible for bottom feed application
- All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
- Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
- Rigid, sturdy base pan provides ruggedness required for harsh applications
- NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
- ES Series Single Phase load centers are being phased out, and replaced by the new SN Series Plug-On Neutral load centers, S3030B1150 equivalent is the new SN3030B1150
Features
| Item Weight | 31 |
| Voltage (volts) | 120 |
| Mounting Type | Bolt On |
| Load Center Mounting Type | Flush,Surface |
| Number of Spaces | 30 |
| Load Center Type | Main Breaker |
| Electrical Product Type | Load Center |
| Number of Circuits | 30 |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 150 |
| Product Weight (lb.) | 31 |
| Load center depth (in.) | 5 |
| Load center width (in.) | 15.875 |
| Load center height (in.) | 34.5 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Year |
