Schneider Electric

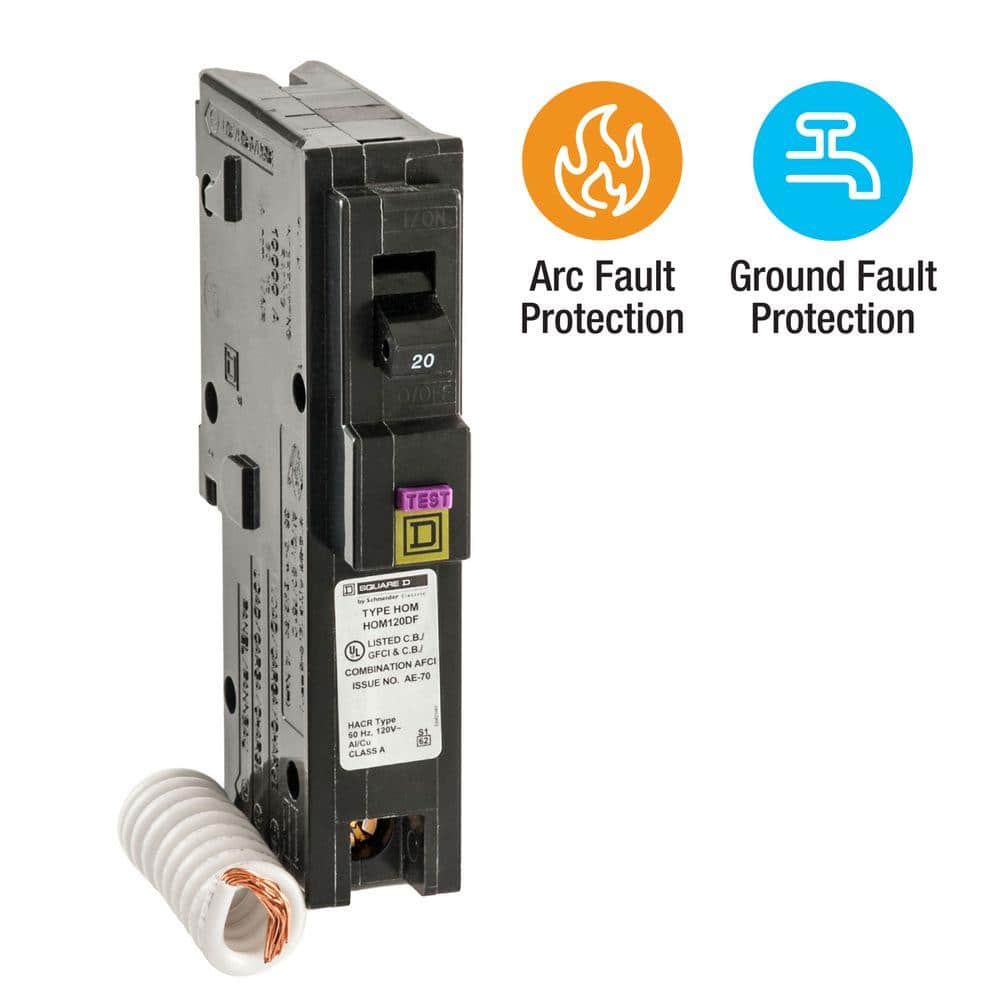

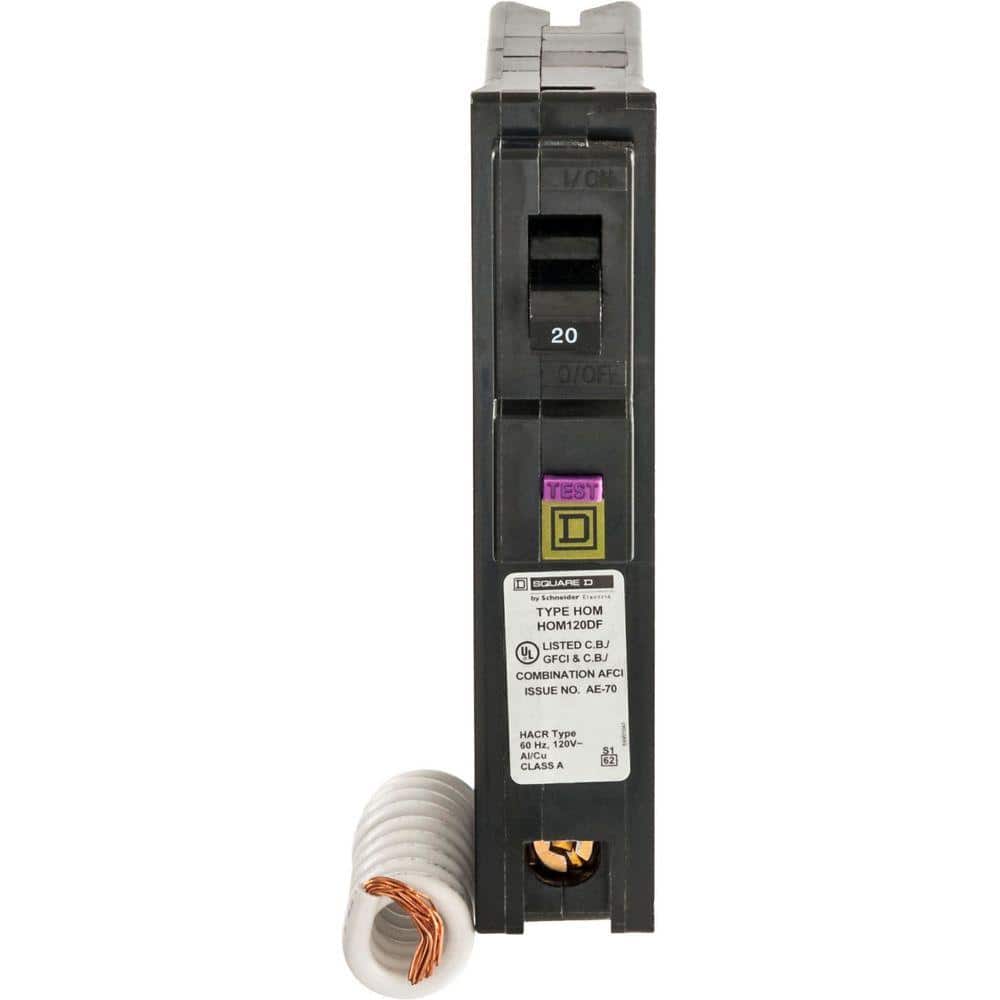

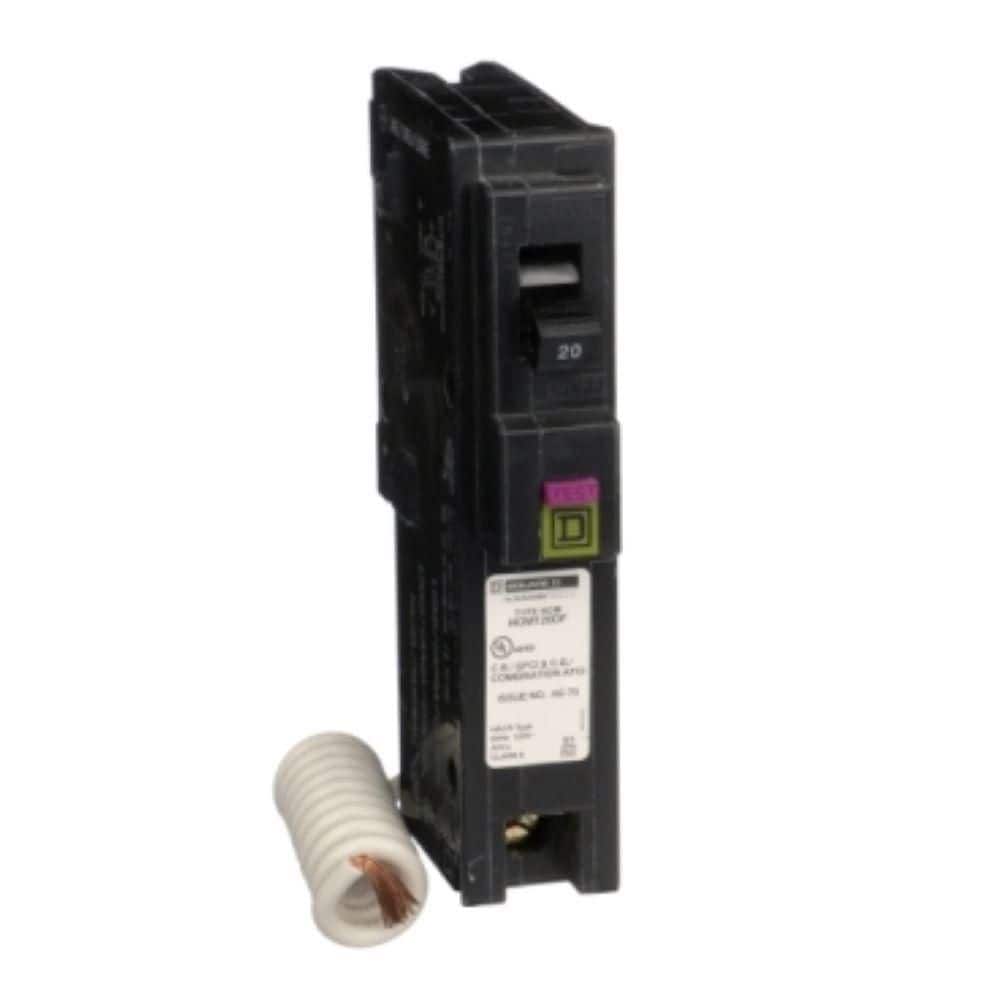

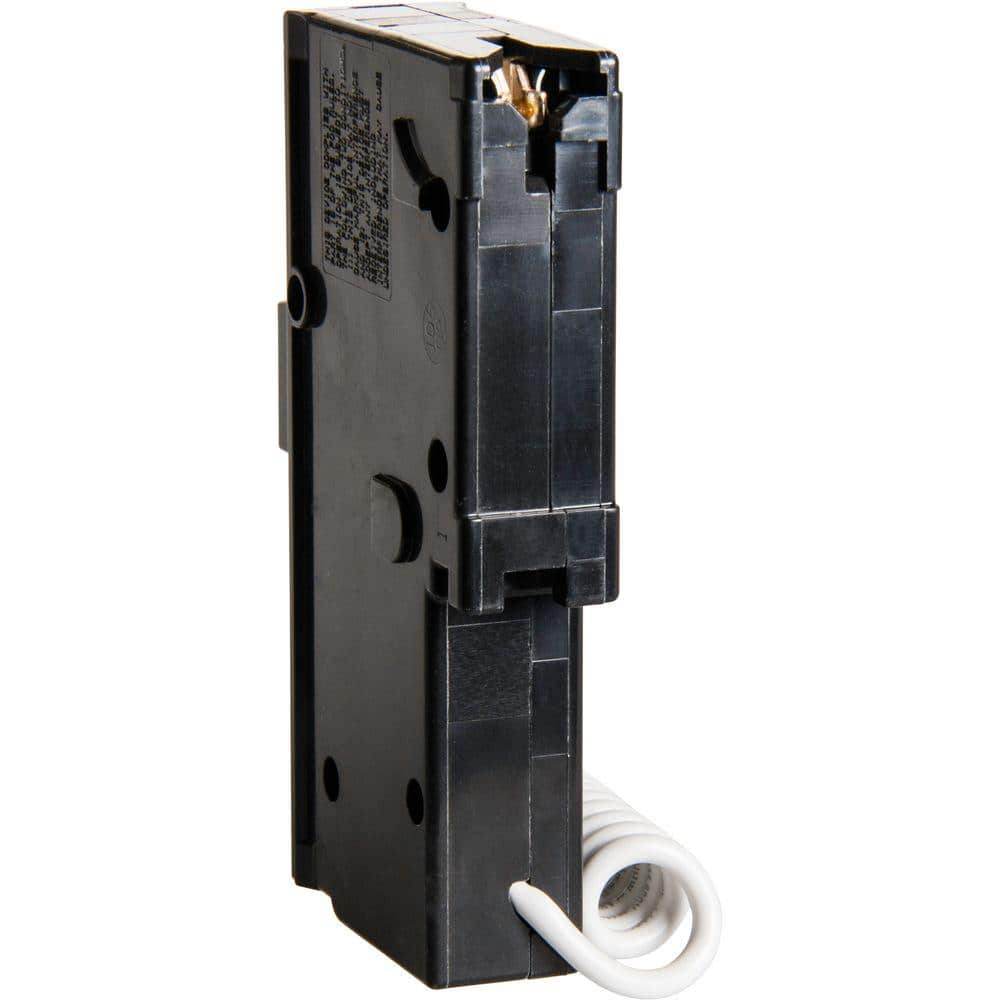

Square D Homeline 20 Amp Single-Pole Dual Function CAFCI/GFCI Circuit Breaker, HOM120DFC
Published price — same for everyone
Out of stock — available on backorder
SKU HOM120DFC
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20A Homeline Single-Pole Dual Function CAFCI/GFCI Breaker

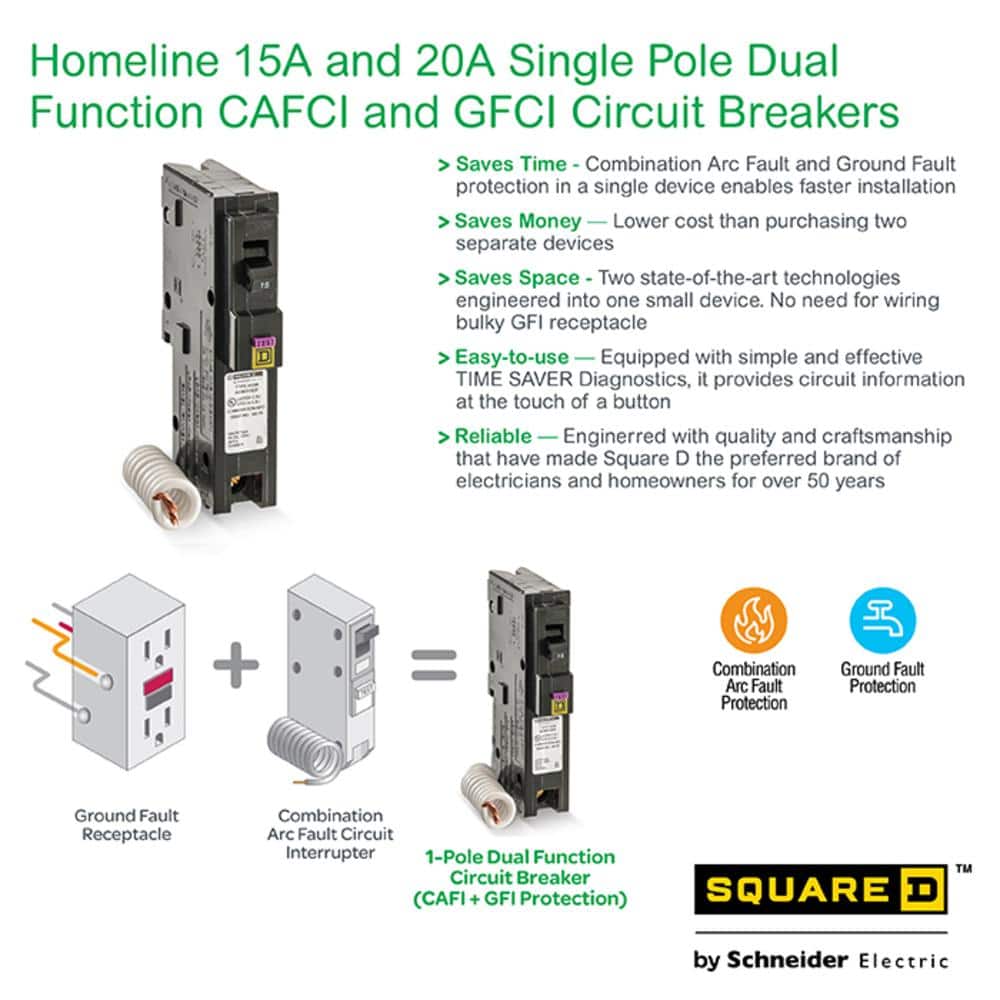

This Square D Homeline 20A single-pole circuit breaker combines Combination Arc Fault (CAFCI) and Ground Fault (GFCI Class A) protection in one plug-on device. Engineered for Homeline load centers, it saves space and simplifies installations while meeting current NEC requirements.
Key Features:
- Dual Protection: Integrates CAFCI and GFCI Class A to guard against arc faults and ground faults
- Time Saver Diagnostics: Built-in diagnostics streamline troubleshooting at the touch of a button
- Homeline Compatibility: Designed for Square D Homeline panels and CSEDs; requires 1 space
- Compact, Plug-On Design: Easy installation with included pigtail neutral lead
- UL Listed Reliability: 10kA interrupt rating with electronic trip unit for dependable performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Maximum Amperage | 20A |
| Number of Poles | Single |
| Mounting Type | Plug-On |
| Interruption Type | CAFCI/GFCI |
| Trip Unit | Electronic |
| AIC Rating | 10,000 AIR |
| Voltage | 120/240 VAC |
| Connection Type | Non-Neutral (with pigtail neutral lead) |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Certifications | UL Listed; ANSI certified |

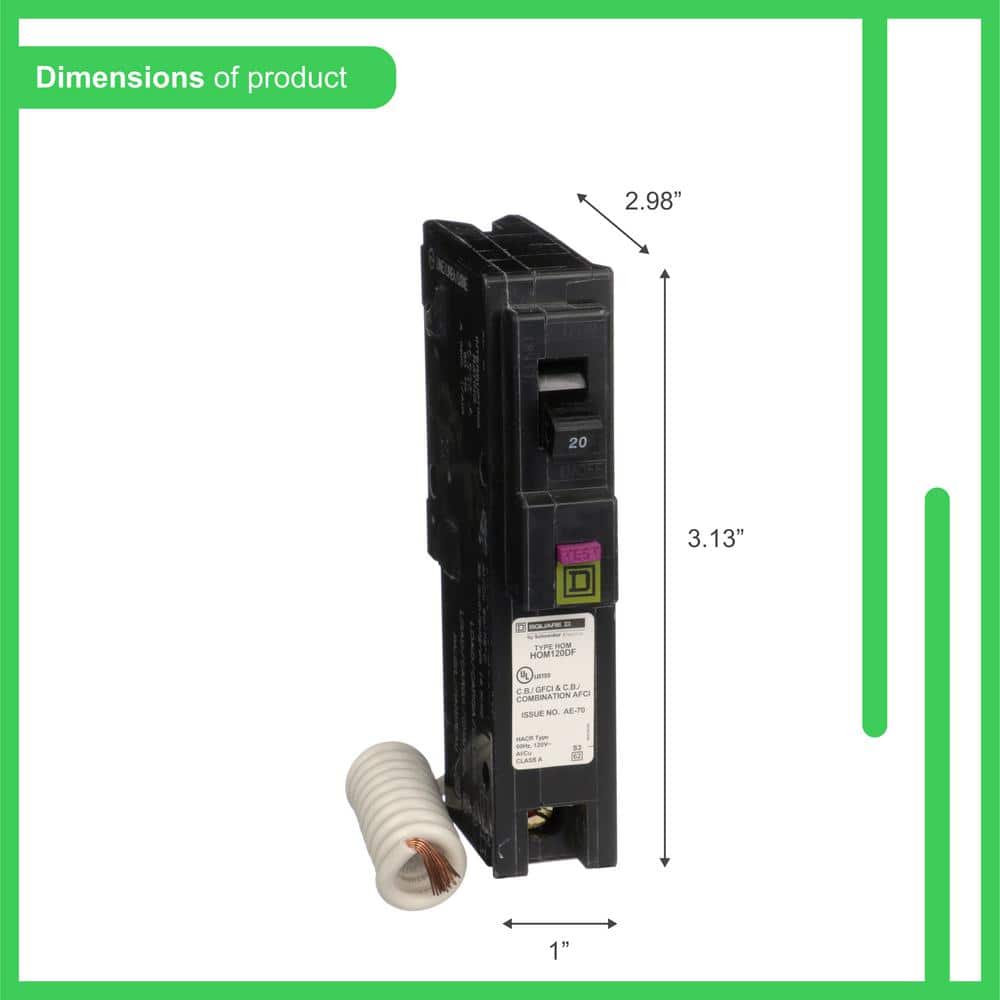

| Product Height | 3.13 in |
| Product Depth | 2.98 in |
| Product Width | 1 in |
| Product Weight | 0.28 lb |
| Manufacturer Warranty | Lifetime of the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: Does this breaker fit my panel?
A: It is compatible with Square D Homeline load centers and CSEDs that accept single-pole breakers and have one available space.
Q: What type of protection does it provide?
A: It provides Combination Arc Fault (CAFCI) and Ground Fault (GFCI Class A) protection in one breaker.
Q: What is the interrupt rating?
A: 10,000 AIR (10kA).
Q: What voltage and amperage is it rated for?
A: 20 amps, 120/240 VAC single-pole application.
Q: Is there a warranty?
A: Square D warrants Homeline branch circuit breakers for the lifetime of the Homeline load center in which they are installed.
Smart Safety, Minimal Footprint
This streamlined breaker brings advanced protection into the home with elegant simplicity. Its dual-function technology eliminates clutter, replacing multiple devices with one refined component. Pair it with a clean Homeline panel layout to keep mechanical rooms neat and efficient. A discreet powerhouse, it’s an essential detail in creating a home that feels secure and luxuriously well appointed.
Upgrade your panel with dual CAFCI/GFCI protection—choose the HOM120DFC for safer, simpler installations today.
