Schneider Electric

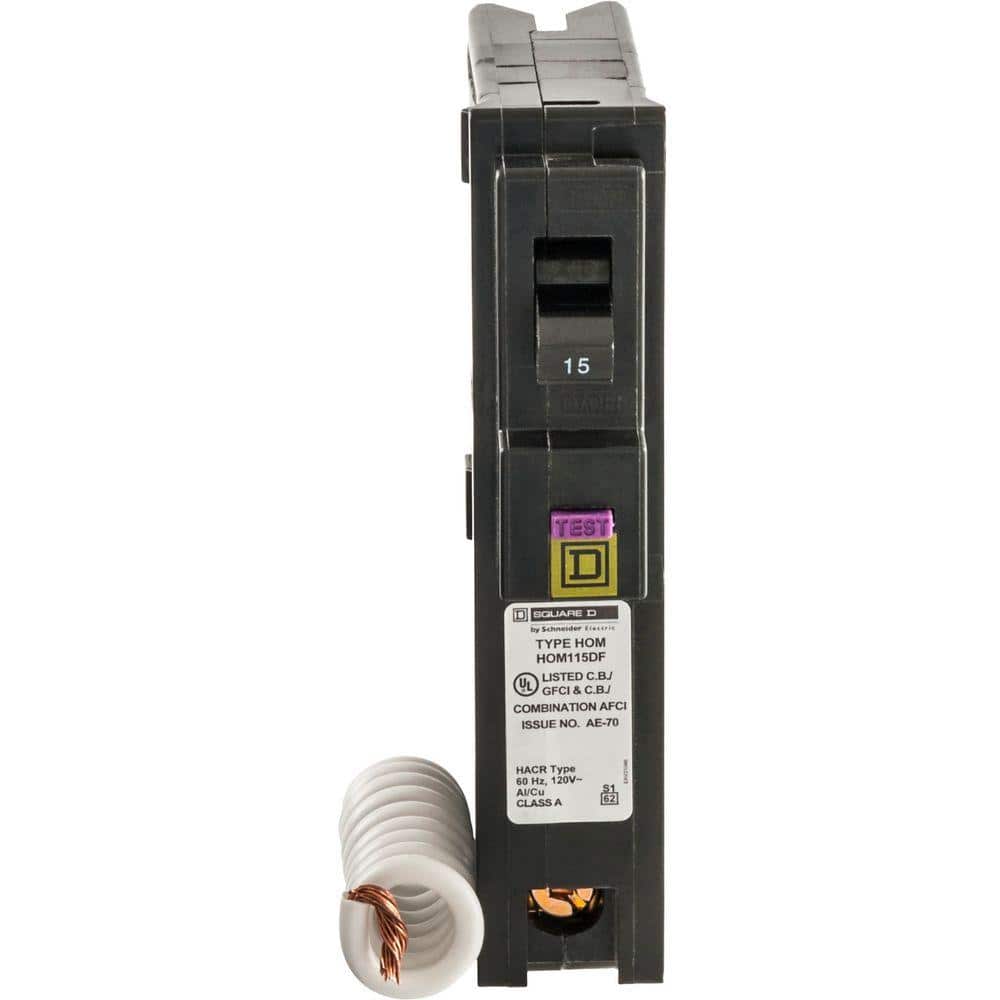

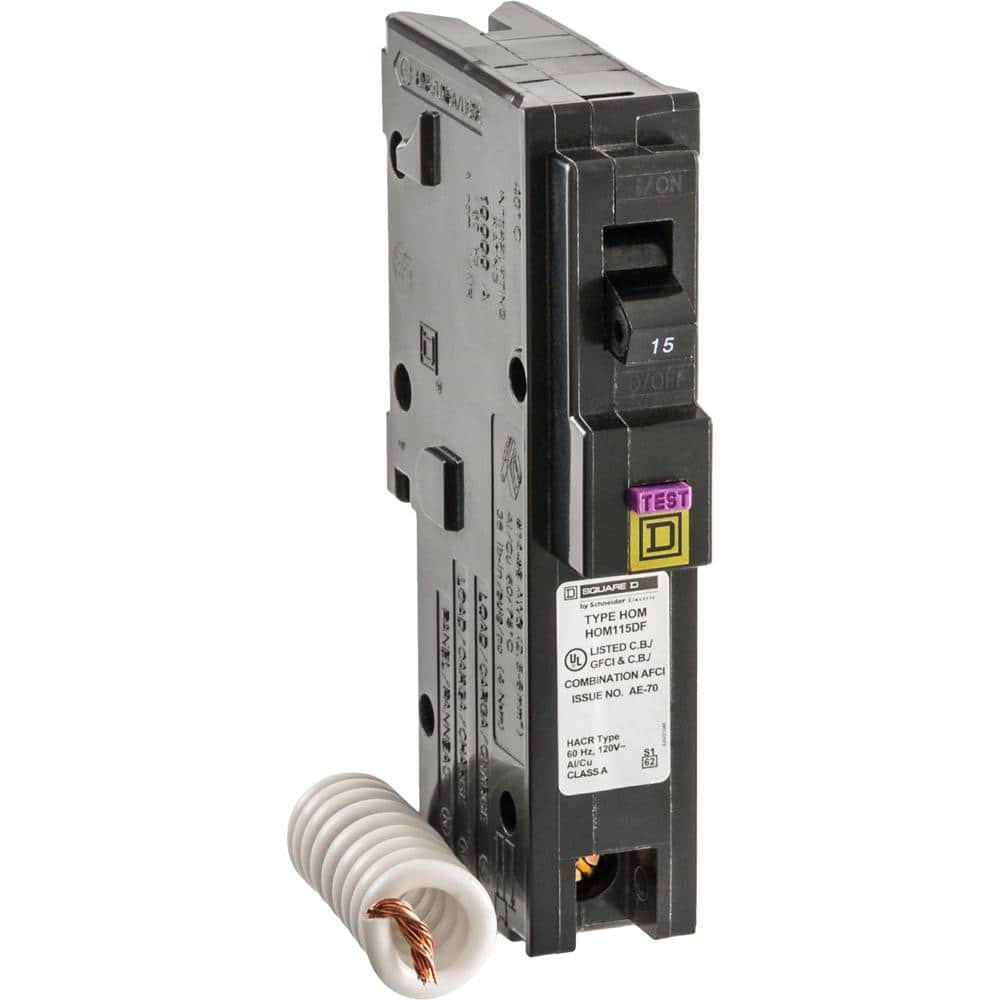

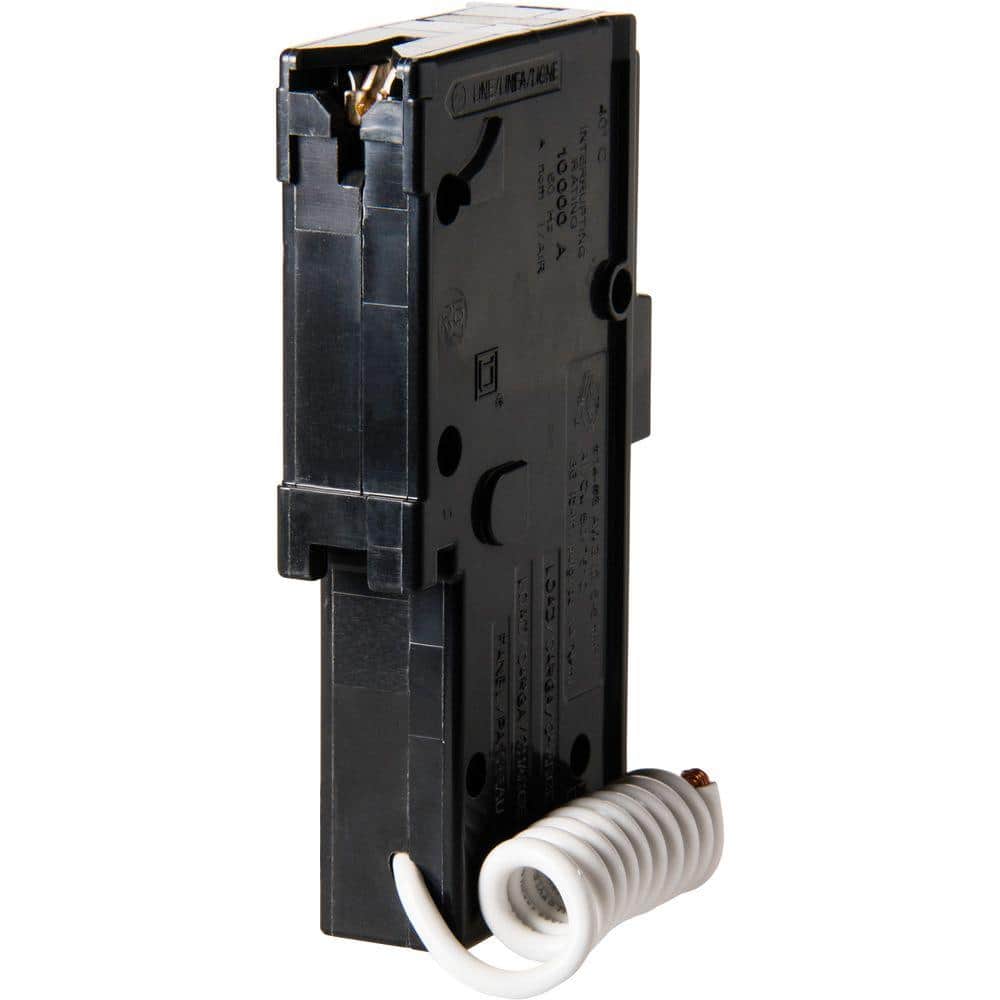

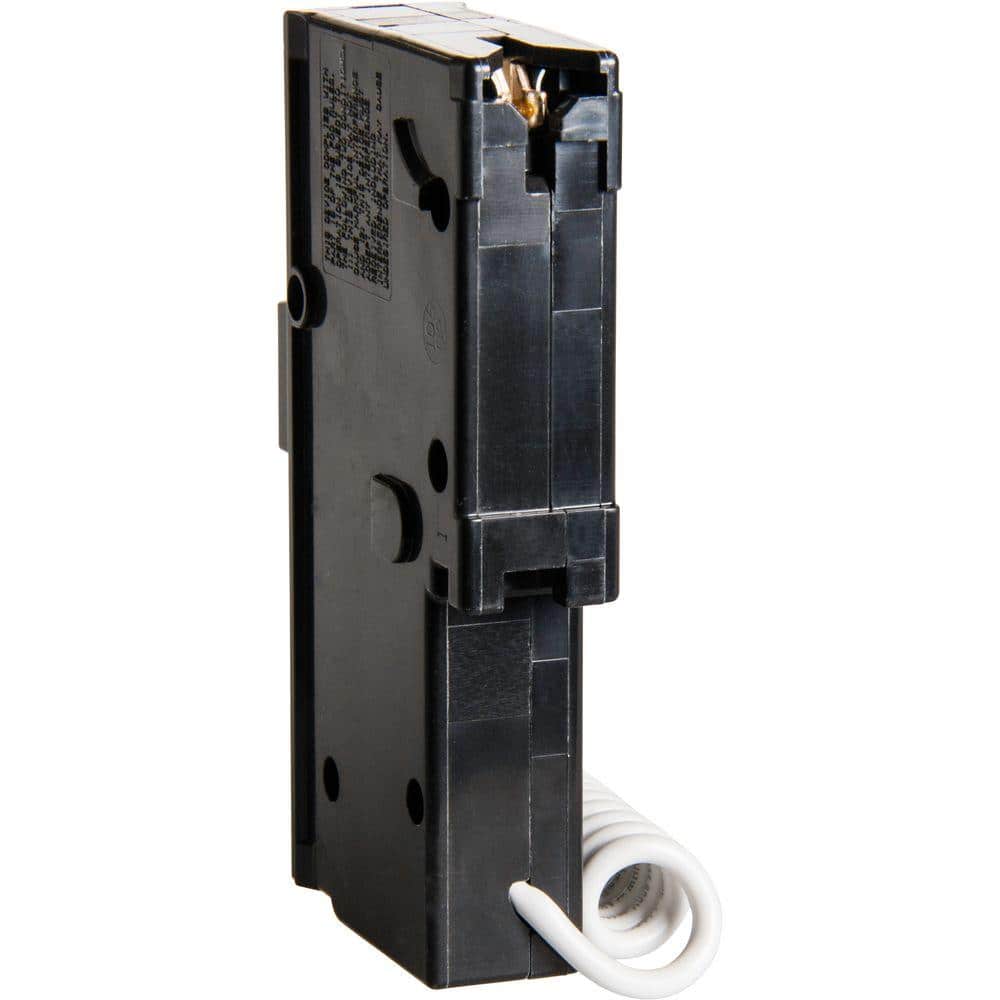

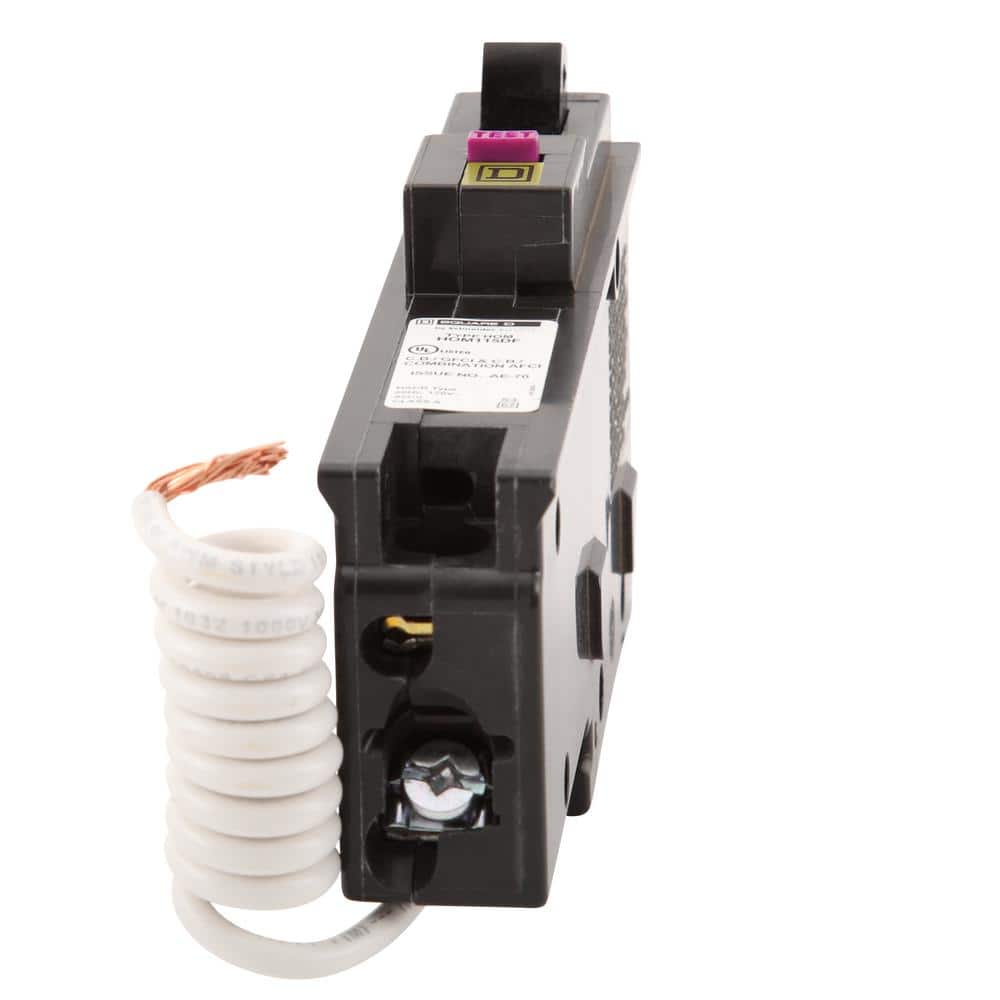

Square D Homeline 15 Amp Single-Pole Dual Function CAFCI/GFCI Circuit Breaker (HOM115DFC)
Published price — same for everyone
Out of stock — available on backorder
SKU HOM115DFC
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 15A Single-Pole Dual Function Circuit Breaker

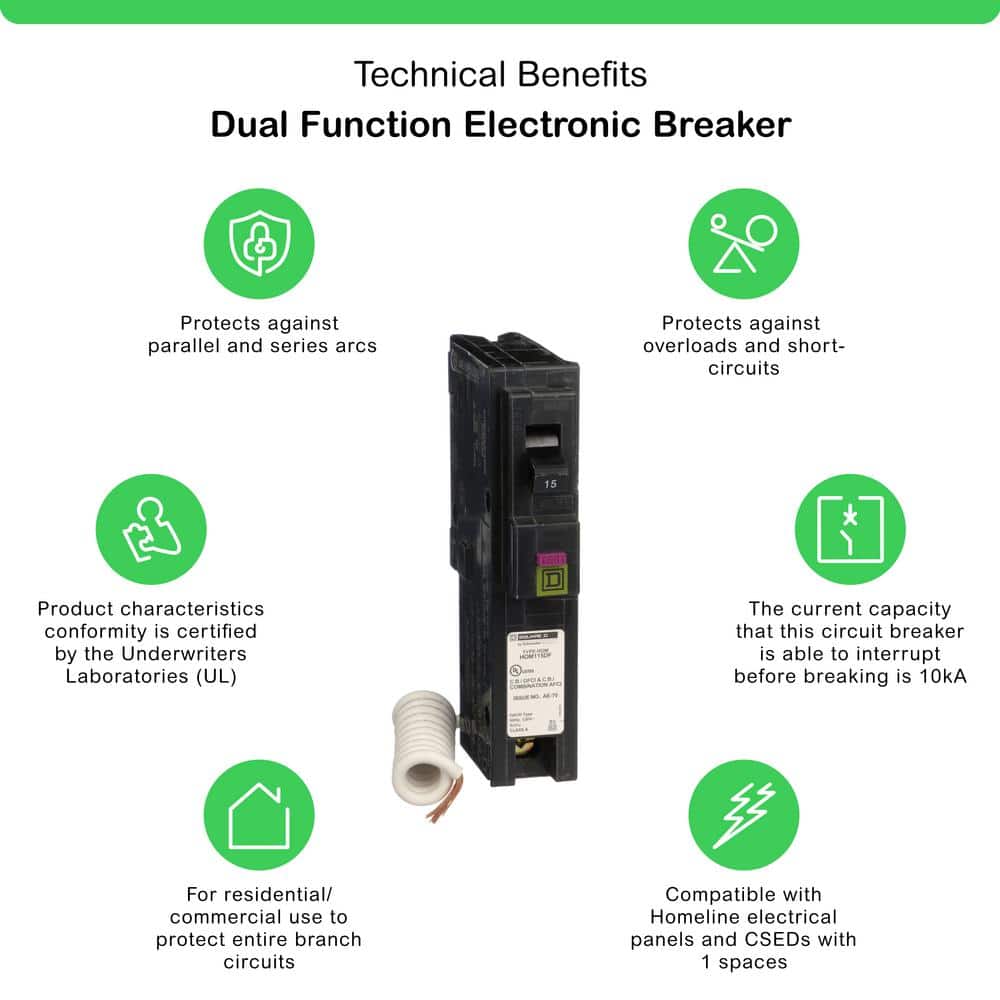

A space-saving Square D Homeline breaker combining Combination Arc Fault and Class A Ground Fault protection in one device. Designed for 1-space Homeline panels, it delivers 15A protection with Time Saver Diagnostics for quick troubleshooting.
Key Features:

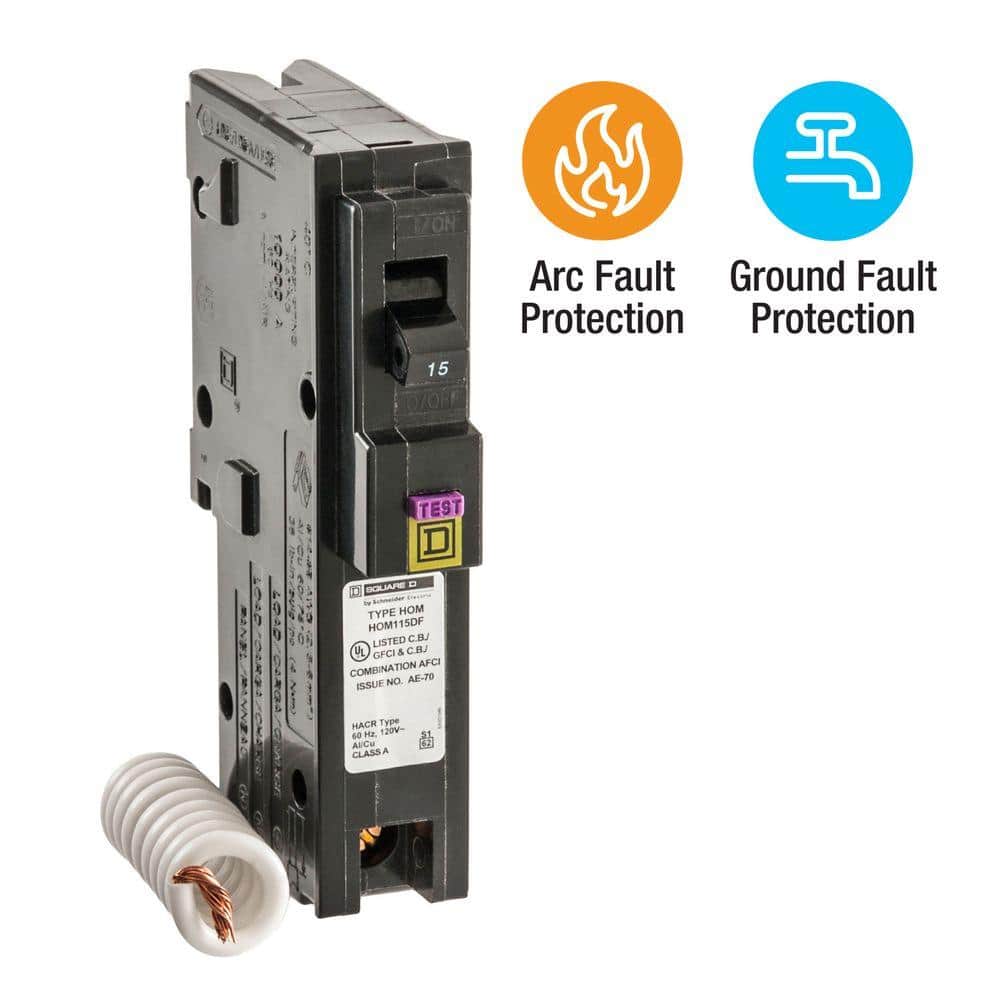

- Dual Protection: Combines CAFCI and GFCI to guard against arc faults, overloads, short circuits, and ground faults
- Time Saver Diagnostics: Built-in diagnostic feature streamlines troubleshooting at the touch of a button
- Homeline Compatibility: Fits Square D Homeline load centers and CSEDs using one space
- Plug-On Mounting: Easy installation with included pigtail neutral lead
- UL Listed Safety: Meets UL standards; 10kA interrupt rating for reliable performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Maximum Amperage | 15 A |
| Poles | Single |
| Mounting Type | Plug-On |
| Spaces Required | 1 |
| Interruption Type | CAFCI/GFCI |
| Trip Unit | Electronic |
| Voltage | 120/240 V (120 VAC nominal) |
| AIC Rating | 10,000 AIR |
| Connection Type | Non-Neutral (with pigtail neutral lead) |
| Certifications | UL Listed; ANSI certified |

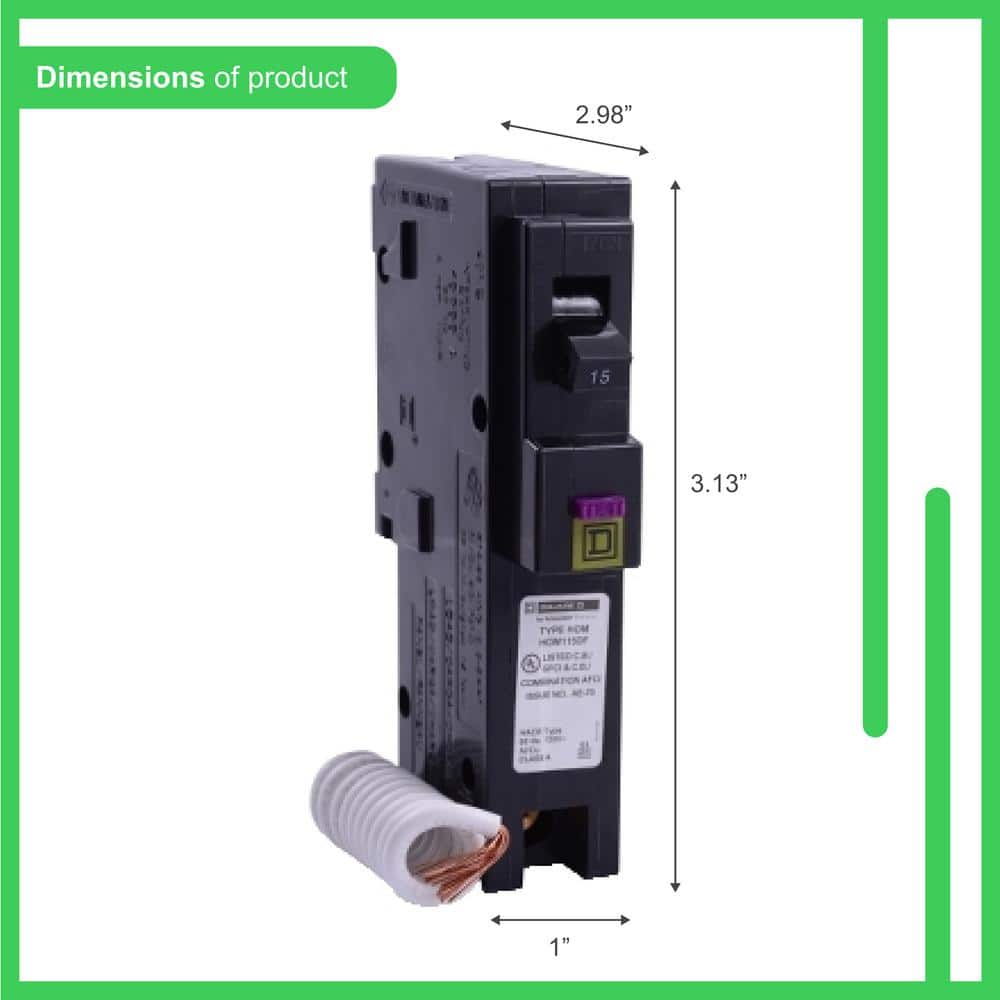

| Product Dimensions | Height 3.13 in; Width 1 in; Depth 2.98 in |
| Pack Size | 1 |
| Power Distribution Features | Time Saver Diagnostics |
| Ideal Locations | Wet and damp locations |
| Manufacturer Warranty | Limited lifetime warranty for the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with my panel?
A: It is compatible with Square D Homeline load centers and CSEDs that have one available space.
Q: What circuits should use this breaker?
A: Use on 1-pole, 15A kitchen and laundry circuits where NEC requires both arc-fault and ground-fault protection.
Q: What is the interrupt rating?
A: 10,000 AIR (10kA).
Q: What voltage does it support?
A: 120/240 V; 120 VAC nominal operation.
Q: Is there a warranty?
A: Limited lifetime warranty for the Homeline load center in which it is installed, per Square D.
Protection with a Sleek, Space-Saving Profile
This Homeline breaker delivers robust safety in a slender silhouette, keeping panels clean and efficient. The integrated CAFCI and GFCI technology is the standout—smart, discreet, and made for modern living. Pair it with a well-organized Homeline panel and labeled circuits for a polished, professional look. It’s an essential detail that elevates a home’s electrical backbone to a luxurious standard of reliability.
Upgrade your panel with dual-function protection—choose the Homeline 15A CAFCI/GFCI breaker today.
