Square D QO 15 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breaker, QO115DFC
Published price — same for everyone
Out of stock — available on backorder
SKU QO115DFC
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
QO 15A Dual-Function CAFCI/GFCI Circuit Breaker

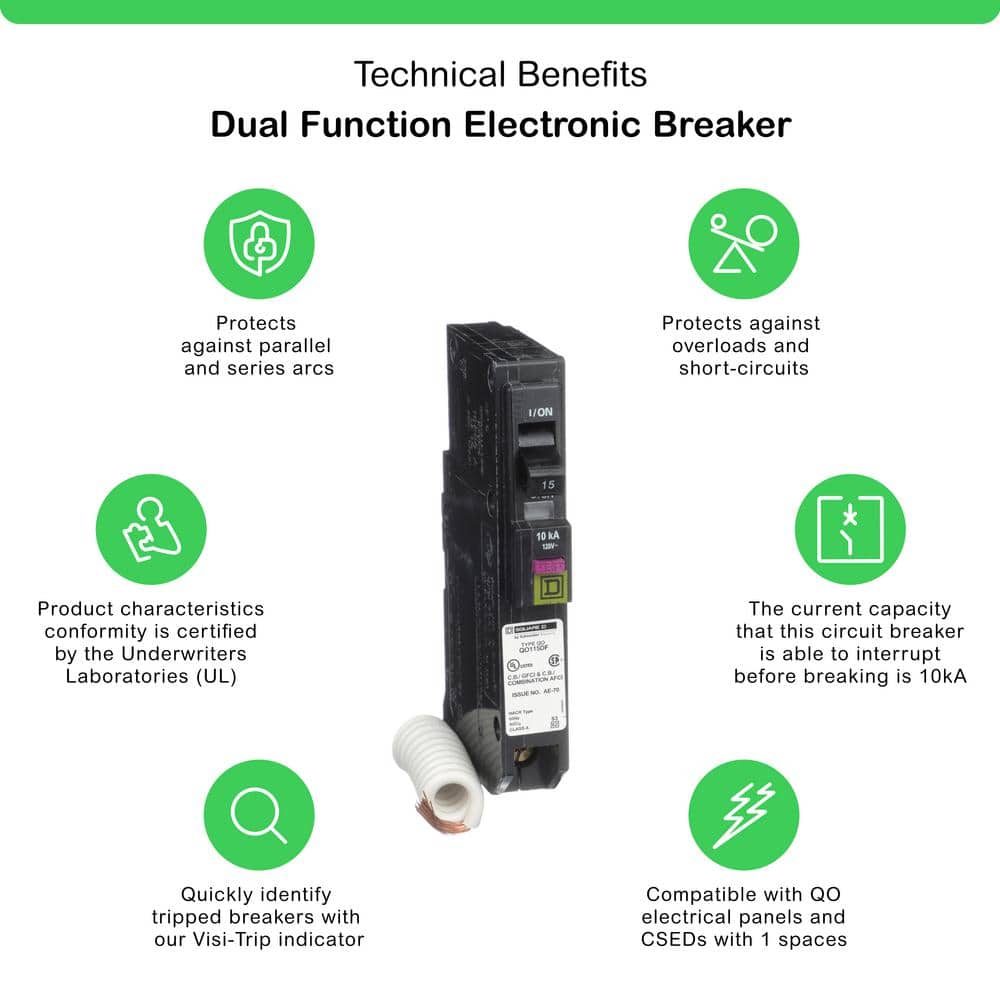

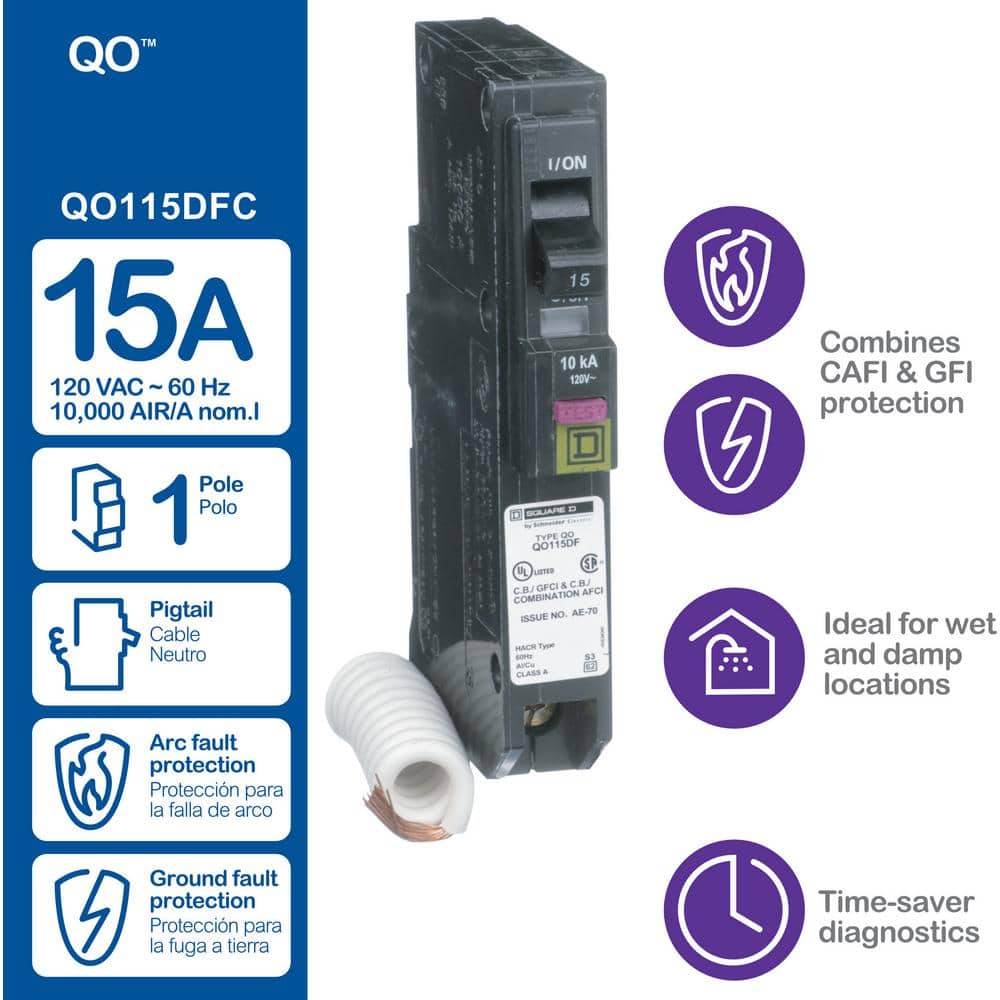

This Square D QO 15 Amp single-pole breaker combines Combination Arc-Fault and Class A Ground-Fault protection in one compact device. Engineered for QO load centers, it features electronic trip technology, Time Saver Diagnostics, and a 10kA interrupt rating for reliable protection on 120/240V systems.
Key Features:

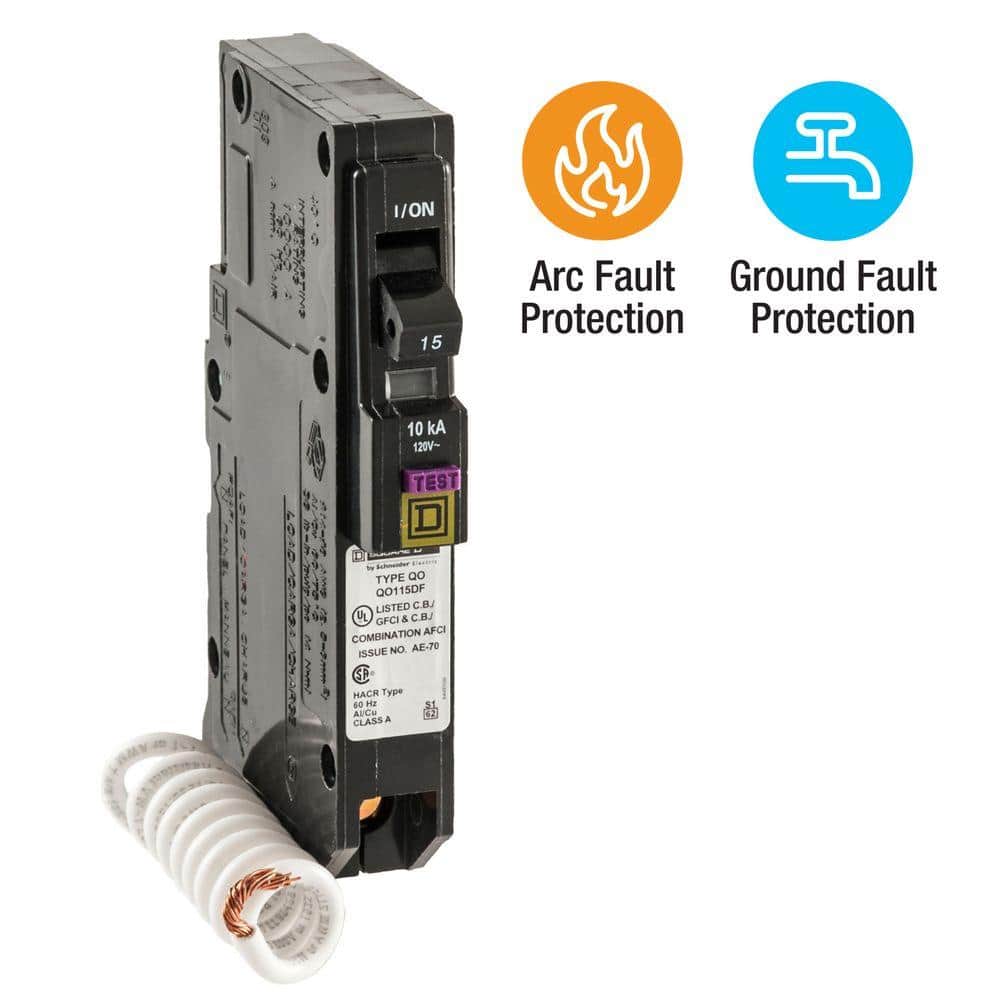

- Dual Protection: Integrated CAFCI and GFCI safeguards against arc faults and ground faults in one breaker
- Easy Compatibility: Designed for Square D QO panels and CSEDs using a single space
- Fast Troubleshooting: Built-in Time Saver Diagnostics quickly pinpoints circuit issues
- High Interrupt Rating: 10,000 AIR for dependable short-circuit protection

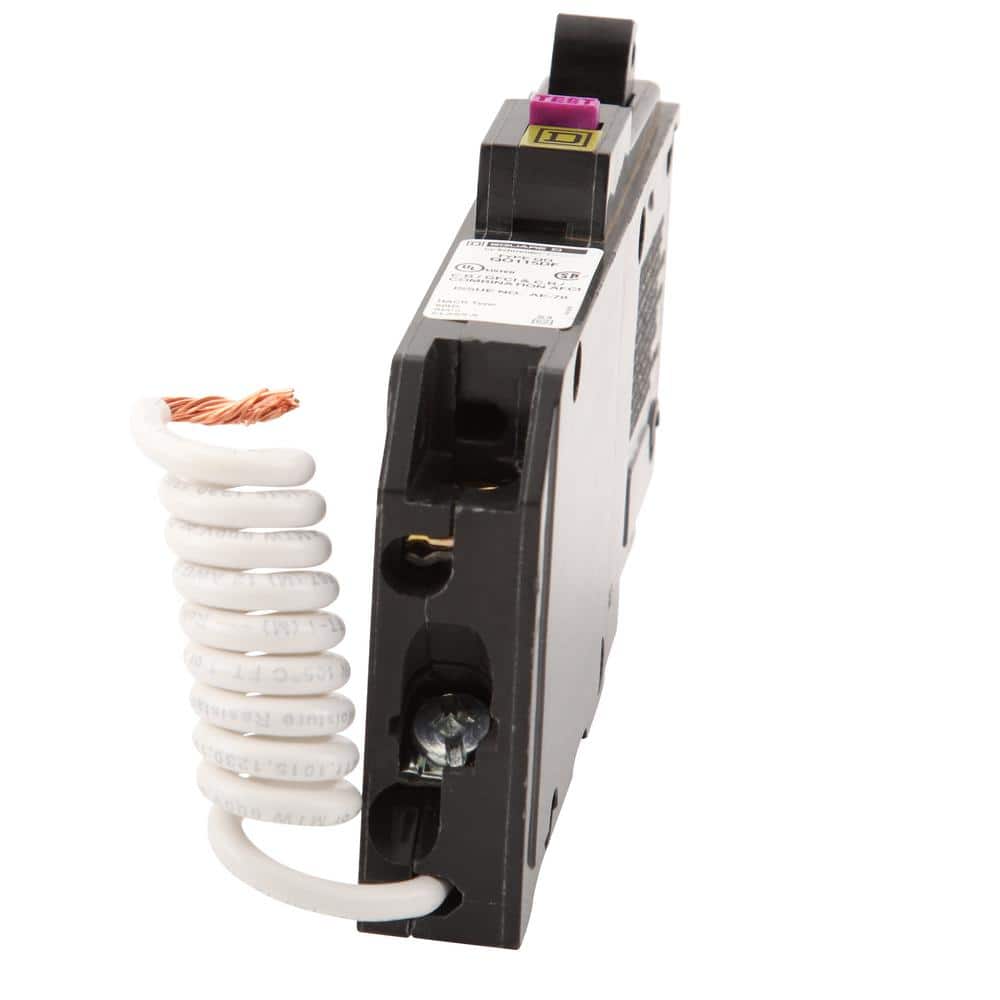

- Compact Installation: Plug-on mount with pigtail neutral simplifies wiring
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Amperage | 15A |
| Poles | Single-Pole |
| Interruption Type | CAFCI/GFCI |
| Trip Unit | Electronic |
| AIC Rating | 10,000 AIC |
| Voltage | 120/240 VAC, 60 Hz |
| Mounting Type | Plug-On |
| Spaces Required | 1 |
| Connection Type | Pigtail / Non-Neutral listed |
| Certifications | UL Listed; ANSI compliant |

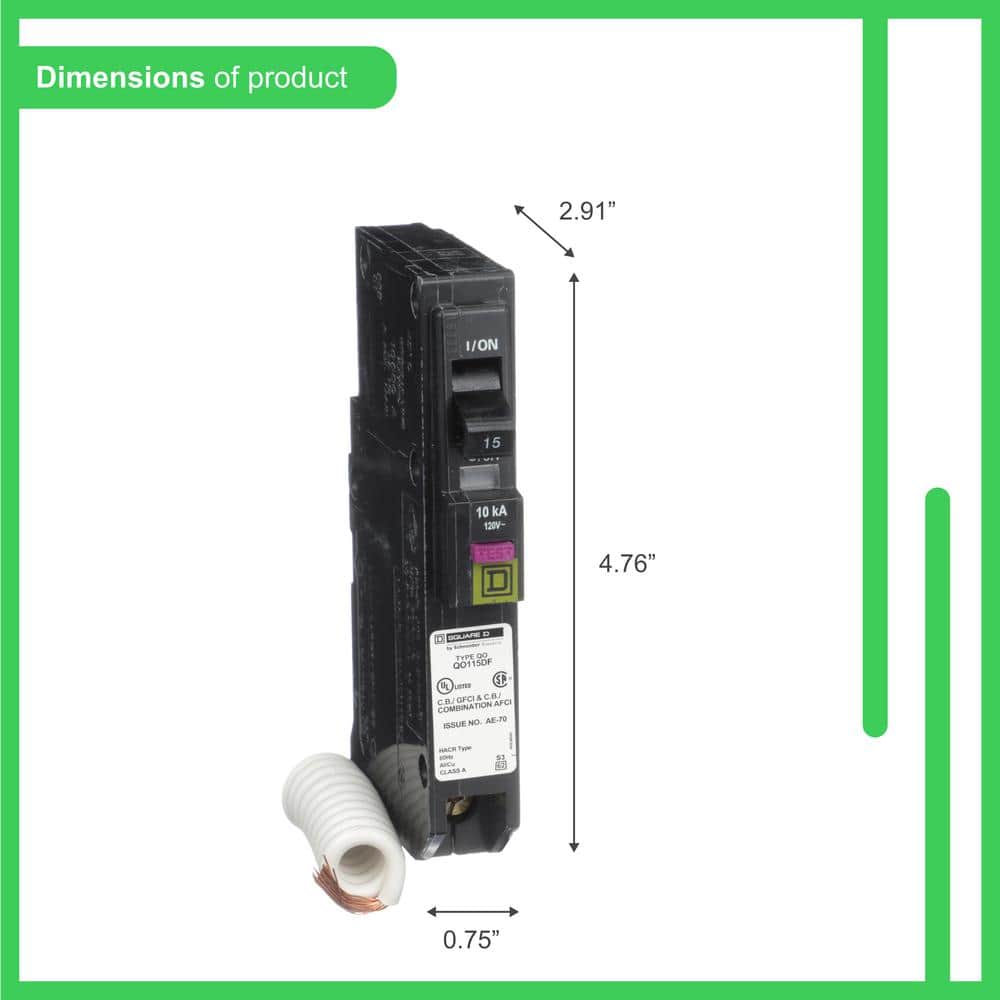

| Dimensions (H x W x D) | 4.76 in x 0.75 in x 2.91 in |
| Product Weight | 0.28 lb |
| Application | Residential branch circuits; ideal for wet and damp locations |
| Model/SKU | QO115DFC |
Frequently Asked Questions (FAQ):
Q: What panels is this breaker compatible with?
A: It is designed for use in Square D QO series load centers and CSEDs that accept 1-space breakers.
Q: Does it provide both arc-fault and ground-fault protection?
A: Yes—it's a dual-function breaker that combines CAFCI and Class A GFCI protection in a single device.
Q: What is the interrupt rating (AIR)?
A: 10,000 AIC (10 kA).
Q: What voltage systems can it be used on?
A: 120/240 VAC, 60 Hz residential applications.
Q: Is there a warranty?
A: Square D provides a limited lifetime warranty for the breaker when installed in a QO load center.
Discreet Power, Elevated Protection
This slim, jet-black breaker tucks neatly into your panel while delivering robust, modern safety. The standout is its dual-function intelligence—combining arc-fault and ground-fault protection without adding bulk. Pair it with a clean, well-labeled QO panel for a polished, professional aesthetic behind the scenes. It’s a quiet essential that elevates the safety and luxury of everyday living.
Upgrade your panel with dual-function protection—add the QO115DFC to your cart and safeguard your home today.
