FIMCO
1 in. Mini 8 Outlet Indexing Valve with 7 Zone Cam
$65.26
Published price — same for everyone
Out of stock — available on backorder
SKU 722972037
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
- Valve is recommended for use in an irrigation system driven by city water

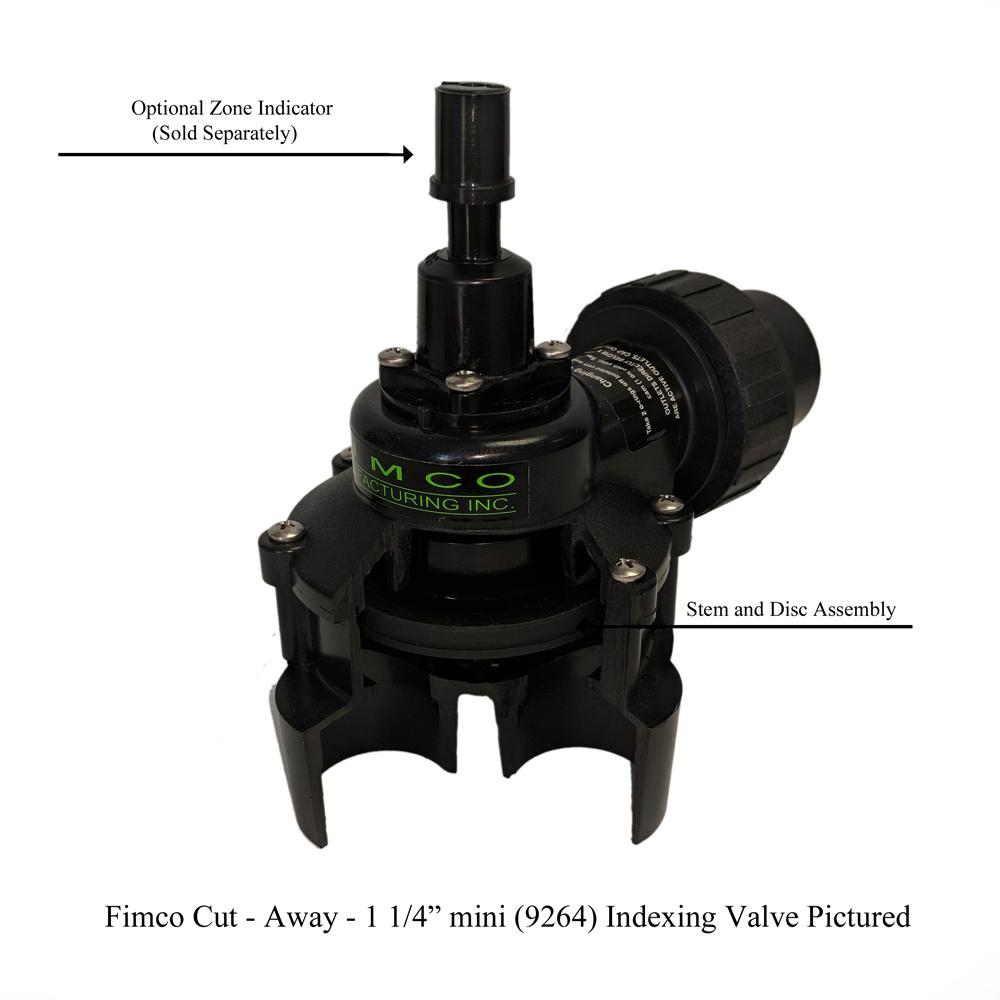

- Standard flow stem and disc assembly (included) requires a minimum of 10 GPM, the low-flow stem and disc assembly requires a minimum of only 6 GPM (not included)
- Valve can run 7 or 8 zones depending on the cam configuration
- 1-year manufacturers guarantee
- Comes installed with an 8 zone and cam and an additional 7 zone cam
- An anti-siphon valve (not included) is recommended and may be required for safe operation of the FIMCO hydro indexing valve on a city water installation
- Great alternative to individual solenoid valves
- 1 valve can replace up to (8) 1 in. solenoids
- 1 above ground FIMCO valve controls all zones eliminating the need to dig into the ground to locate electric solenoid valve boxes
- Works manually or fully automatic with a controller (not included) to turn on and off the water supply (pump or solenoid)
- Only use standard clear PVC cement (not included) for installation of the valve and allow 2 hours to set before subjecting it to internal water pressure, do not use fast setting "blue glue" as it will rapidly deteriorate the ABS plastic used in the construction of the indexing valve, purple primer has a similar effect and should only be applied to PVC pipe and not the valve housing
| Item Weight | 2 |
| Installation | Above Ground |
| Maximum Working Temperature (F) | 130 |
| Product Weight (lb.) | 3 |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Thread Type | none |
| Valve Type | Indexing |
| Returnable | 180-Day |
| Pressure Rating | 10 psi Min |
| Compatible Pipe Material | PVC |
| Maximum Pressure (psi) | 85 |
| Connection | Slip-Joint |
| Number of Outlets | 8 |
| Irrigation System Component | Valve |
| Pack Size | 1 |
| Operation | Automatic |
| Package Quantity | 1 |
| Inlet Size (in.) | 1 |
| Product Height (in.) | 6 |
| Outlet Size (in.) | 2 or less |
| Product Length (in.) | 6 |
| Product Width (in.) | 6 |
| Manufacturer Warranty | 1 Year Replacement |
