Arctek

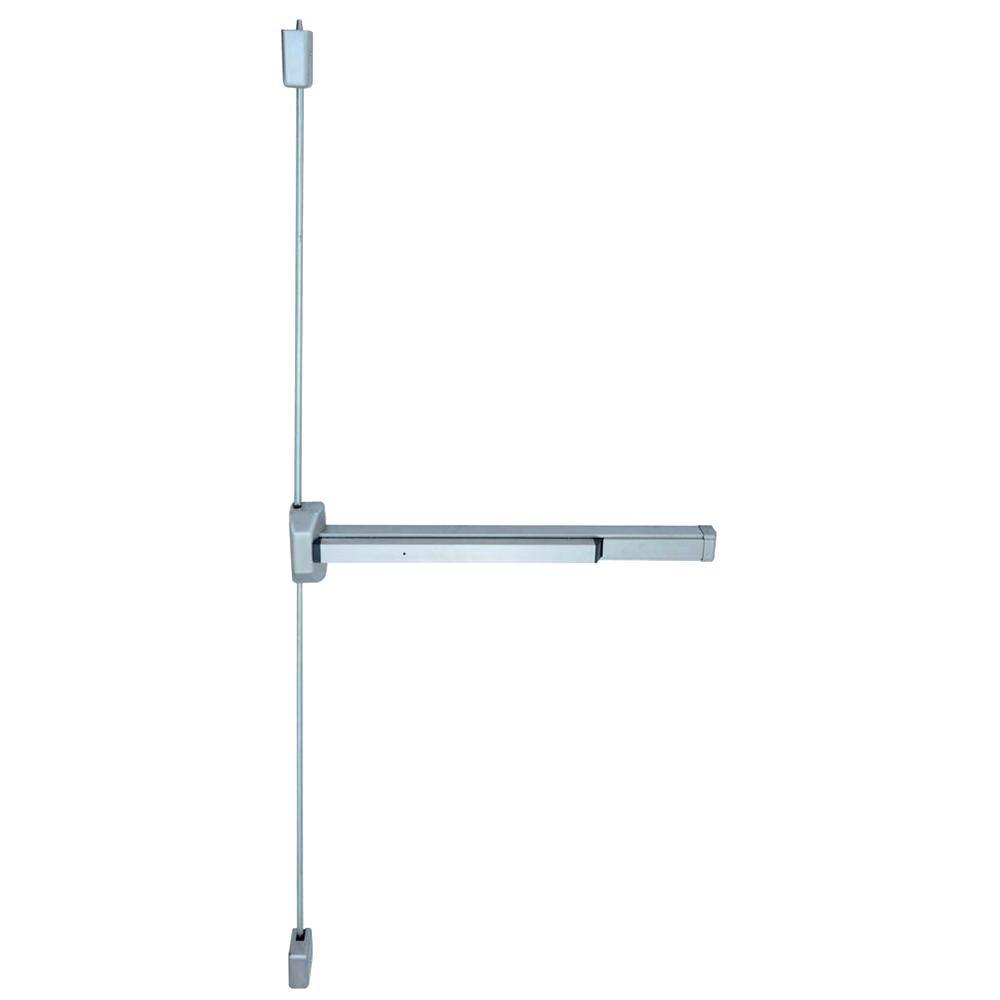

Silver Vertical Type Push Bar Exit Device Safety Rate
$158.68
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 203680262
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Arctek 7100 exit device series safety rated panic bar is 36 in. surface vertical rod exit device in silver painted finish. Reversible for all functions and Arctek trims. For commercial use. The exit device is suitable for most door types.
Features
- California residents
- Rating: safety rated
- Model type: vertical type
- Latch: 5/8 in. throw, stainless steel
- Backset: 2-3/4 in. includes latch and strike filter plates
- Strike: surface mounted for 5/8 in. stop
- Handling: reversible, non-handed
- Door width: 3 ft. standard for door width of 2 ft. 8 in. to 3 ft. 0 in.
- For commercial use
- Mounting height: 40-5/16 in. from CL to finished floor recommended
- 10 year warranty
- ANSI A156.3 grade 1 certified
- For door: 1-3/4 in. thick of wood or metal door, specify thickness if other than 1-3/4 in.
- Dogging: 1/4 in. turn, hex key dogging
- Door height: 7 ft. standard
Features
| Item Weight | 12.71 |
| Finish | Silver |
| Material | Metal |
| Door Handing | Universal |
| Builders Hardware Product Type | Exit Devices |
| Commercial/Residential | Commercial |
| Function | Exit Only |
| Returnable | 180-Day |
| Hardware Finish Family | Silver |
| Product Width (in.) | 83.25 |
| Projection (in.) | 2.5 |
| Product Depth (in.) | 2.5 |
| Product Height (in.) | 32.94 |
| Manufacturer Warranty | 10 Year Warranty |
