Horizontal Trim Lock Set, 3-3/8 in. Backset, Black Housing w/Brass Plated Knobs Set
$16.83
Published price — same for everyone
Gone — not just here.
SKU '202624741
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

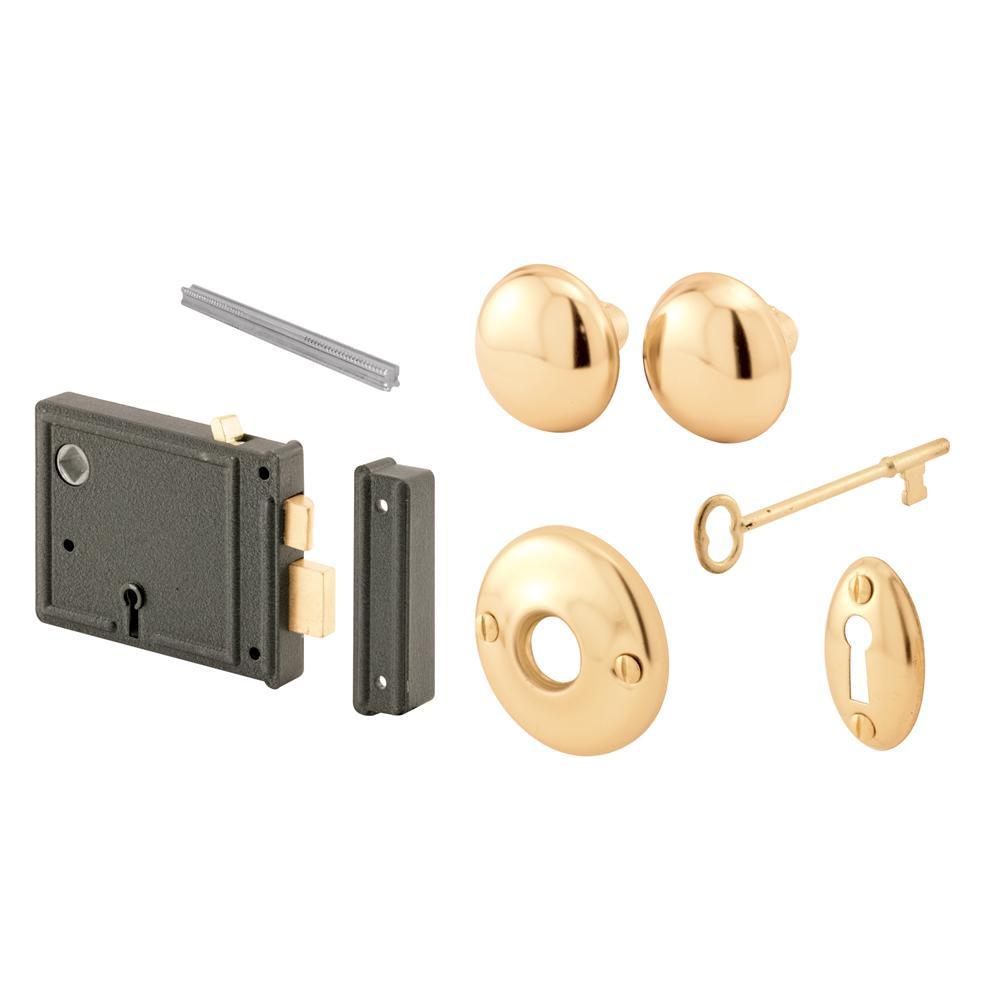

Featuring a surface mounted design, this Horizontal Bit Key Lock Set with Brass Knobs is the perfect addition to your home security. Each set includes two brass plated knobs and a keeper. For use on non-mortise applications.
Features
- California residents
- For non-mortise applications
- Surface mounted design
- Brass plated
- Black painted housing with 3-3/8 in. backset
- Easy to install

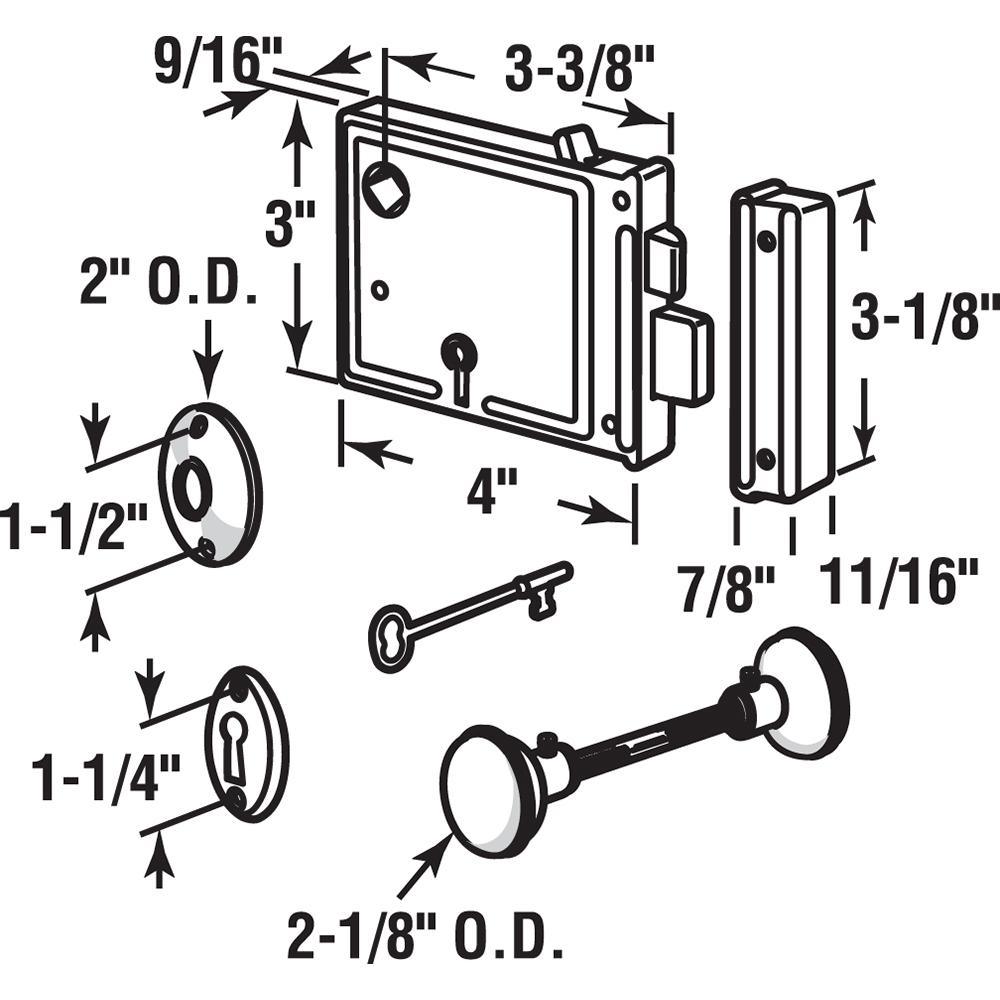

- For further dimensional information, please see the line drawing
Features
| Item Weight | 1.325 |
| Door Handing | Universal |
| Included | Installation Instructions |
| Commercial/Residential | Commercial,Residential |
| Finish | Brass |
| Lock Type | Keyed |
| Minimum door thickness (in.) | 0.0 |
| Security/ANSI Grade | N/A |
| Handleset Product Type | 1 Piece Front & Back |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Interior/Exterior | Interior |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Keying Type | Keyed Different |
| Application Type | Privacy |
| Hardware Finish Family | Brass |
| Door Lock Style | Antique |
| Returnable | 180-Day |
| Knob style | Flat ball |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Deadbolt strike | Square corner |
| Material | Other |
| Product Weight (lb.) | 1.325 |
| Electronic/Mechanical | Mechanical |
| Knob/lever strike | Square corner |
| Features | No Additional Features |
| Deadbolt strike width (in.) | 0.0 |
| Handle grip length (in.) | 2 |
| Assembled Width (in.) | 5 in |
| Inside plate width (in.) | 0.0 |
| Outside handle plate on-center measurement (in.) | 0.0 |
| Deadbolt cross bore diameter (in.) | .375 |
| Knob/lever strike width (in.) | 0.0 |
| Knob/lever strike height (in.) | 0.0 |
| Knob/lever housing height (in.) | 0.0 |
| Outside handle and key plate width (in.) | 0.0 |
| Knob/lever bore hole diameter (in.) | .375 |
| Knob/lever cross bore diameter (in.) | .375 |
| Assembled Height (in.) | 8.75 in |
| Deadbolt strike height (in.) | 0.0 |
| Knob Diameter (in.) | 0.0 |
| Knob/lever housing width (in.) | .625 |
| Deadbolt trim ring diameter (in.) | 0.0 |
| Deadbolt throw length (in.) | 0.0 |
| Projection (in.) | 0.0 |
| Deadbolt bore hole diameter (in.) | .375 |
| Assembled Depth (in.) | 2.188 in |
| Outside handle and key plate length (in.) | 3.25 |
| Knob/lever throw length (in.) | 0.0 |
| Maximum door thickness (in.) | 0.0 |
| Inside plate length (in.) | 0.0 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
