PowerMark Gold 200 Amp 32-Space 40-Circuit Outdoor Main Breaker Value Kit Includes Select Circuit Breakers
Not priced yet
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
This value kit includes 5 20 Amp Combination ARC Fault, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
Features
- Rust-resistant galvanized box for outdoor use
- Highly conductive copper buss bar
- Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- 100% rated split neutral on each side
- Single phase, 3-wire, 120/240 VAC
- All neutral holes are rated for 14 - 4 wire
- Accepts GE circuit breakers
- UL listed and ANSI certified

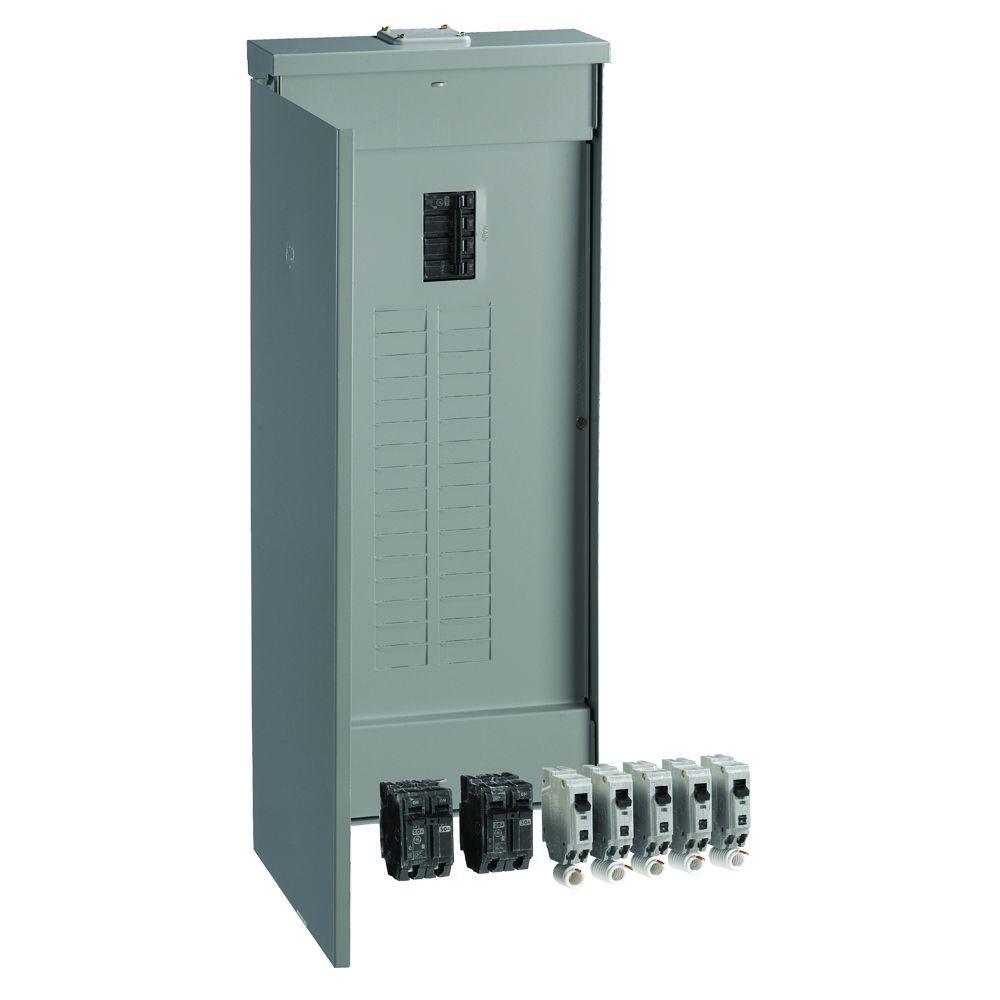

- Includes 5 single-pole 20 Amp combination arc fault breakers (CAFCIs), one 2-pole 30 Amp circuit breaker and one 2-pole 50 Amp circuit breaker
- Closure caps included, hubs ordered separately
Features
| Item Weight | 35.103 |
| Voltage (volts) | 240 |
| Load Center Mounting Type | Flush,Surface |
| Electrical Product Type | Load Center and Breaker Kit |
| Load Center Type | Main Breaker |
| Number of Spaces | 32 |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 200 |
| Product Weight (lb.) | 35.103 |
| Number of Circuits | 40 |

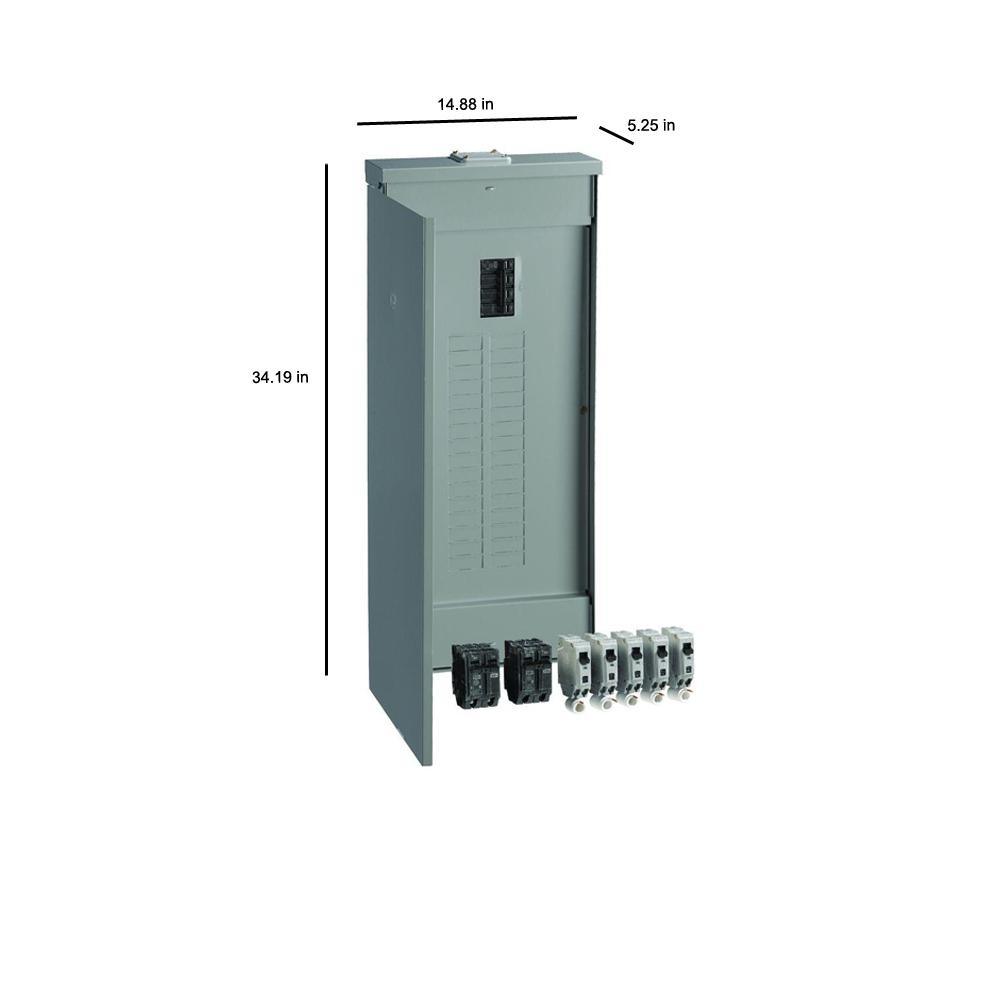

| Load center height (in.) | 34.19 |
| Load center depth (in.) | 5.25 |
| Load center width (in.) | 14.88 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
