Schneider Electric

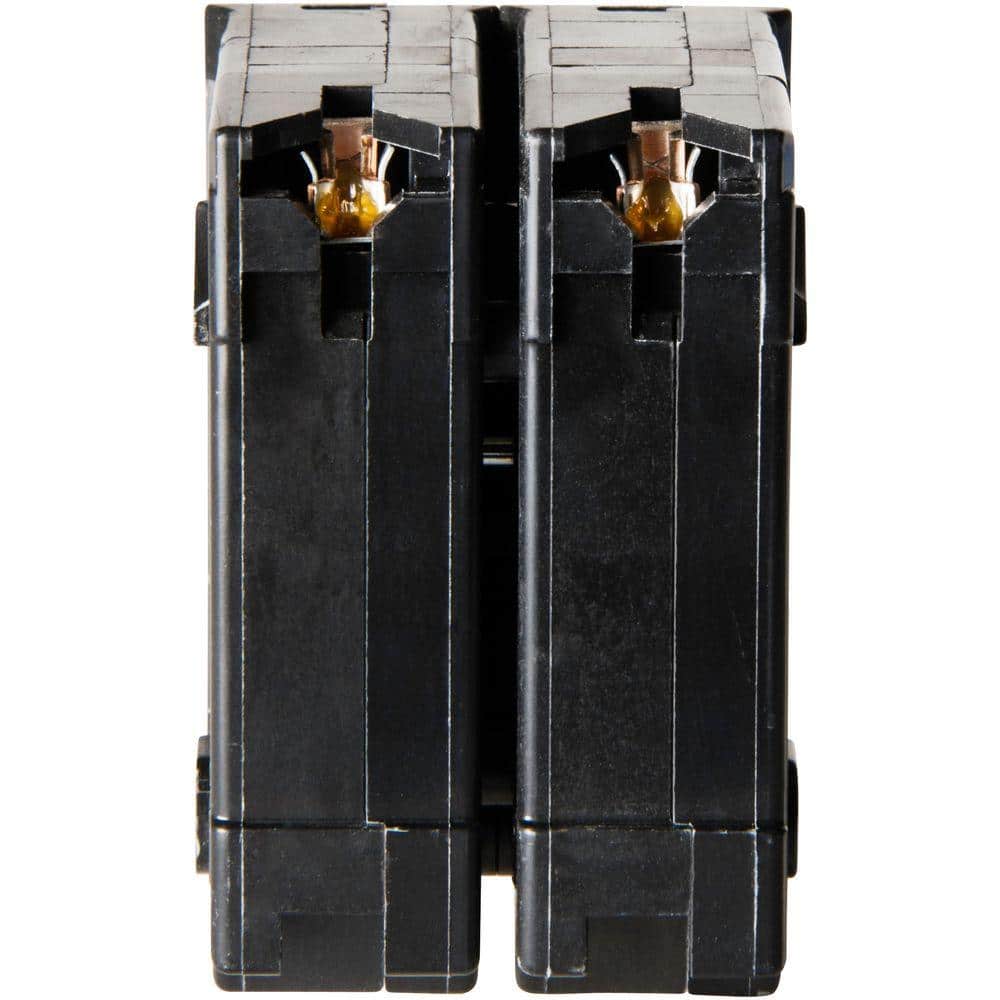

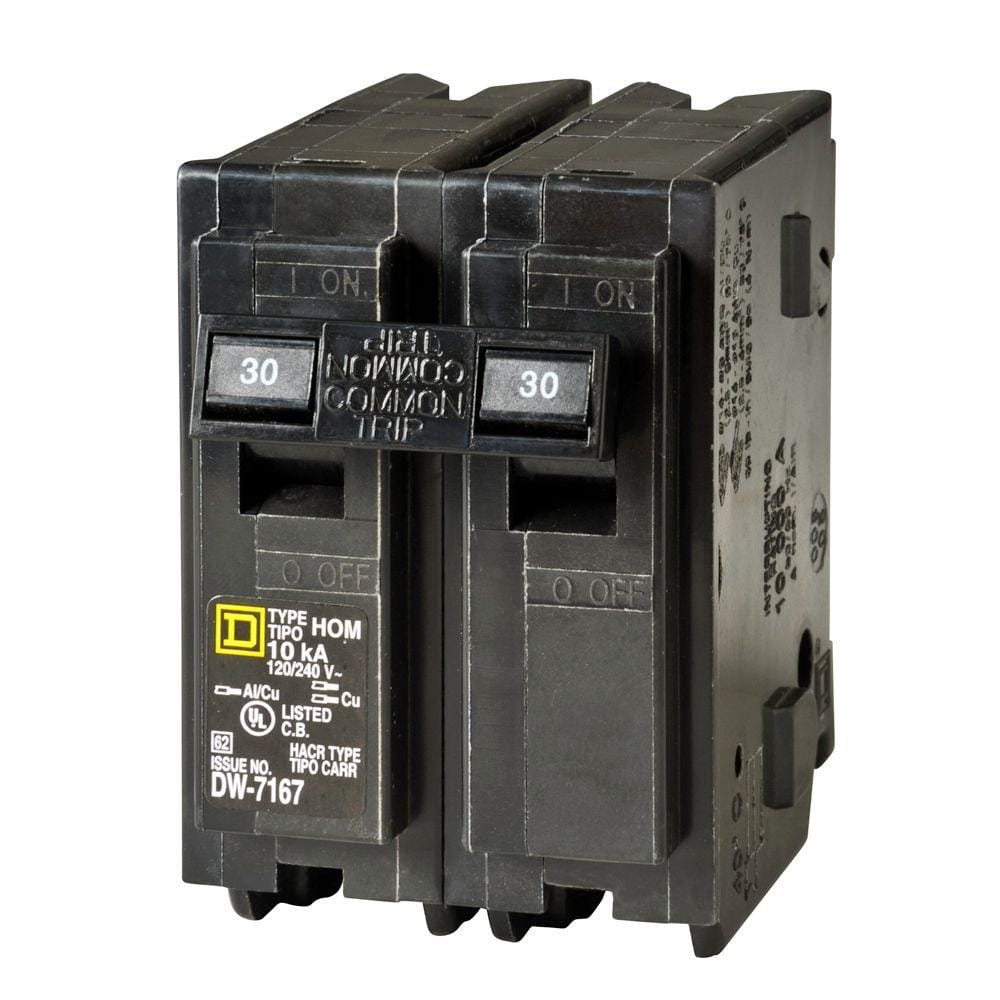

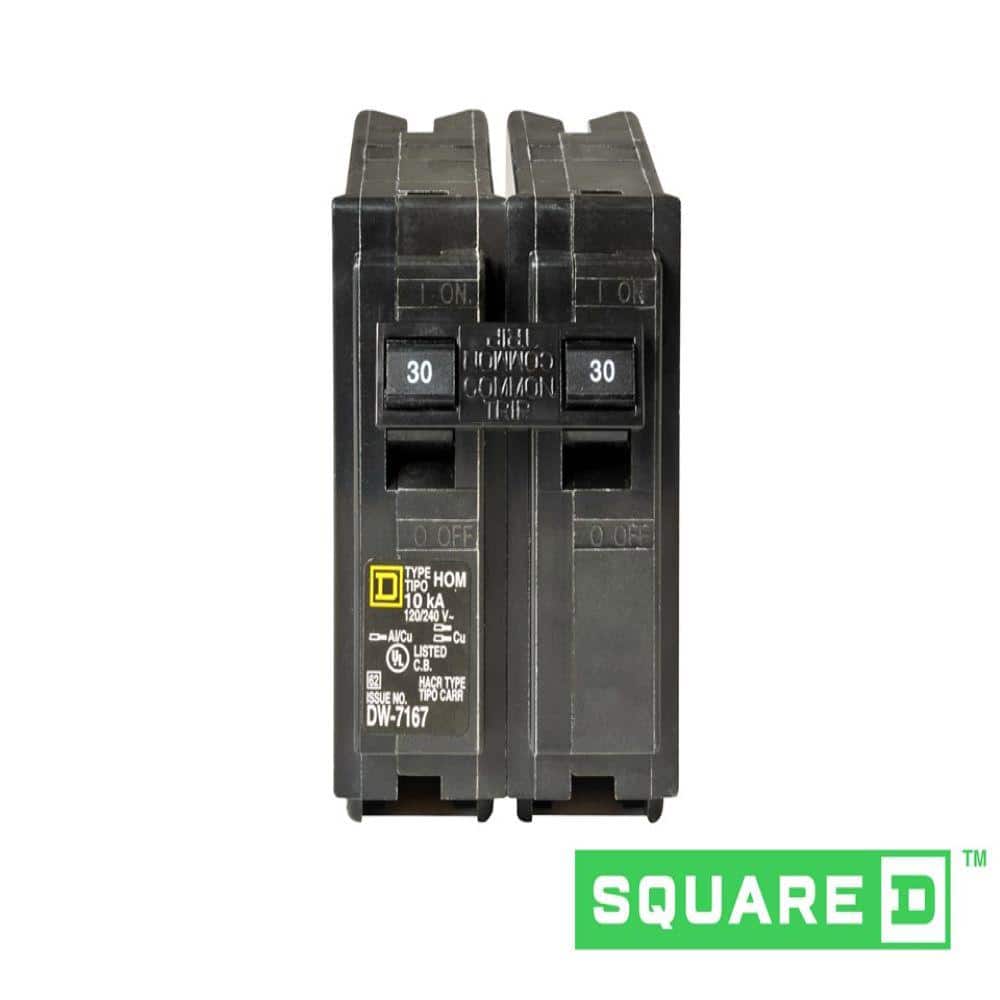

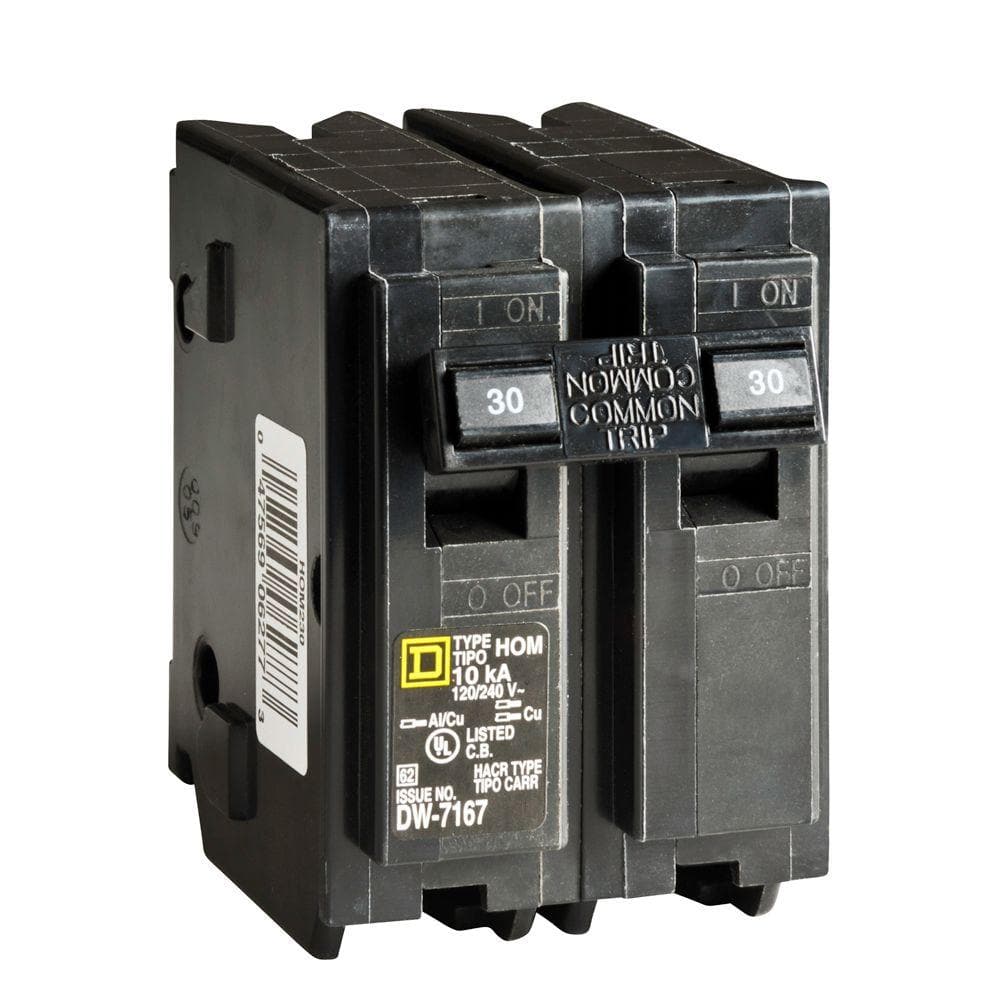

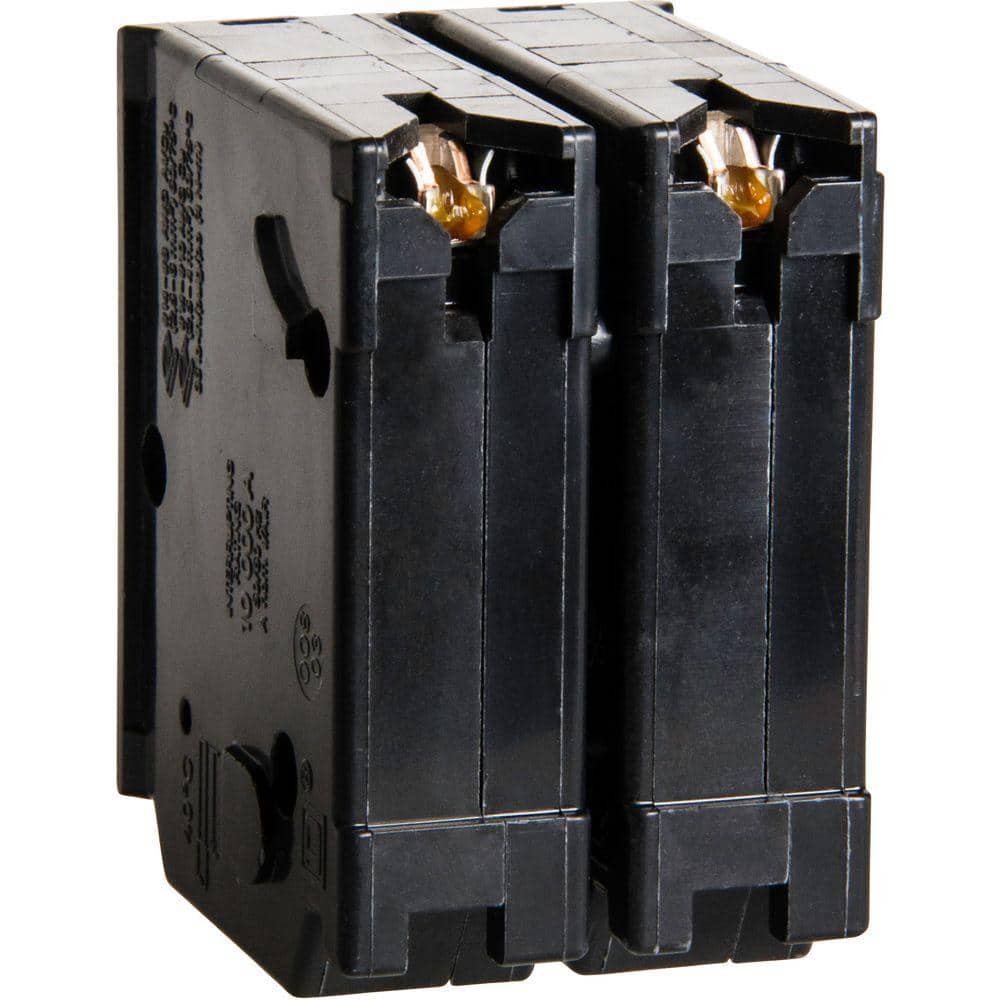

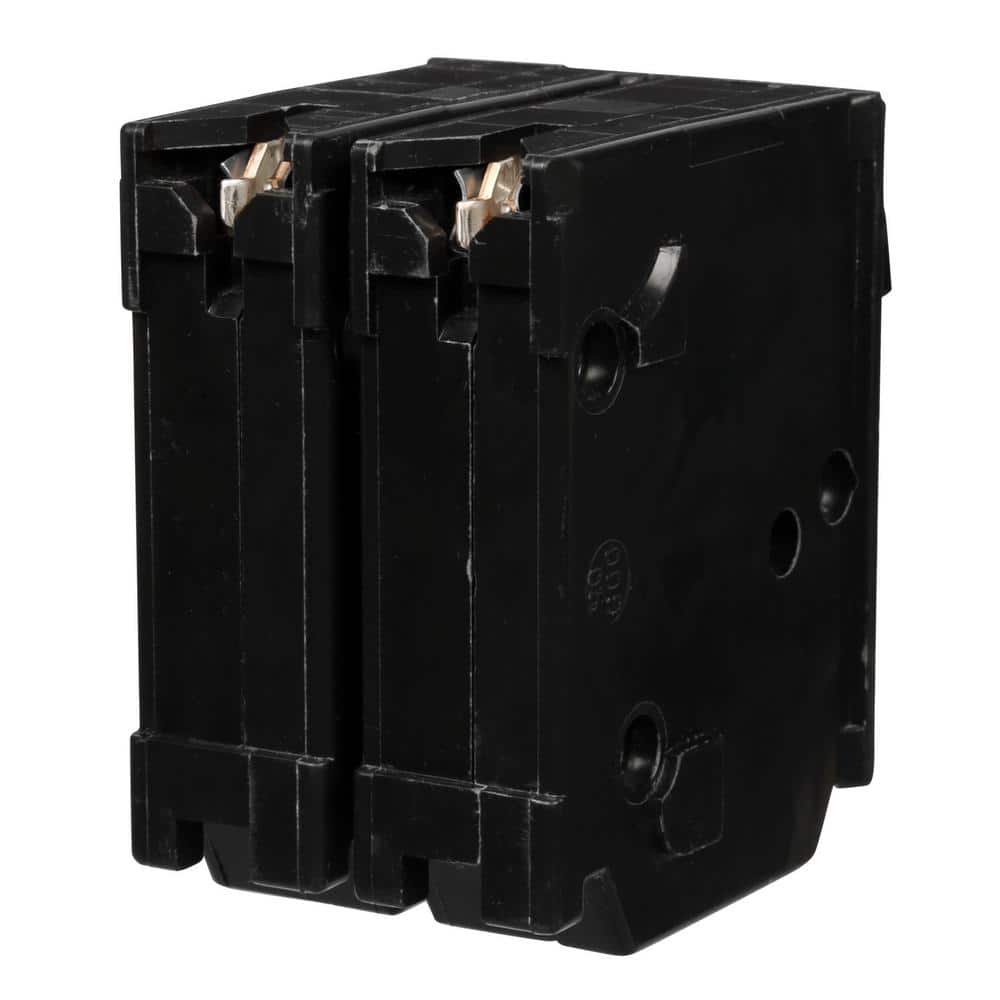

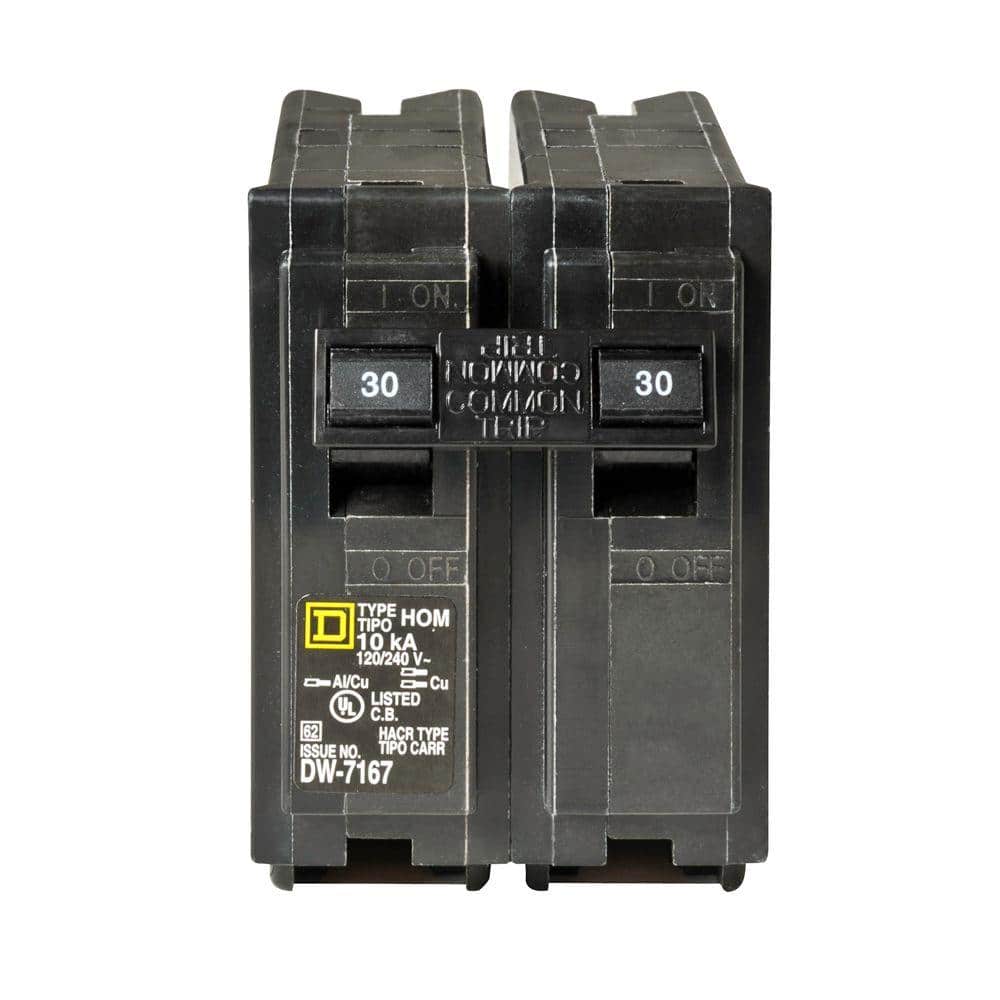

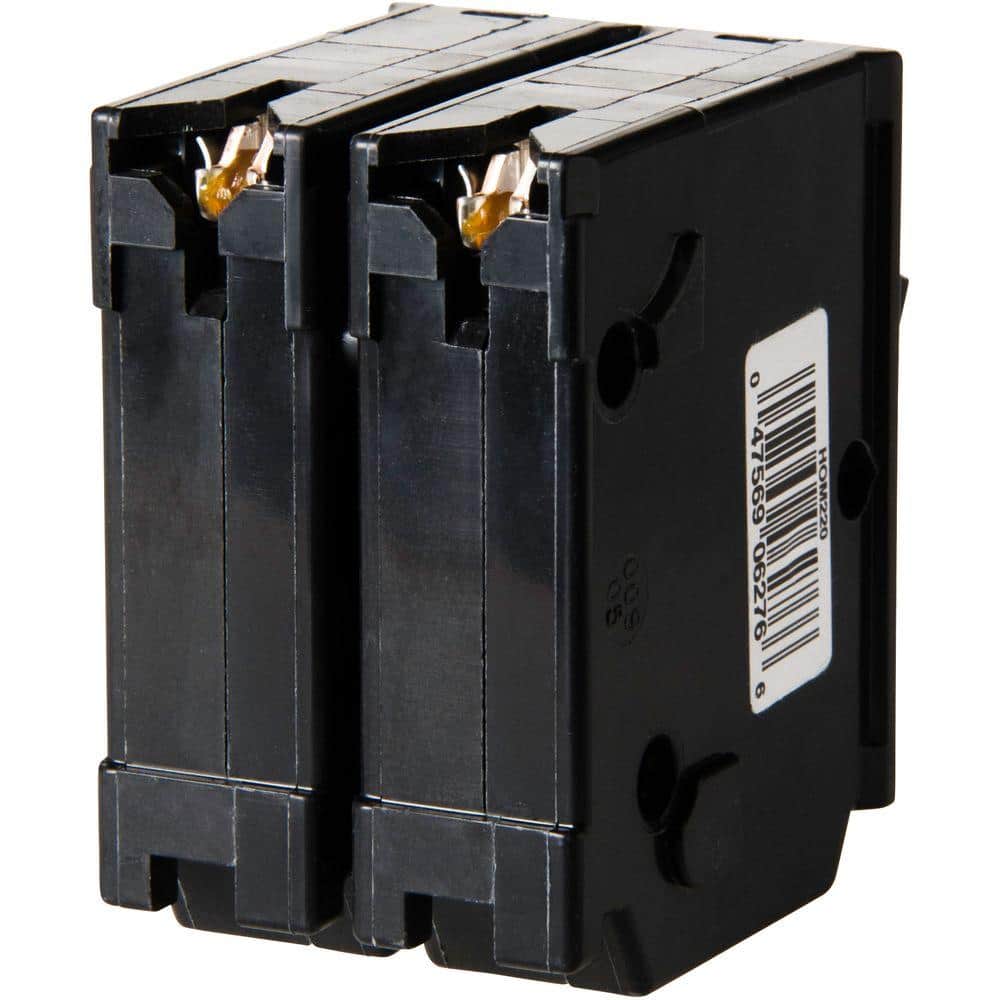

Square D Homeline 30 Amp 2-Pole Circuit Breaker, HOM230CP
Published price — same for everyone
Out of stock — available on backorder
SKU HOM230CP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 30A Double-Pole Breaker
A Square D by Schneider Electric Homeline 30A two‑pole thermal magnetic circuit breaker for overload and short‑circuit protection. Rated 120/240 VAC with 10,000 AIR and plug‑on installation for Homeline load centers and CSEDs.
Key Features:
- Reliable Protection: Thermal magnetic trip safeguards against overloads and short‑circuits
- Easy Plug-On Install: Fits Homeline load centers and CSEDs requiring 2 spaces
- Dual-Pole Power: 30A, 120/240 VAC for branch circuit applications
- UL Listed Quality: Certified performance with Homeline series durability
- Compact Dimensions: 3.13 in H x 2.98 in D x 2 in W
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard thermal magnetic |
| Poles | 2-pole |
| Maximum Amperage | 30A |
| Voltage | 120/240 VAC |
| AIC / Interrupt Rating | 10,000 AIR (10 kA) |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Trip Unit | Thermal Magnetic |
| Certifications | UL Listed; ANSI certified |
| Product Weight | 0.67 lb |
| Dimensions | Height 3.13 in; Depth 2.98 in; Width 2 in |
| Pack Size | 1 |
| Series Type | Homeline |
| Manufacturer Warranty | Limited lifetime warranty for the lifetime of the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with Homeline panels?
A: Yes, it is designed for Homeline load centers and CSED devices and uses a plug‑on mounting.
Q: What is the interrupt rating?
A: 10,000 AIR (AIC rating 10 kA).
Q: What voltage and amperage does it support?
A: It is a 30A breaker rated for 120/240 VAC.
Q: Is it UL listed?
A: Yes, it is UL Listed.
Q: What are the physical dimensions?
A: Approximately 3.13 in height, 2.98 in depth, and 2 in width.
Power, Poise, and Precision in a Compact Form
This Homeline breaker is the quiet hero behind a beautifully functioning home—clean lines and purposeful design delivering steadfast protection. The thermal magnetic mechanism is a standout, coupling smart engineering with dependable performance. Pair it with a streamlined Homeline panel to keep mechanical zones crisp and organized. Consider it an essential foundation for refined, luxurious living where reliability is non‑negotiable.
Equip your panel with dependable protection—add the Homeline 30A 2‑Pole breaker to your cart today.
