Siemens

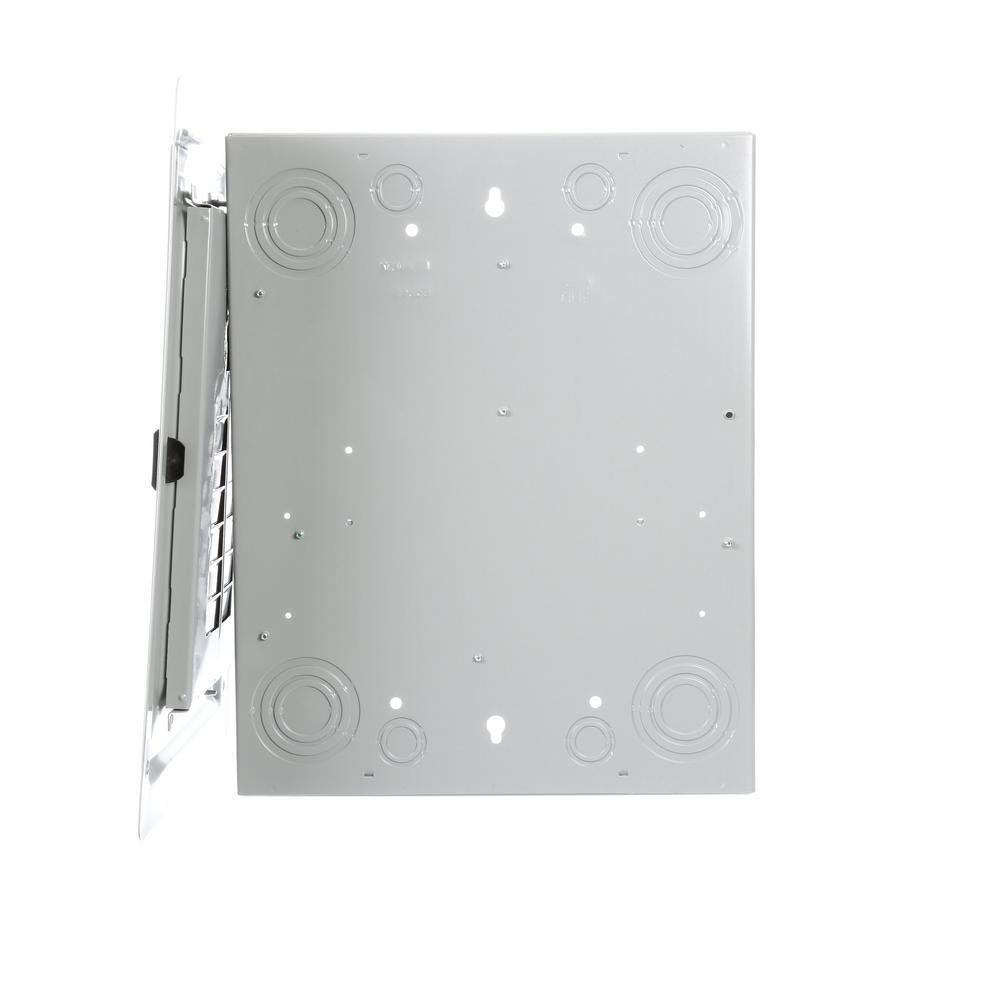

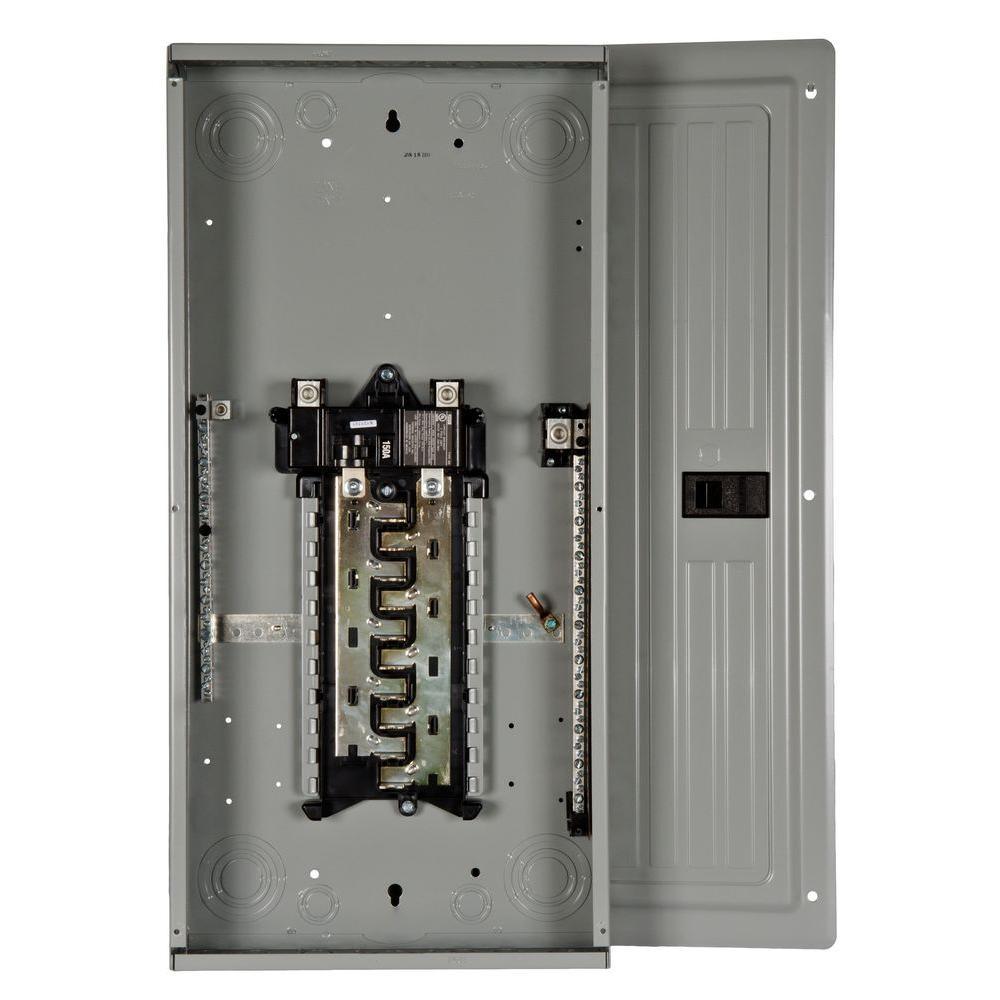

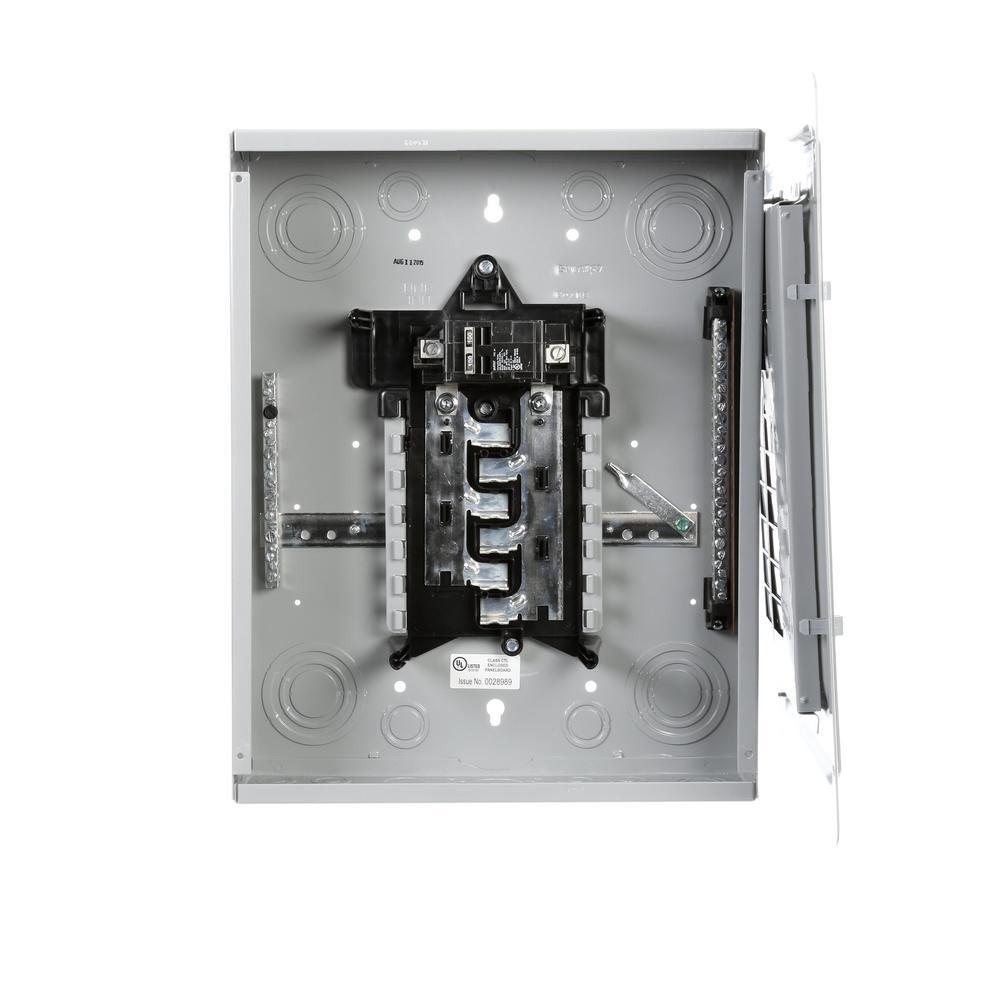

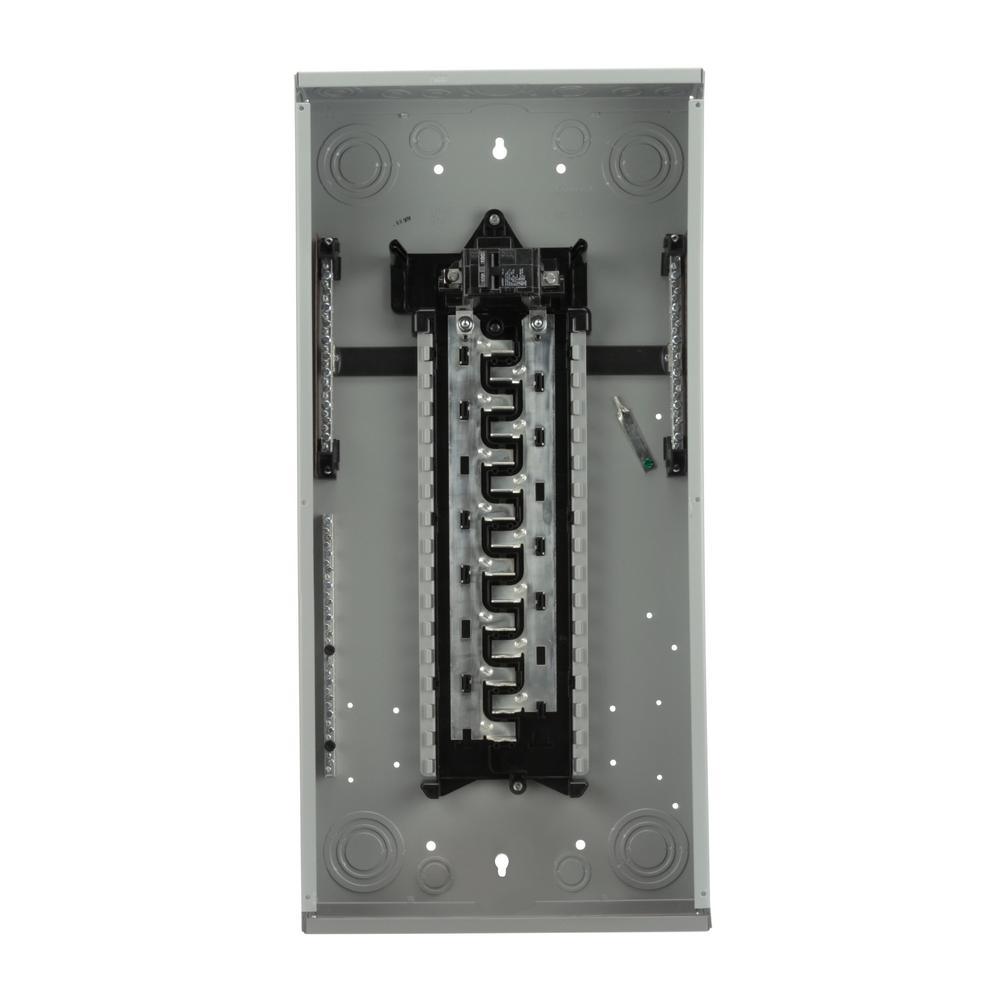

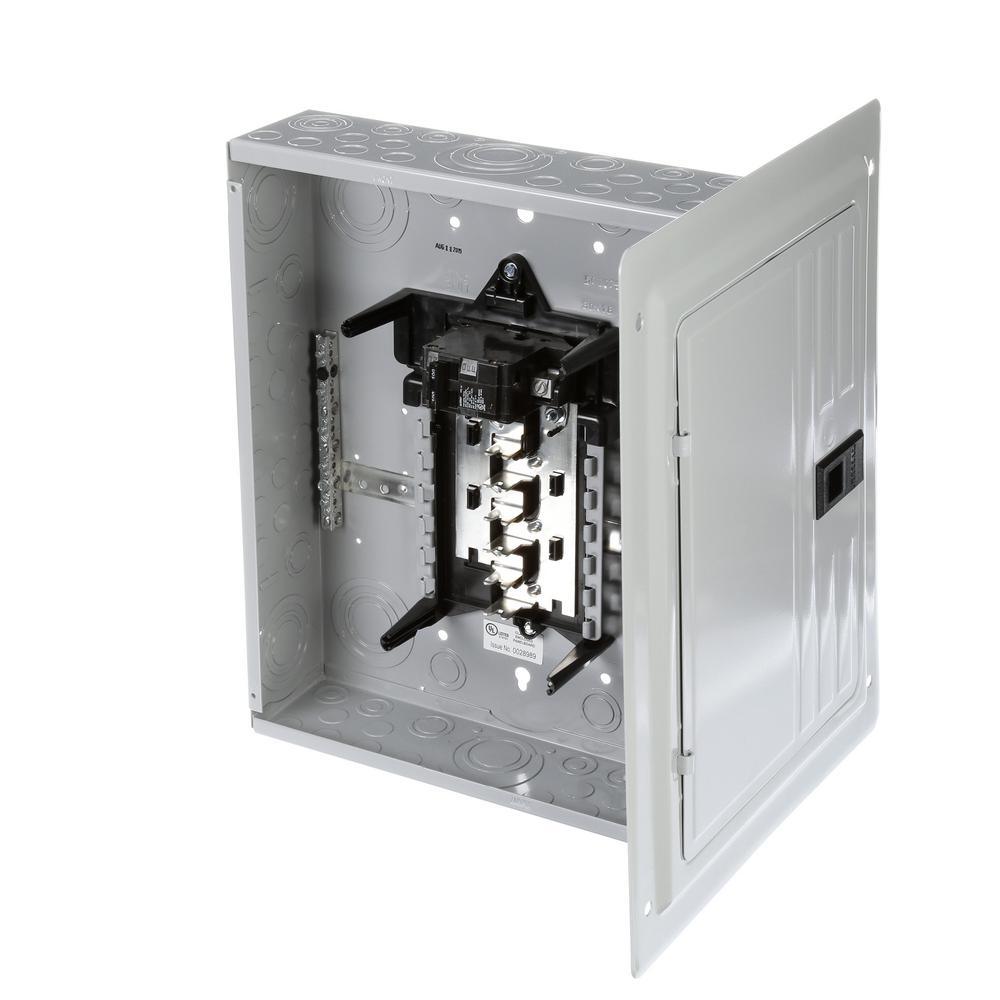

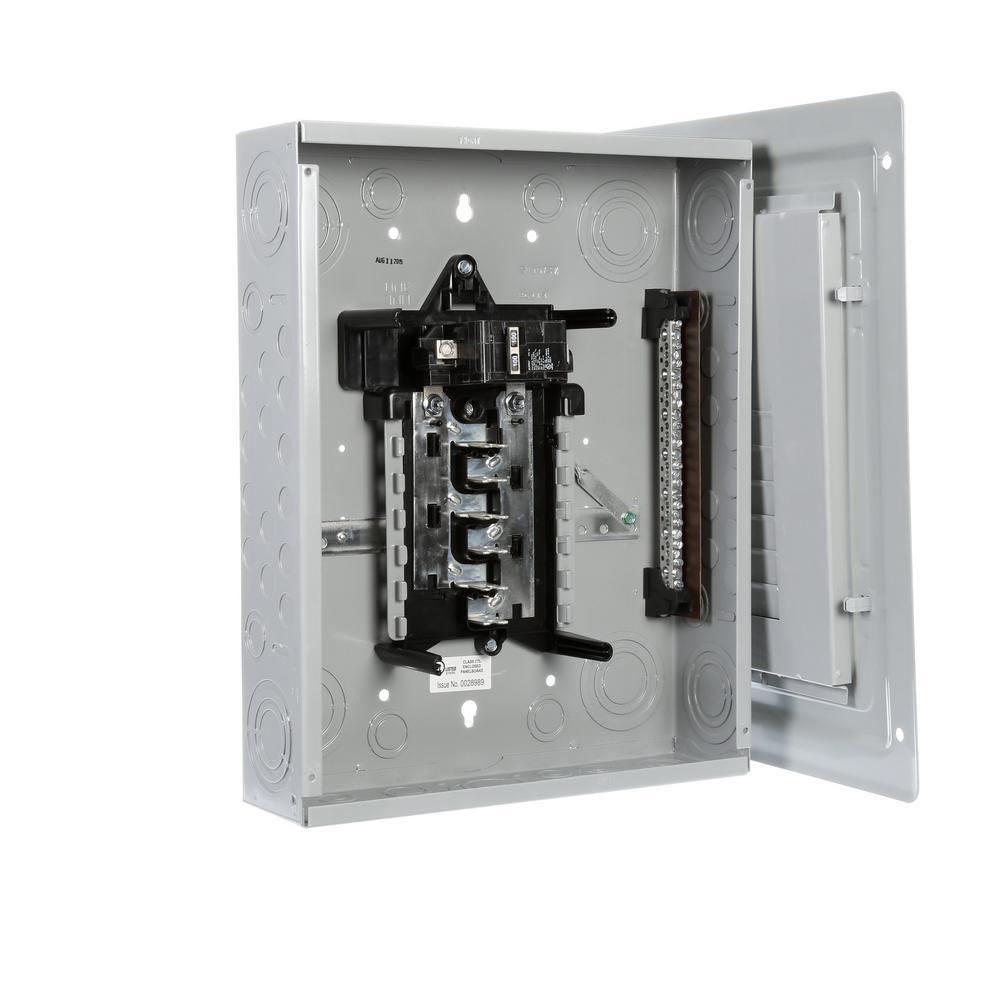

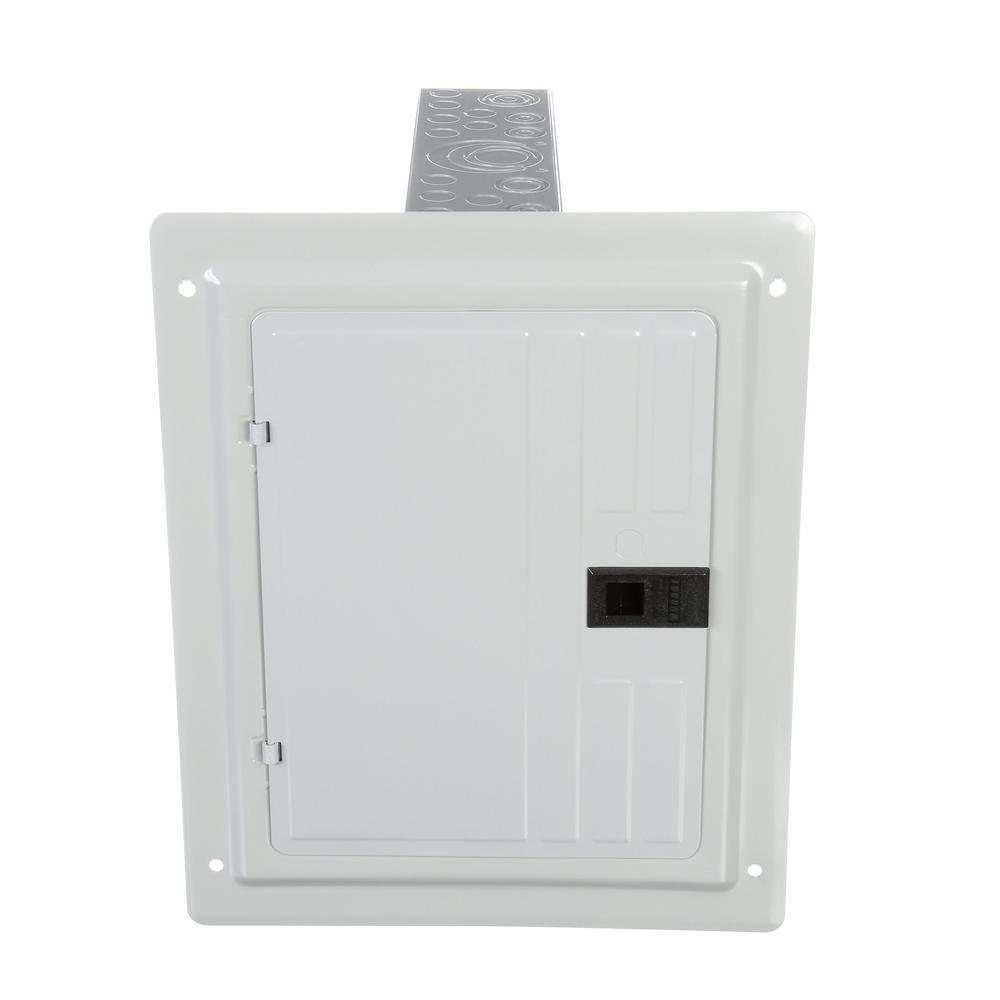

100-Amp 12-Space 24-Circuit Main Breaker Load Center
from $69.59
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 202315498
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.
Features
- Single phase, 100-Amp main breaker load center with 12 spaces/24 circuits
- Swiss cheese style neutral bars provide multiple 1/0 connection points
- Aluminum bus bar
- All units include factory installed ground bar and isolated neutral
- With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
- Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation

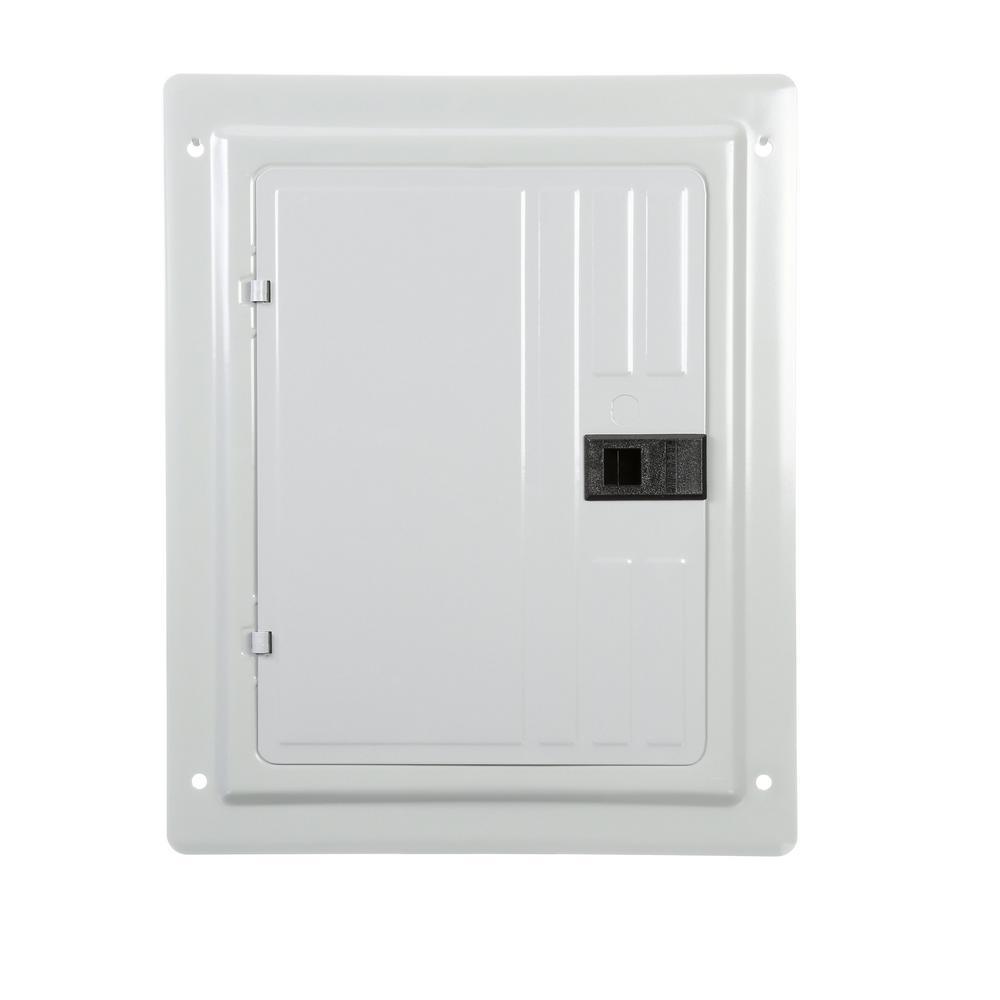

- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Combination head screw on trim and upper pan screws provide installation flexibility
- All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
- All main breakers are straight in wired – no back feeding required
- A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
- All indoor rock solid load centers are invertible for bottom feed applications
- For use with service or non-service entrance applications
- Use with residential / commerical metering equipment applications
Features
| Item Weight | 20.00 |
| Maximum Amperage (amps) | 100 |
| Mounting Type | Bolt On |
| Voltage (volts) | 240 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Indoor/Outdoor | Indoor |
| Product Weight (lb.) | 20 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Number of Spaces | 12 |
| Number of Circuits | 24 |
| Load center depth (in.) | 20.1 |
| Load center height (in.) | 6.0 |
| Load center width (in.) | 15.8 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 1 YEAR |
