Richelieu
Richelieu Pneumatic Lift System – 12 kg Capacity
Published price — same for everyone
Out of stock — available on backorder
SKU 202215984
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

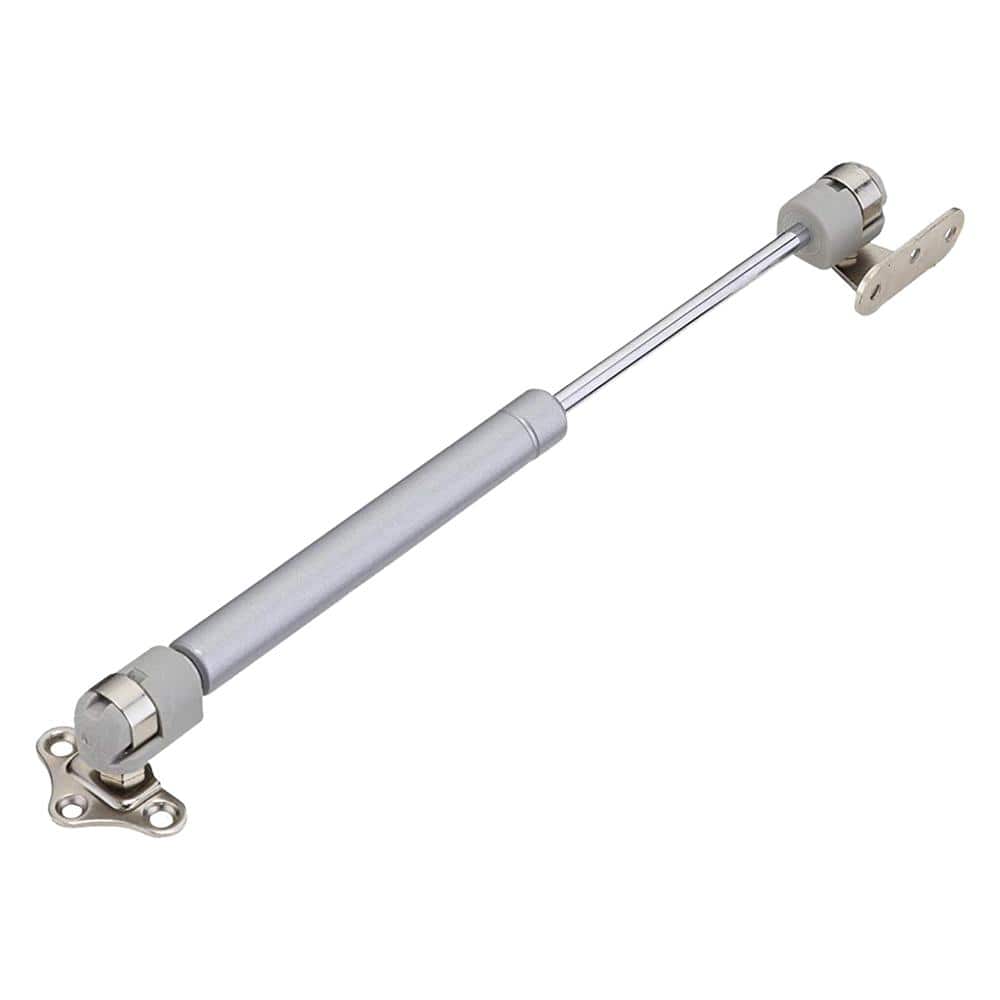

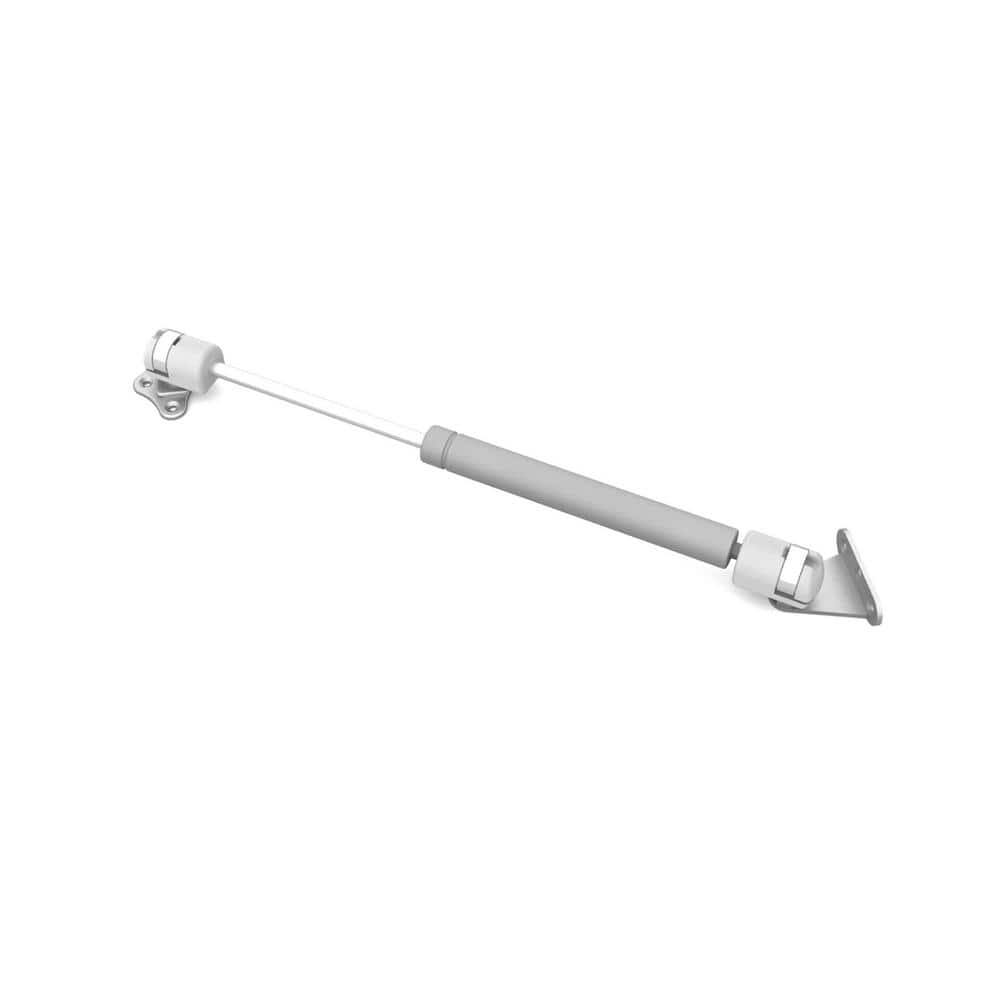

Pneumatic cabinet door lift (12 kg)

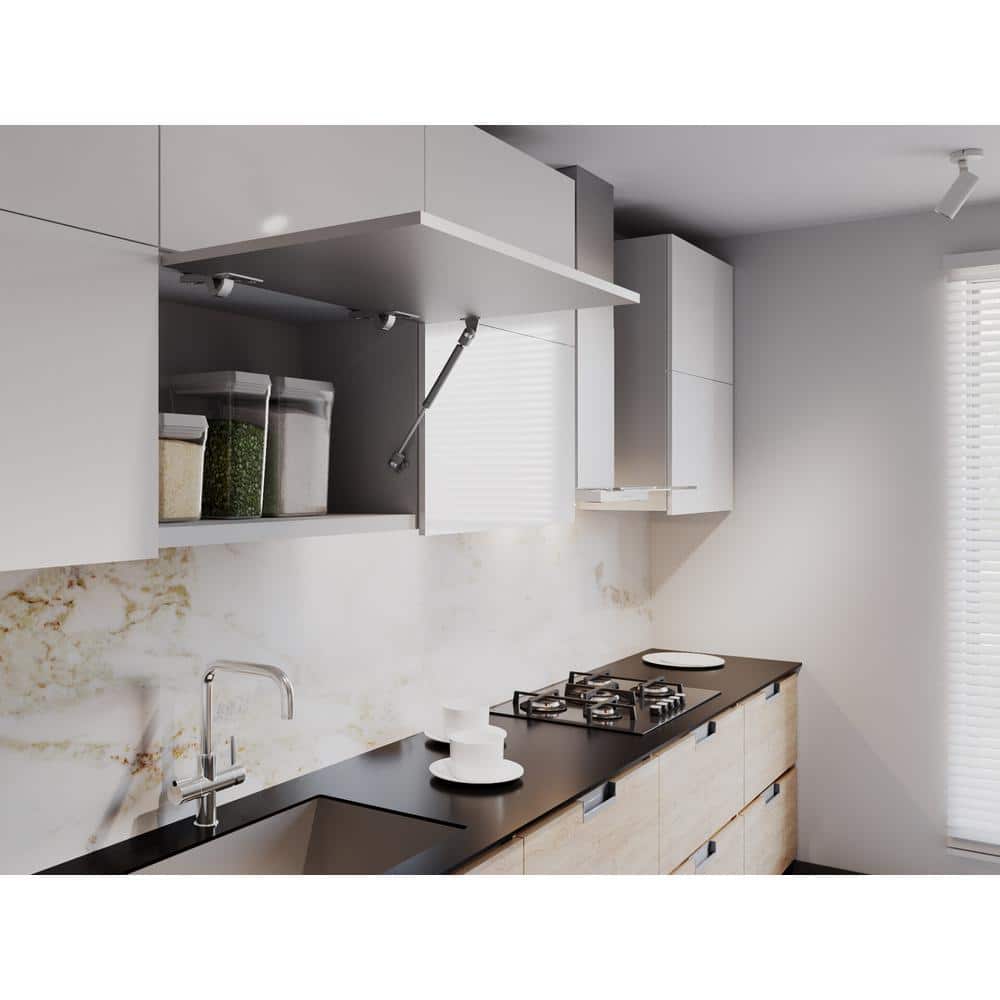

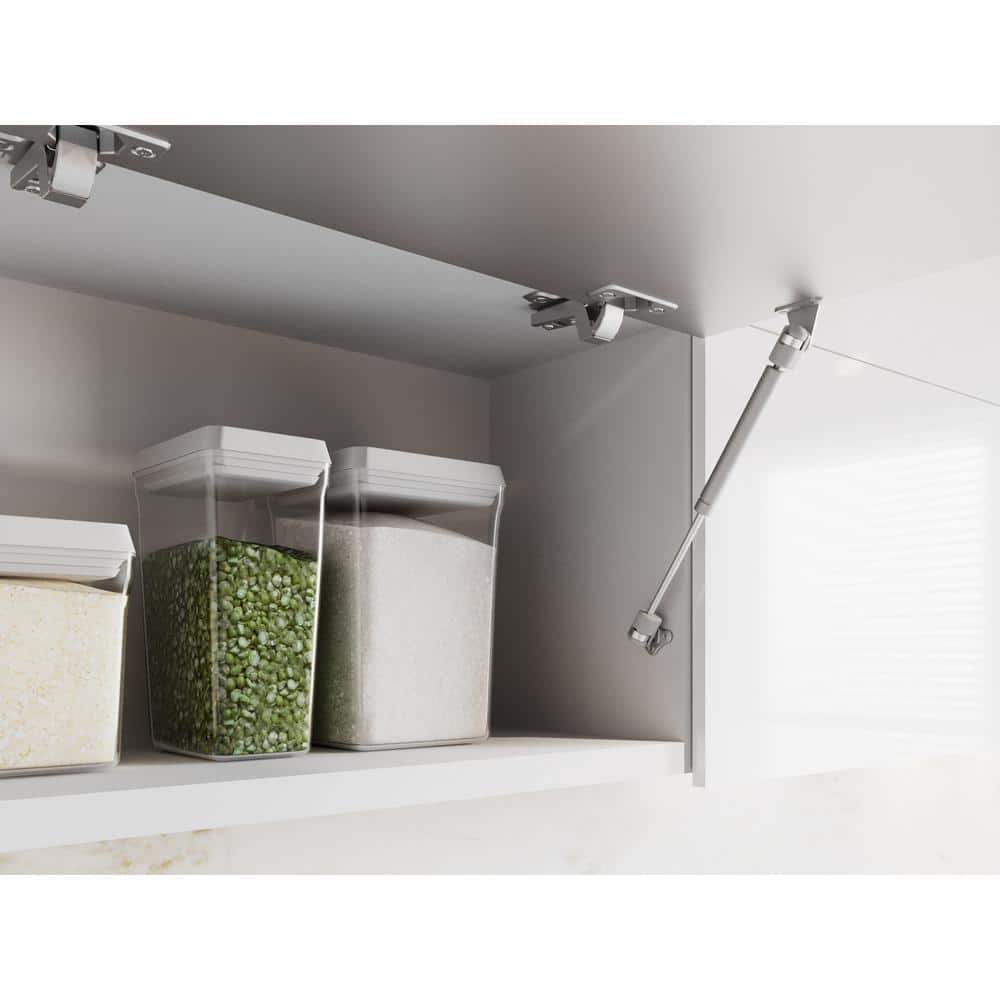

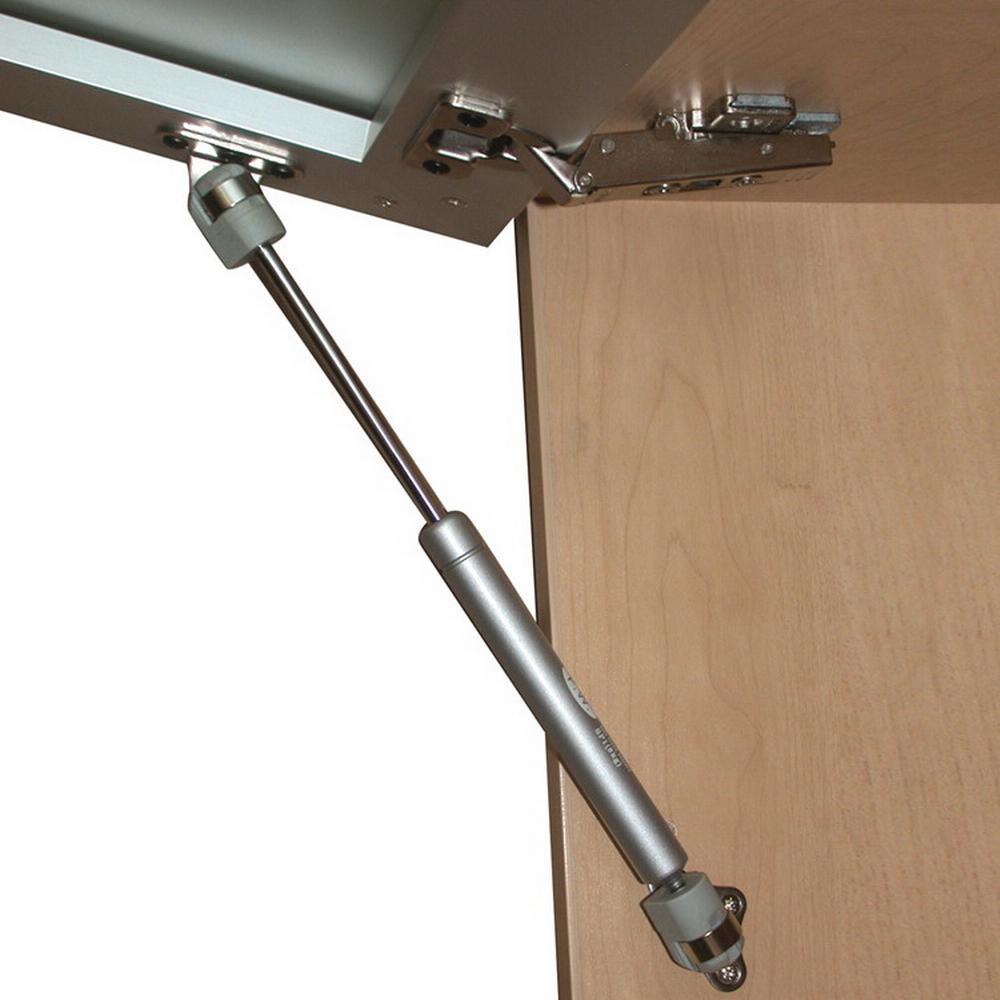

A pneumatic piston lift for overhead cabinet doors, providing smooth, controlled opening from 80° to 100°. Supports doors up to 12 kg (25 lb) with reversible installation for left or right side mounting.
Key Features:
- Soft, Controlled Opening: Pneumatic piston completes the lift automatically for 80°–100° openings
- 12 kg Capacity: Ideal for overhead cabinet doors up to 25 lb
- Reversible Mounting: Attaches to the right or left side of frameless cabinets
- Complete Hardware Included: Comes with lift, brackets, and fixing screws
- Durable Finish: Aluminum/silver look to match modern cabinetry
Specifications Table:
| Specification | Details |
|---|---|
| Load Capacity | 25 lb (12 kg) |
| Opening Angle | 80°–100° |
| Material | Metal |
| Finish | Aluminum / Silver |
| Builders Hardware Product Type | Damper |
| Hardware Finish Family | No Finish |
| Package Quantity | 1 |
| Full Length | Opened: 10.04 in; Closed: 6.3 in |
| Product Depth | 10.03 in |
| Product Height | 0.6 in |
| Product Width | 0.6 in |
| Mounting | Right or left side; frameless cabinets |
| Required Hinges | Euro-style hinges (sold separately) |
| Operation | Air-actuated strut; self-assisted opening |
| Contents | 1 pneumatic lift, 2 fixing brackets, fixing screws |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Model/Item | BP57812105 |
| UPC | 0773199303985 |
Frequently Asked Questions (FAQ):
Q: What door sizes and weights does this support?

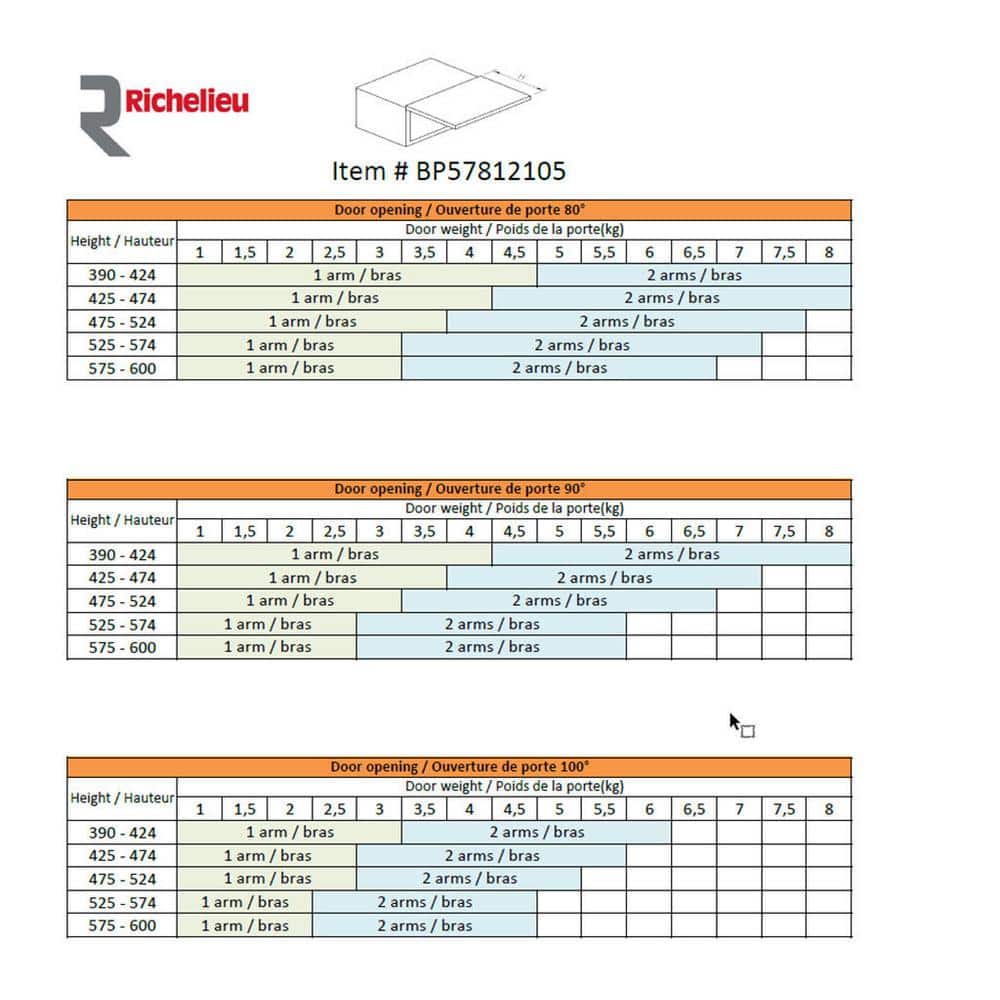

A: Suitable for doors up to 12 kg (25 lb). Use two lifts for heavier doors between 3 and 6.5 kg each, per sizing guide.
Q: Can it be installed on either side of the cabinet?
A: Yes, the unit is reversible and can mount on the right or left side.
Q: What opening angle does it provide?
A: It supports horizontal opening between 80° and 100°.
Q: Is hardware included?
A: Yes, contents include 1 pneumatic lift, 2 fixing brackets, and fixing screws. Hinges are sold separately and euro-style hinges are required.
Q: Does it require special hinges?
A: Yes, use euro-style hinges for proper operation.
Elevate Everyday Access with Effortless Motion
This sleek pneumatic lift brings a refined, modern ease to overhead cabinetry, turning a simple gesture into a smooth, floating motion. Its minimalist silver profile complements contemporary kitchens while staying discreet. Pair it with clean-lined, frameless cabinets and matte hardware for a cohesive look. A small luxury that elevates daily living with performance and poise.
Upgrade your cabinets with smooth, self-assisted opening—add this Richelieu pneumatic lift to your cart today.
