Toro 3/4 in. Anti-Siphon Jar Top Valve (Model 53763)
Published price — same for everyone
Out of stock — available on backorder
SKU 53763
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

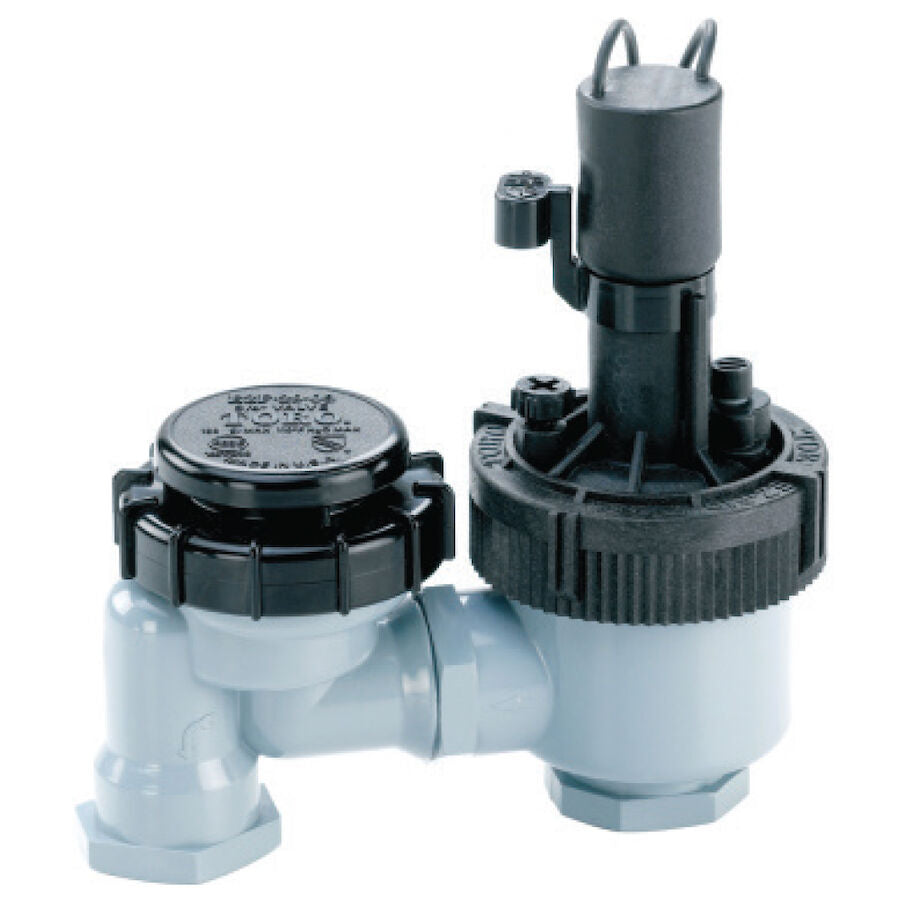

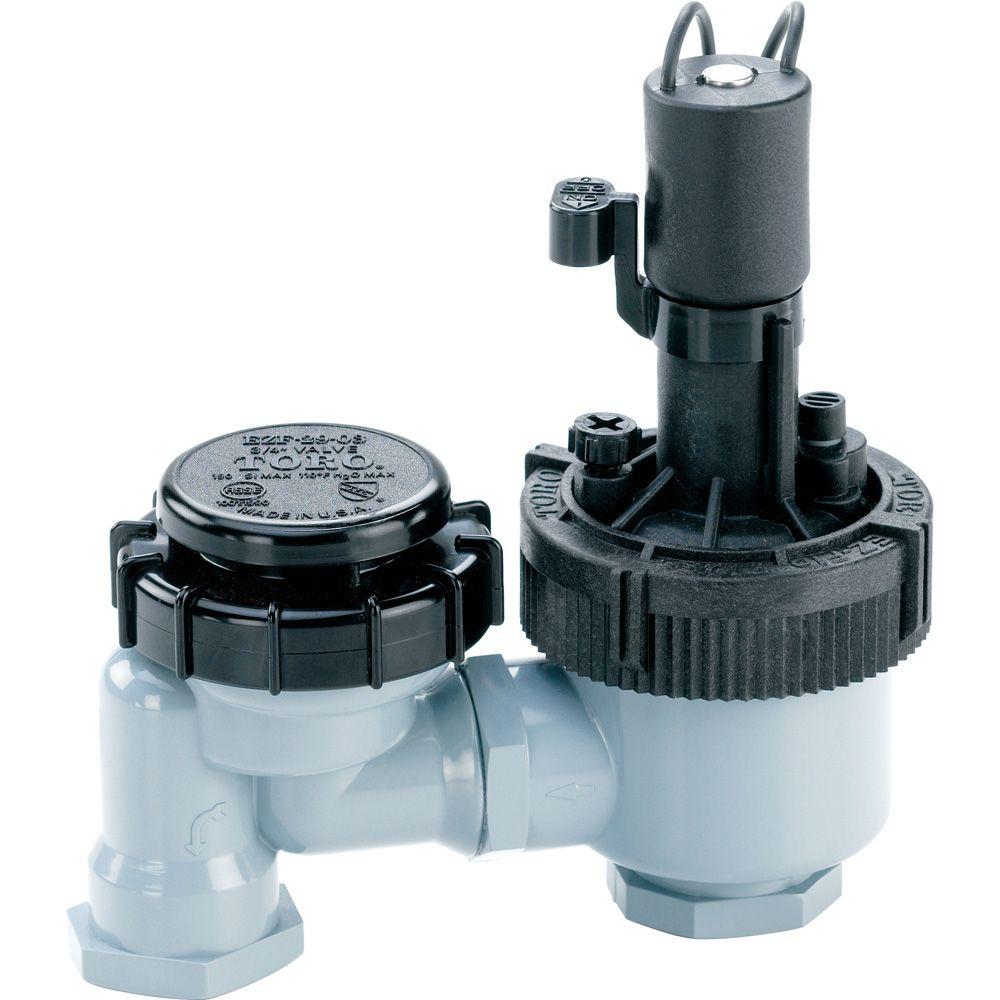

3/4" Anti-Siphon Jar Top Irrigation Valve
This Toro 3/4-inch anti-siphon jar top valve combines backflow prevention with the dependable performance of Toro’s jar-top design. Easy-access threaded bonnet and flow control let you fine-tune zone pressure to reduce misting and save water.
Key Features:
- Built-In Backflow Protection: Anti-siphon design helps safeguard household water supply
- Easy Serviceability: Threaded jar-top bonnet enables fast access to diaphragm and internals
- Precise Flow Control: Adjust pressure per zone to reduce misting and improve efficiency
- Durable Components: Santoprene diaphragm and encapsulated 24 VAC solenoid for long-life performance
- Flexible Operation: Manual internal/external bleed options simplify start-up and testing
Specifications Table:
| Specification | Details |
|---|---|
| Valve Type | Anti-Siphon |
| Valve Size | 3/4" |
| Inlet / Outlet | 3/4" (1.9 cm) Female NPT |
| Operating Pressure | 10 - 150 PSI (0.70 - 10.3 BAR) |
| Flow Range | 0.25 - 30.0 GPM (1 - 114 LPM) |
| Solenoid | 24 VAC |
| Inrush Current / VA | 0.40 amps, 11.50 VA |
| Holding Current / VA | 0.20 amps, 5.75 VA |
| Features | Manual Internal/External Bleed; Santoprene Diaphragm; Encapsulated Solenoid; Flow Control |
| Installation Height | Typically installed 6" to 12" (15.2 cm to 30.5 cm) above highest sprinkler |
| Bonnet | Threaded jar top for easy servicing |
Frequently Asked Questions (FAQ):
Q: What pipe connections does this valve use?
A: It has 3/4" female NPT inlet and outlet connections.
Q: What is the operating pressure range?
A: 10 to 150 PSI (0.70 to 10.3 BAR).
Q: What flow rates can it handle?
A: 0.25 to 30.0 GPM (1 to 114 LPM).
Q: What power is required for the solenoid?
A: 24 VAC solenoid; inrush 0.40 amps/11.50 VA, holding 0.20 amps/5.75 VA.
Q: Can I manually test or operate the valve?
A: Yes, it includes manual internal and external bleed functions for testing and start-up.
Streamlined Control with Built‑In Protection
Sleek and purposeful, this jar top valve brings a clean, technical edge to outdoor systems while quietly protecting your water supply. The integrated anti‑siphon silhouette and ribbed bonnet feel robust and refined, a detail that elevates the utility zone. Pair it with neatly routed PVC lines and a compact manifold to keep the landscape looking polished. It’s an essential for a high‑performance, luxurious irrigation setup.
Optimize your irrigation system with Toro’s 3/4" anti-siphon jar top valve—precise control and built-in protection in one easy-to-service unit.
