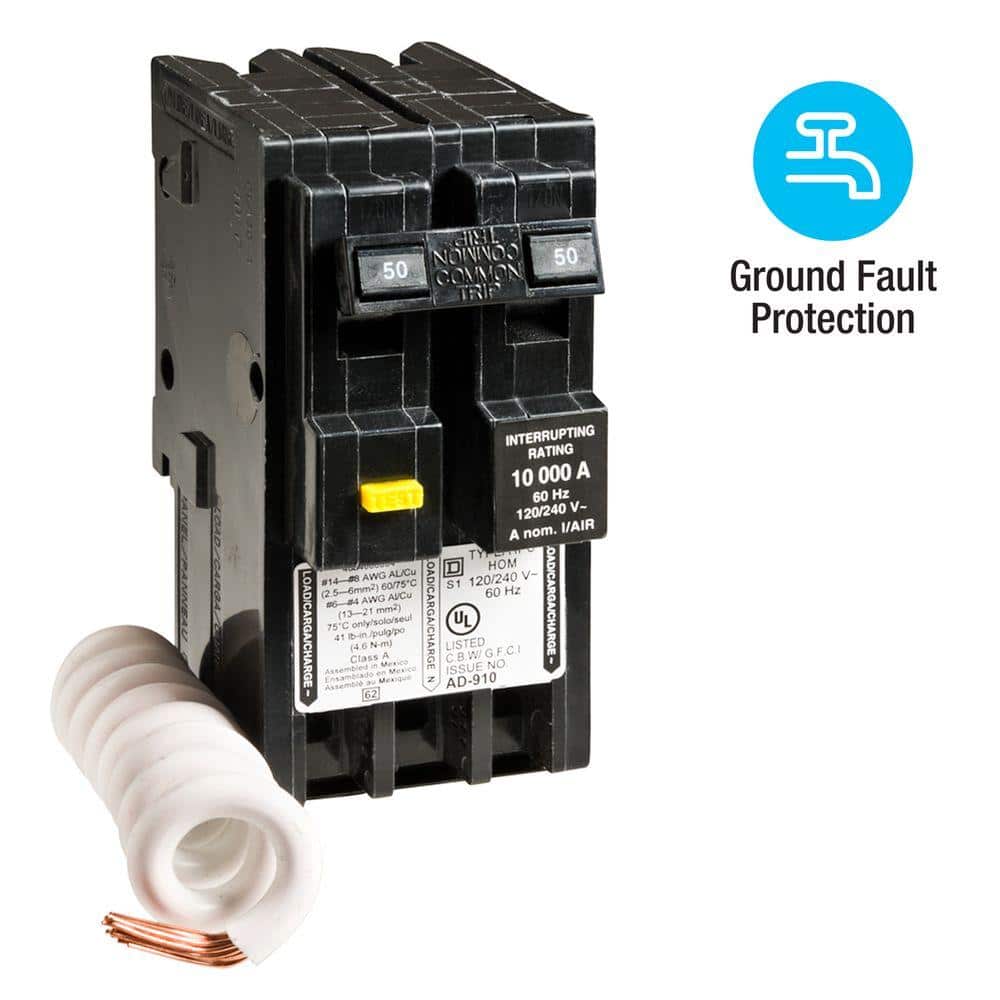

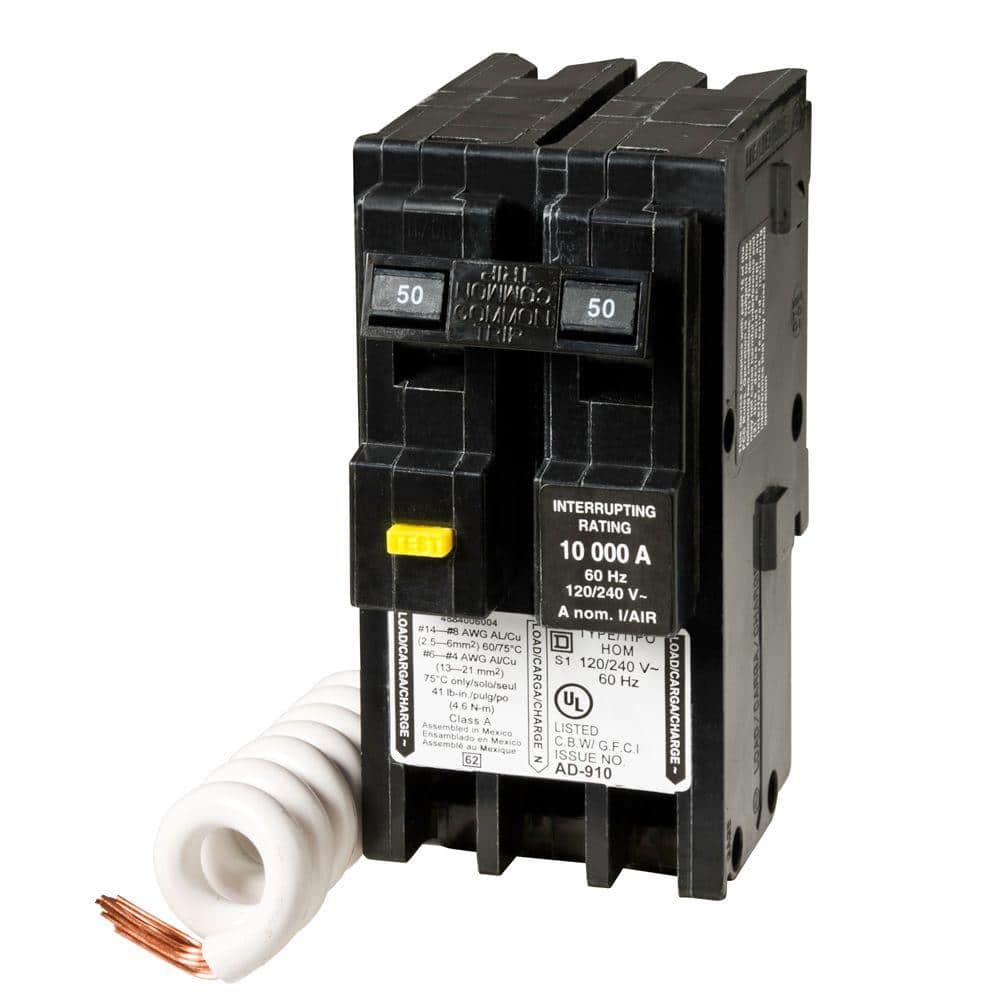

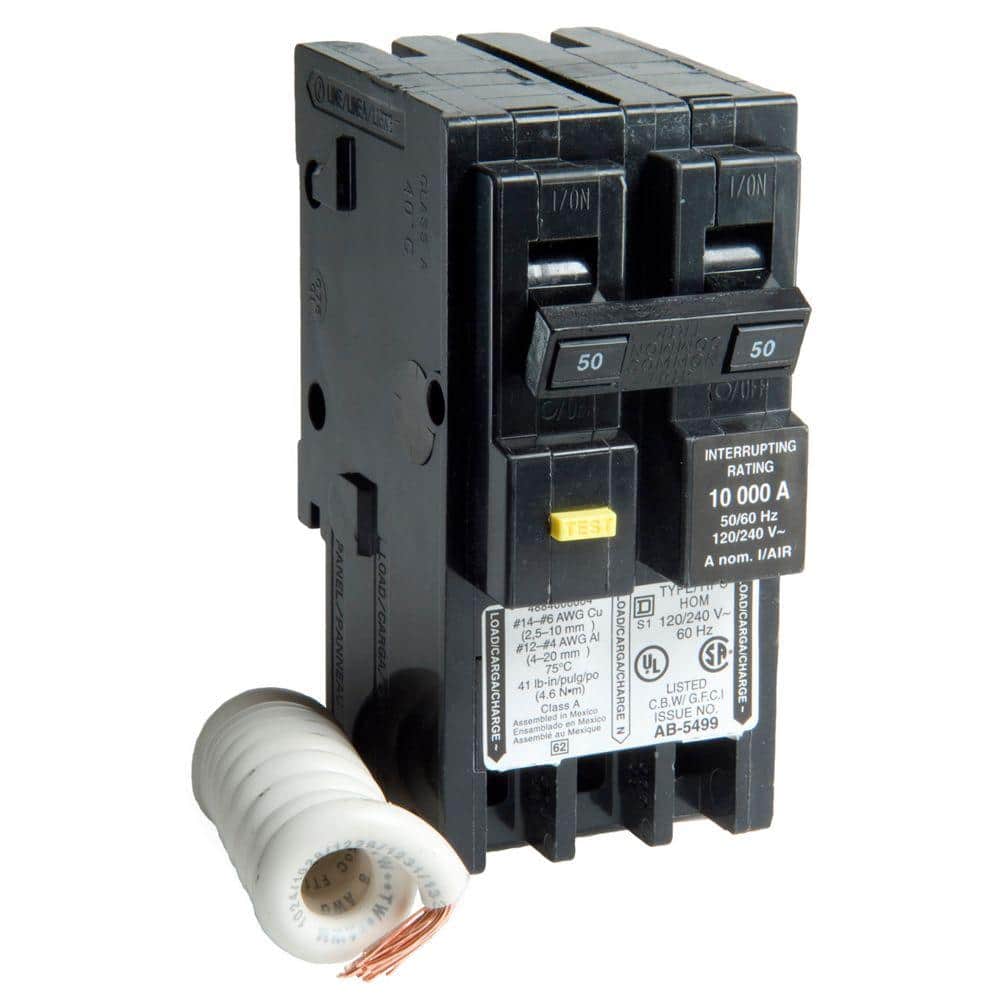

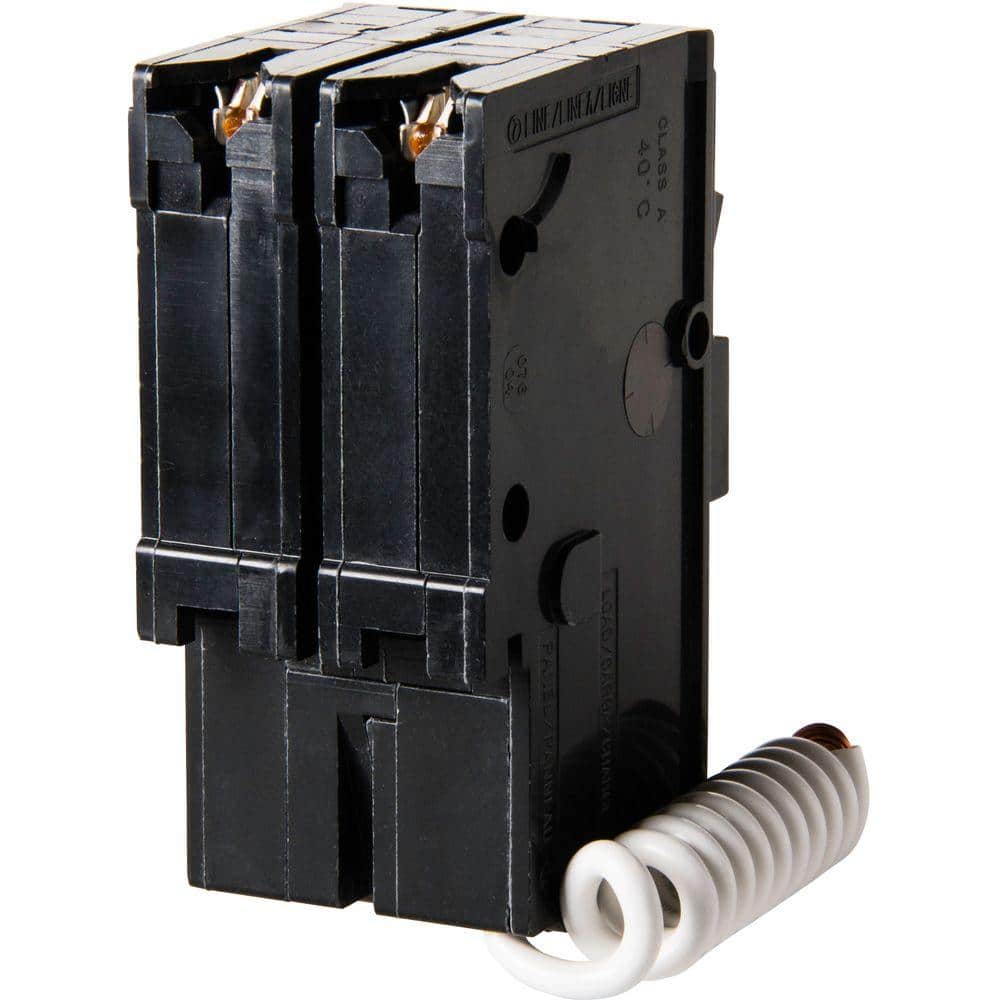

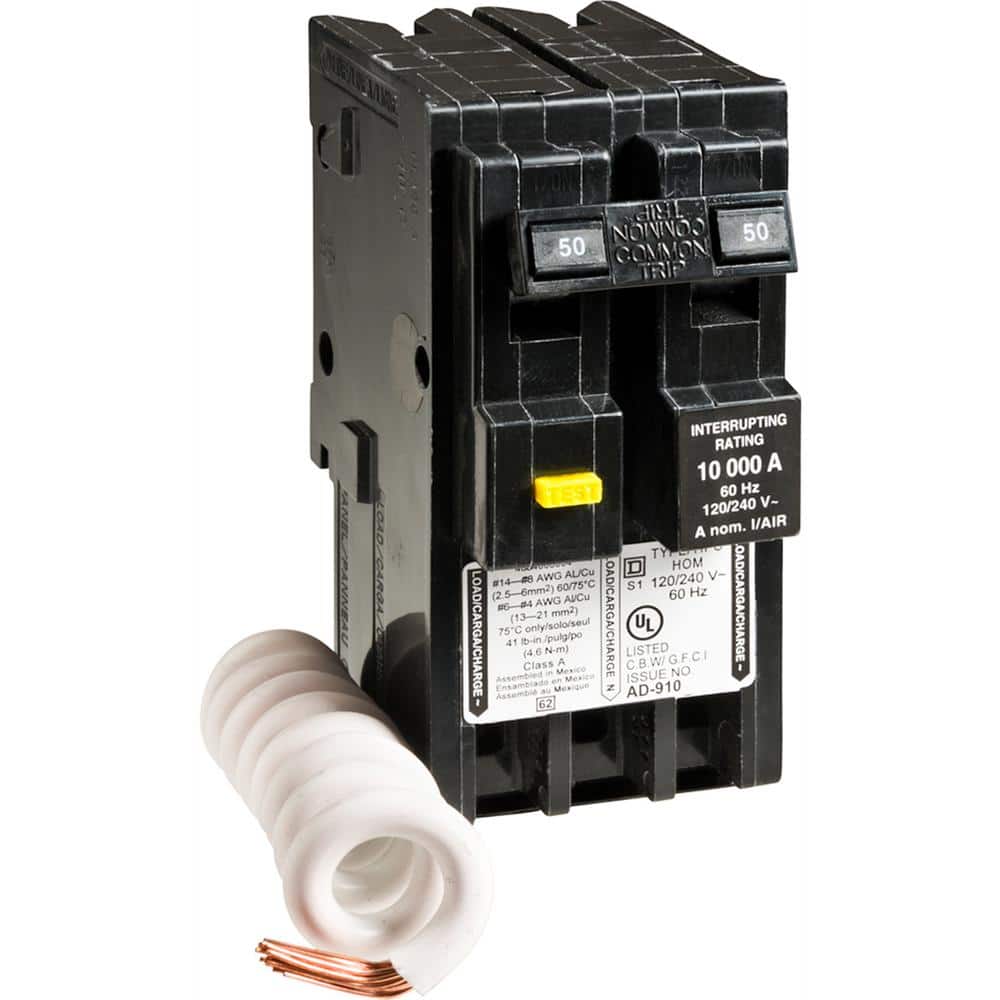

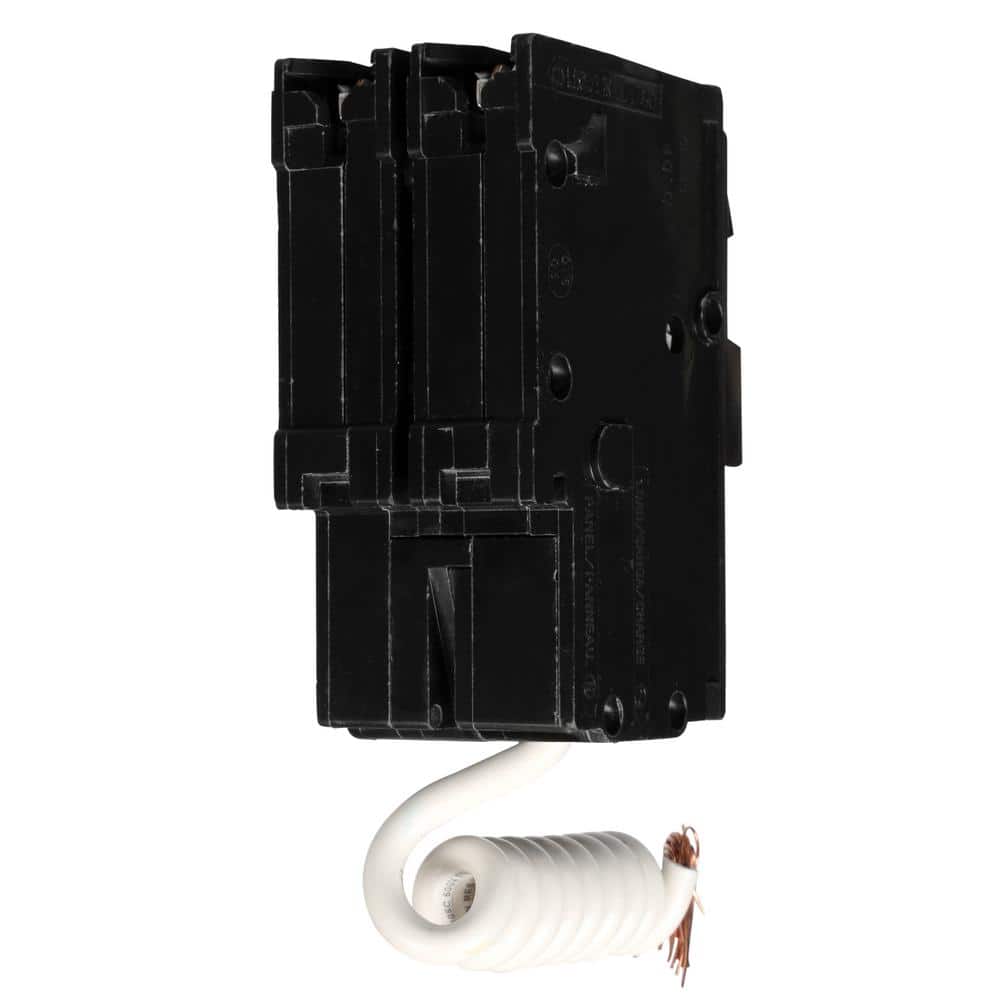

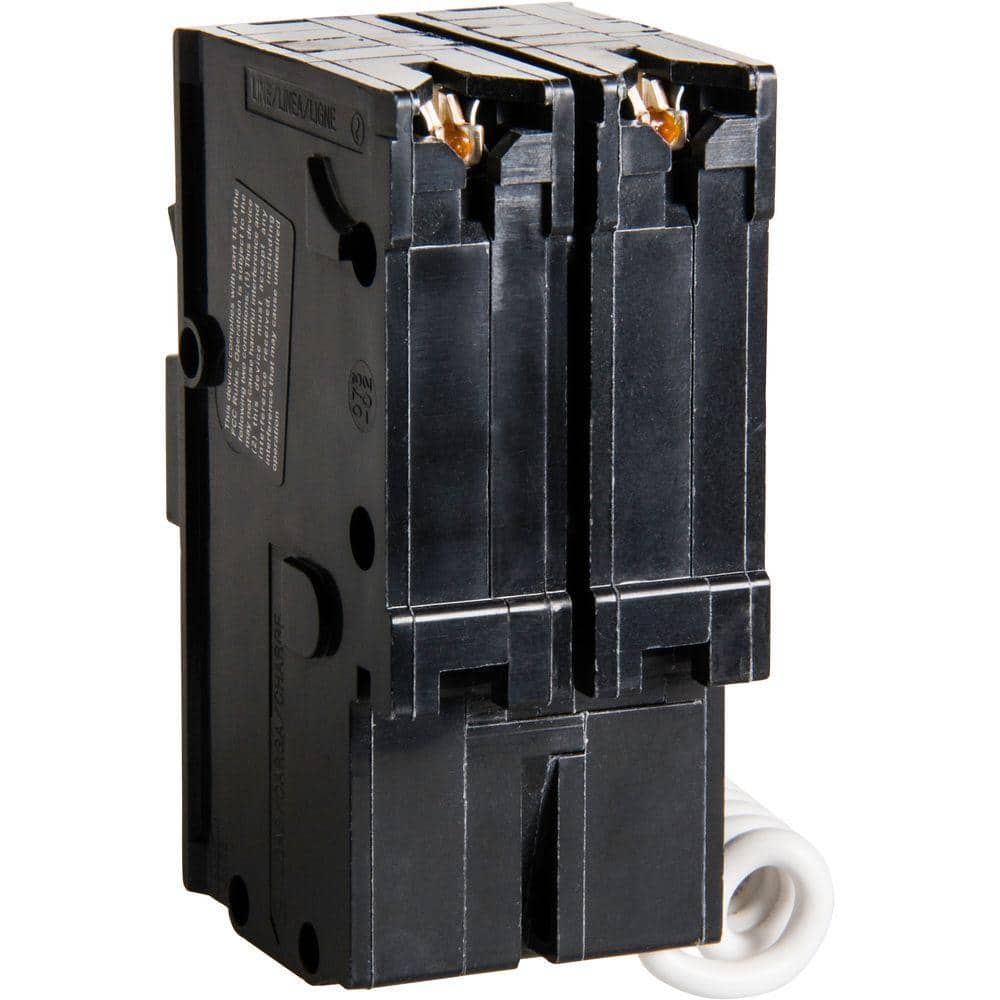

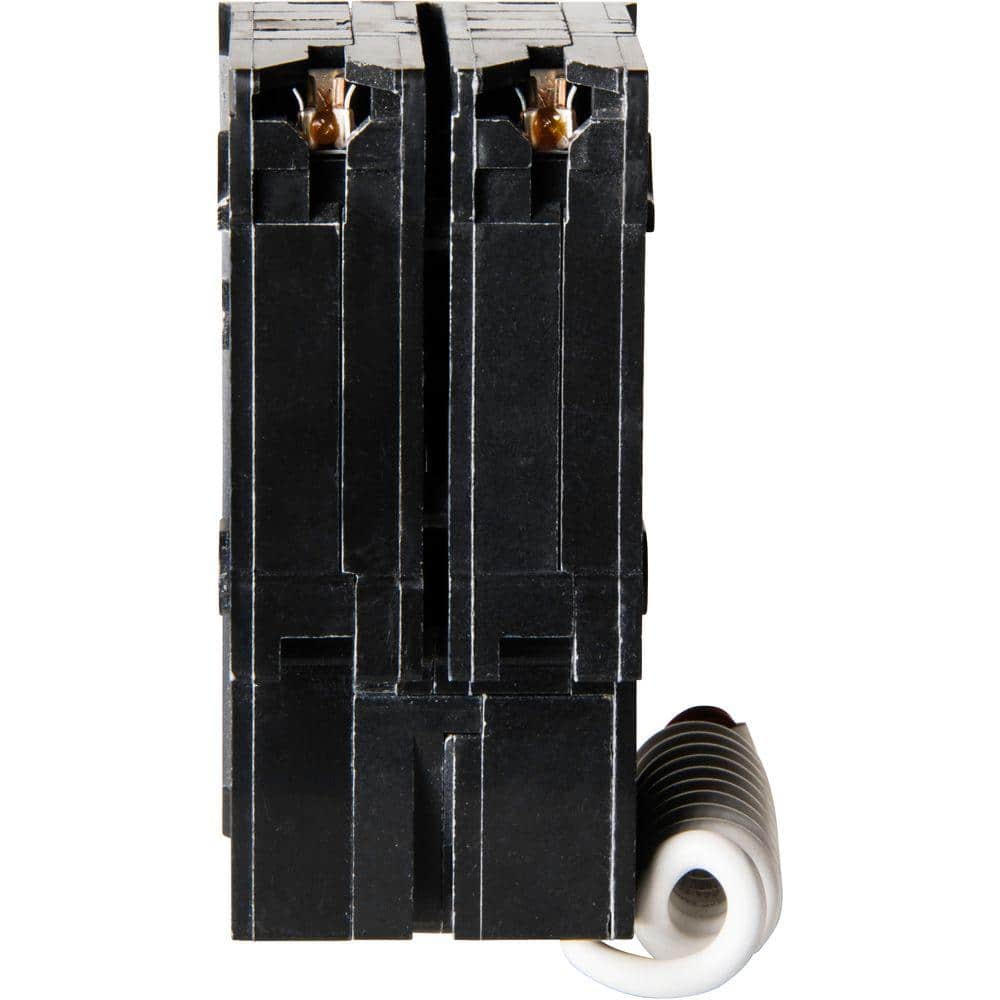

Homeline 50A 2-Pole GFCI Breaker
This Square D Homeline 50 Amp two-pole GFCI circuit breaker provides overload, short-circuit, and Class A ground fault protection for 120/240V AC systems. Designed for quick plug-on installation in Homeline load centers and CSEDs, it delivers a 10 kA interrupt rating and reliable electronic trip performance.
Key Features:
- Comprehensive Protection: Combines overload, short-circuit, and Class A ground fault protection for branch circuits
- Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs using two spaces
- Residential Ready: Rated 120/240 VAC with 10,000 AIR for dependable home protection
- Durable Build: UL Listed and ANSI certified with electronic trip unit for consistent performance
- Easy Testing: Built-in test button simplifies periodic safety checks
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Amperage | 50 Amp |
| Poles | 2-Pole (Double) |
| Interruption Type | GFCI, Class A |
| Voltage | 120/240 VAC |
| AIC Rating | 10,000 AIR |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral (with pigtail) |
| Trip Unit | Electronic |
| Pack Size | 1 |
| Certifications | UL Listed, ANSI Certified |
| Product Height | 3.13 in |
| Product Width | 2 in |
| Product Depth | 2.98 in |
| Manufacturer Warranty | Limited lifetime when installed in a Homeline load center |
| Application | Residential/commercial branch circuit protection with ground-fault protection |
Frequently Asked Questions (FAQ):
Q: Will this breaker fit my panel?
A: It is compatible only with Square D Homeline load centers and CSED devices that have two adjacent spaces available.
Q: What does Class A GFCI mean?
A: Class A trips when ground-fault current is 6 mA or more, providing personnel protection in areas like kitchens, garages, and outdoors.
Q: What voltage systems does it support?
A: It is rated for 120/240 VAC applications.
Q: What is the interrupt rating?
A: 10,000 AIR (AIC) at 120/240 VAC.
Q: Is it UL listed and does it have a warranty?
A: Yes, it is UL Listed and covered by a limited lifetime warranty when installed in a Homeline load center.
Streamlined Safety with Industrial Poise
This breaker brings refined utility to the backbone of your home, pairing crisp geometry with a purposeful black finish. The standout coiled pigtail feels sculptural while delivering vital GFCI protection. Tuck it into a Homeline panel to anchor spa circuits, kitchens, or workshops with quiet confidence. It’s an essential, elegant upgrade for a safer, more luxurious daily life.
AI Review Summary:
Overall sentiment is strongly positive. Customers praise reliable GFCI protection and easy plug-on installation in Homeline panels, often citing quick swaps and immediate restoration of protected service for spas and hot tubs. Build quality and brand trust are recurring themes; several note consistent performance and clear test functionality. A few report the breaker’s higher cost versus standard 2-pole units and occasional confusion verifying panel compatibility; rare reviews mention nuisance trips tied to downstream wiring faults rather than the breaker. Representative quotes: “Dropped right into my Homeline box and my spa was up in minutes,” “Pricey but worth it for true GFCI protection,” and “Worked perfectly once I corrected a wiring issue that caused tripping.”
Elevate your panel’s protection—add this Homeline 50A GFCI breaker to safeguard your circuits with proven Square D reliability.
