Schneider Electric

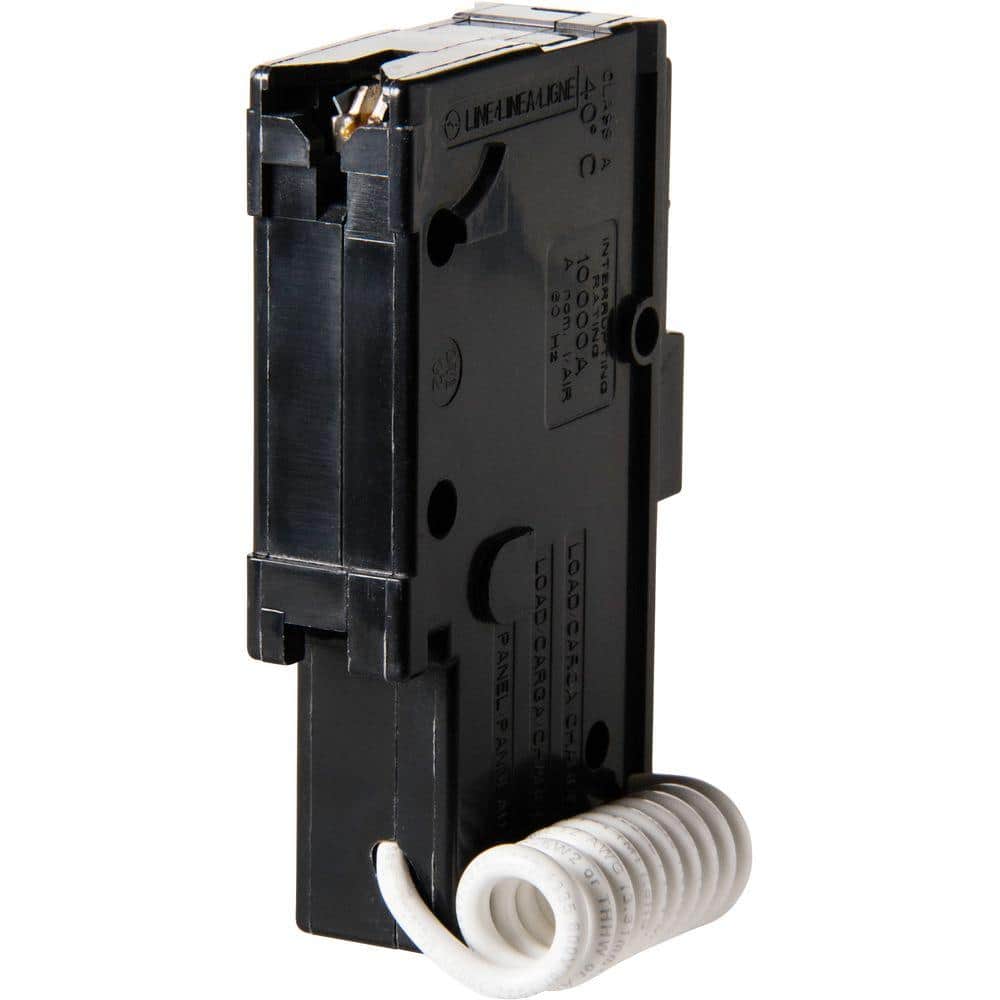

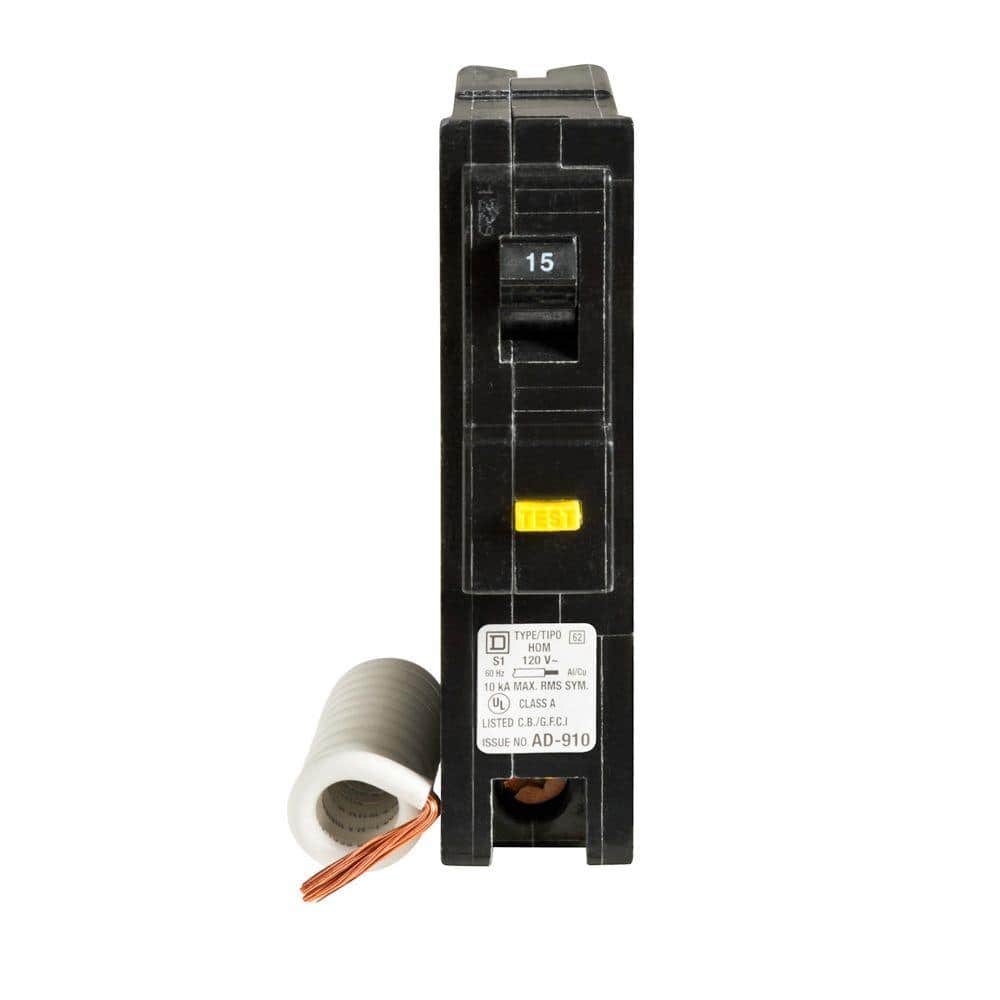

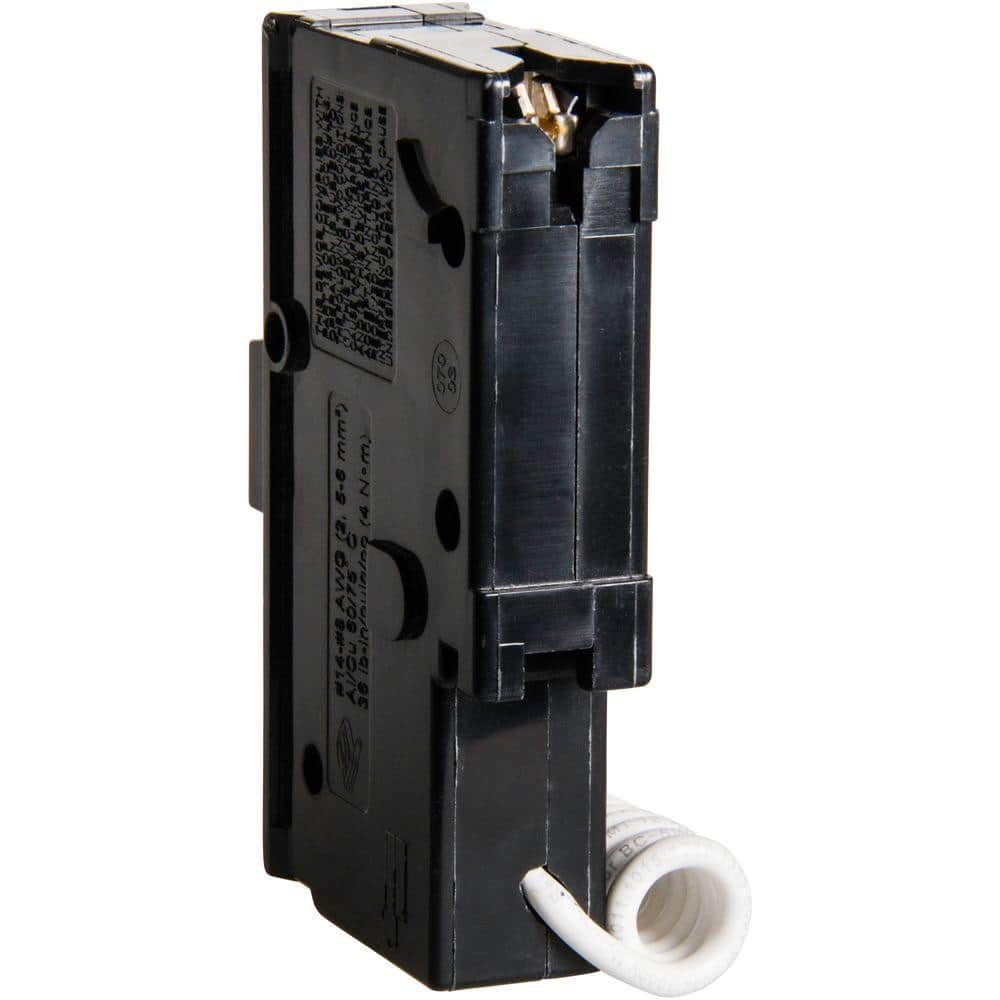

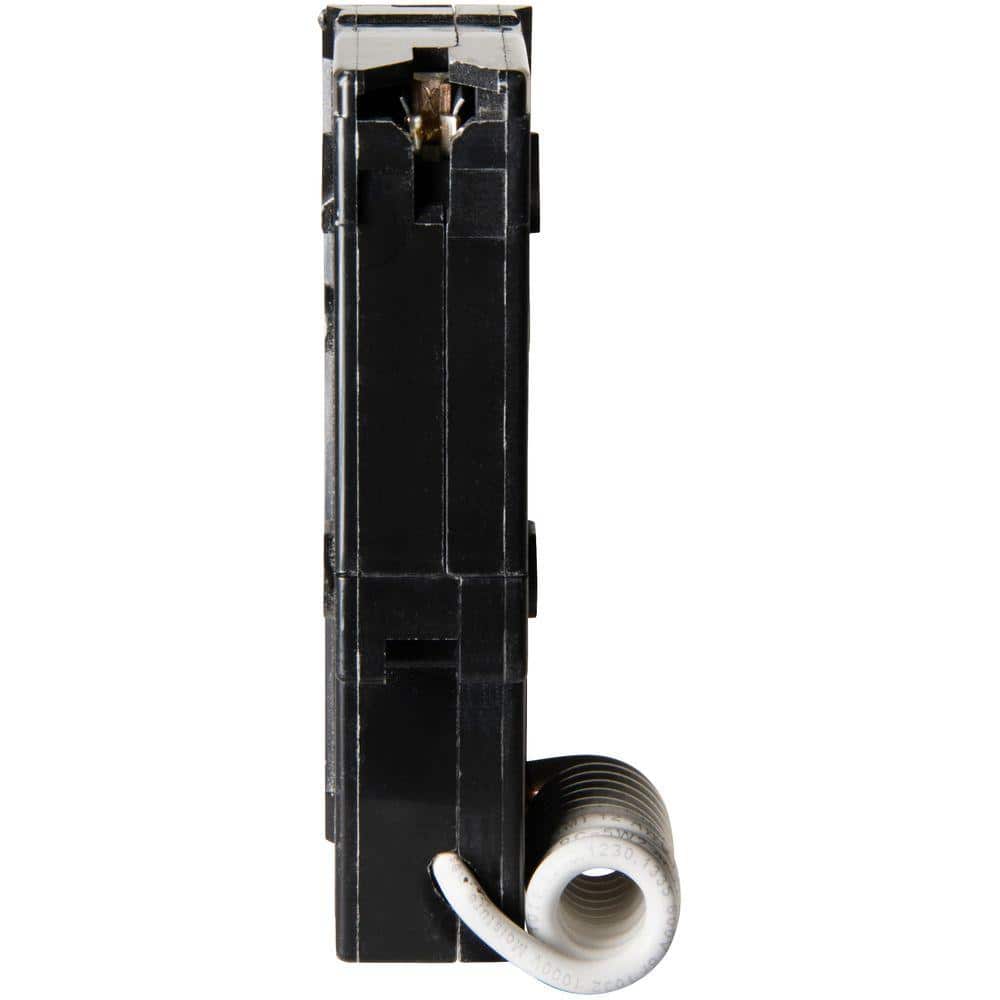

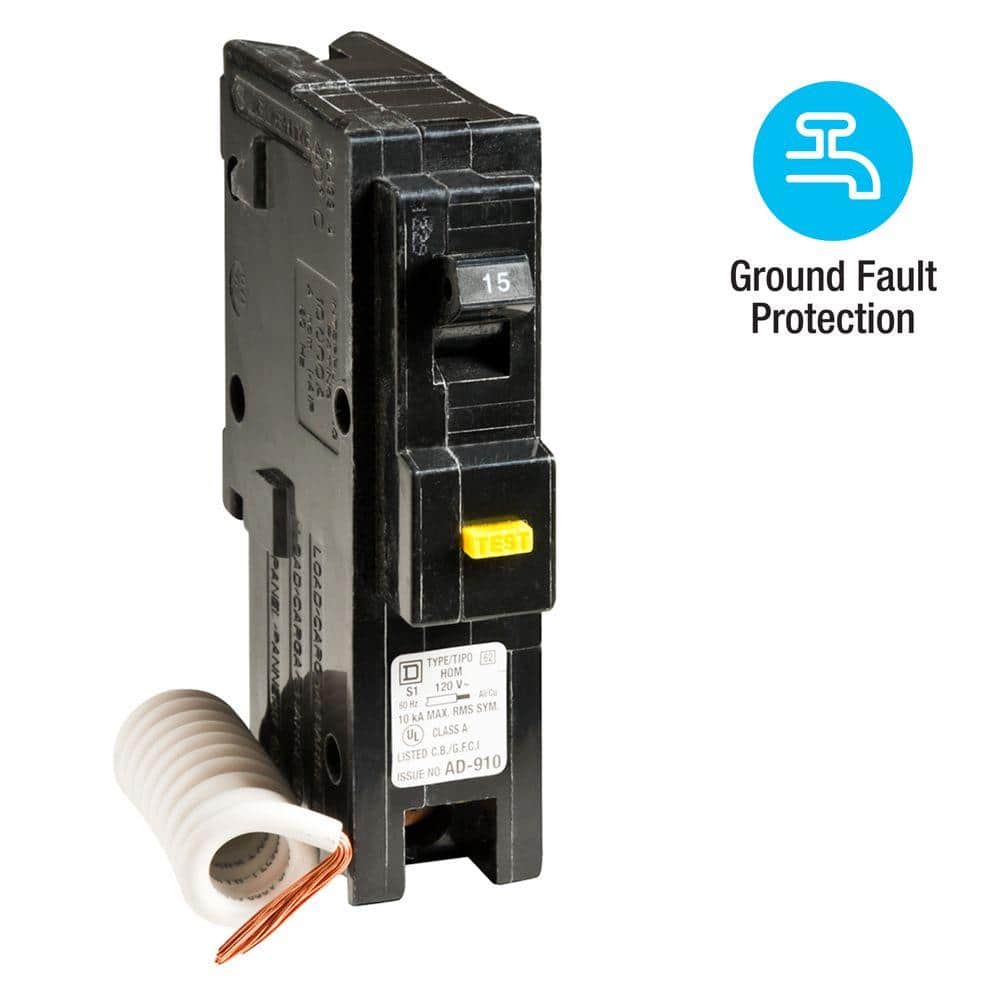

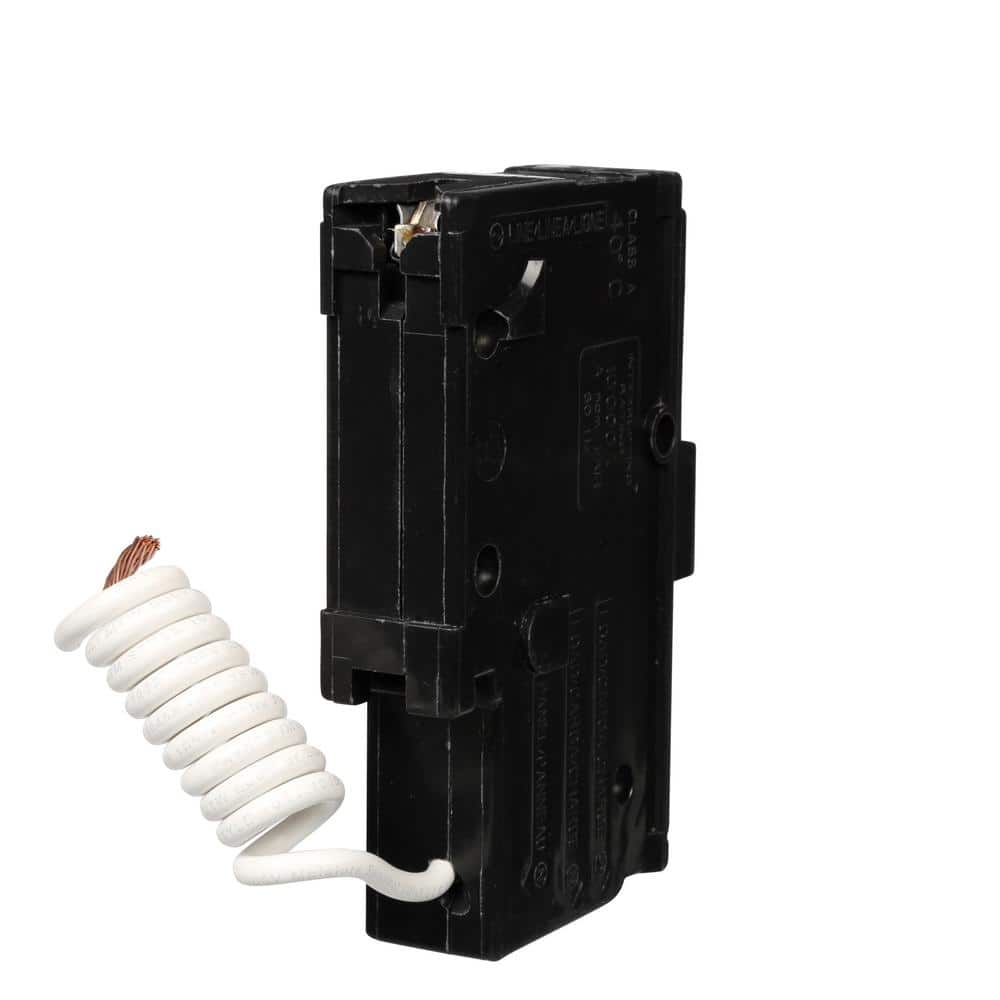

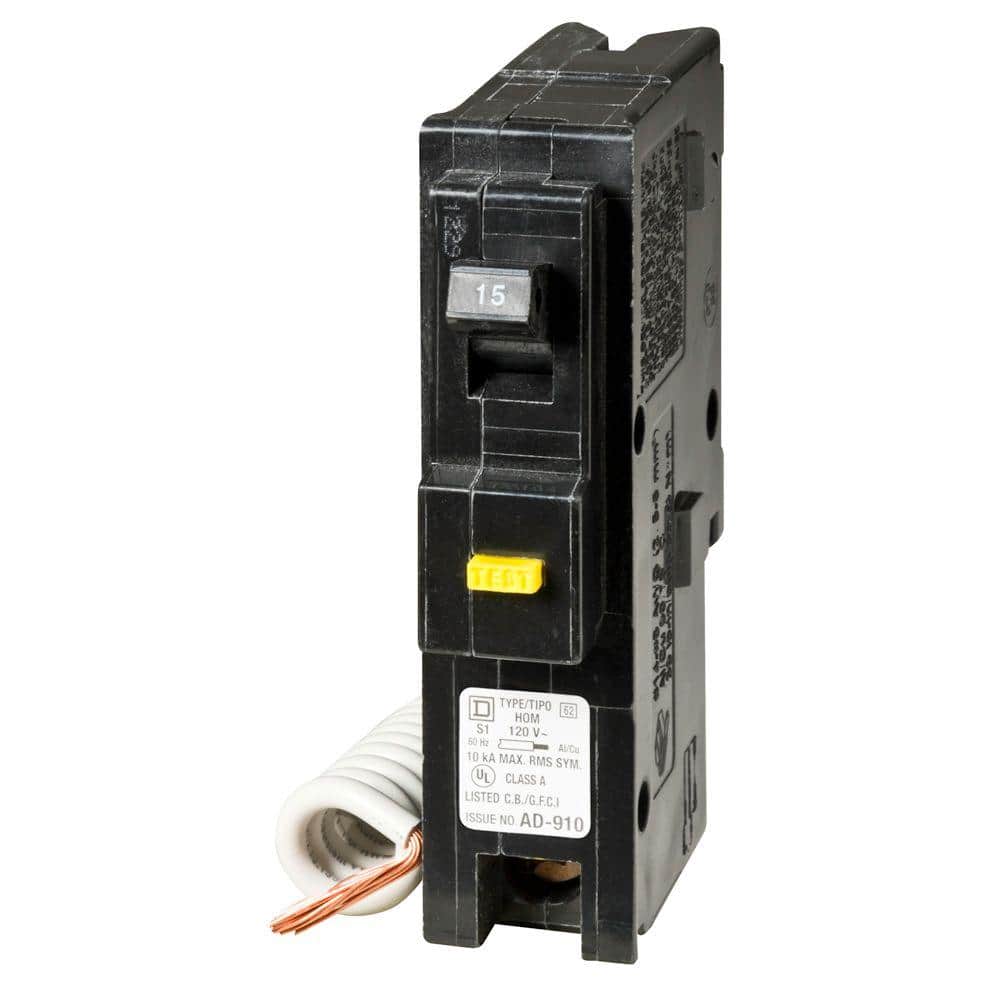

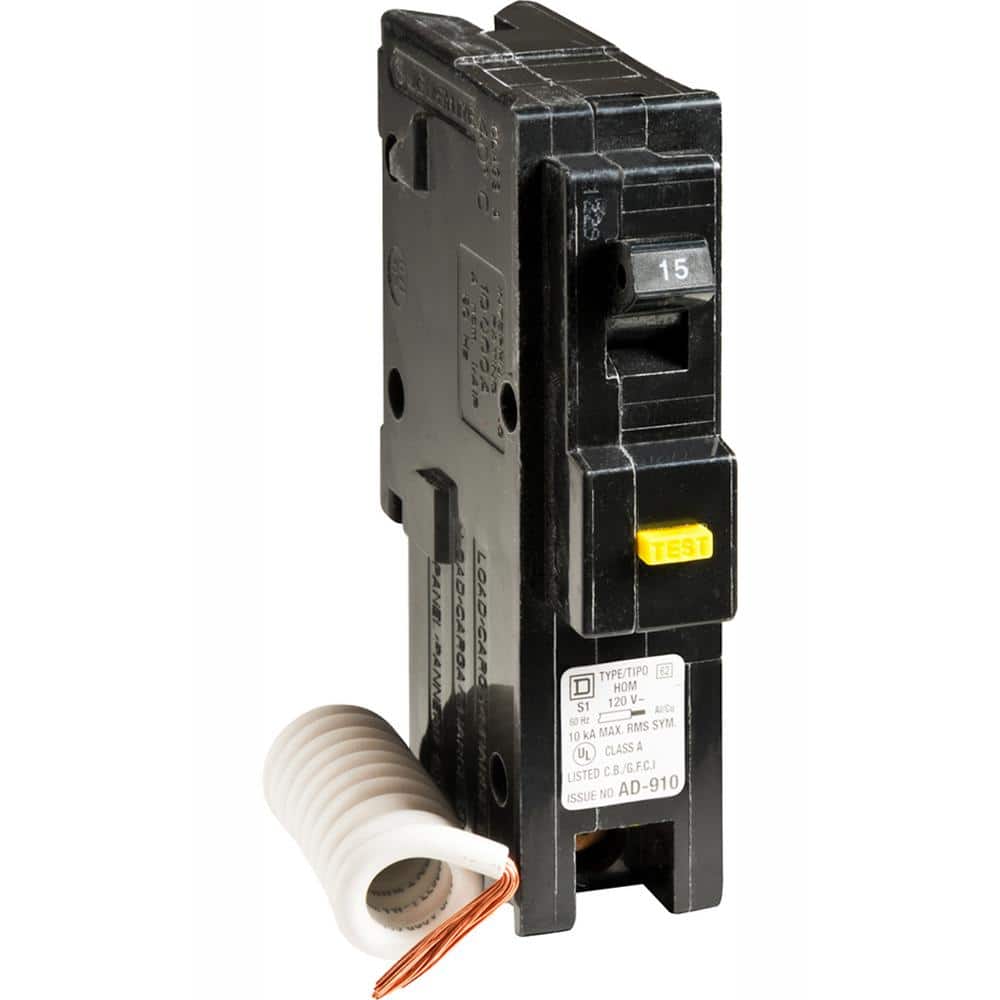

Square D Homeline 15 Amp Single-Pole GFCI Circuit Breaker, HOM115GFICP
Published price — same for everyone
Out of stock — available on backorder
SKU HOM115GFICP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 15A Single-Pole GFCI Breaker
Square D Homeline 15A GFCI breaker provides overload, short-circuit, and Class A ground-fault protection for residential branch circuits. Designed for plug-on installation in Homeline load centers and CSEDs, it’s UL Listed and rated 10 kA AIR for reliable safety in wet or damp locations.
Key Features:
- GFCI Protection: Class A ground-fault protection trips at ≥6 mA to help prevent shock
- Residential Ready: Compatible with Square D Homeline panels and CSEDs using 1 space
- Durable Safety Rating: 10 kA interrupting rating with UL Listing and ANSI compliance
- Easy Install: Plug-on design with included pigtail neutral connection
- Right-Sized Performance: 15 Amp, single-pole breaker for 120/240V AC systems
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard GFCI |
| Interruption Type | GFCI |
| Maximum Amperage | 15 A |
| Poles | Single-Pole |
| Mounting Type | Plug-On |
| Number of Spaces | 1 |
| Voltage | 120/240 V AC |
| AIC Rating | 10,000 AIR |
| Trip Unit | Electronic |
| Connection Type | Non-Neutral (with pigtail neutral) |
| Certifications | UL Listed, ANSI Certified |
| Product Height | 3.13 in |
| Product Width | 1 in |
| Product Depth | 2.98 in |
| Pack Size | 1 |
| Application | Residential branch circuits; wet/damp locations |
| Warranty | Limited lifetime warranty for the lifetime of the Homeline load center in which installed |
Frequently Asked Questions (FAQ):
Q: What panels is this breaker compatible with?
A: It is designed for Square D Homeline load centers and CSED devices that have one available space.
Q: Does this provide GFCI protection?
A: Yes—it's a Class A GFCI breaker that trips when ground-fault current is 6 mA or more.
Q: What is the interrupt rating?
A: 10,000 AIR (AIC) at 120 VAC.
Q: Can I install it myself?
A: Installation should be performed by a qualified electrician and per local codes.
Q: Is there a warranty?
A: Square D warrants Homeline branch breakers for the lifetime of the Homeline load center in which they are installed.
Quiet Confidence for Safer Power
This Homeline GFCI breaker tucks safety into a refined, minimal silhouette—discreet yet essential. The signature yellow test button punctuates its streamlined form, a subtle nod to purposeful design. Pair it with a clean, well-labeled panel layout to elevate the utility room into an organized, modern workspace. Smart protection like this is the backbone of effortless, luxurious living.
Choose Homeline GFCI protection today for safer, code-compliant circuits in minutes.
