Schluter Systems
Schluter Systems DILEX-KSN 0.438-in W x 98.5-in L Stone Grey Steel Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049604
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

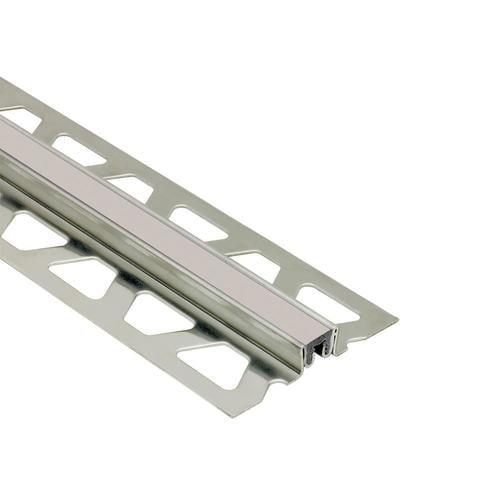

DILEX-KSN Stone Grey Steel Tile Edge Trim, 0.438 in x 98.5 in

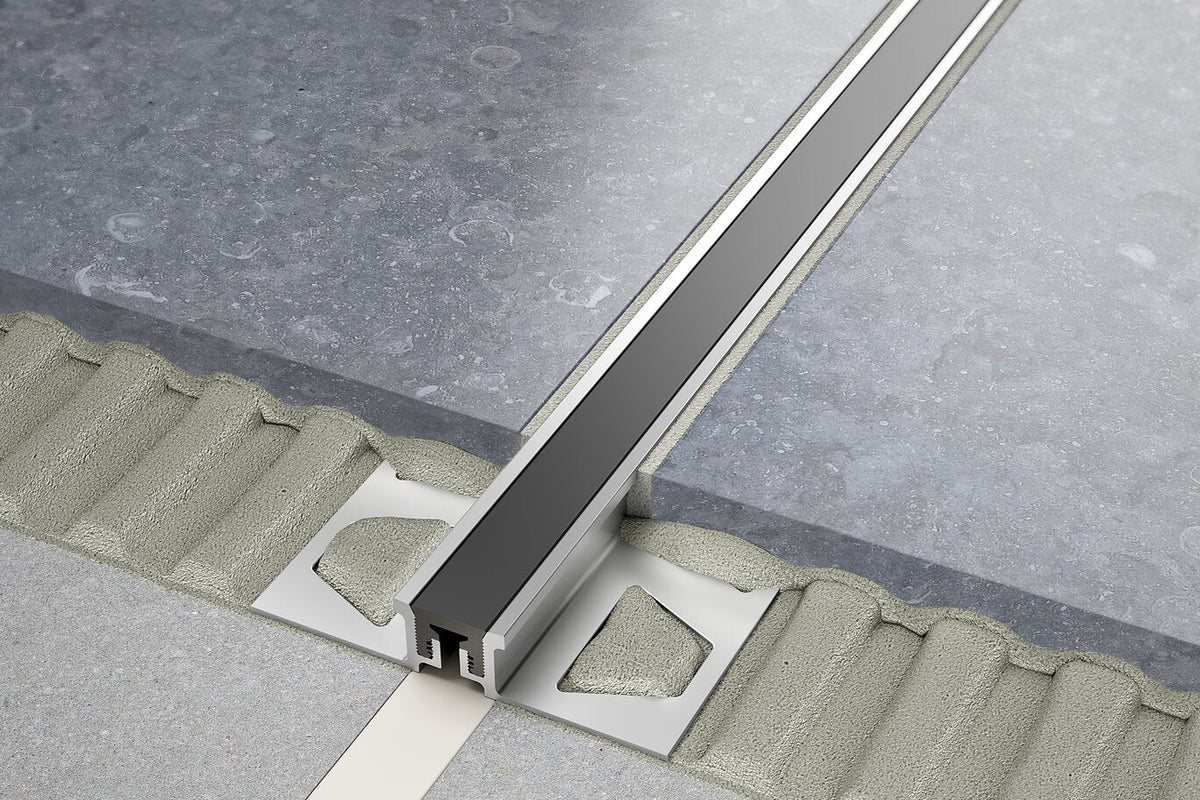

Heavy-duty movement joint and edge protection profile for tiled floors. DILEX-KSN features stainless steel anchoring legs and a 7/16 in soft thermoplastic rubber movement zone to absorb stress and prevent tile cracking—ideal for commercial traffic areas.
Key Features:
- Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone absorbs expansion and contraction to prevent tile cracking.
- Heavy-Duty Edge Protection: Stainless steel anchoring legs safeguard tile edges in demanding environments like warehouses and malls.
- Maintenance-Free: Eliminates the need for caulking while providing long-term performance.
- Replaceable Insert: Thermoplastic movement insert can be replaced if damaged.
- Color-Matched Aesthetics: Available in multiple colors to coordinate with grout for a clean finish.
Specifications Table:
| Specification | Details |
|---|---|
| Model | DILEX-KSN |
| Profile type | Surface and expansion joint profile for tile |
| Material | Stainless steel anchoring legs with soft thermoplastic rubber movement zone |
| Color | Stone Grey (insert) |

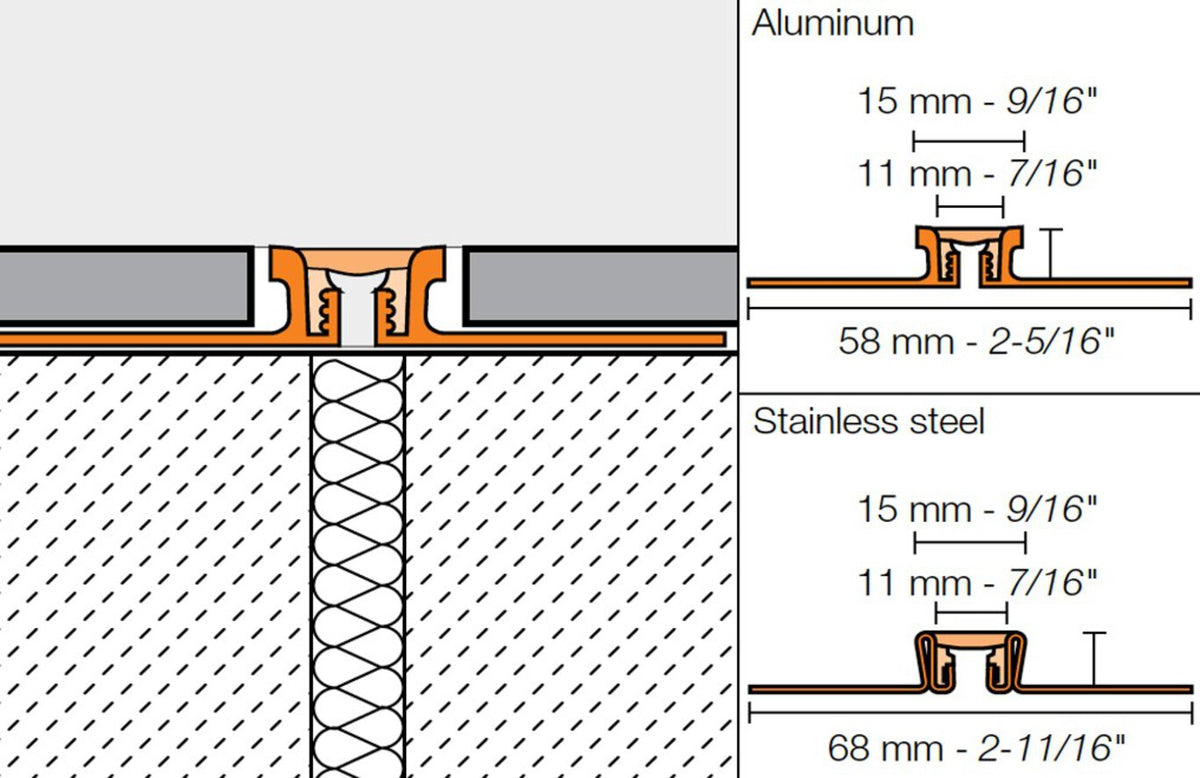

| Movement zone width | 7/16 in (11 mm) |
| Overall length | 98.5 in (2.5 m) |
| Top surface width (stainless steel version) | 68 mm (2-11/16 in) |
| Top surface width (aluminum version) | 58 mm (2-5/16 in) |
| Tile thickness compatibility (visible height) | 15 mm (9/16 in) profile height |
| Applications | Large tiled areas; heavy-duty commercial traffic (warehouses, production facilities, shopping malls) |
| Maintenance | Maintenance-free; eliminates need for caulking |
| Replaceable insert | Yes, thermoplastic rubber insert is replaceable |
Frequently Asked Questions (FAQ):
Q: What is the overall length of this profile?
A: 98.5 inches (2.5 m).
Q: How wide is the movement zone?
A: 7/16 inch (11 mm).
Q: Is the movement insert replaceable?
A: Yes, the soft thermoplastic rubber insert can be replaced if damaged.
Q: Where is this profile best used?
A: In large tiled areas and spaces exposed to heavy commercial traffic where movement and edge protection are critical.
Q: Does it require caulking?
A: No, the profile is designed to eliminate the need for caulking.
Architectural polish with resilient movement
DILEX-KSN draws a sleek line through expansive tile, delivering precision while quietly managing the stresses beneath. The refined steel legs frame a slim, stone-grey ribbon—its replaceable movement core the hidden hero. Run it through long corridors or grand entries to keep surfaces pristine and purposeful. It’s the discreet detail that elevates luxury, engineered for everyday life.
Protect your tile installation with commercial-grade movement control—choose DILEX-KSN today.
