Schluter Systems DILEX-KSN 0.438-in W x 98.5-in L Stone Grey PVC Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049088
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
DILEX-KSN Stone Grey PVC Tile Edge Trim, 0.438 in x 98.5 in

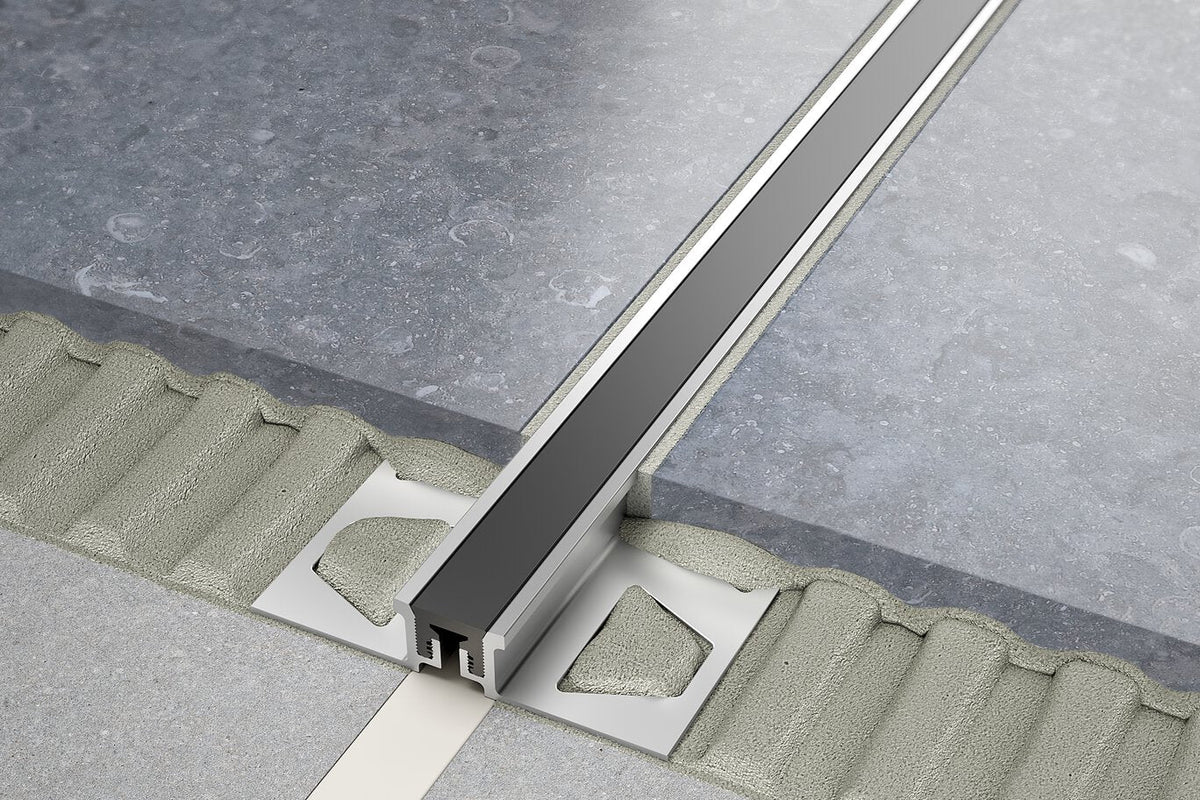

A movement joint profile that protects tile edges while absorbing expansion in large tiled areas. The DILEX-KSN features trapezoid-perforated anchoring legs and a 7/16-inch soft thermoplastic rubber movement zone for durable, maintenance-free performance.
Key Features:
- Movement Absorption: 7/16-inch soft thermoplastic rubber zone accommodates expansion and prevents cracking
- Durable Edge Protection: Trapezoid-perforated anchoring legs in stainless steel or aluminum secure adjacent tiles
- Maintenance-Free Design: Eliminates the need for caulking in expansion joints
- Commercial-Grade Performance: Suitable for heavy-duty traffic areas like warehouses and shopping malls
- Replaceable Center Section: Thermoplastic rubber movement zone can be replaced if damaged
Please check the Product Data Sheet Here

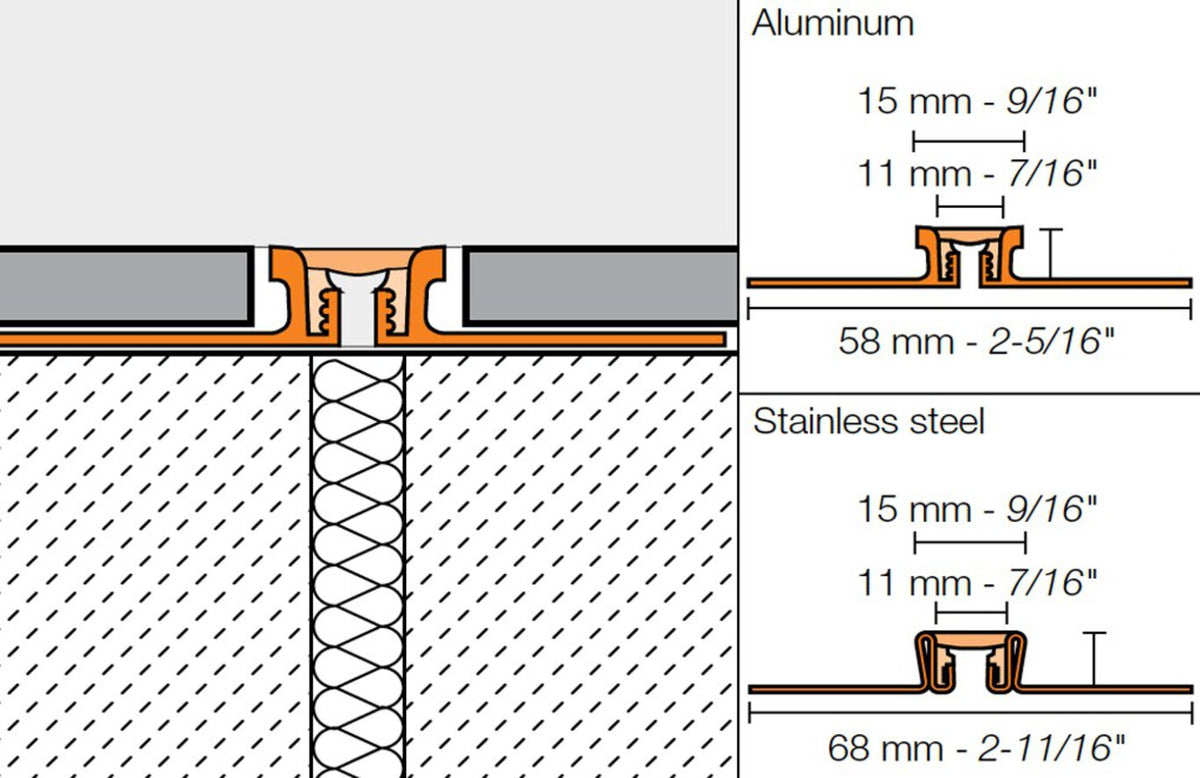

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter-DILEX-KSN |
| Movement zone width | 7/16 in (11 mm) |
| Overall length | 98.5 in |
| Visible color | Stone Grey |
| Anchoring legs material | Stainless steel or aluminum |
| Anchoring legs type | Trapezoid-perforated; secured in mortar bond coat |
| Function | Separates tile fields; accommodates movement; provides edge protection |
| Maintenance | Maintenance-free; eliminates need for caulking |
| Center section | Soft thermoplastic rubber; replaceable if damaged |
Frequently Asked Questions (FAQ):
Q: Can this profile be used in high-traffic commercial spaces?
A: Yes. The DILEX-KSN with stainless steel anchoring legs provides secure edge protection for surfaces exposed to heavy-duty commercial traffic.
Q: Does it require caulking?
A: No. The movement joint design eliminates the need for caulking.
Q: What is the width of the movement zone?
A: The visible movement zone is 7/16 inch (11 mm).
Q: Is the center movement strip replaceable?
A: Yes. The thermoplastic rubber movement zone can be replaced if damaged.
Q: What materials are the anchoring legs made from?
A: They are available in stainless steel or aluminum, secured in the mortar bond coat.
Seamless Strength for Expansive Tile Layouts
This profile introduces a refined, linear accent that quietly manages the movement in grand tile fields. The stone grey center creates a sophisticated ribbon, pairing effortlessly with cool stone and concrete tones. Use it to define pathways in galleries or retail spaces, letting the architecture breathe while the finish stays impeccably crisp. It’s a smart, luxurious detail that elevates performance and polish in one gesture.
Choose DILEX-KSN to protect your tile installation and achieve a clean, long-lasting expansion joint without caulking.
