Schneider Electric

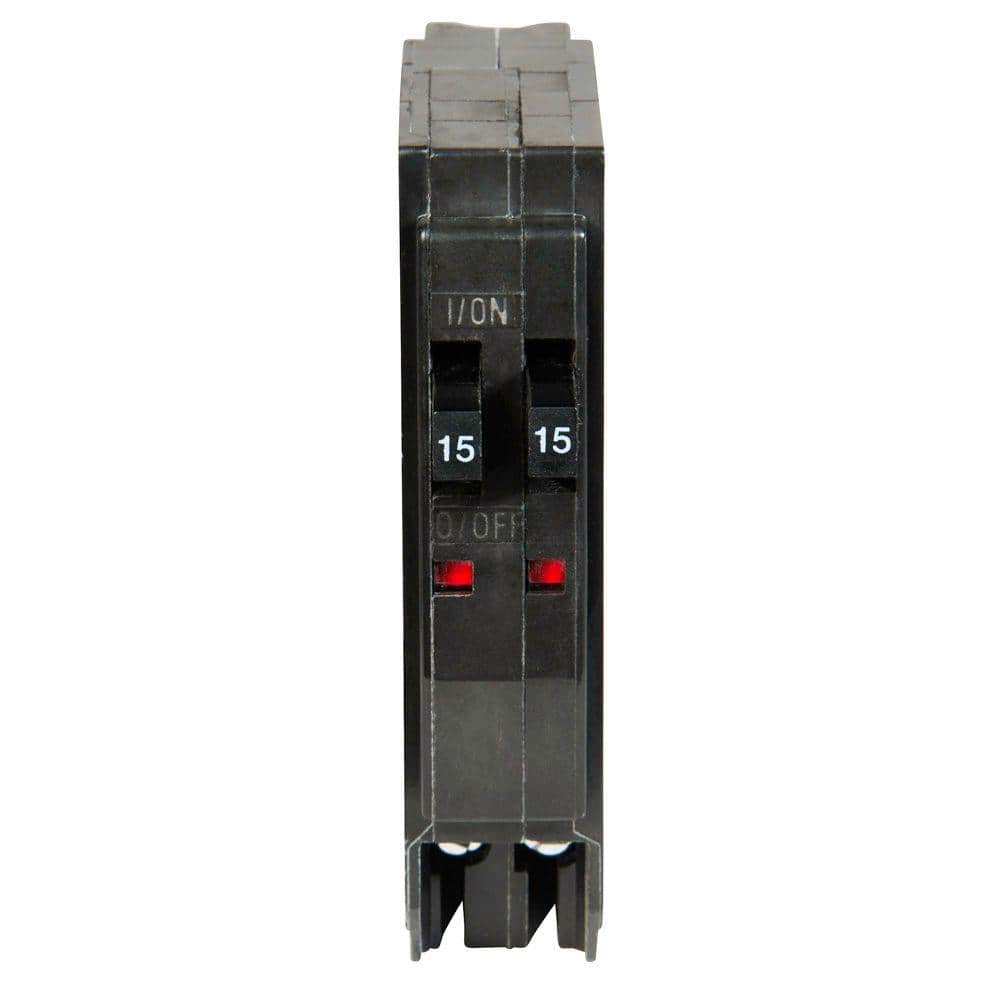

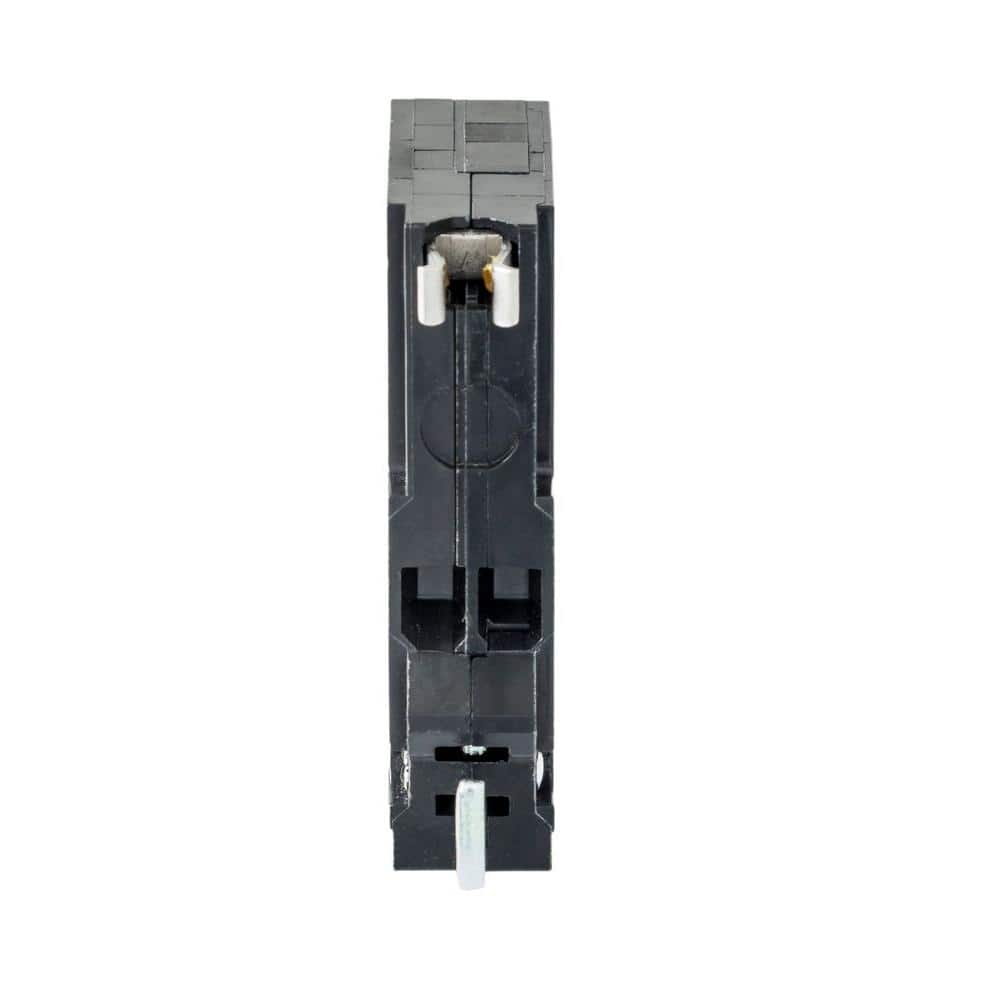

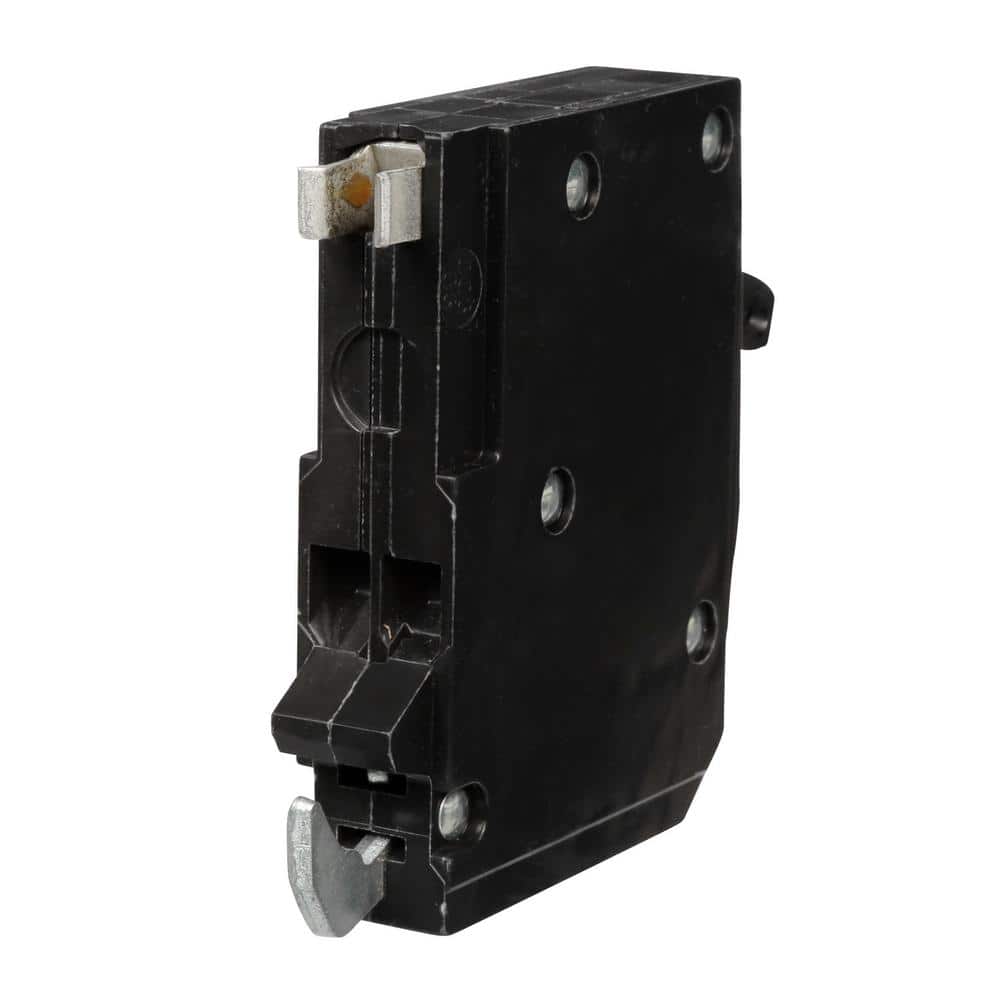

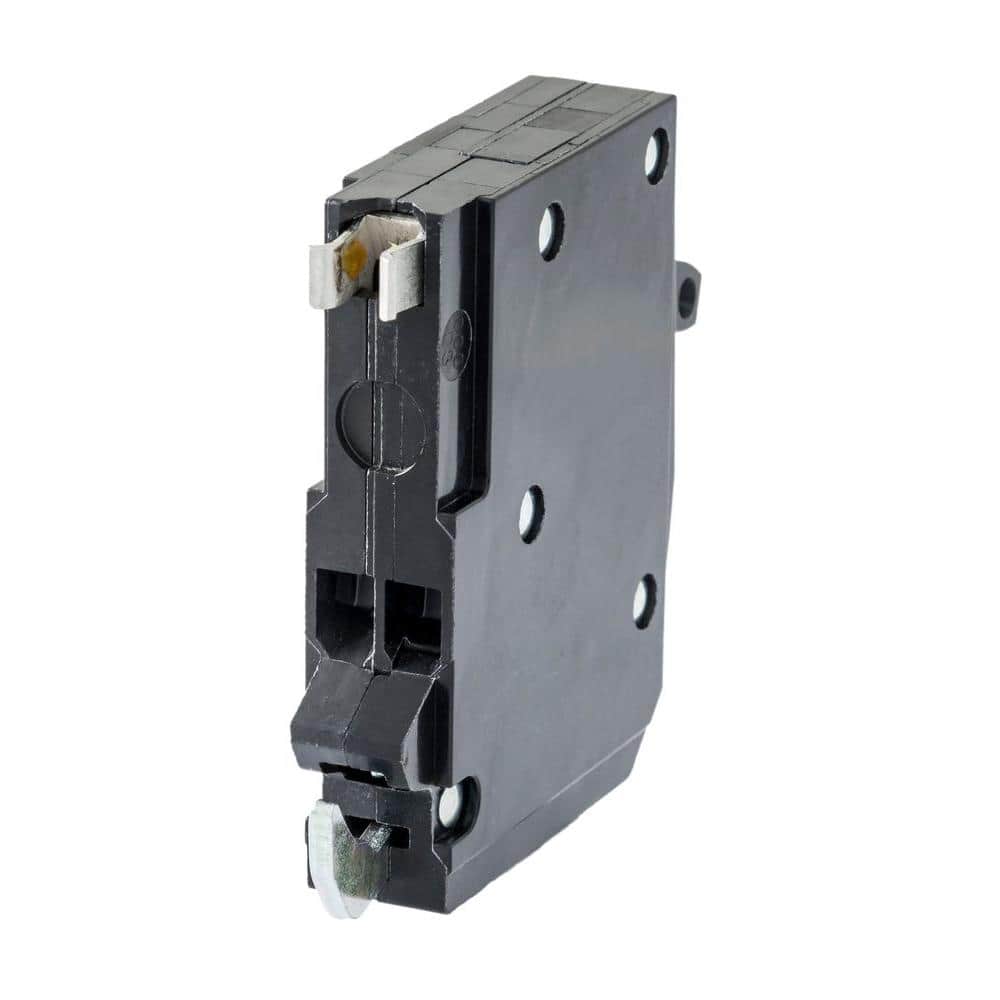

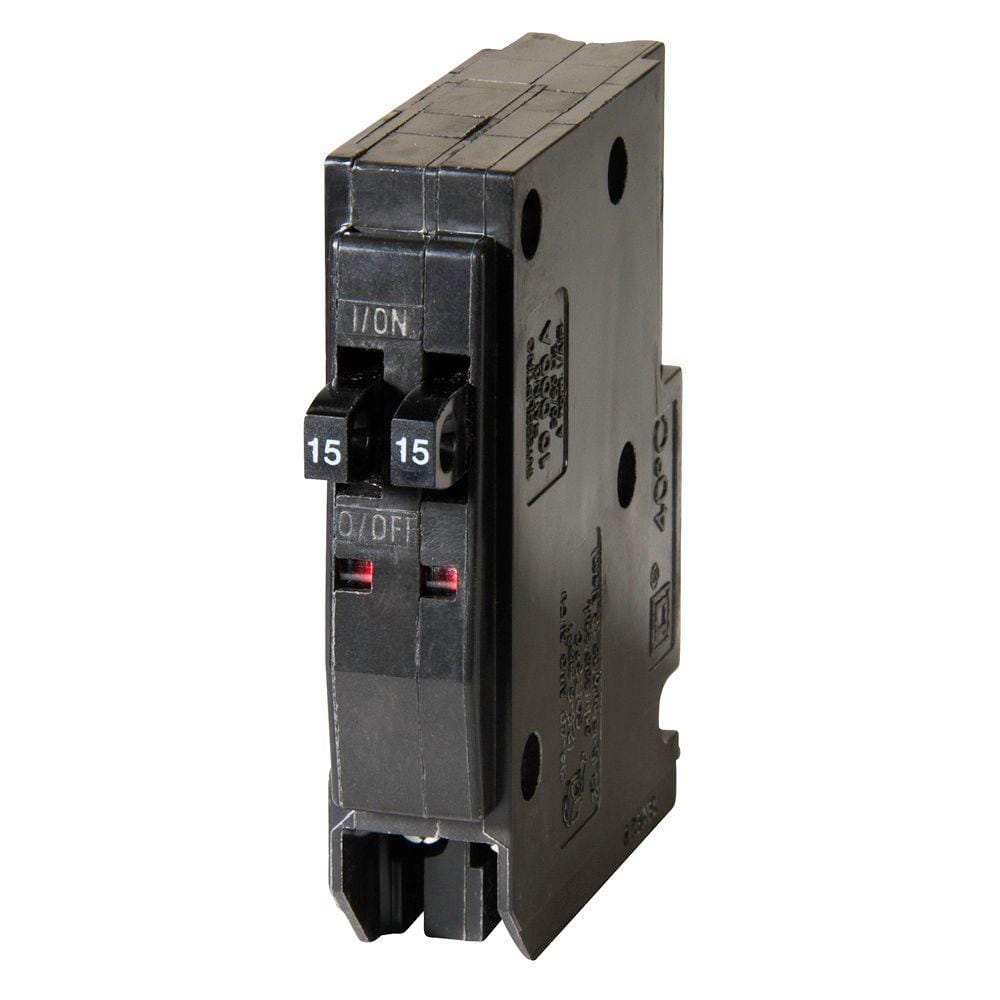

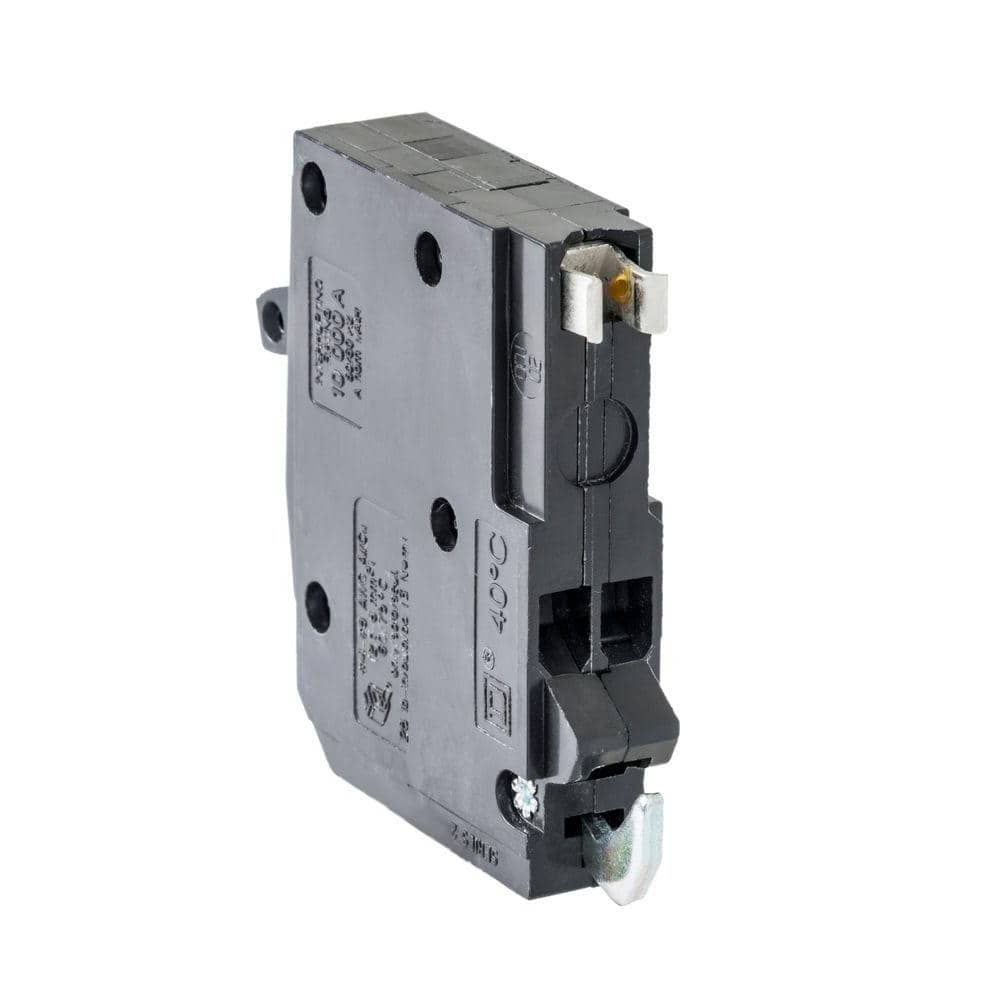

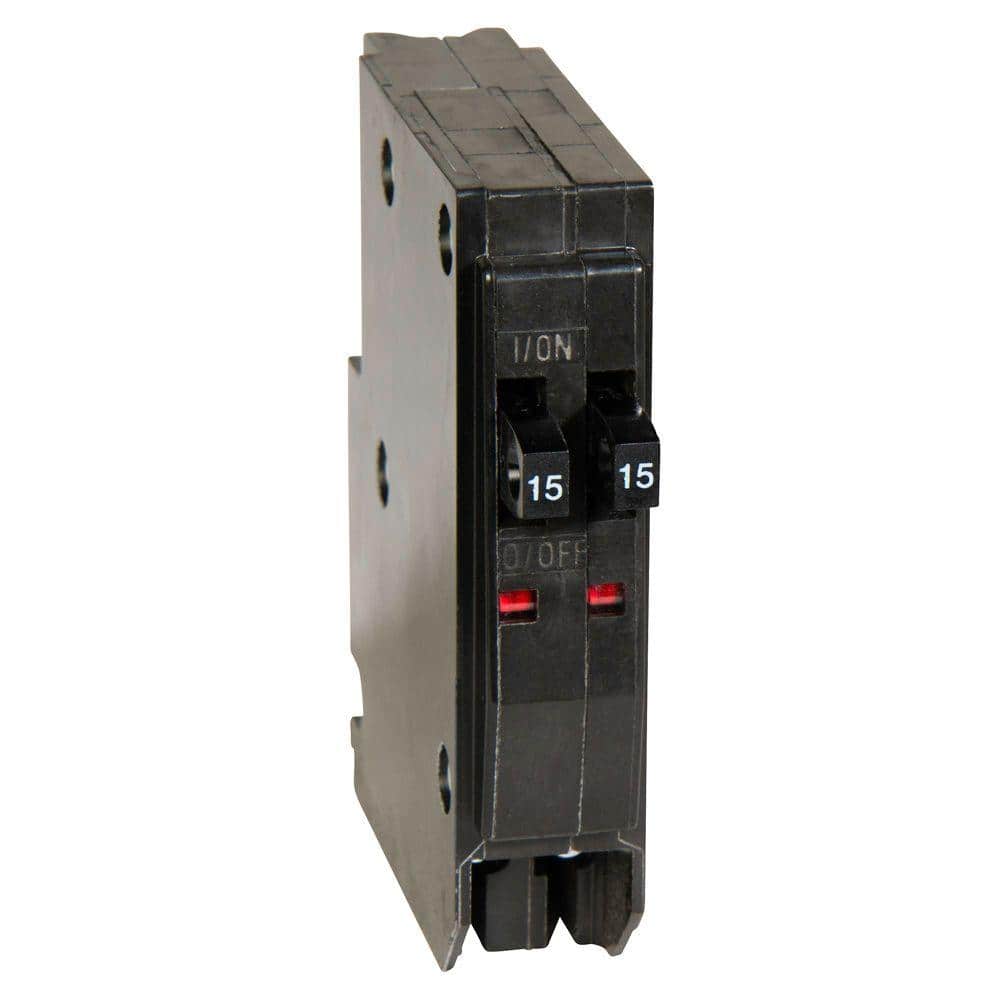

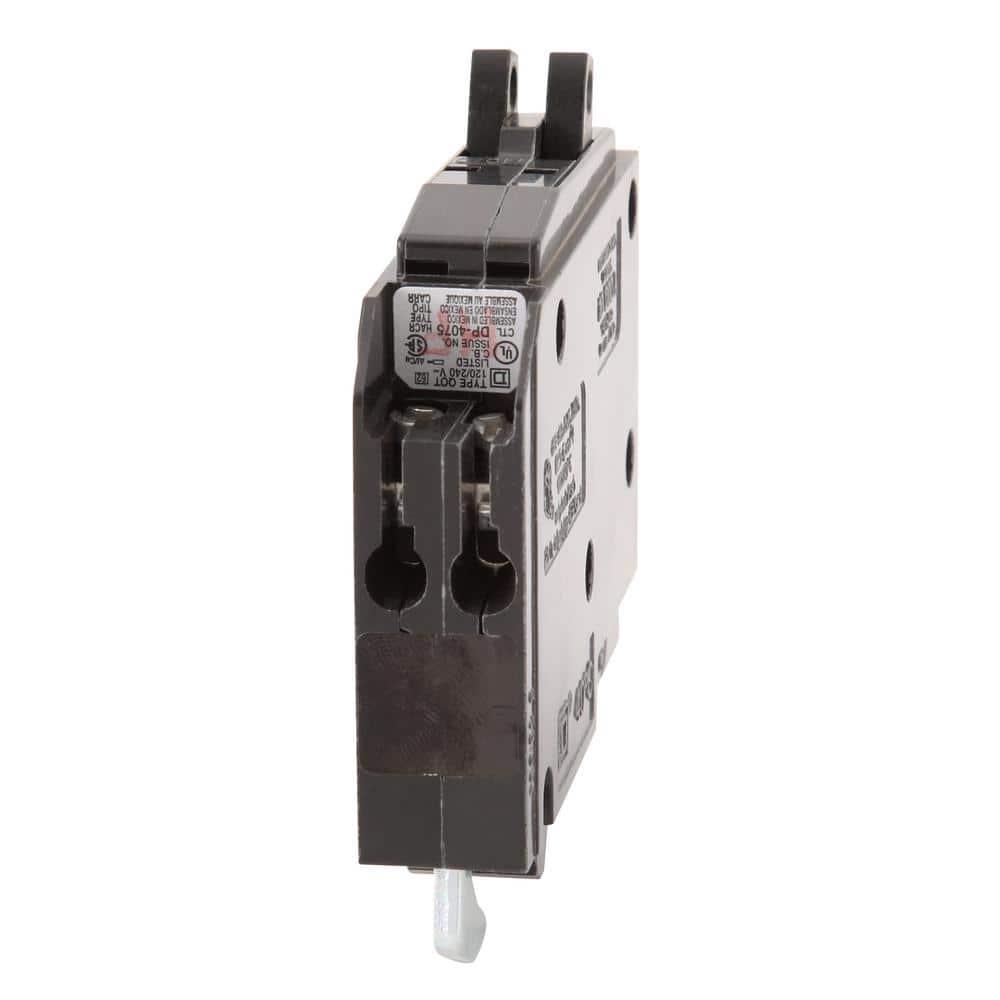

QO 2-15 Amp Single-Pole Class CTL Tandem Circuit Breaker
Published price — same for everyone
Out of stock — available on backorder
SKU QOT1515CP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
QO 15A Single-Pole Tandem Circuit Breaker
Compact tandem breaker provides two 15A single-pole circuits in one QO space for overload and short-circuit protection. Rated 120/240V with 10k AIR and thermal-magnetic trip, designed for compatible Square D QO load centers and panels.
Key Features:
- Space-Saving Tandem: Two 15A single-pole circuits fit into one QO breaker space
- Reliable Protection: Thermal-magnetic trip guards against overloads and short-circuits
- Easy Plug-On Mounting: Installs quickly in compatible Square D QO panels, CSEDs, and NQOD boards
- Visi-Trip Indicator: Red visual cue makes tripped breaker identification fast
- UL Listed Performance: 10k AIR, 120/240V rating for residential applications
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Breaker Type | Tandem |
| Poles | Single |
| Amperage | 15 A (each pole) |
| Voltage | 120/240 V |
| AIC / AIR Rating | 10,000 |
| Trip Unit | Thermal Magnetic |
| Mounting Type | Plug-On |
| Number of Spaces Required | 1 |
| Connection Type | Non-Neutral |
| Certifications | UL Listed; ANSI compliant |
| Product Depth | 2.9 in |
| Product Height | 3.2 in |
| Product Width | 0.75 in |
Frequently Asked Questions (FAQ):
Q: Will this fit any Square D panel?
A: It fits only Square D QO load centers and panels that accept tandem breakers; it will not fit Homeline or QO spaces that do not allow tandems.
Q: What is the voltage and interrupt rating?
A: Rated for 120/240 VAC with a 10,000 AIC (AIR) interrupt rating.
Q: How many circuits does it provide?
A: It provides two independent 15A single-pole circuits in one breaker space.
Q: Is there a visual trip indicator?
A: Yes, QO breakers feature a red Visi-Trip indicator to quickly identify a tripped breaker.
Q: What type of trip mechanism is used?
A: Thermal-magnetic trip for reliable protection.
Streamlined Power, Minimal Footprint
This sleek tandem breaker brings order and efficiency to the heart of your home’s electrical canvas. Its space-saving form and crisp Visi-Trip detail offer a smart, functional accent inside the panel. Pair with a thoughtfully labeled load center to keep the system visually clean and effortlessly navigable. Consider it an essential touch for modern, luxe utility—beauty in precision and performance.
Optimize your panel space and upgrade protection with this QO tandem breaker today.
