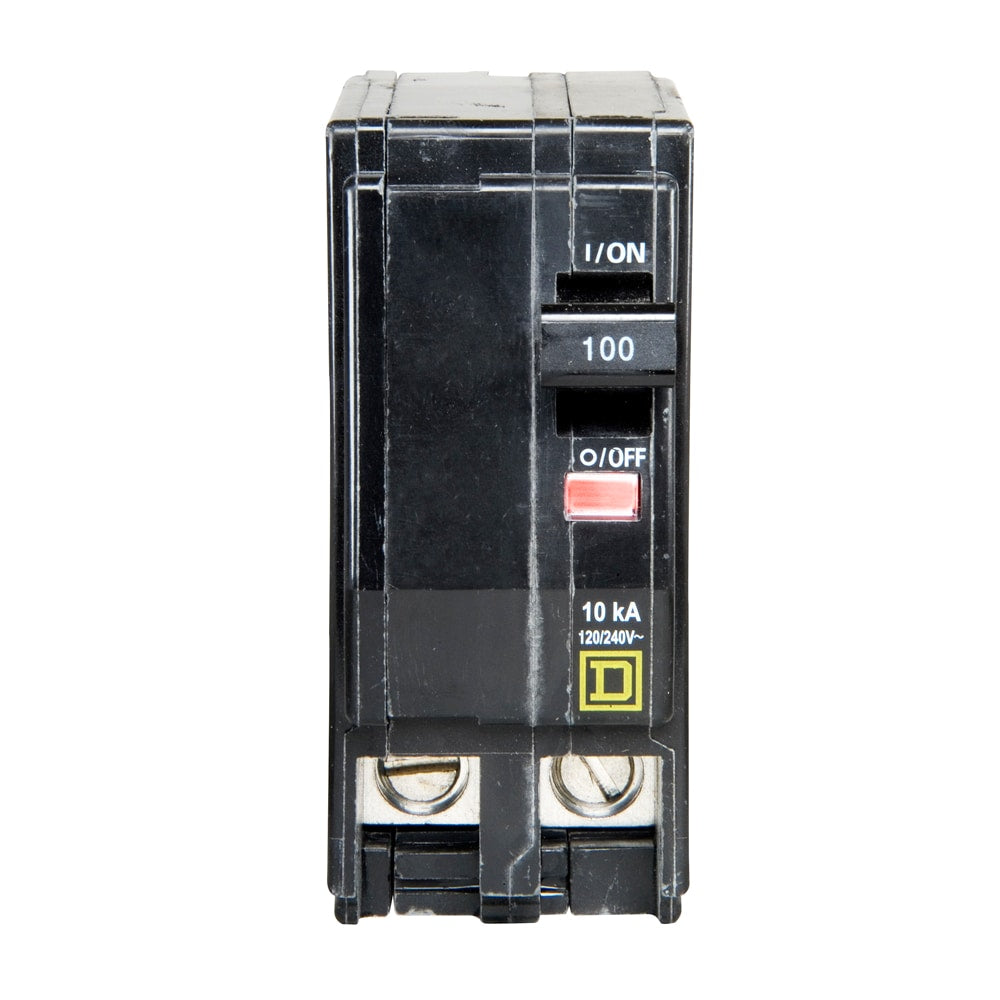

Schneider Electric Square D QO 100 Amp 2-Pole Circuit Breaker

QO 100A 2-Pole Circuit Breaker

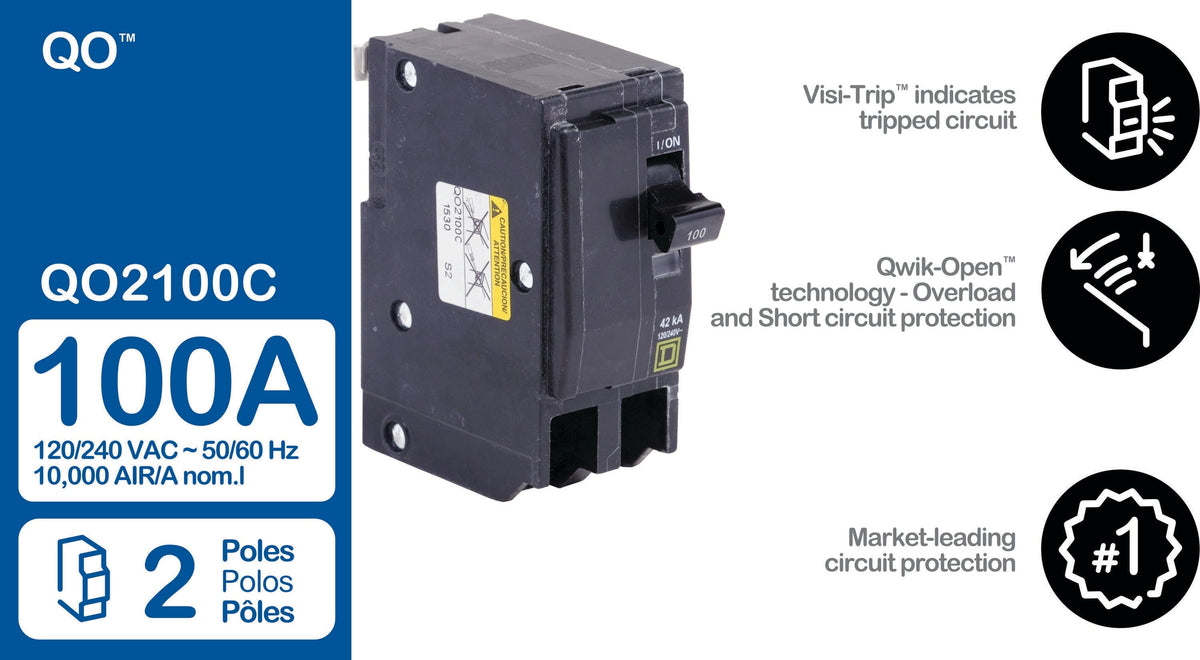

Thermal-magnetic breaker designed for overload and short-circuit protection in 120/240V systems. Features Square D’s Visi-Trip indicator for quick identification of tripped circuits and a plug-on design for easy installation.

---

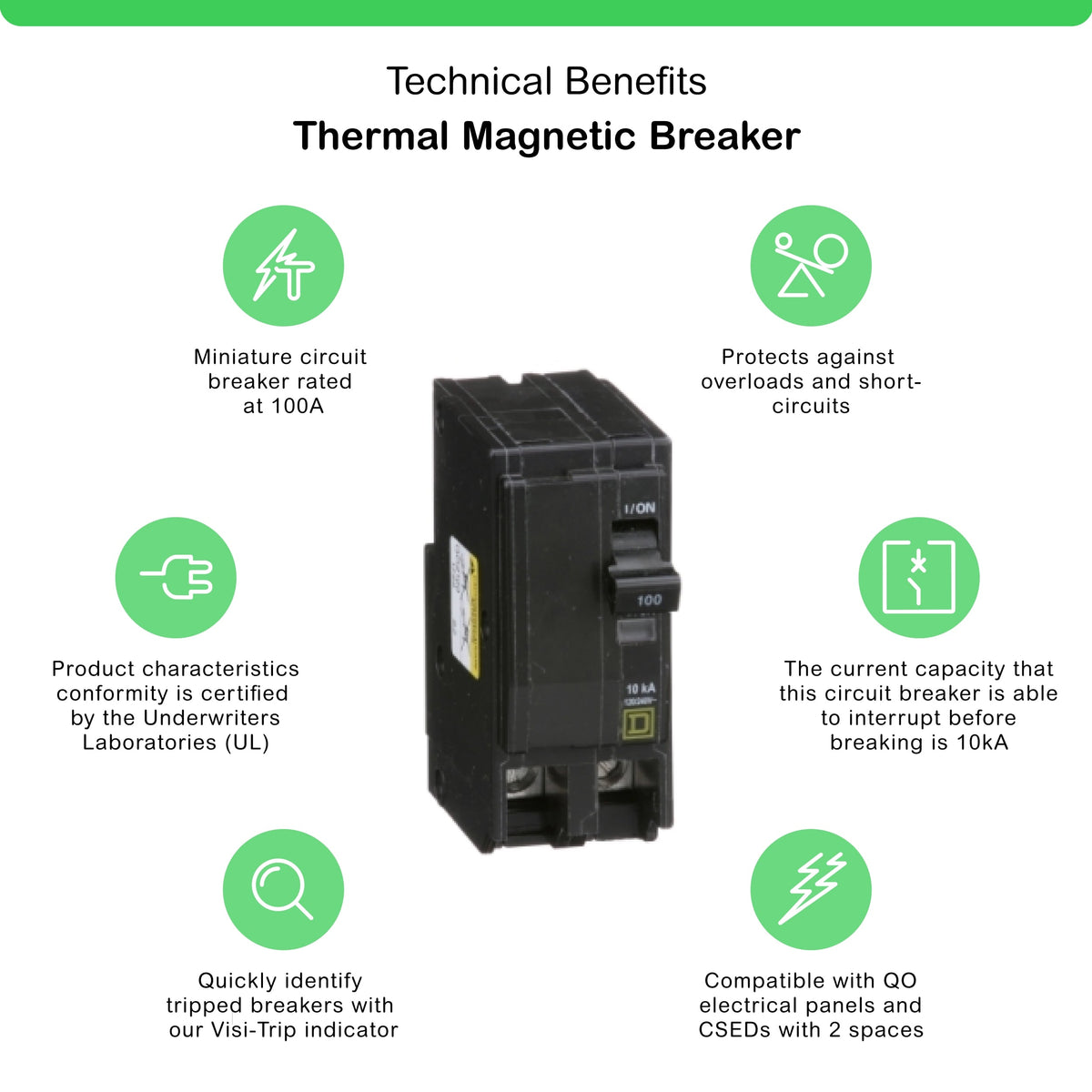

Key Features:

• Reliable Protection: Thermal-magnetic standard trip safeguards against overloads and short-circuits
• Quick Troubleshooting: Visi-Trip indicator clearly shows the tripped breaker
• Easy Install: Plug-on design fits QO load centers, CSEDs, and NQOD panelboards
• High Interrupting Rating: 10,000 AIR at 120/240 VAC
• UL Listed Quality: Backed by a limited warranty for confidence

---

Specifications Table:

Specification	Details
Series Name	QO
Type	Standard trip thermal-magnetic
Power Capacity	100 Amp
Number of Poles	2
Circuit Breaker Voltage	120/240 VAC
Interrupting Rating	10,000 AIR
Phase	Single phase (120/240)
Plug-On Neutral	No
Surge Protection	No
Ground Fault Protection	No self test
Safety Listing	UL Listed
Warranty	Limited warranty (conflict noted: 1-year vs limited lifetime on web page bullets)

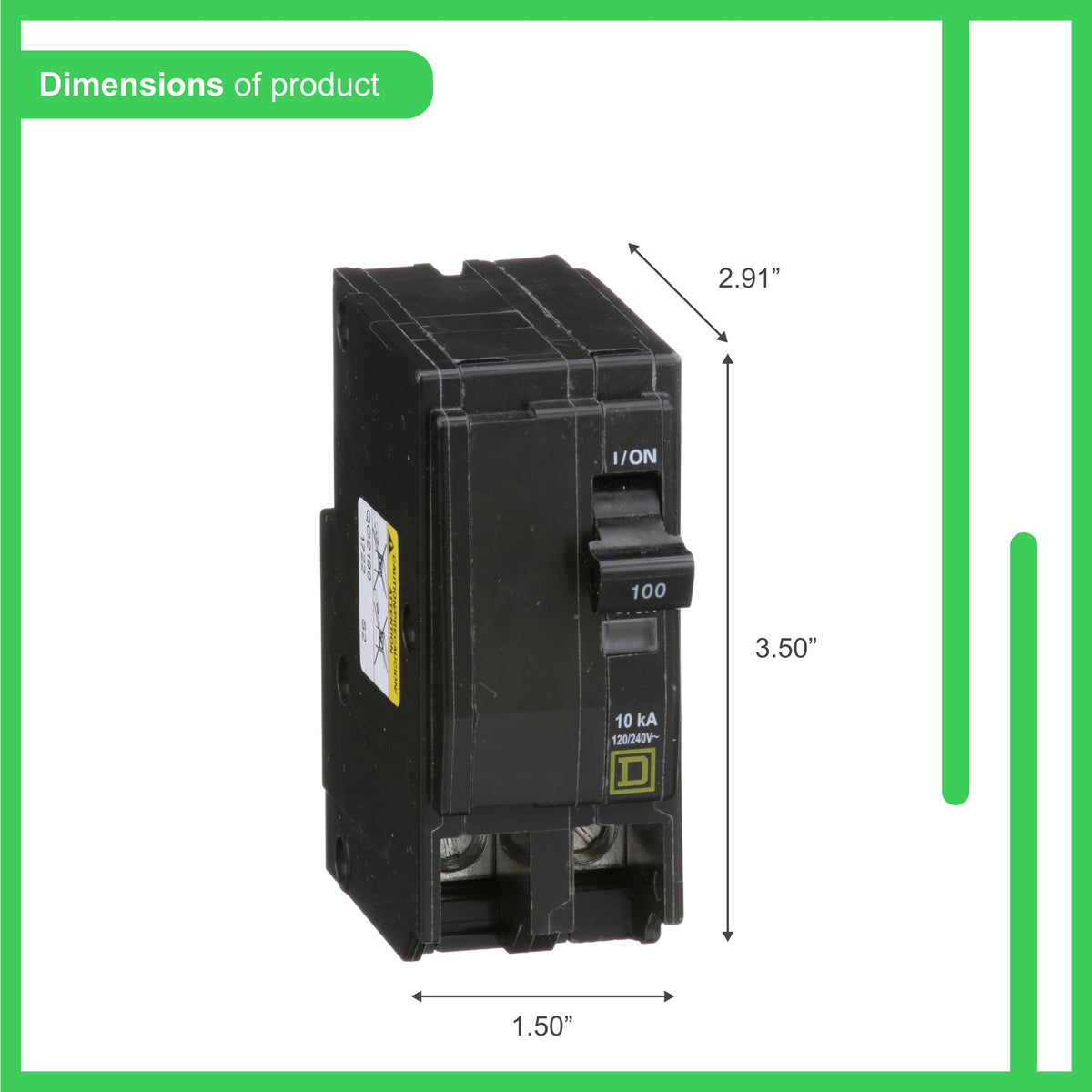

Width	1.50 in
Height	3.50 in
Depth	2.91 in
UNSPSC	39121600

---

Frequently Asked Questions (FAQ):

Q: What panels is this breaker compatible with?
A: It is designed for Square D QO load centers, CSEDs, and NQOD panelboards.

---

Q: What is the interrupting rating?
A: 10,000 AIR at 120/240 VAC.

---

Q: Does it have ground fault or plug-on neutral features?
A: No ground fault self-test and not a plug-on neutral model.

---

Q: How do I identify if it has tripped?
A: The Visi-Trip indicator shows a red marker and the handle moves to mid-position to identify a tripped circuit.

---

Q: What are the dimensions?
A: Approx. 3.50 in height x 2.91 in depth x 1.50 in width.

---

Crisp, Compact Power with a Confidence Snap

This sleek Square D breaker brings a refined, purposeful presence to any panel, marrying clean geometry with robust performance. I love the subtle red Visi-Trip window—it’s a clever little cue that keeps your space calm and controlled. Pair it with a neatly labeled QO load center for a polished, professional look. It’s a quiet essential that elevates the backbone of a luxurious, well-run home.

---

Choose dependable protection—add the Square D QO 100A 2‑Pole breaker to your panel today.
