Details

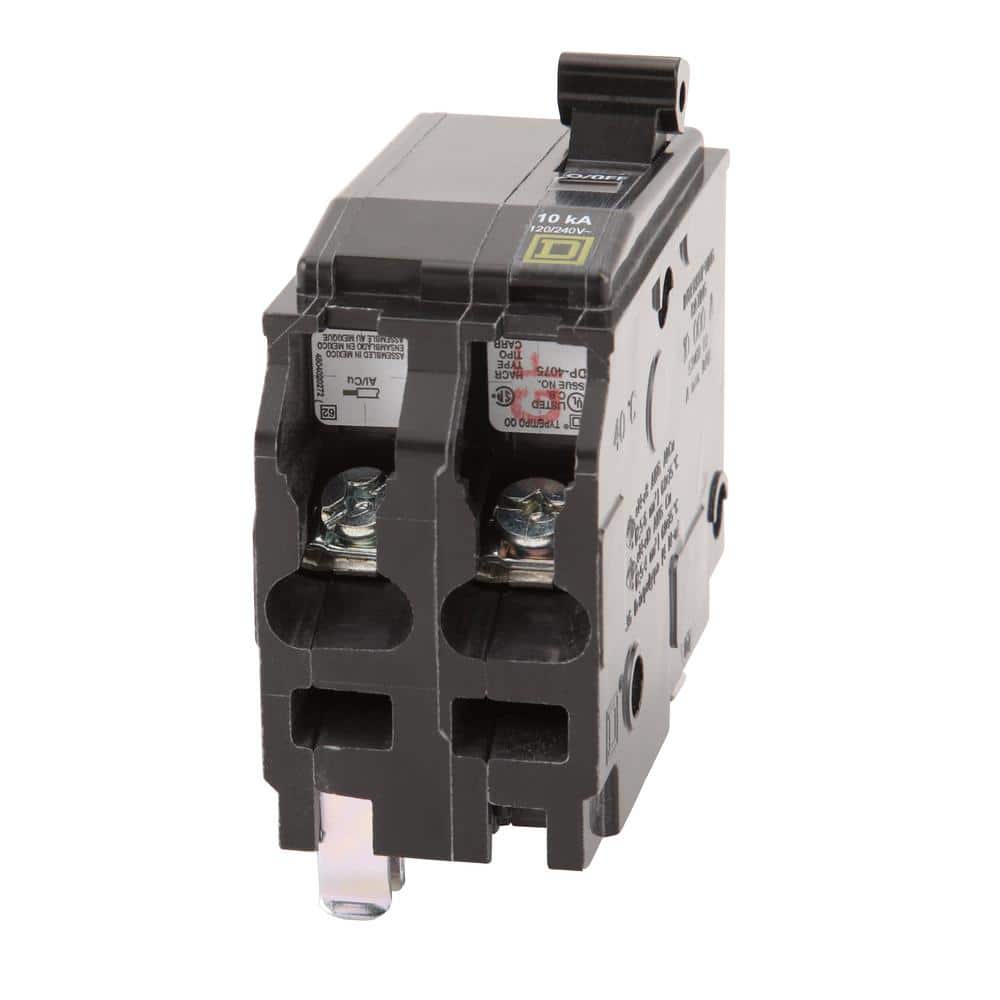

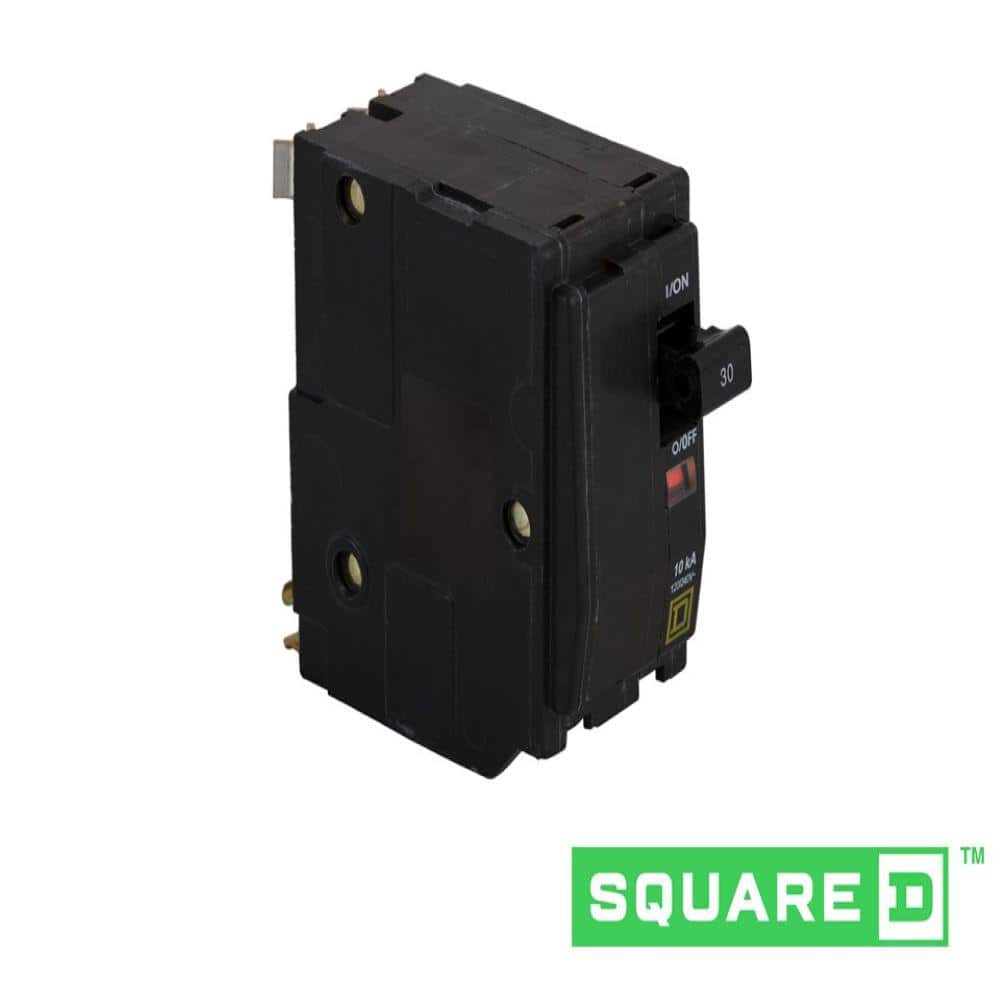

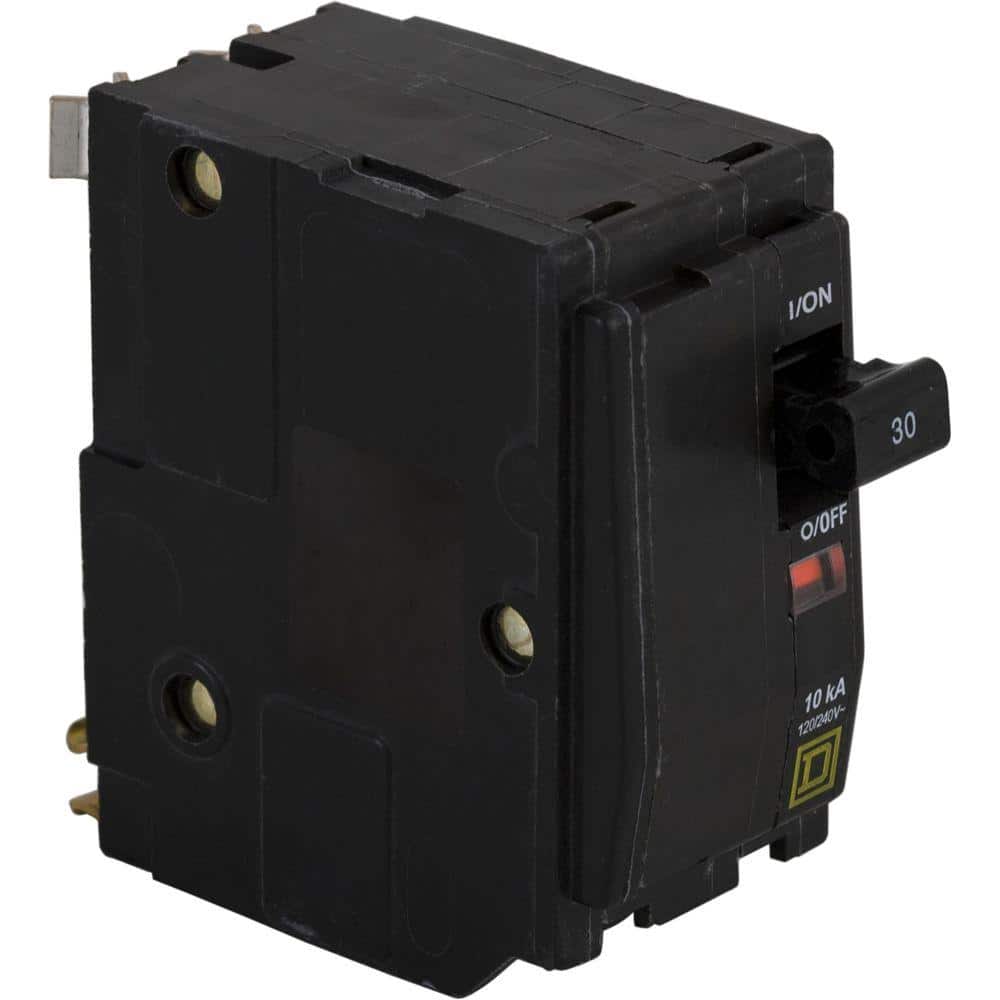

Square D QO 30A Double-Pole Circuit Breaker
A thermal-magnetic, plug-on breaker for Square D QO panels, delivering reliable overload and short-circuit protection. Rated 30A, 120/240 VAC with 10kA interrupting capacity and a Visi-Trip indicator for quick identification of tripped circuits.
Key Features:
- Reliable Protection: Thermal-magnetic trip safeguards against overloads and short-circuits
- Easy Panel Compatibility: Plug-on design fits Square D QO load centers and CSEDs requiring 2 spaces

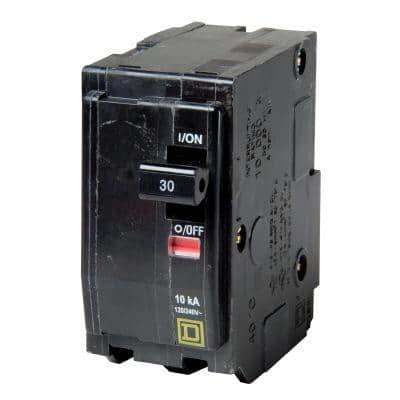

- Quick Troubleshooting: Visi-Trip red indicator clearly shows a tripped breaker
- Durable Performance: 10,000 AIR rating and UL Listed/ANSI certified

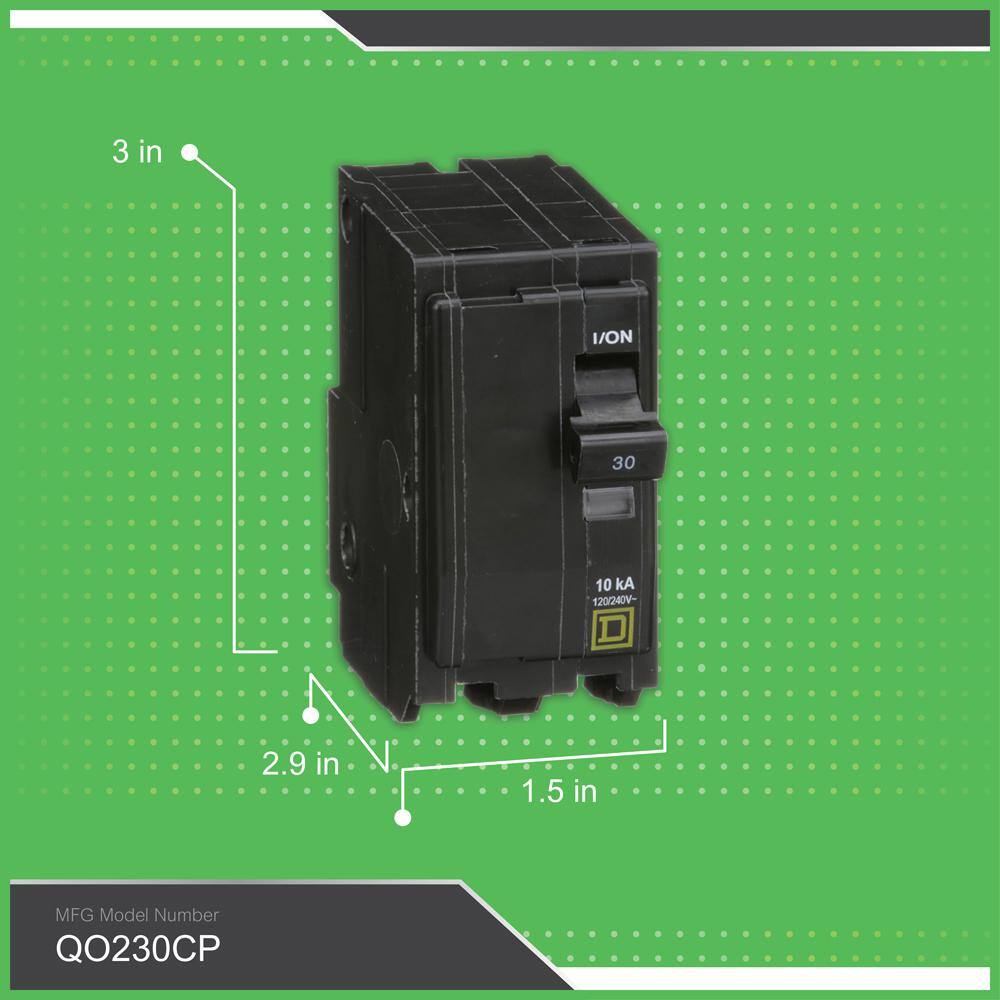

- Compact Dimensions: 3 in H x 2.9 in D x 1.5 in W for straightforward installation
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Breaker Type | Standard |
| Trip Unit | Thermal Magnetic |
| Number of Poles | 2 (Double-Pole) |
| Maximum Amperage | 30A |
| Voltage | 120/240 VAC |
| AIC Rating | 10,000 AIR (10kA) |

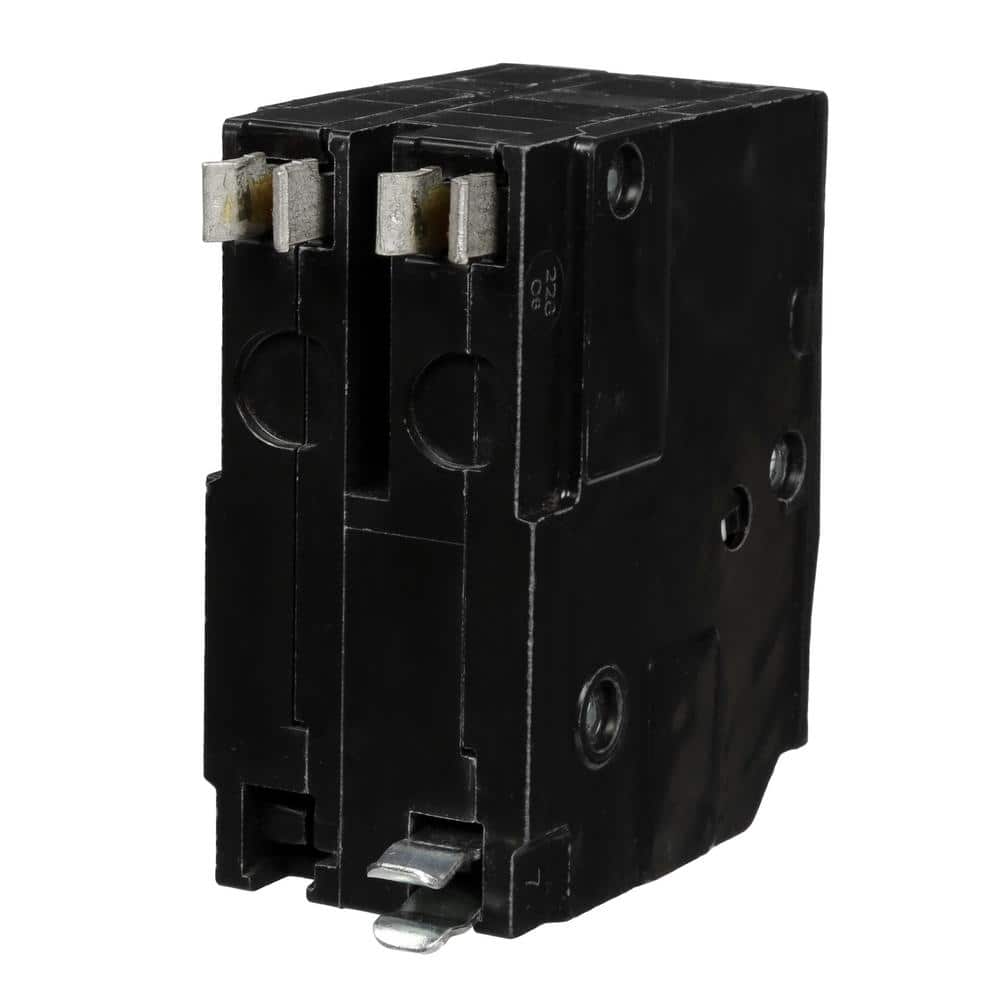

| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Pack Size | 1 |
| Certifications | UL Listed; ANSI certified |
| Product Height | 3 in |
| Product Depth | 2.9 in |
| Product Width | 1.5 in |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with my panel?
A: It is designed for Square D QO series panels and CSEDs; confirm your panel is QO and has 2 available spaces.
Q: What is the voltage and interrupt rating?
A: 120/240 VAC with a 10kA (10,000 AIR) interrupting capacity.
Q: What type of trip mechanism does it use?
A: A thermal-magnetic trip unit for reliable overcurrent protection.
Q: Is there a visual indicator when it trips?
A: Yes, the Visi-Trip feature shows a red indicator and the handle moves to a mid position.
Q: Does it have a warranty?
A: Square D offers a limited lifetime warranty tied to the QO load center in which it is installed.
Streamlined Power Protection with Iconic Square D Precision
This compact breaker brings order and assurance to the hidden heart of a home—your electrical panel. Its clean, black profile and signature Square D mark feel purposeful and polished. I love the intuitive Visi-Trip window; it’s a small detail that makes maintenance chic and effortless. Pair it with a neatly labeled QO panel for a system that looks as refined as it performs—because true luxury is reliability you can trust.
Upgrade your panel with dependable protection—add the Square D QO 30A 2‑Pole breaker to your cart today.
