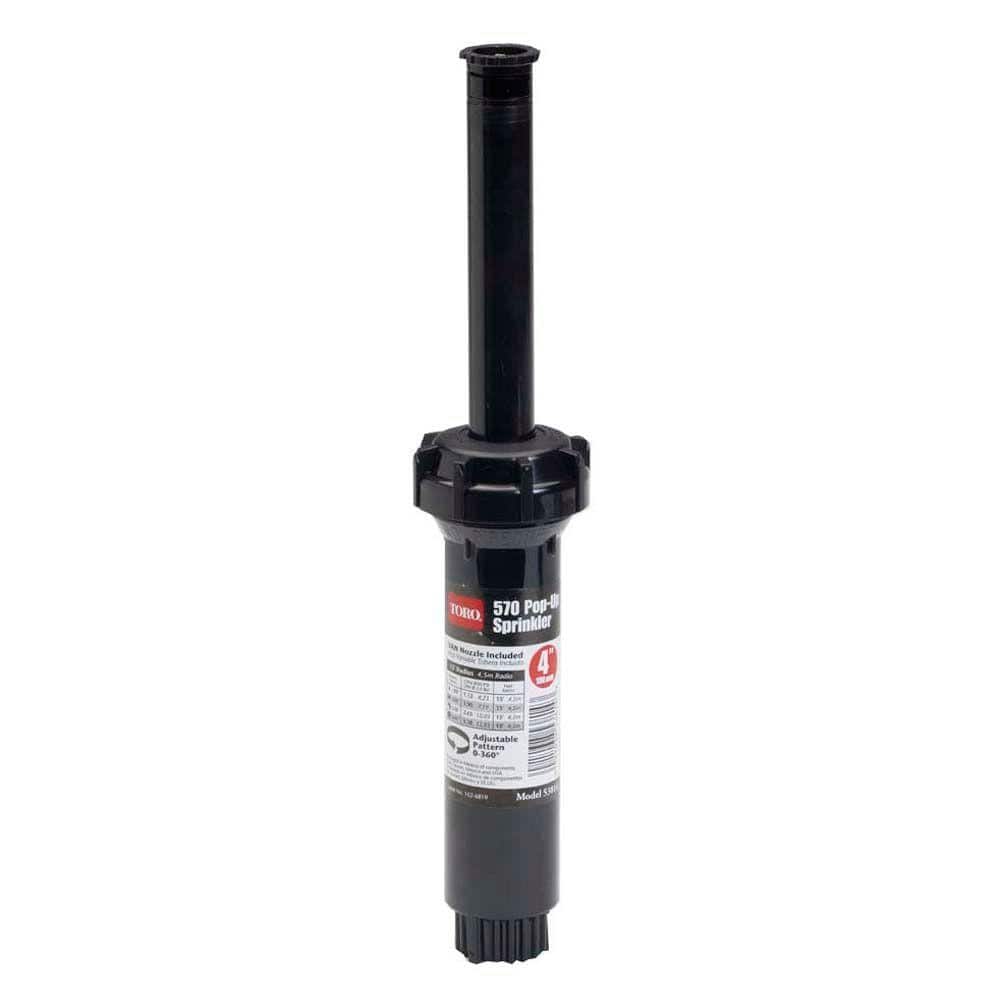

570Z Pro Series 4 in. Adjustable VAN Pop-Up Sprinkler, 15 ft.
Toro’s 570Z Pro Series pop-up sprinkler delivers uniform coverage for small to medium lawns. The 4 in. pop-up with a pre-installed 15 ft. Variable Arc Nozzle adjusts from 0–360° and features a stainless-steel retraction spring and zero-flush seal to reduce water waste.
Key Features:
- Adjustable Coverage: Variable Arc Nozzle sets from 0–360° for custom watering patterns.
- Efficient Operation: Zero-flush seal and corrosion-resistant seal minimize water loss at start-up.
- Durable Build: Stainless-steel retraction spring with ABS body and nozzle for longevity.
- Easy Integration: 1/2 in. female-threaded inlet fits standard in-ground systems.
- Reliable Range: 15 ft. spray radius; matched precipitation rate for even distribution.
Specifications Table:
| Specification | Details |
|---|---|
| Sprinkler Type | Pop-Up |
| Series | 570Z Pro Series |
| Nozzle Type | Variable Arc Nozzle (VAN) |
| Spray Pattern | Adjustable 0–360° |
| Maximum Spray Distance (ft.) | 15 |
| Minimum Spray Distance (ft.) | 11.25 |
| Maximum Coverage Area (sq ft) | 706.5 |
| Maximum Gallons Per Minute | 4.33 |
| Pressure Rating (psi) | 75 |
| Sprinkler Angle | 27° |
| Inlet Size | 1/2 in. |
| Thread Type | Female NPT |
| Inlet Type | Female |
| Mounting | In-Ground Install |
| Location | Below ground |
| Head/Body Material | ABS Plastic |
| Nozzle Material | ABS Plastic |
| Features | Adjustable; Retraction Spring; Riser Not Required |
| Retraction Spring | Stainless steel |
| Seal | Zero-flush, corrosion-resistant |
| Pack Size | 1 |
| Product Height (in.) | 6.3125 |
| Product Width (in.) | 2.0625 |
| Product Depth (in.) | 2.0625 |
| Manufacturer Warranty | 1 year |
| Pre-installed Nozzle | 15 ft. nozzle, replaceable with any Toro nozzle |
| Matched Precipitation Rate | Yes |
Frequently Asked Questions (FAQ):
Q: What spray distance and pattern does this head provide?
A: It includes a 15 ft. VAN nozzle that adjusts from 0–360° for full-circle or partial arcs.
Q: What inlet size does it use?
A: Standard 1/2 in. female-threaded inlet (Female NPT).
Q: Is it suitable for small lawn areas?
A: Yes—designed for small to medium lawn and shrub zones with even coverage.
Q: How does it reduce water waste?
A: A patented zero-flush seal and superior retraction spring help prevent water loss at start-up and ensure proper retraction.
Q: What materials is it made from?
A: ABS plastic body and nozzle with a stainless-steel retraction spring.
Precision Watering, Seamlessly Discreet
This compact pop-up sprinkler tucks into the landscape, delivering a perfect veil of water that keeps lawns lush without visual clutter. The adjustable 0–360° arc is the star—tailor the throw to garden beds and crisp edges for a groomed, resort-quality look. Pair several along pathways or borders to shape soft, even green vistas. It’s a quiet essential that elevates outdoor living with effortless polish.
Upgrade your irrigation with Toro’s 570Z Pro Series for adjustable, water-smart coverage that keeps your lawn pristine.
