Schluter Systems DILEX-KSN 0.531-in W x 98.5-in L Dark Anthracite Steel Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049736
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

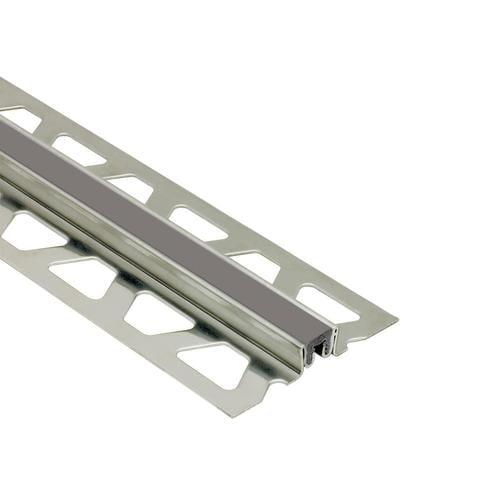

DILEX-KSN Dark Anthracite Steel Tile Edge Trim

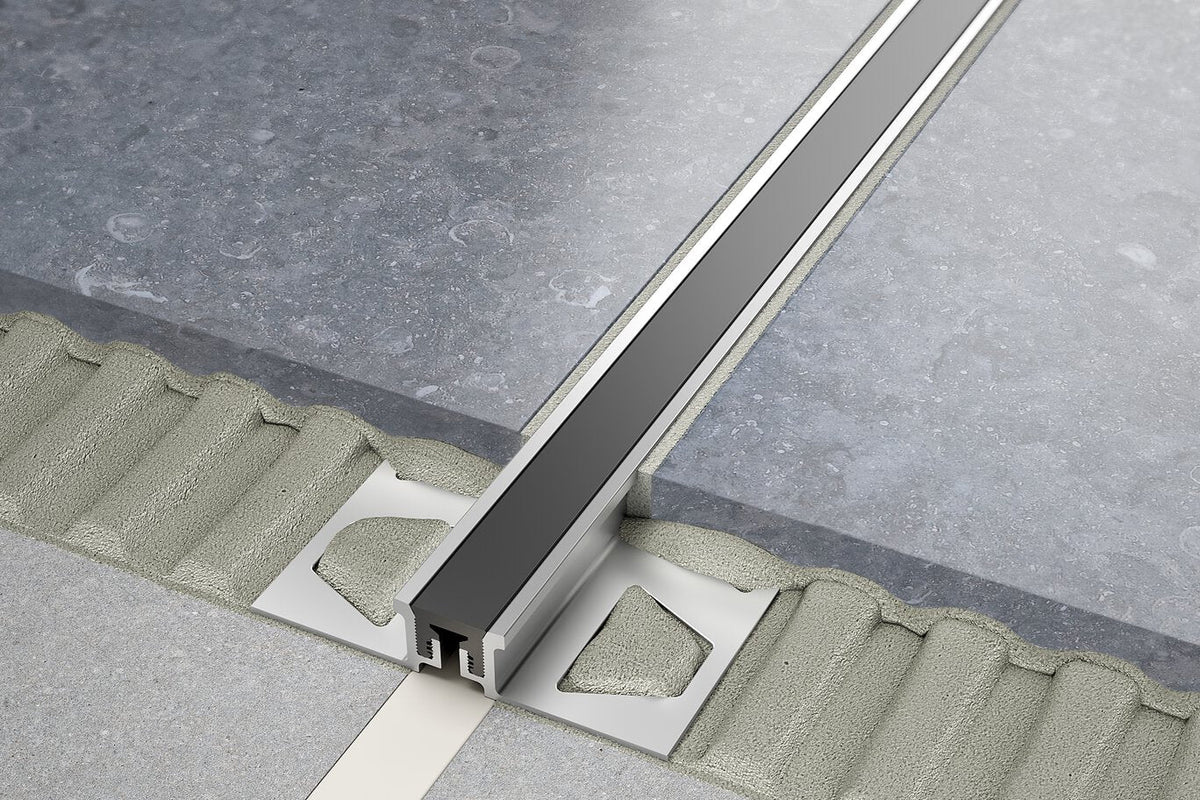

A heavy-duty movement joint and edge trim for large tiled floors, Schluter DILEX-KSN features stainless-steel anchoring legs and a replaceable thermoplastic rubber movement zone. It protects tile edges while accommodating expansion and eliminating caulking in commercial traffic areas.
Key Features:
- Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone handles expansion and stress in large tiled areas
- Heavy-Duty Edge Protection: Stainless steel anchoring legs safeguard tiles in warehouses, production facilities, and shopping malls
- Maintenance-Free Design: Eliminates the need for caulking and resists cracking and delamination
- Color-Matched Options: Available in multiple colors to coordinate with grout for a seamless look
- Secure Installation: Trapezoid-perforated legs embed in mortar bond coat for long-lasting stability

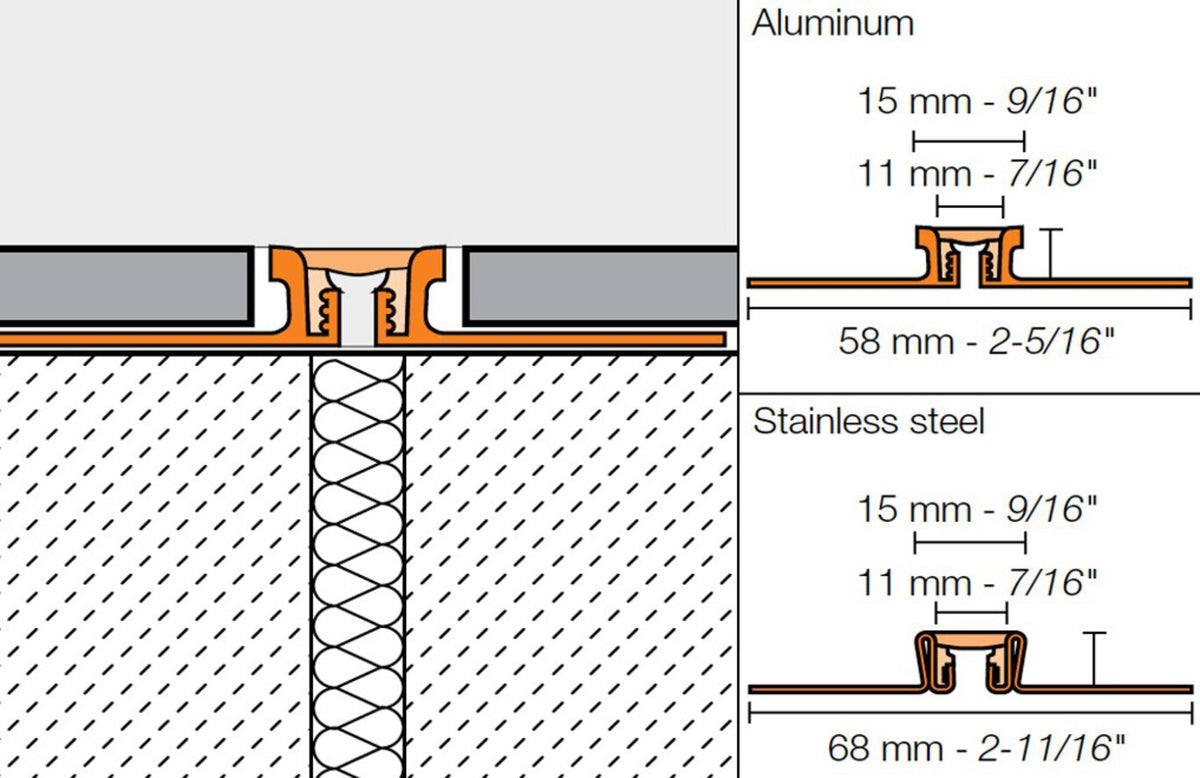

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |
| Material | Stainless steel anchoring legs with soft thermoplastic rubber movement zone |
| Visible surface color | Dark Anthracite |
| Width (visible movement zone) | 7/16 in (11 mm) |
| Overall width (stainless steel version) | 68 mm (2-11/16 in) |
| Overall width (aluminum version) | 58 mm (2-5/16 in) |
| Height (top thickness shown) | 15 mm (9/16 in) |
| Length | 98.5 in |
| Edge protection | Designed for heavy-duty commercial traffic |
| Maintenance | Maintenance-free; eliminates need for caulking |
| Anchoring legs | Trapezoid-perforated; secured in mortar bond coat |
| Replaceable component | Thermoplastic rubber movement zone is replaceable |
Frequently Asked Questions (FAQ):
Q: Can the movement zone be replaced?
A: Yes, the soft thermoplastic rubber movement zone is replaceable if damaged.
Q: Is this profile suitable for heavy commercial traffic?
A: Yes, the stainless-steel version provides secure edge protection for areas with heavy-duty traffic.
Q: What width of movement joint does it provide?
A: It provides a 7/16 in (11 mm) wide movement zone.
Q: Do I need to caulk the joint?
A: No, DILEX-KSN eliminates the need for caulking.
Q: What are typical applications?
A: Large tiled surfaces such as floors in warehouses, production facilities, shopping malls, and similar spaces.
Streamlined Strength for Expansive Tile Floors
DILEX-KSN introduces a sleek, dark anthracite line that elegantly defines large-format tile fields while quietly managing movement. The refined profile and stainless-steel legs bring architectural rigor with a resilient, replaceable rubber core. Pair it with cool stone or concrete-look tile to underscore modern minimalism and continuity across broad planes. It’s the discreet essential that elevates high-traffic spaces into polished, luxurious environments.
Choose DILEX-KSN to protect your tile edges and ensure long-lasting, maintenance-free performance in high-traffic spaces.
