Schluter Systems DILEX-BWS 0.344-in W x 98.5-in L Stone Grey PVC Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049640
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

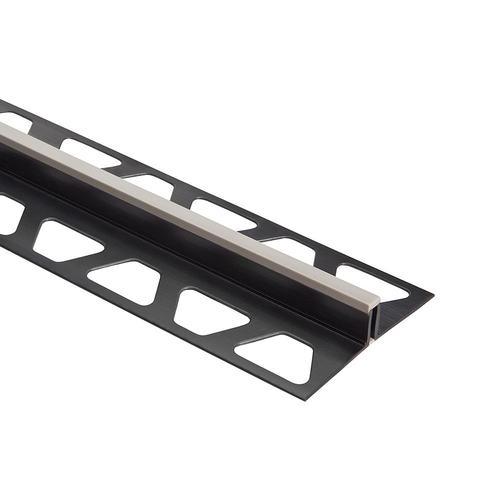

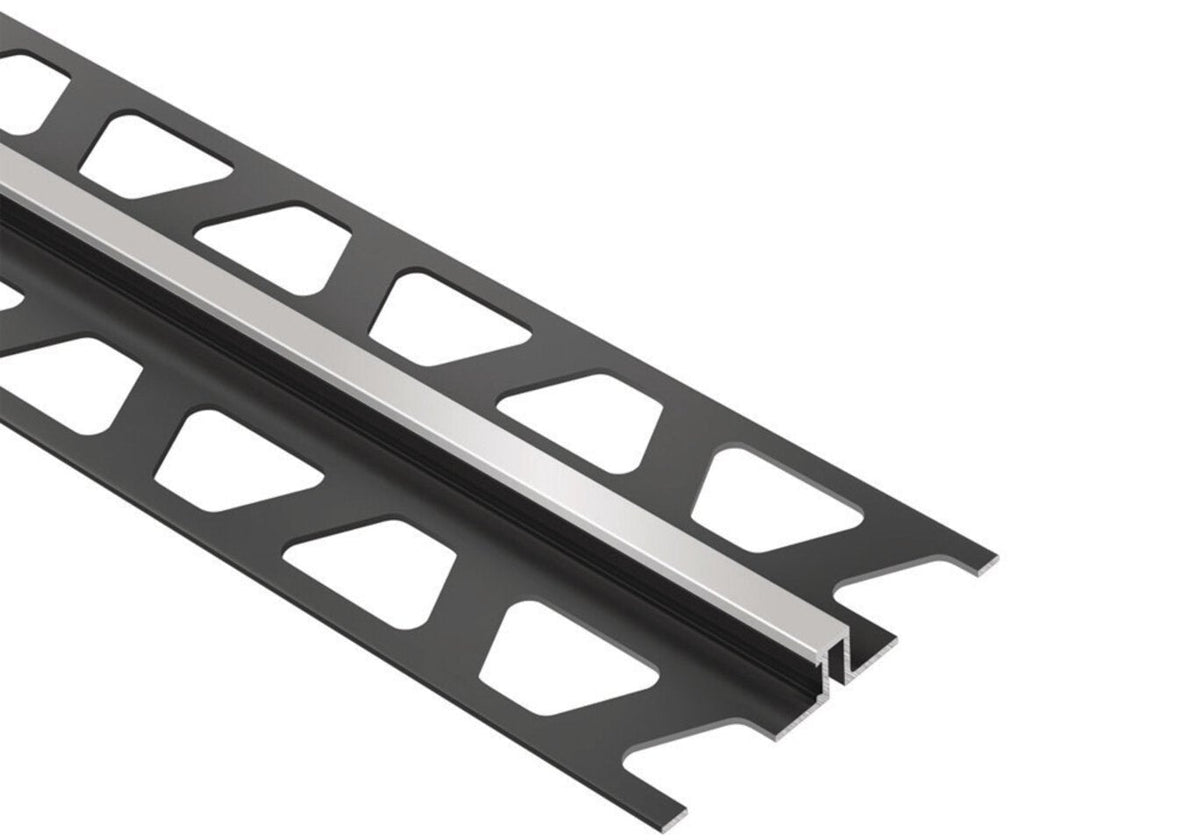

DILEX-BWS Stone Grey PVC Tile Movement Joint Trim, 98.5 in
A PVC surface movement joint trim designed to relieve stress in tiled areas and eliminate caulking. The 3/16 in (5 mm) movement zone matches grout colors and helps prevent tile cracking and delamination in residential to medium-duty commercial spaces.
Key Features:
- Movement Control: 3/16 in (5 mm) CPE movement zone absorbs limited movement to prevent tile cracking
- Grout-Matching Design: Available in multiple colors, including Stone Grey, for a clean, cohesive look
- PVC Construction: Durable profile suitable for residential to medium-duty commercial applications

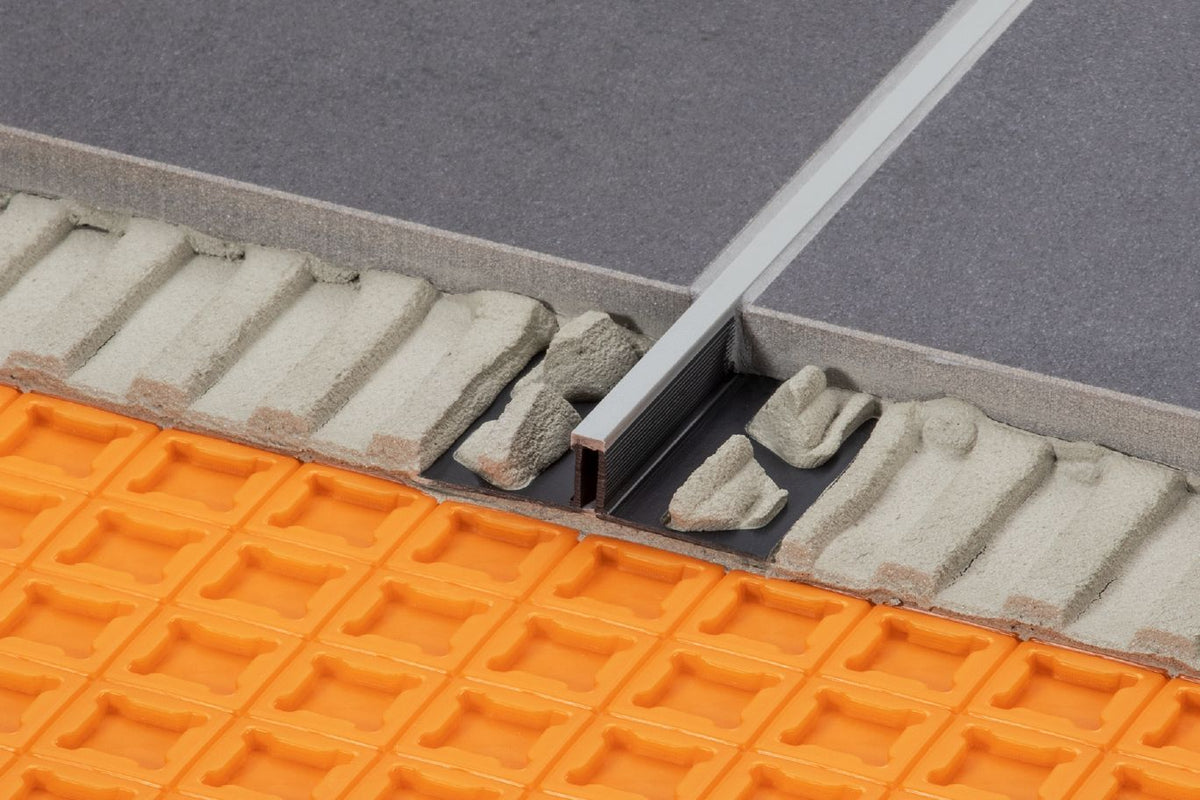

- Easy Integration: Installs between tiles to create smaller fields and reduce stress without caulking
- Long Length Coverage: 98.5 in profile simplifies layout across large tiled areas
Specifications Table:
| Specification | Details |
|---|---|
| Profile type | Surface movement joint profile |
| Model | DILEX-BWS |
| Material | PVC with CPE movement zone |
| Color | Stone Grey |
| Length | 98.5 in |
| Movement zone width | 3/16 in (5 mm) |
| Application | Residential to medium-duty commercial; light mechanical loads |
| Function | Allows movement; reduces stress; eliminates need for caulking; prevents cracking and delamination |

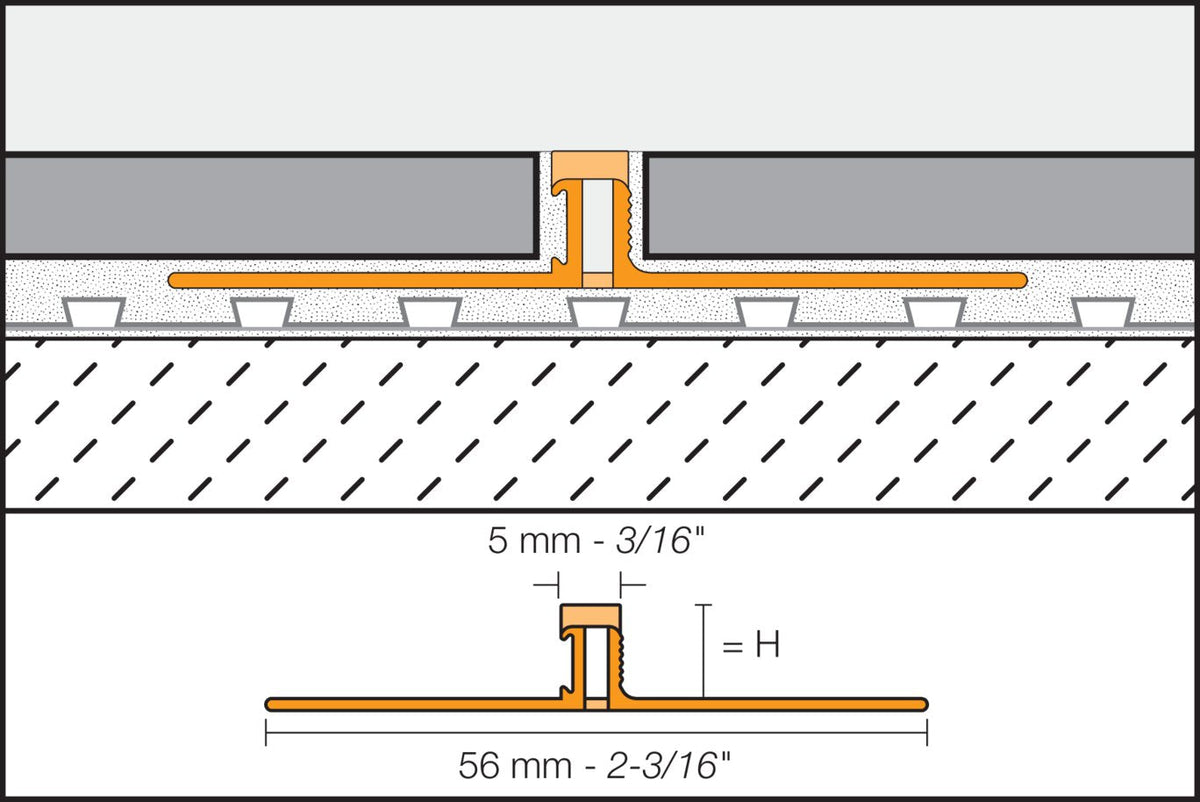

| Width overall (illustration) | Approx. 2-3/16 in (56 mm) per diagram |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWS?
A: It is a surface movement joint profile that allows expansion and contraction in tiled floors, reducing stress and preventing cracking.
Q: What is the width of the movement zone?
A: The movement zone is 3/16 in (5 mm) wide.
Q: Where can it be used?
A: Suitable for residential to medium-duty commercial tiled areas subject to light mechanical loads.
Q: Do I still need caulking?
A: No. The profile eliminates the need for caulking at movement joints.
Q: What length is this trim?
A: 98.5 inches.
Streamlined Movement, Seamless Finish
This profile quietly choreographs the energy of a tiled floor, delivering a sleek Stone Grey line that feels deliberate and refined. The slim 3/16-inch movement zone is the hero—engineering meets elegance to keep surfaces pristine over time. Pair it with large-format porcelain in cool tones for a contemporary, gallery-like effect. It’s a subtle yet essential detail that elevates everyday spaces into polished luxury.
Choose DILEX-BWS to protect your tile installation and achieve a seamless, grout-matched finish that lasts.
