Details

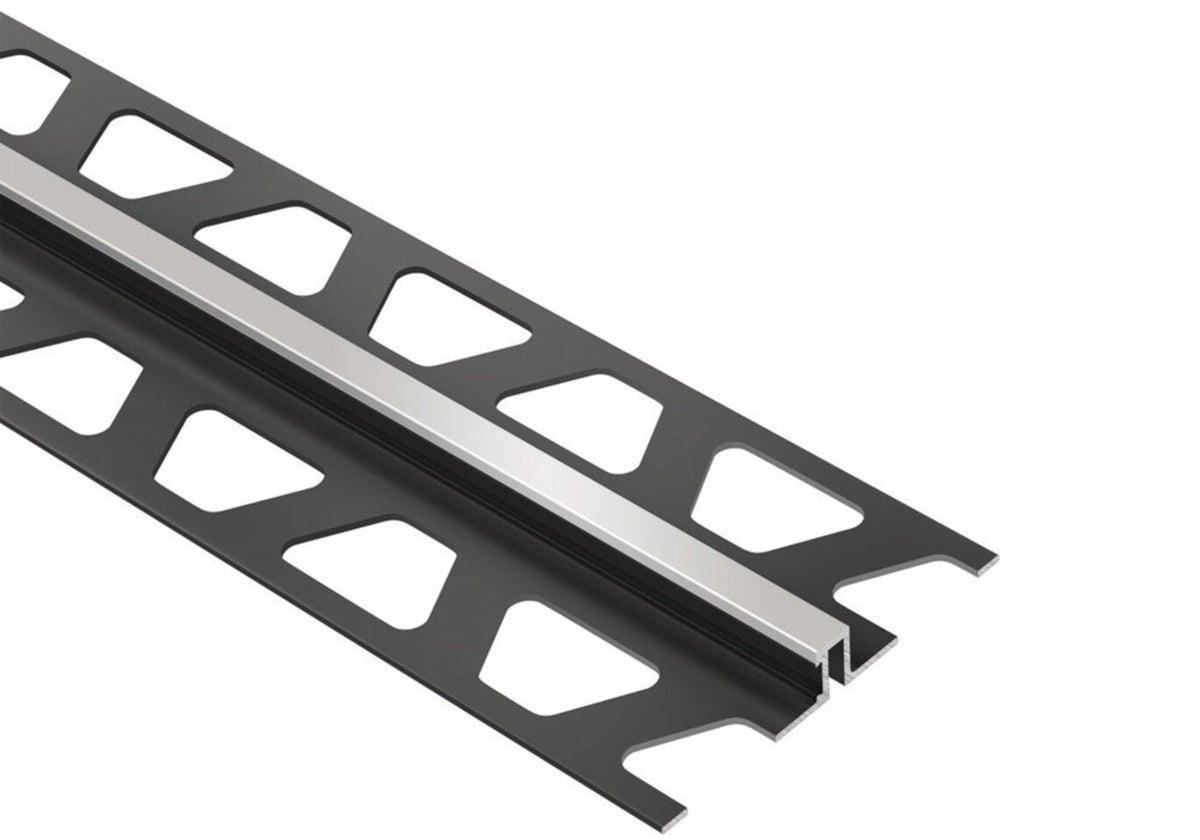

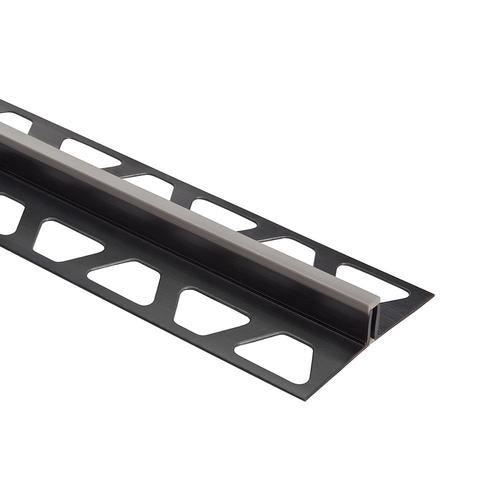

DILEX-BWS PVC movement joint tile edge trim

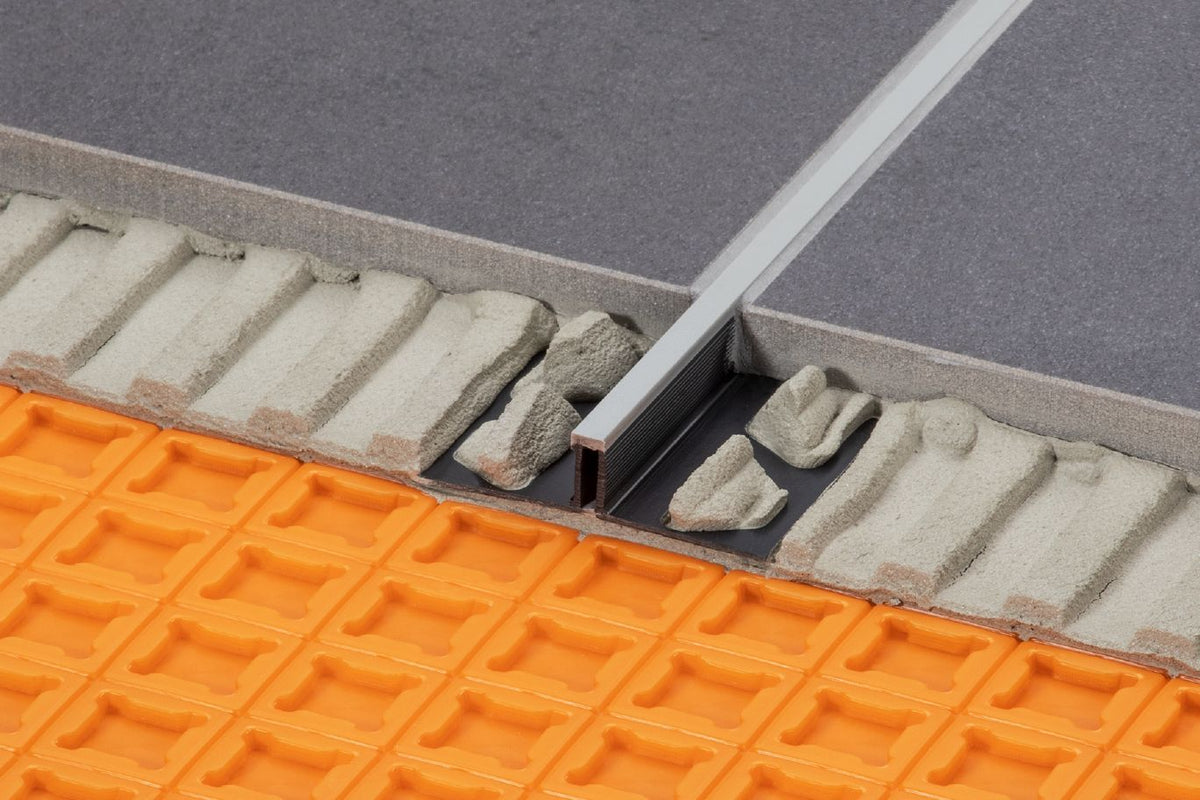

A PVC surface joint profile designed to manage movement in tiled floors. The 3/16-inch (5 mm) movement zone matches grout color and helps prevent cracking and delamination while eliminating the need for caulking.
Key Features:
- Movement Control: 3/16 in (5 mm) movement zone absorbs limited movements to reduce tile stress
- Grout-Matching Aesthetics: CPE movement zone offered in colors to coordinate with grout
- Low-Maintenance: Eliminates the need for caulking at joints
- Durable Construction: PVC profile suitable for residential to medium-duty commercial areas
- Easy Integration: Designed for installation at regular intervals to create smaller fields
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Profile type | PVC surface joint profile |

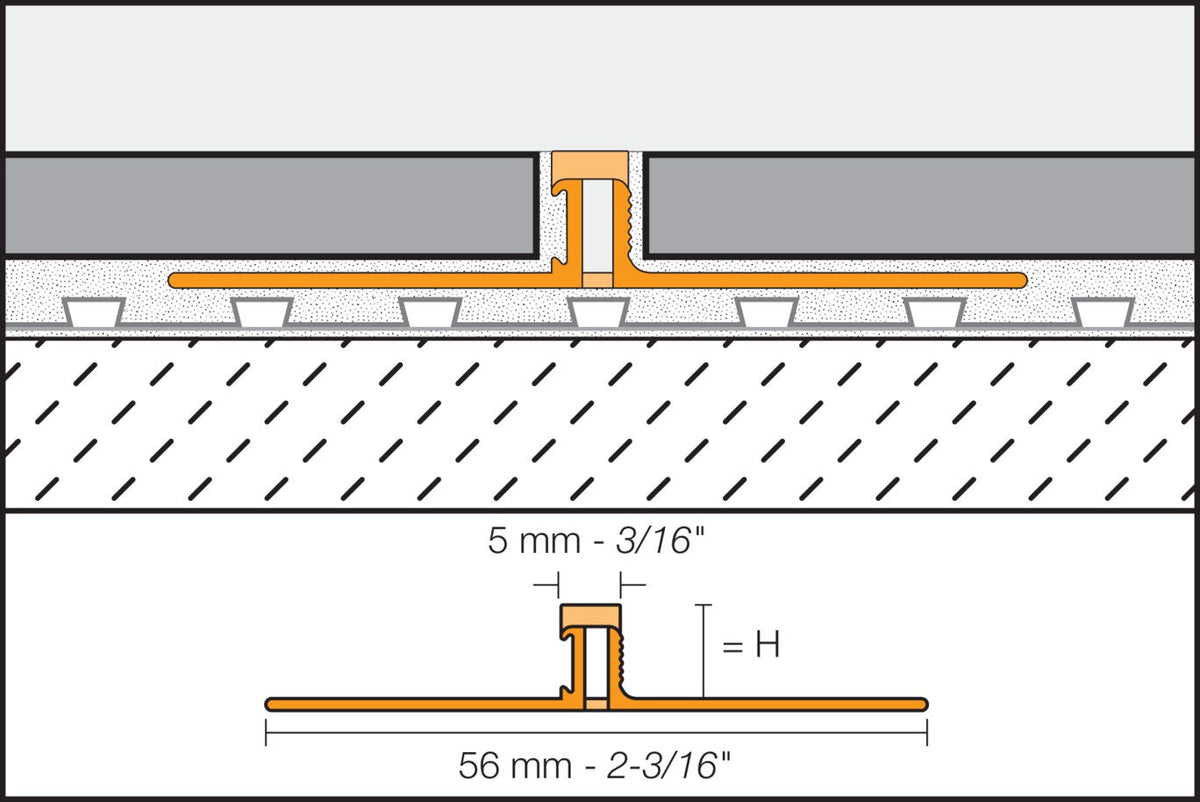

| Movement zone width | 3/16 in (5 mm) |
| Overall length | 98.5 in |
| Color | Grout Grey (movement zone available in multiple colors) |
| Applications | Residential to medium-duty commercial; light mechanical loads |
| Function | Allows movement, reduces stress in large tiled areas; prevents cracking and delamination; eliminates need for caulking |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWS?
A: It provides a movement joint within tiled surfaces to accommodate expansion and contraction, helping prevent cracking and tile delamination.
Q: What is the width of the movement zone?
A: 3/16 inch (5 mm).
Q: Where can it be used?
A: In residential to medium-duty commercial applications subject to light mechanical loads.
Q: Do I still need to apply caulk?
A: No, the profile eliminates the need for caulking at the joint.
Q: Are color options available?
A: Yes, the CPE movement zone is available in colors designed to match common grout shades.
Streamlined joints that keep your tile looking flawless
This sleek profile quietly choreographs movement across expansive tile fields, preserving crisp grout lines and a refined finish. The narrow 3/16-inch zone offers a tailored, grout-matched accent that blends seamlessly into the surface. Use it to delineate large-format layouts or create subtle rhythm in corridors and foyers. It’s a discreet essential for enduring, luxurious floors.
Choose DILEX-BWS to protect your tile installation with a clean, grout-matched joint that lasts.
