Schluter Systems DILEX-BWB 0.375-in W x 98.5-in L Stone Grey PVC Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049244
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

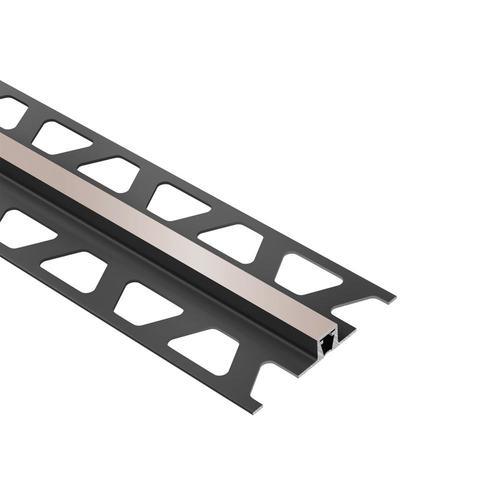

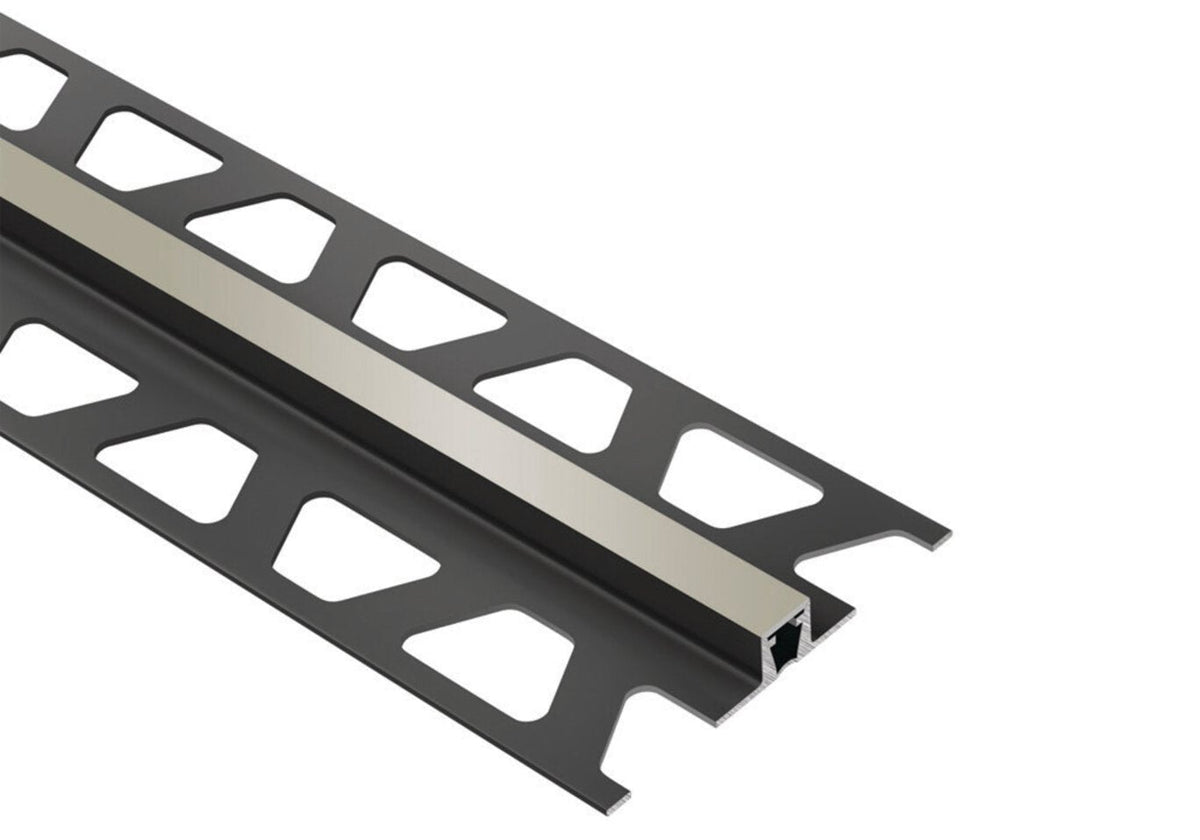

DILEX-BWB PVC tile movement joint edge trim, stone grey

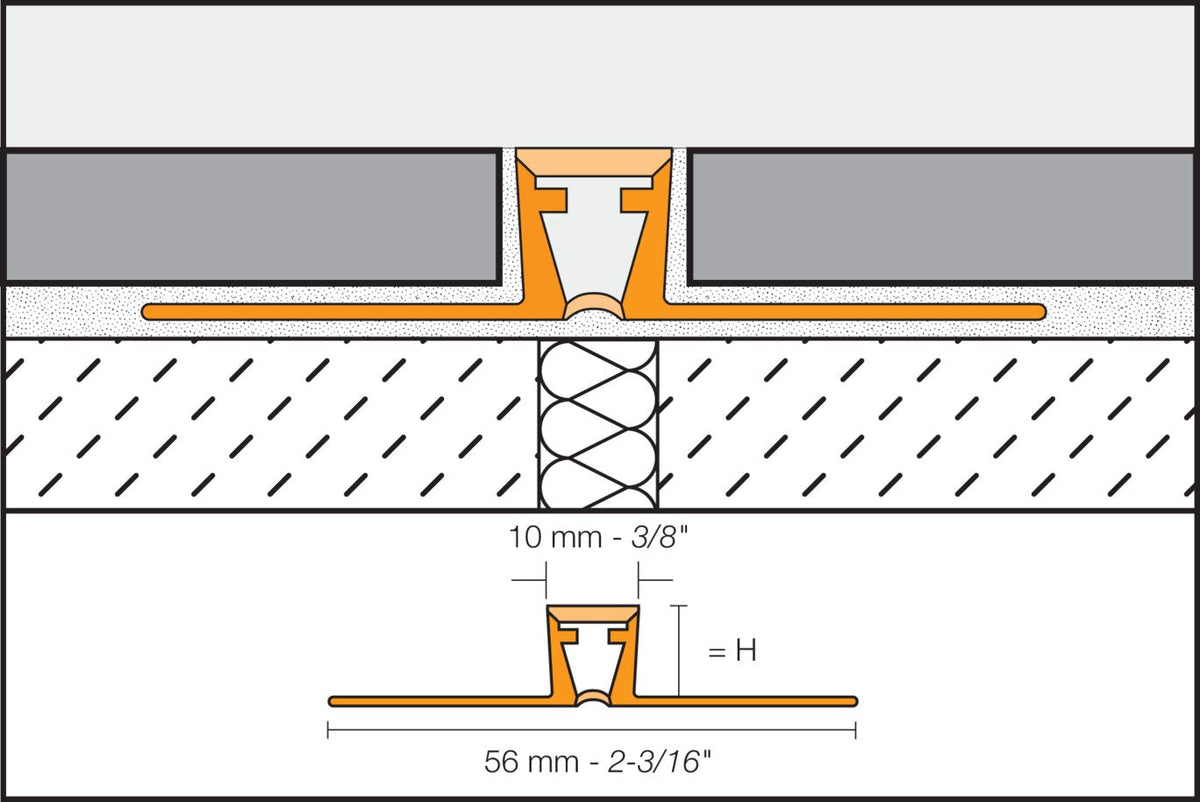

A PVC surface expansion joint profile featuring a 3/8-inch movement zone to absorb stress in tiled floors. At 98.5 inches long, it simplifies grout matching while preventing cracking and eliminating caulk lines for clean, durable installations.
Key Features:
- Movement Control: 3/8-inch (10 mm) wide central movement zone reduces stress and prevents tile cracking
- Clean Finish: Eliminates the need for caulking for a seamless grout-matched look
- Durable PVC Construction: Engineered for residential to medium-duty commercial floors subject to light mechanical loads
- Easy Integration: Long 98.5-inch profile for continuous runs across large tiled areas
- Ideal Applications: Offices, stores, and other large-format tile installations
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Profile type | Surface & expansion joint profile |
| Model | DILEX-BWB |
| Material | PVC |
| Movement zone width | 3/8 inch (10 mm) |
| Length | 98.5 inches |
| Color | Stone Grey |
| Applications | Residential to medium-duty commercial; light mechanical loads; ideal for offices and stores |
Frequently Asked Questions (FAQ):
Q: What is the width of the movement zone?
A: The central movement zone is 3/8 inch (10 mm) wide.
Q: Where is this profile typically used?
A: In large tiled areas such as offices and stores, and in residential to medium-duty commercial applications.
Q: Does it require caulking?
A: No—its design eliminates the need for caulking along the joint.
Q: What materials is it made from?
A: PVC profile with an integrated movement zone designed for tiled floor assemblies.
Q: What length does the profile come in?
A: 98.5 inches (as listed for this variant).
Streamlined movement joint with a refined, grout-matched aesthetic
This profile brings architectural clarity to expansive tile fields, delivering an elegant linear accent that quietly performs. The 3/8-inch movement zone is the subtle hero—preserving the surface while maintaining a crisp, uninterrupted finish. Pair it with stone-grey grout for a tone-on-tone detail that feels tailored and modern. It’s a must for sophisticated floors where durability and design meet.
Upgrade your tile installation with DILEX-BWB for a cleaner look and long-lasting performance—add it to your project plan today.
