Schluter Systems DILEX-KSN 0.5-in W x 98.5-in L Grout Grey Aluminum Tile Edge Trim

DILEX-KSN Aluminum Tile Movement Joint Trim, Grout Grey

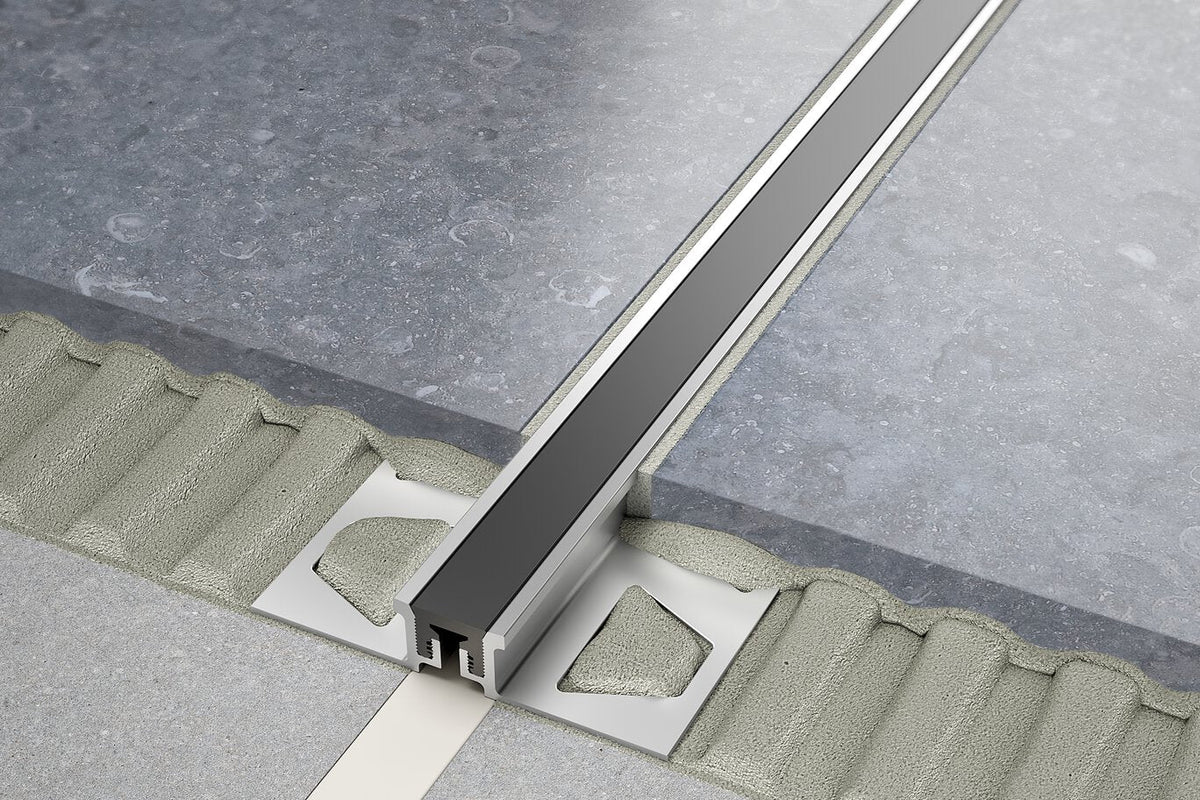

The Schluter DILEX-KSN is a surface and expansion joint profile with aluminum anchoring legs and a replaceable soft thermoplastic rubber movement zone. It protects tile edges while accommodating movement in large tiled areas, reducing stress, cracking, and the need for caulking.

---

Key Features:

• Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone absorbs movement and forms the visible surface

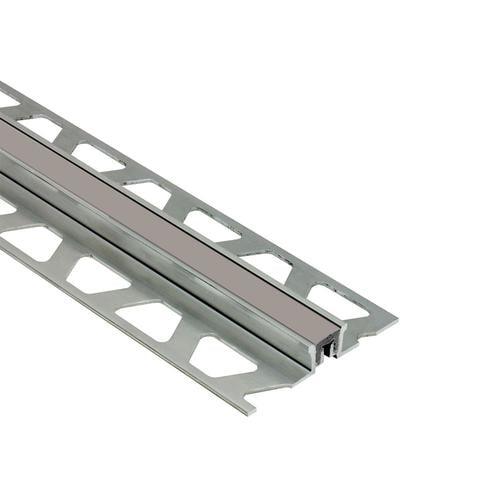

• Edge Protection: Trapezoid-perforated aluminum anchoring legs secure in the mortar bond coat to protect adjacent tiles
• Durable & Low Maintenance: Designed for heavy-duty applications and is maintenance-free
• Caulk-Free Joint: Eliminates the need for caulking while helping prevent cracking and delamination
• Color-Matched Aesthetics: Available in colors to coordinate with common grout shades; shown in Grout Grey

---

Specifications Table:

Specification	Details
Profile name	Schluter-DILEX-KSN
Anchoring legs material	Aluminum (also available in stainless steel)
Movement zone material	Soft thermoplastic rubber (replaceable)

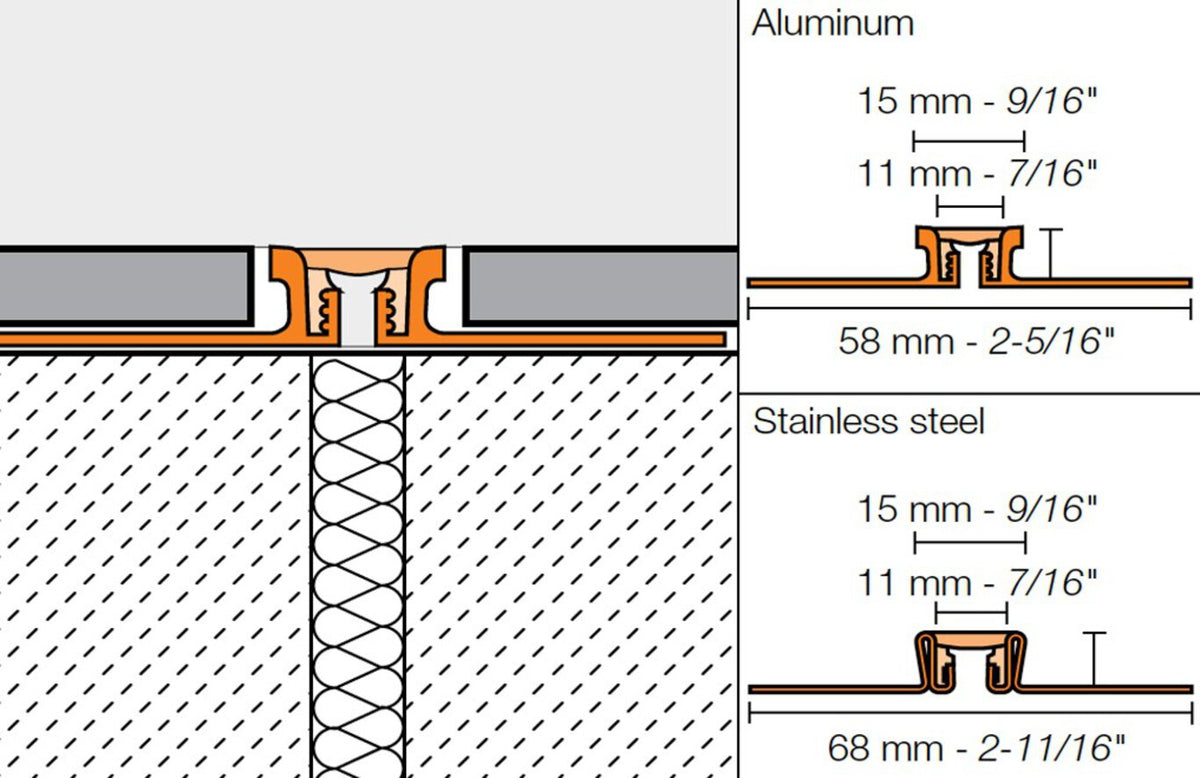

Visible movement zone width	7/16 in (11 mm)
Overall top width (aluminum version)	2-5/16 in (58 mm)
Overall top width (stainless steel version)	2-11/16 in (68 mm)
Tile protection	Provides edge protection and separates individual tile fields
Color	Grout Grey (insert)
Length	98.5 in
Width (profile size)	0.5 in
Maintenance	Maintenance-free
Typical applications	Large tiled areas; suitable for heavy-duty traffic areas when using stainless steel legs

---

Frequently Asked Questions (FAQ):

Q: What is the visible joint width?
A: The movement zone is 7/16 in (11 mm) wide and forms the visible surface.

---

Q: Is the movement insert replaceable?
A: Yes, the thermoplastic rubber movement zone can be replaced if damaged.

---

Q: Where is this profile typically used?
A: It separates tile fields and provides edge protection in large tiled areas, including commercial spaces subject to heavy traffic.

---

Q: What materials are the anchoring legs made from?
A: This model uses aluminum anchoring legs; DILEX-KSN is also available with stainless steel legs for heavy-duty applications.

---

Q: Does it require ongoing maintenance?
A: No. It is designed to be maintenance-free.

---

Sleek Expansion Detail, Elevated Finish

DILEX-KSN introduces a refined line that elegantly defines expansive tile fields while quietly managing movement beneath the surface. The graphite-like Grout Grey insert offers a sophisticated contrast against aluminum edges, reading as a deliberate design gesture rather than a necessity. Use it to create rhythm across grand entries or open-plan floors, aligning joints with architectural sightlines. It’s a discreet luxury that keeps surfaces pristine and performance-driven.

---

Upgrade your tile installation with DILEX-KSN for clean lines, lasting protection, and caulk-free movement control—add it to your project today.
