Schluter Systems
Schluter Systems DILEX-KSN 0.5-in W x 98.5-in L Cream Aluminum Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001048944
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

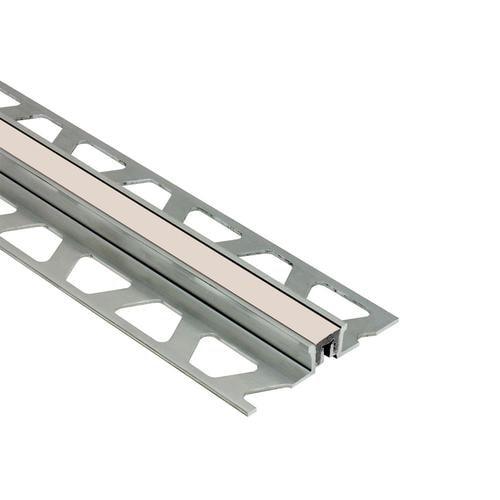

DILEX-KSN Aluminum Tile Movement Joint Trim, Cream

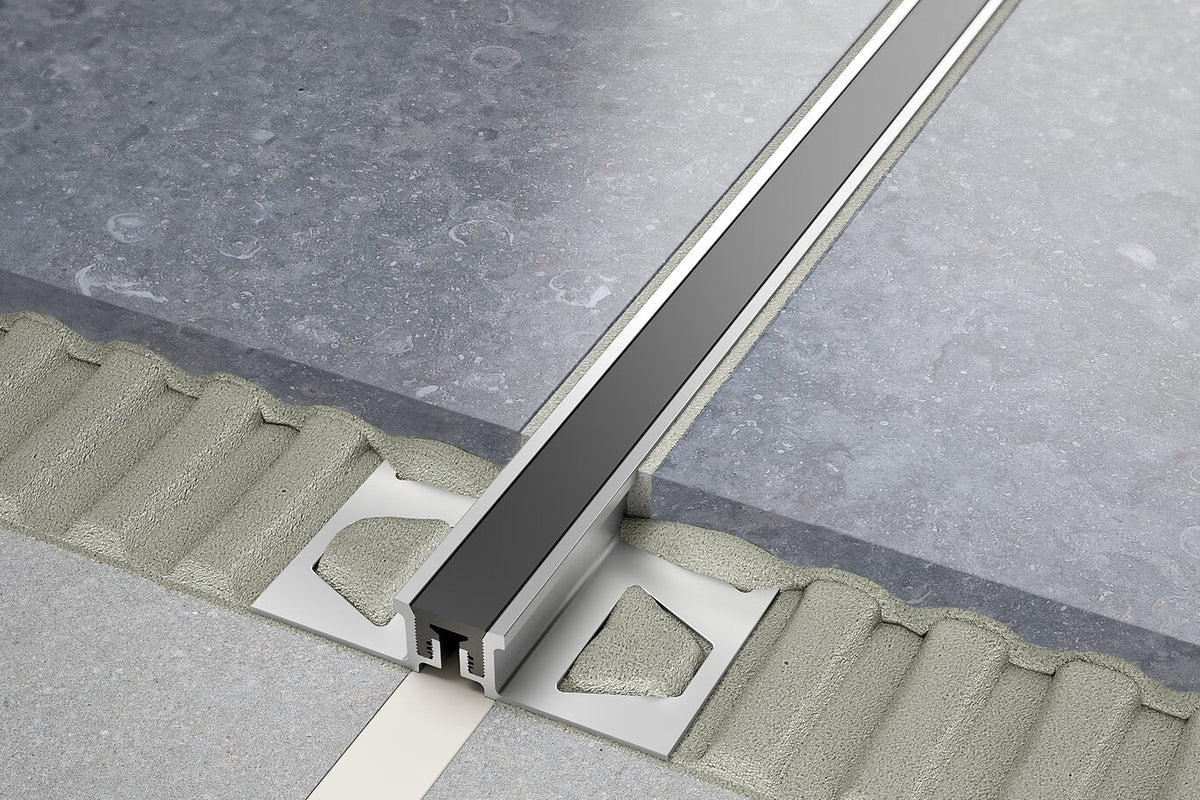

A durable movement joint profile for tile installations, Schluter DILEX-KSN features aluminum anchoring legs and a soft thermoplastic rubber movement zone to protect tile edges and absorb expansion. Ideal for large tiled areas, it reduces stress, prevents cracking, and eliminates the need for caulking.
Key Features:
- Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone absorbs expansion and contraction to prevent tile cracking
- Robust Edge Protection: Trapezoid-perforated aluminum anchoring legs secure firmly in mortar for long-lasting durability
- Low Maintenance: Built-in movement joint eliminates caulking and is maintenance-free
- Replaceable Insert: Thermoplastic rubber movement zone can be replaced if damaged
- Commercial-Ready: Designed for large tiled surfaces; suitable for heavy-traffic environments when using stainless steel version
Please check the Product Data Sheet Here

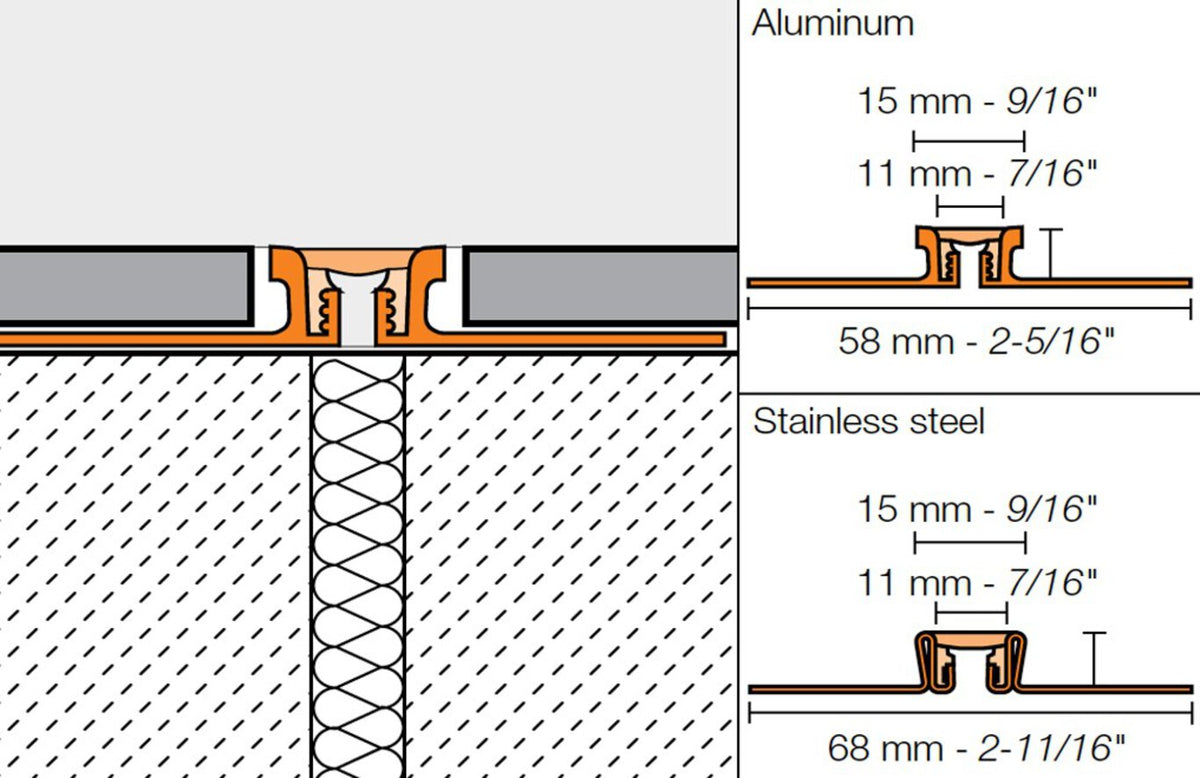

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |
| Material | Aluminum anchoring legs with soft thermoplastic rubber movement zone |
| Movement zone width | 7/16 in (11 mm) |
| Top width (aluminum version) | 2-5/16 in (58 mm) |
| Visible surface color | Cream |
| Length | 98.5 in |
| Overall width (stainless steel version) | 2-11/16 in (68 mm) — reference only |
| Maintenance | Maintenance-free; eliminates need for caulking |
| Insert | Replaceable thermoplastic rubber movement zone |
| Application | Separates tile fields and accommodates movement in large tiled areas |
Frequently Asked Questions (FAQ):
Q: What is the visible movement joint width?
A: The movement zone is 7/16 in (11 mm) wide.
Q: Can the central insert be replaced?
A: Yes, the thermoplastic rubber movement zone is replaceable if damaged.
Q: Is this profile suitable for commercial traffic?
A: DILEX-KSN with stainless steel anchoring legs is recommended for heavy-duty commercial traffic; this listing is the aluminum version for general applications.
Q: Does it require caulking?
A: No, the integrated movement joint eliminates the need for caulking.
Q: What is the length of this trim?
A: 98.5 inches, as specified in the product title.
Streamlined Expansion Joint with Architectural Poise
DILEX-KSN brings a tailored, linear accent to expansive tile fields, marrying performance with an elegant, minimal presence. The cream insert subtly punctuates the surface, highlighting crisp transitions while safeguarding the installation. Style it across large-format stone or porcelain to create a refined rhythm that feels intentional and elevated. This profile is the quiet hero of luxe, long-lasting floors.
Protect your tile installation and achieve a clean, professional finish—choose DILEX-KSN today.
