Siemens

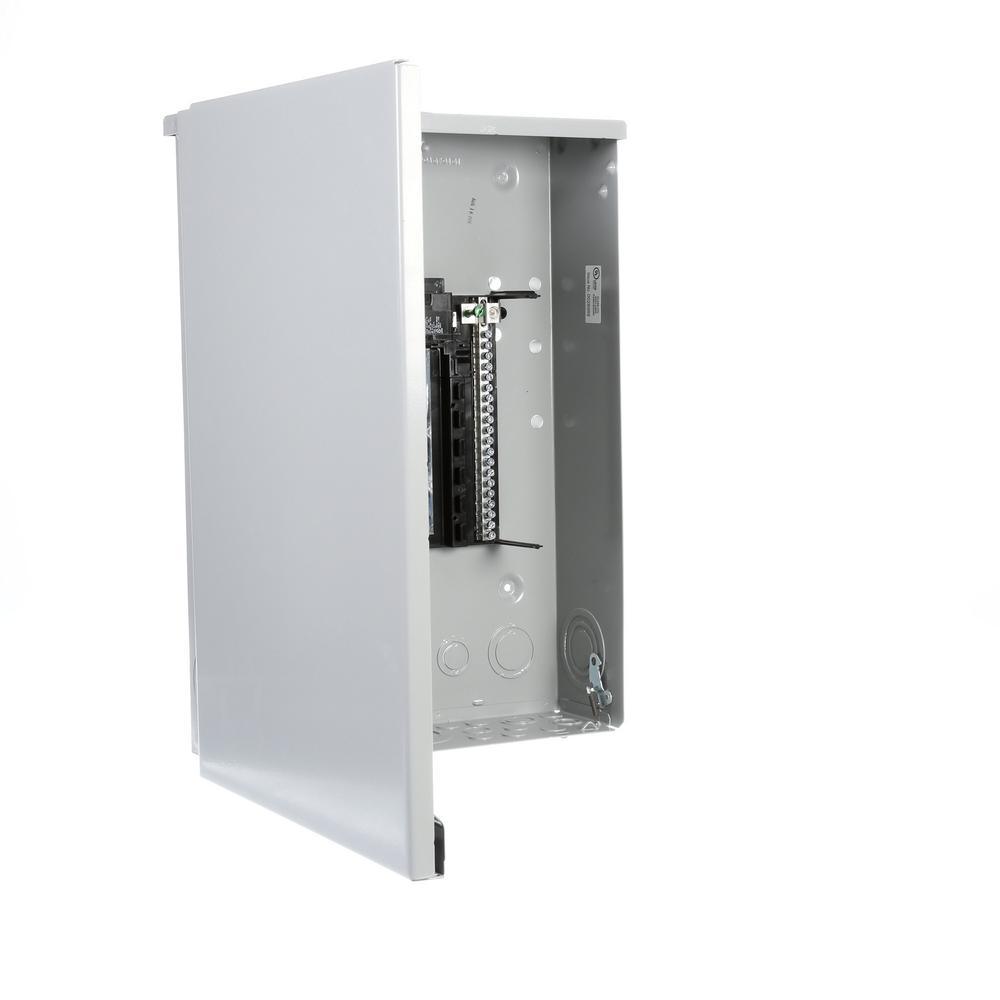

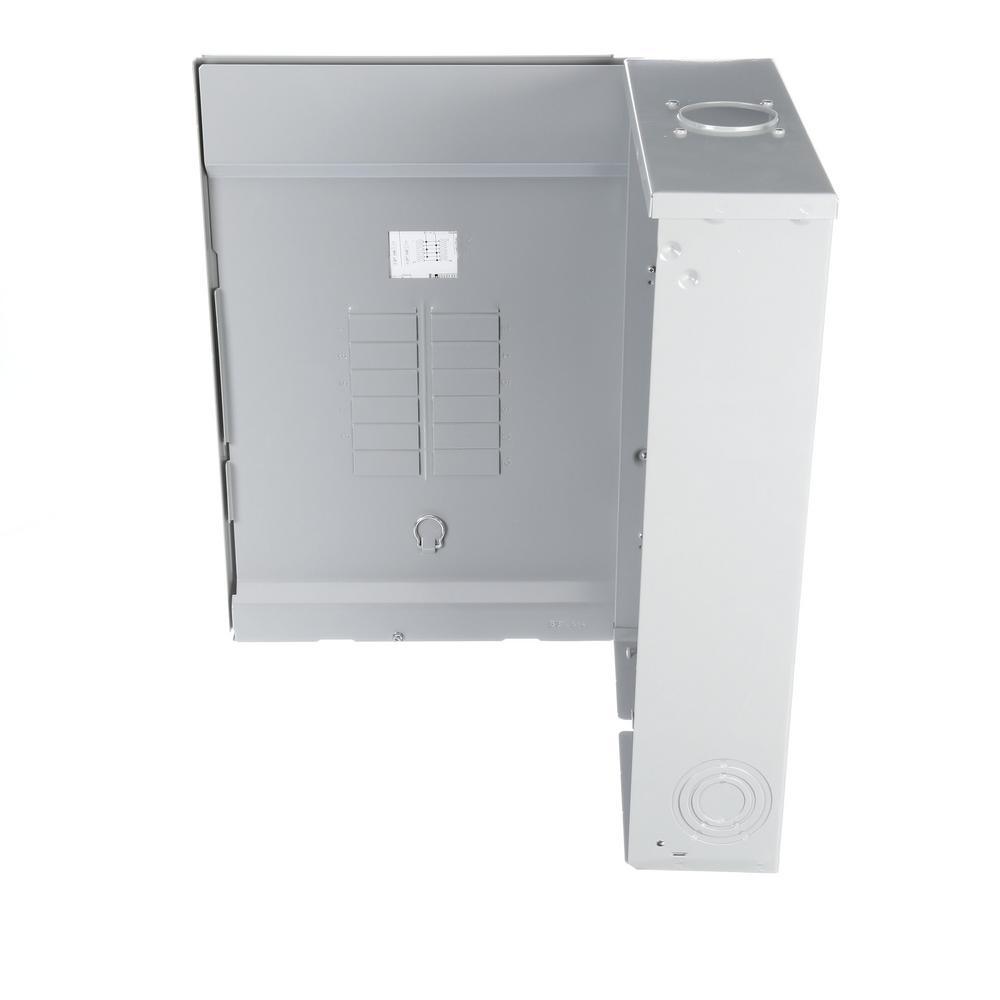

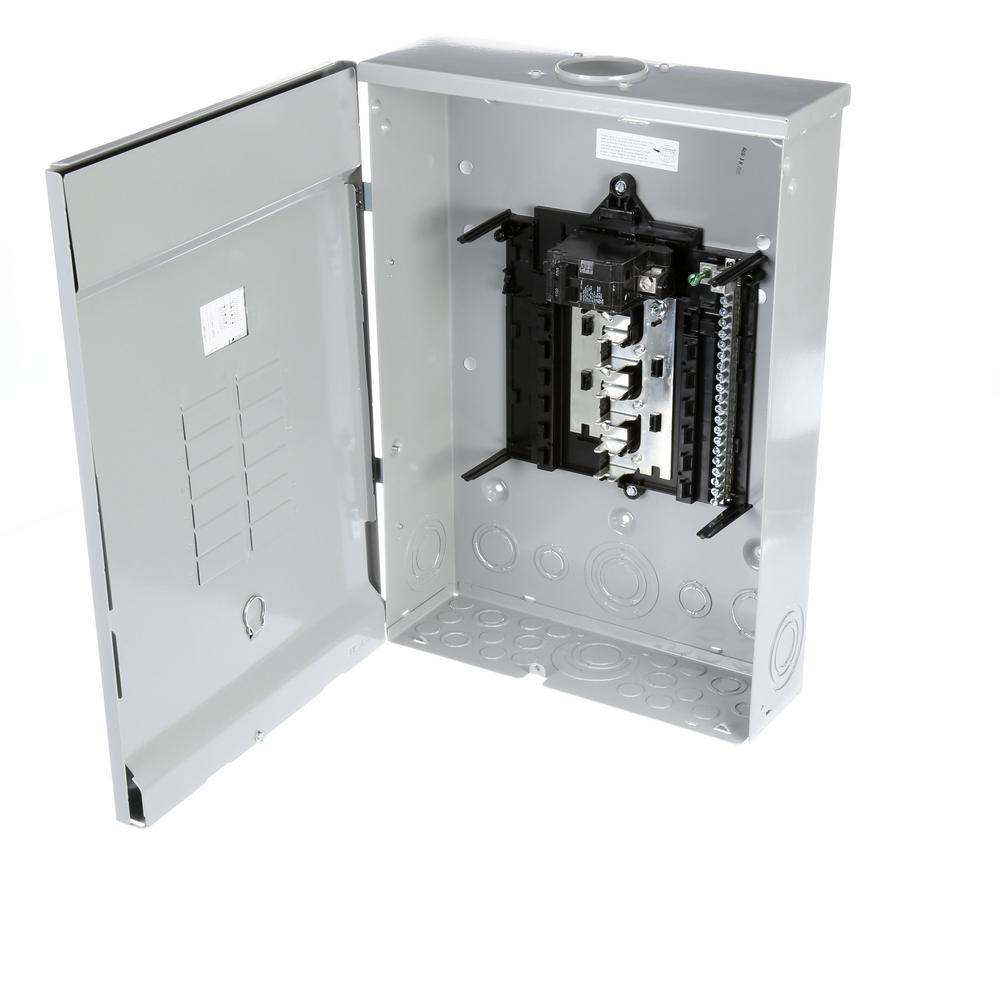

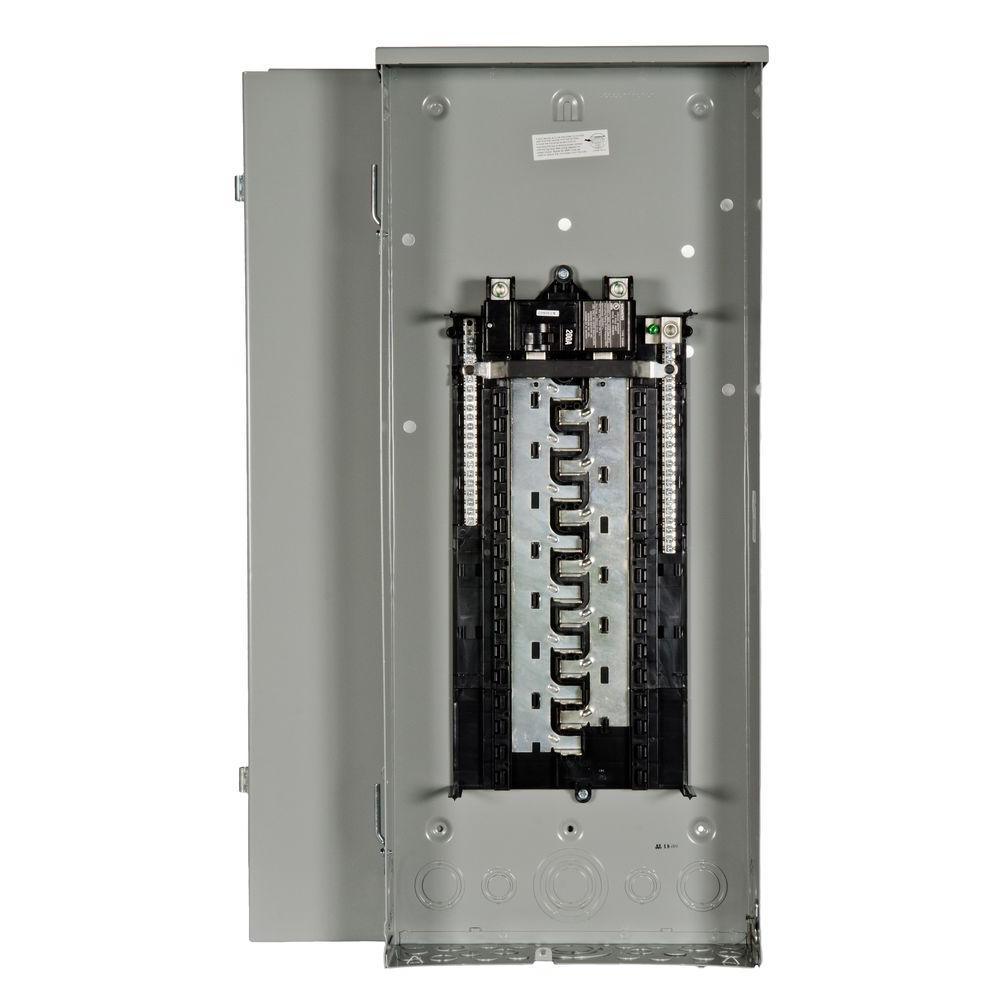

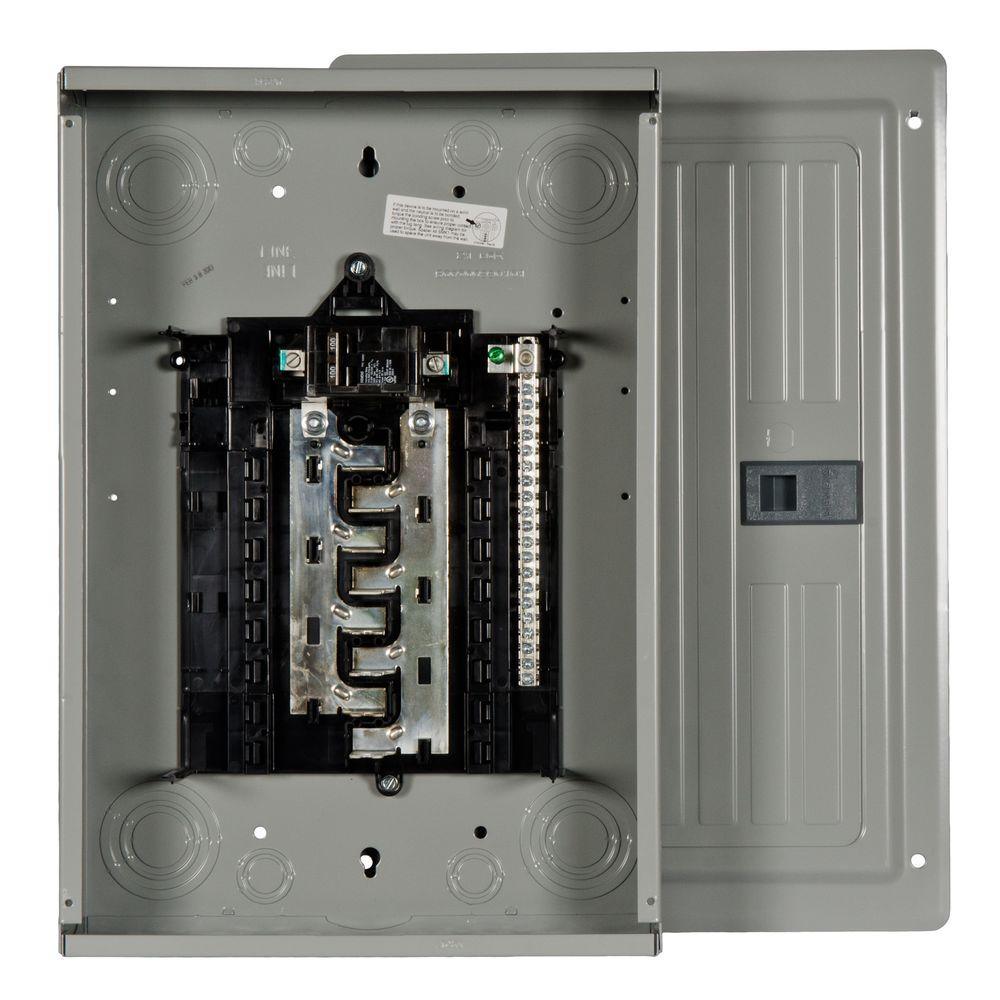

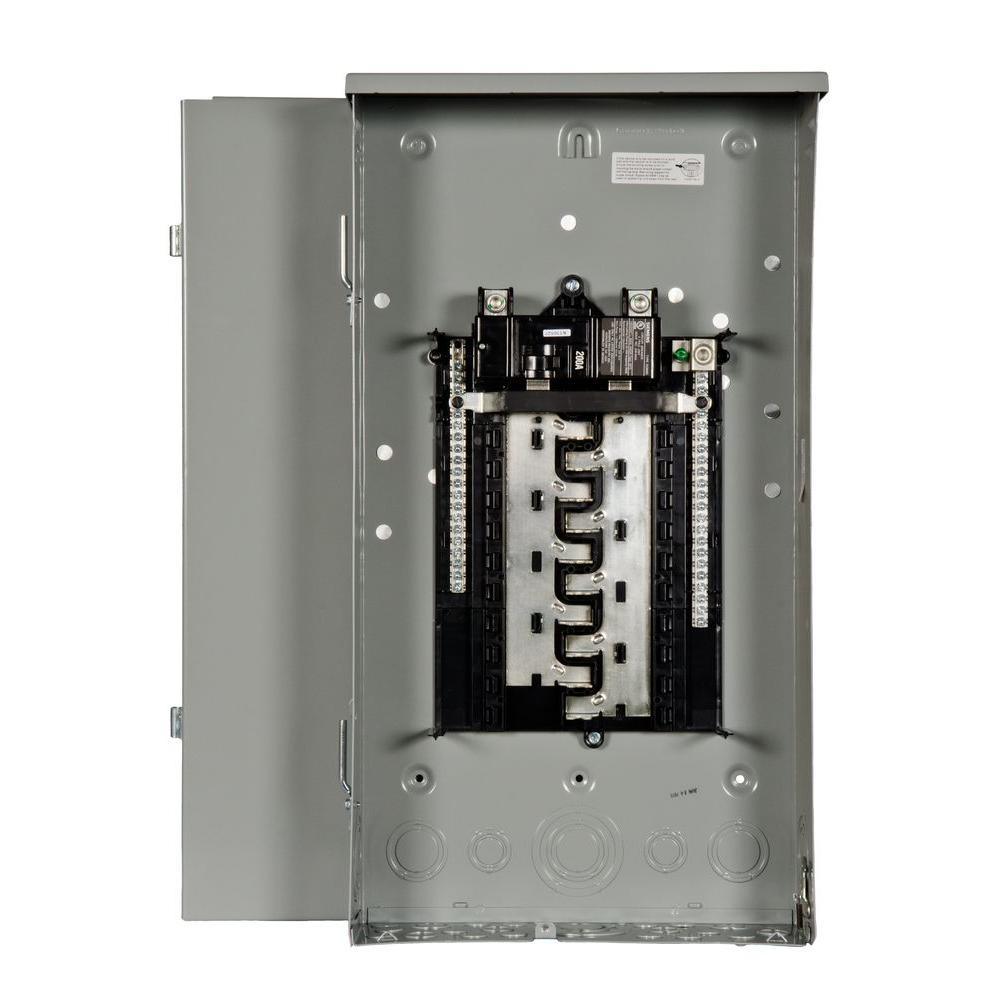

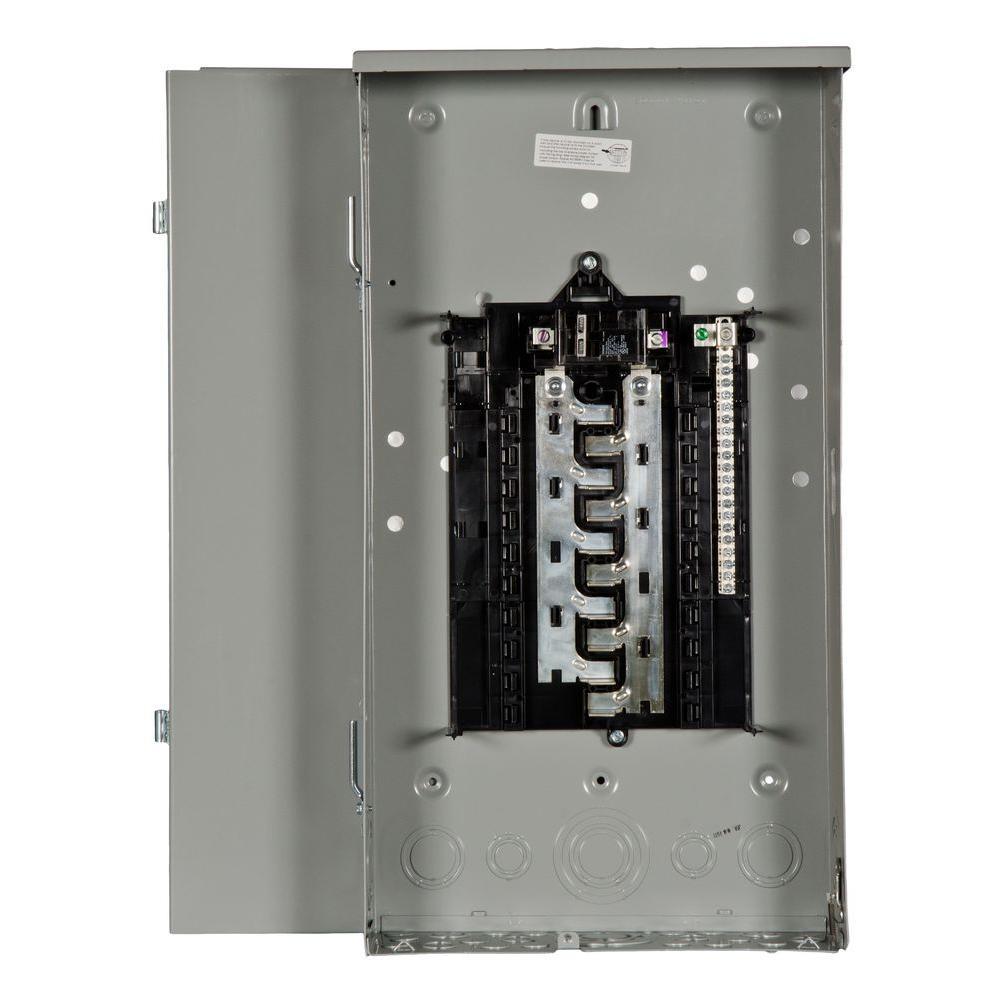

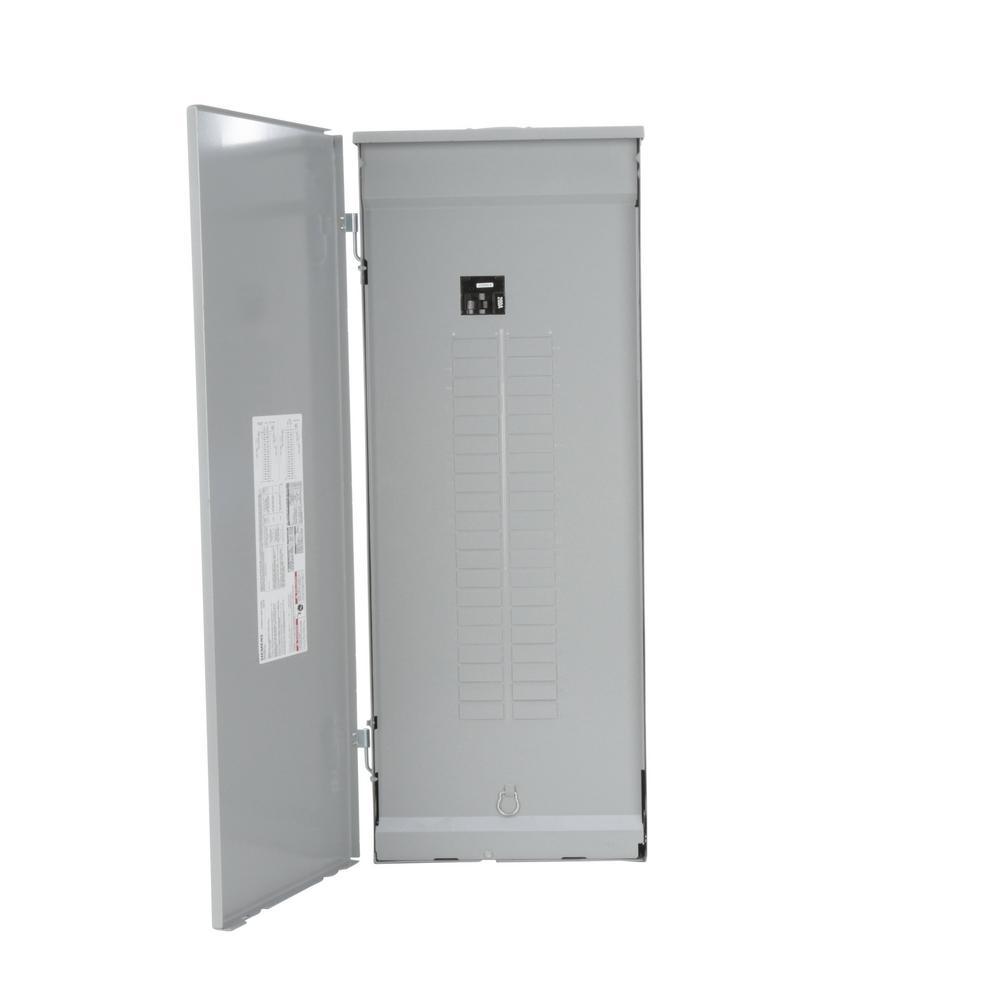

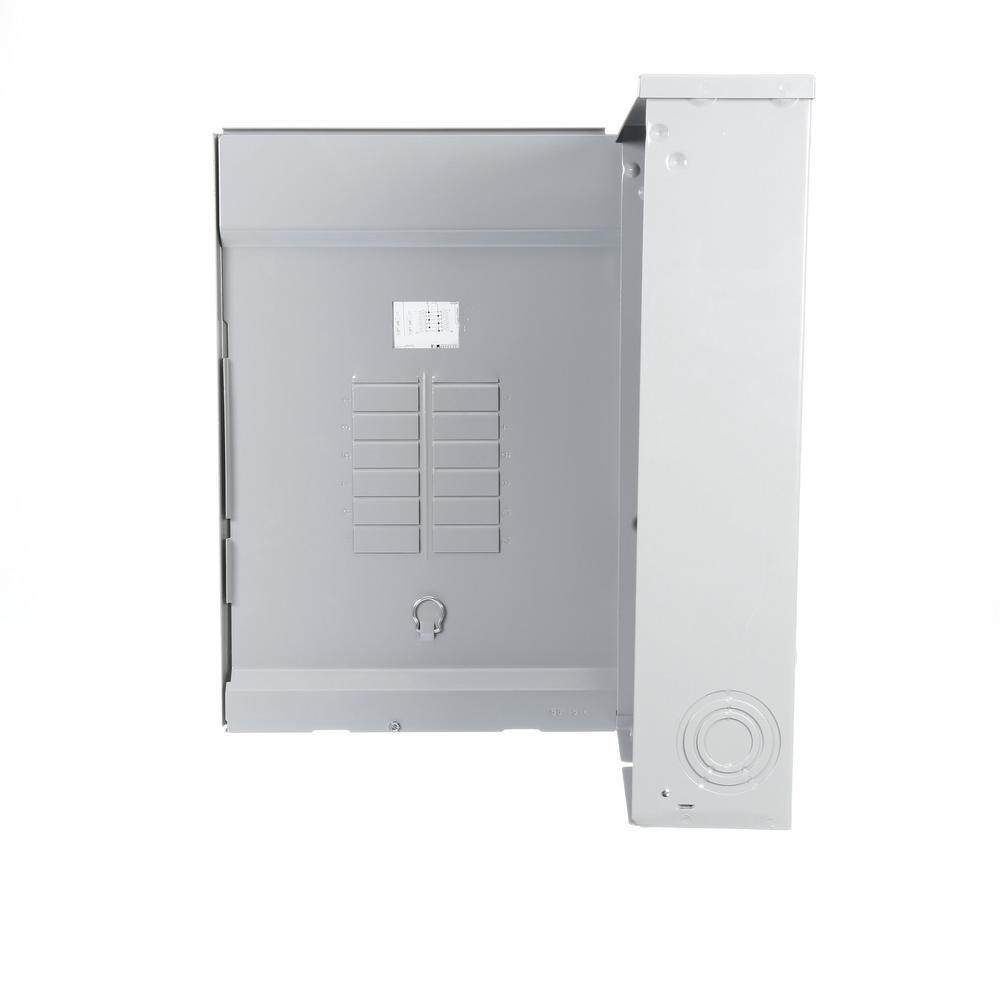

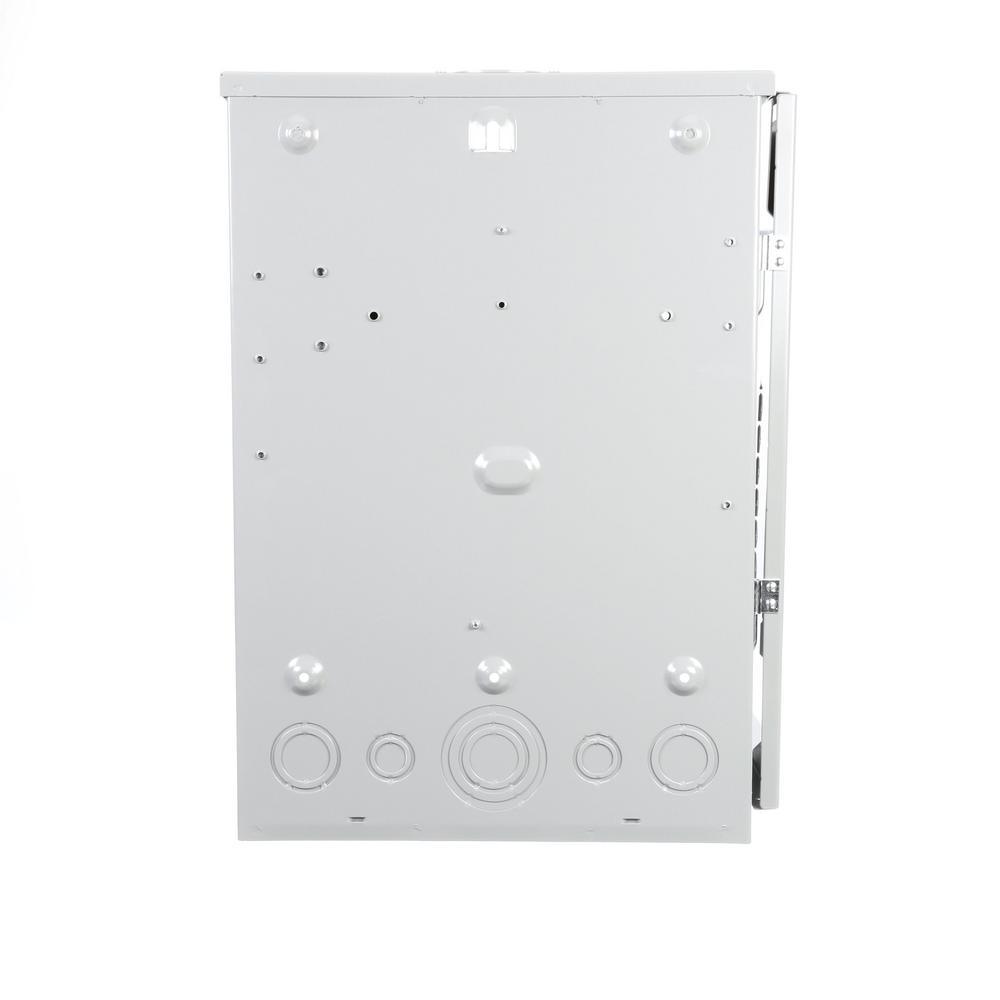

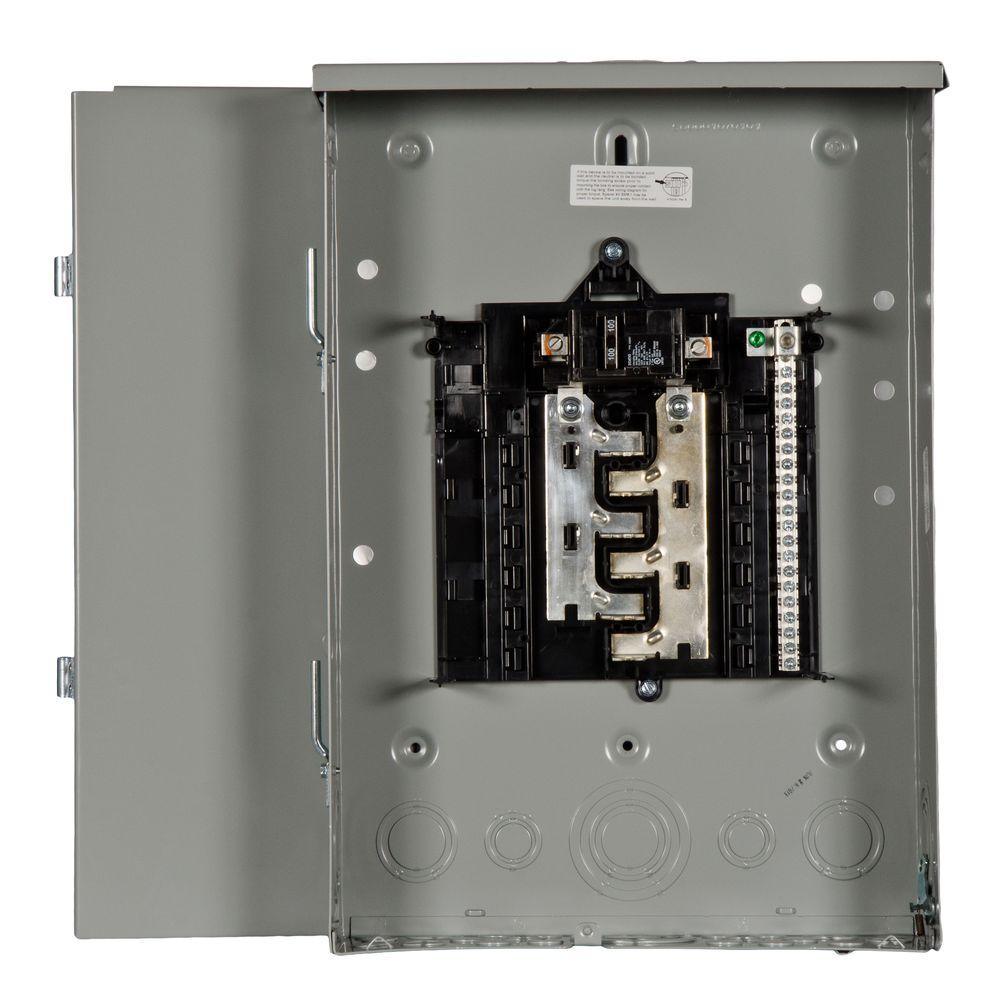

ES Series 100 Amp 12-Space 24-Circuit Main Breaker Outdoor Load Center
Not priced yet
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
Features
- A single phase, 120/240-Volt, 100-Amp main breaker load center with 12-spaces/24-circuits
- Aluminum bus
- Ground bar field installed
- Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- Single side inboard neutral
- Invertible for bottom feed application
- All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
- Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
- Rigid, sturdy base pan provides ruggedness required for harsh applications
- NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
- ES Series Single Phase load centers are being phased out, and replaced by the new SN Series Plug-On Neutral load centers, SW1224B1100 equivalent is the new SNW1224B1100
Features
| Item Weight | 23.436 |
| Voltage (volts) | 120 |
| Maximum Amperage (amps) | 100 |
| Mounting Type | Bolt On |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Product Weight (lb.) | 23.436 |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Number of Spaces | 12 |
| Number of Circuits | 24 |
| Load center depth (in.) | 5 |
| Load center height (in.) | 22.625 |
| Load center width (in.) | 25.5 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Year |
