SharkBite
SharkBite 3/4 in. Push-to-Connect x 3/4 in. FIP x 24 in. Braided Stainless Steel Water Heater Connector
Published price — same for everyone
Out of stock — available on backorder
SKU u3088flex24lf
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

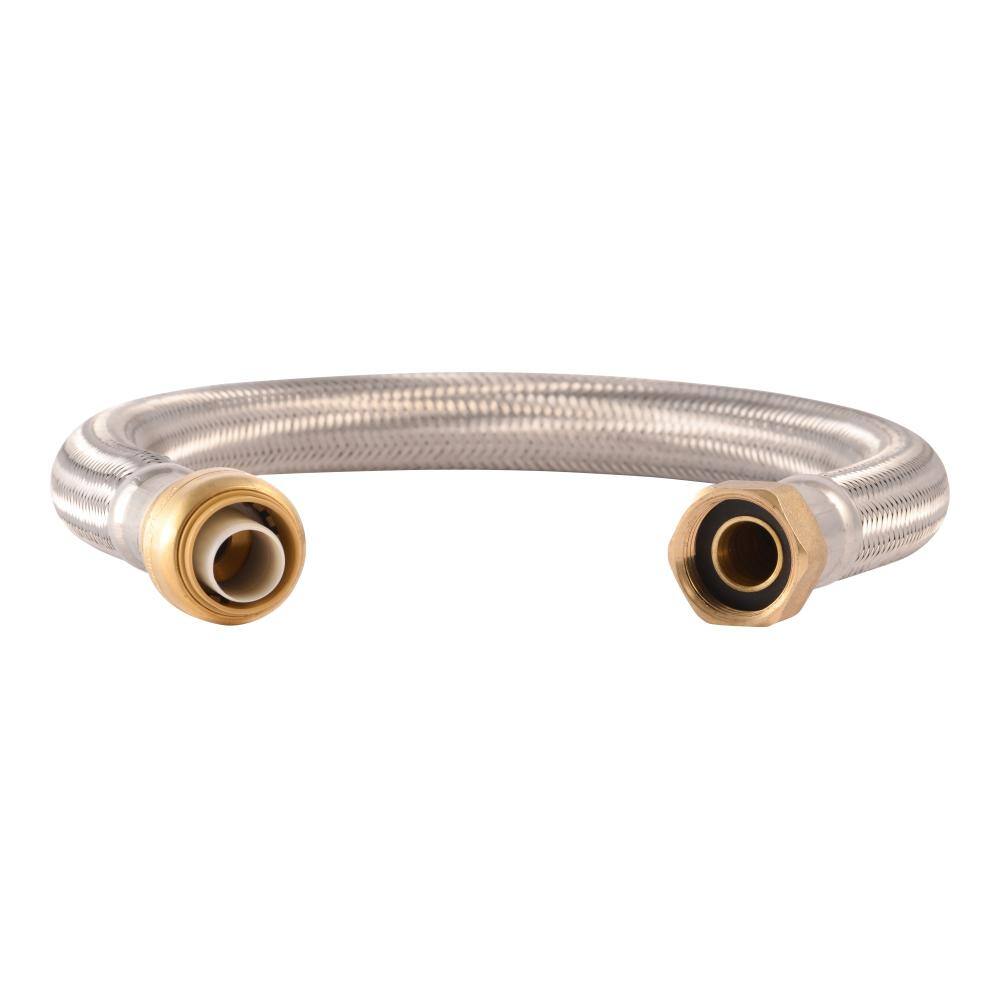

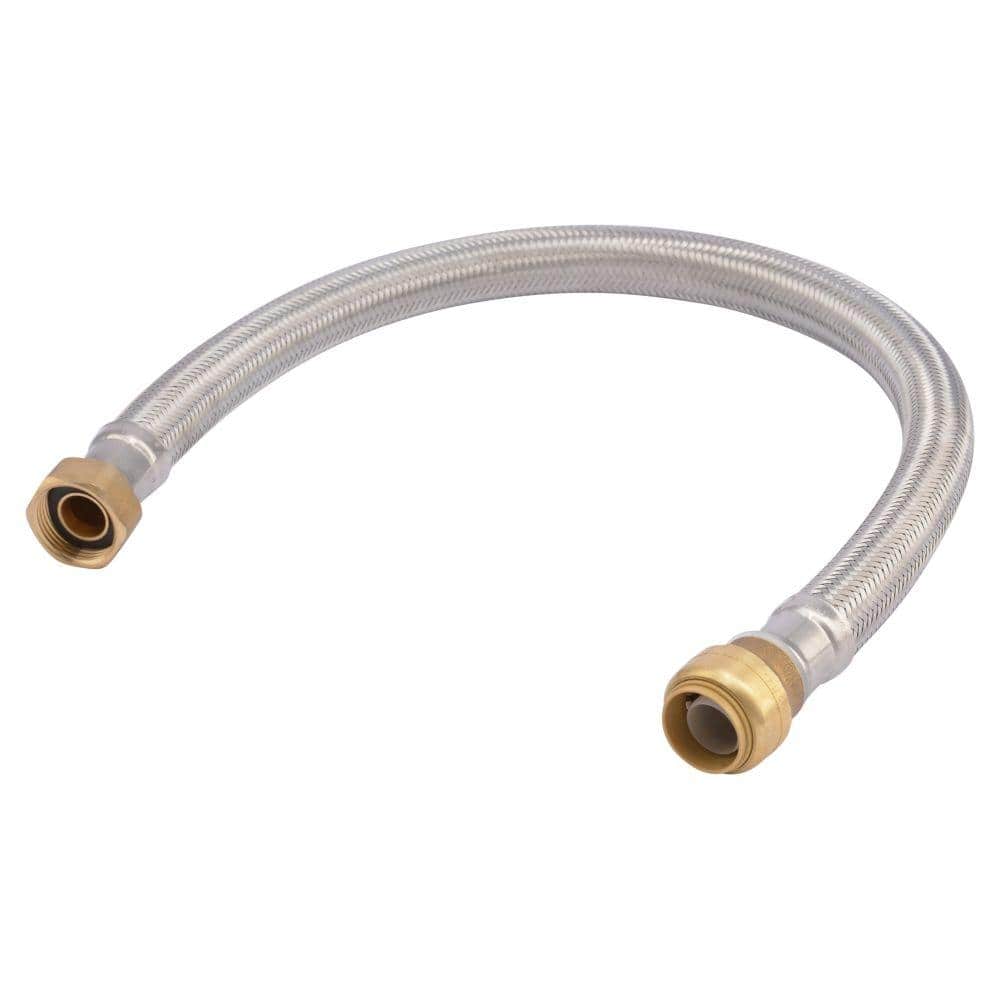

3/4 in. Push-to-Connect Braided Stainless Water Heater Connector, 24 in.
Flexible, lead-free braided stainless steel connector for fast water heater hookups. Features a 3/4 in. push-to-connect end for copper, PEX, CPVC, and PE-RT, and a 3/4 in. FIP end for the heater. Corrosion-resistant DZR brass fittings simplify installation without solder or glue.
Key Features:
- Fast Installation: Push-to-connect design eliminates solder, glue, and unions for quick hookups
- Universal Pipe Compatibility: Connects to copper, PEX, CPVC, and PE-RT with 3/4 in. PTC end
- Durable Build: Braided stainless steel hose with lead-free DZR brass fittings resists corrosion

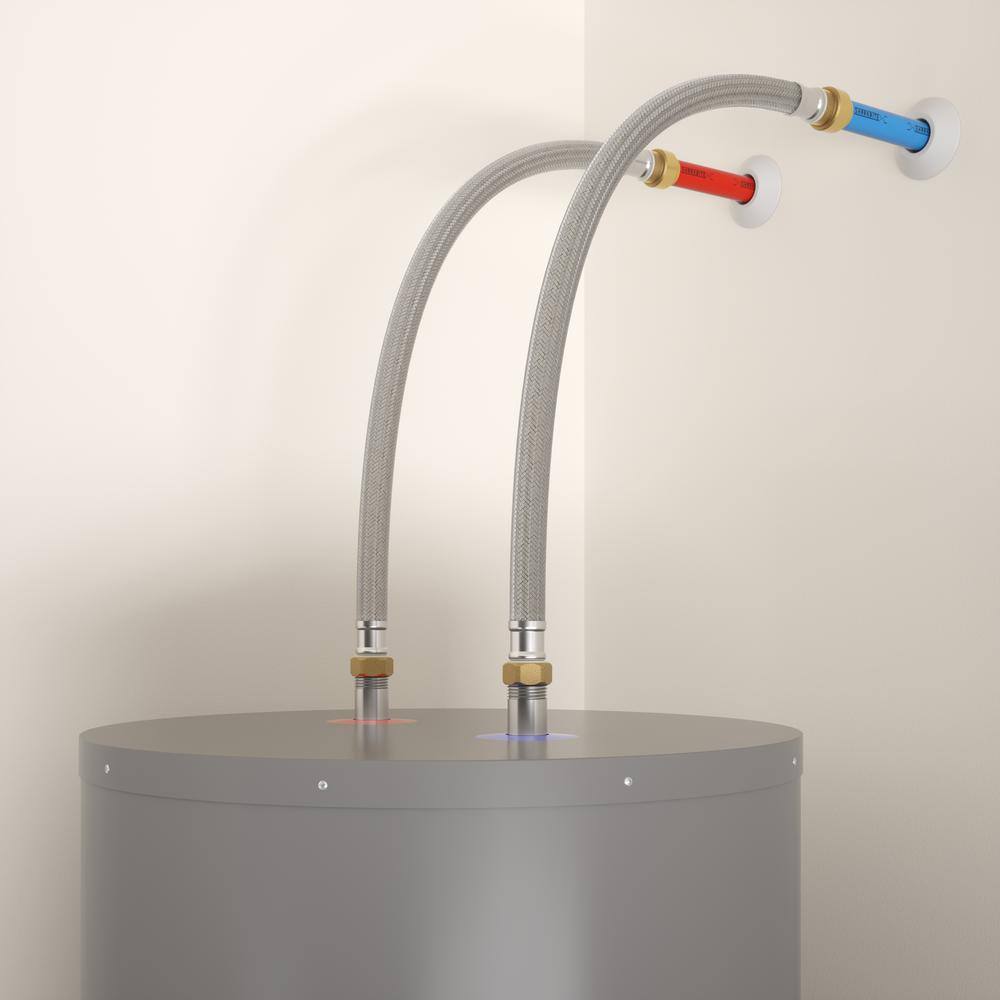

- Flexible Alignment: 24 in. length provides bend radius to bridge misaligned pipes
- Certified Safe: Design certified to ASSE 1061 and NSF/ANSI 372; lead-free compliance
Please check the Product Data Sheet Here

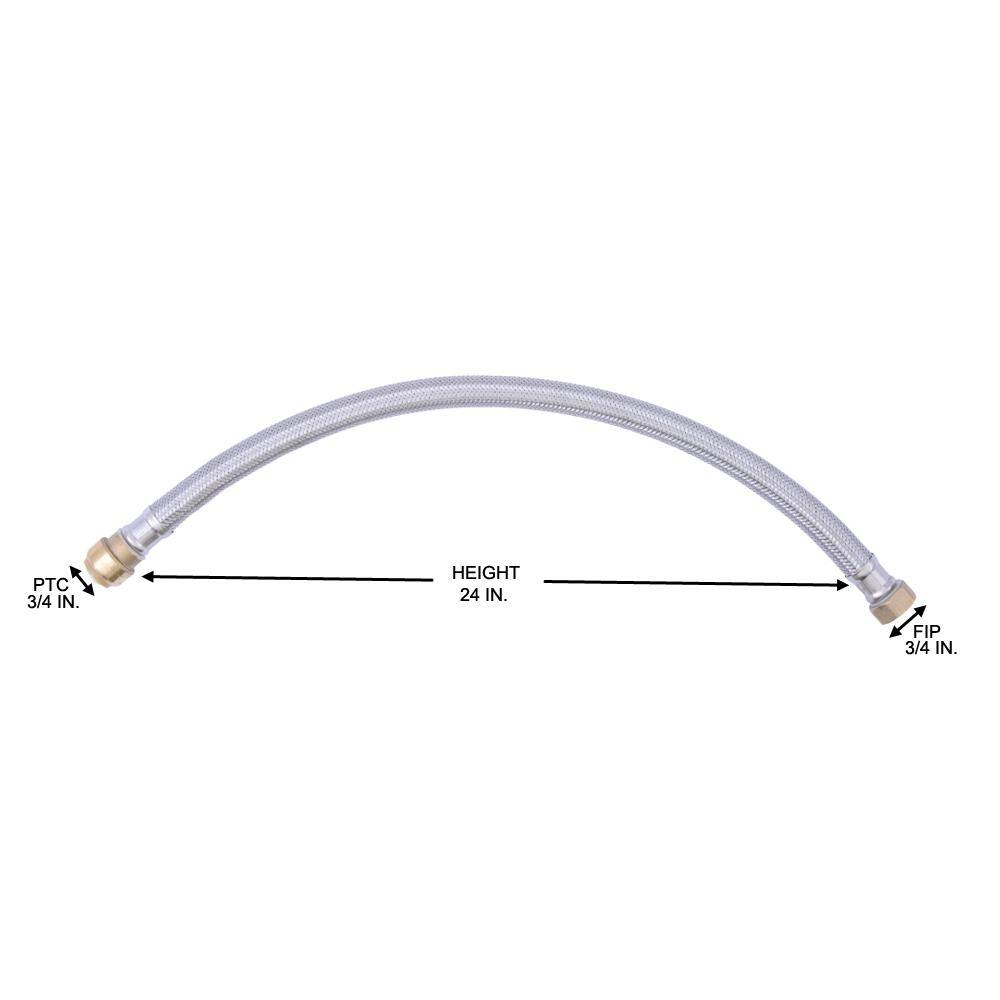

Specifications Table:
| Specification | Details |
|---|---|
| Connection 1 | 3/4 in. Push-to-Connect (PTC) |
| Connection 2 | 3/4 in. Female Iron Pipe (FIP) |
| Hose Length | 24 in. |
| Material | Braided Stainless Steel hose; Lead-free DZR brass fittings |
| Finish | Silver Metallic |
| Compatible Pipe Types | Copper, PEX, CPVC, PE-RT |
| For Use With | Electric tank, electric tankless, gas tank, gas tankless water heaters |
| Pack Size | 1 |
| Product Weight | 0.87 lb |
| Product Height | 1.26 in |
| Product Width | 1.26 in |
| Insertion Depth (3/4 in. PTC) | 1-1/8 in. |
| Certifications | ASSE 1061; NSF/ANSI 372; NSF/ANSI 65 |
| Lead-Free Compliance | Yes |
Frequently Asked Questions (FAQ):
Q: Can this connect directly to PEX or copper lines?
A: Yes, the 3/4 in. push-to-connect end works with PEX, copper, CPVC, and PE-RT.
Q: Do I need special tools to install?
A: No tools are required for the push-fit end; apply thread tape and tighten the FIP end to the heater with channel locks.
Q: Is it suitable for tankless heaters?
A: Yes, it can be used with electric or gas tank and tankless water heaters.
Q: What is the insertion depth for the 3/4 in. push-to-connect?
A: Approximately 1-1/8 in. insertion depth.
Q: Is the product lead-free?
A: Yes, fittings are lead-free DZR brass and certified to NSF/ANSI 372.
Streamlined Utility with Polished Resilience
This sleek braided connector lends a modern, utilitarian edge to the mechanical heart of the home. The stainless weave catches light with a subtle shimmer while the brass accents feel timeless and tailored. Use the generous 24-inch arc to create a clean, symmetrical rise from the heater to the wall lines, keeping the installation visually tidy. It’s a refined finishing touch that makes everyday performance feel luxuriously effortless.
Upgrade your water heater hookup with this fast, flexible SharkBite connector and enjoy a clean, reliable installation in minutes.
