Schluter Systems DILEX-BWB 0.5-in W x 98.5-in L Dark Anthracite PVC Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001089556
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

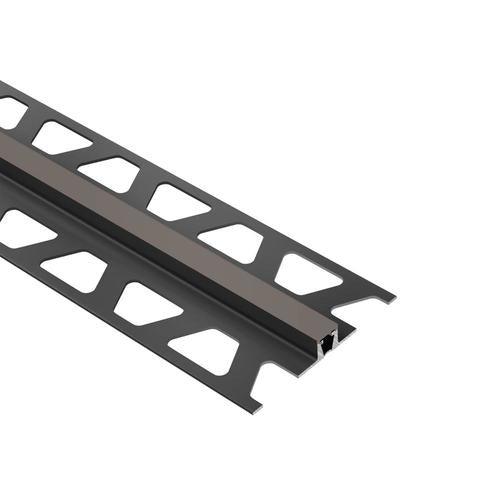

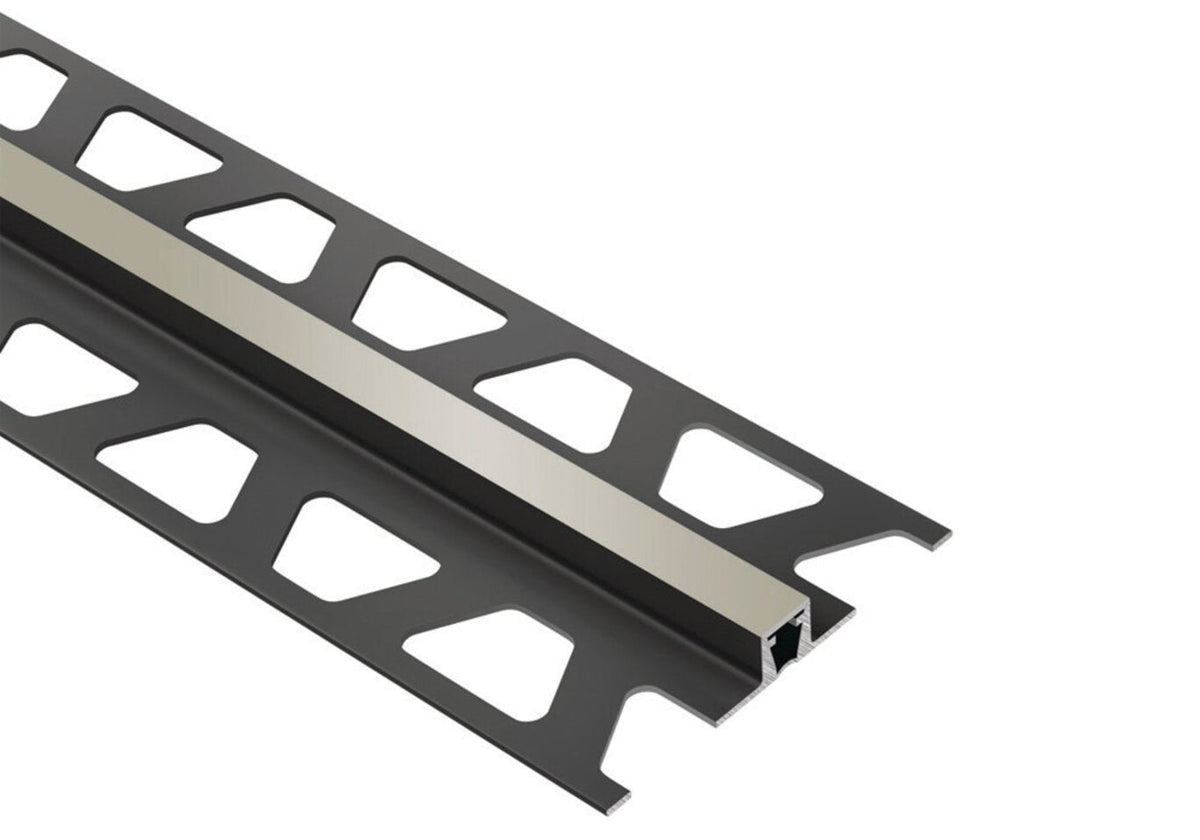

DILEX-BWB PVC movement joint tile edge trim
A durable PVC surface joint profile with a 3/8-inch movement zone, designed to absorb stress in tiled floors and eliminate the need for caulking. Ideal for residential and medium-duty commercial areas, it helps prevent tile cracking and delamination while offering a clean, finished look.
Key Features:
- Movement Control: 3/8-in (10 mm) movement zone reduces stress in large tiled areas
- No Caulk Needed: Integrated profile eliminates traditional caulking at joints
- Durable PVC Construction: Engineered for residential to medium-duty commercial use with light mechanical loads
- Easy Alignment: Profiles simplify layout for offices, stores, and open floor plans
- Color-Match Options: Available in multiple colors to coordinate with grout selections
Specifications Table:
| Specification | Details |
|---|---|
| Profile type | Surface & expansion joint profile |
| Model | DILEX-BWB |
| Material | PVC |

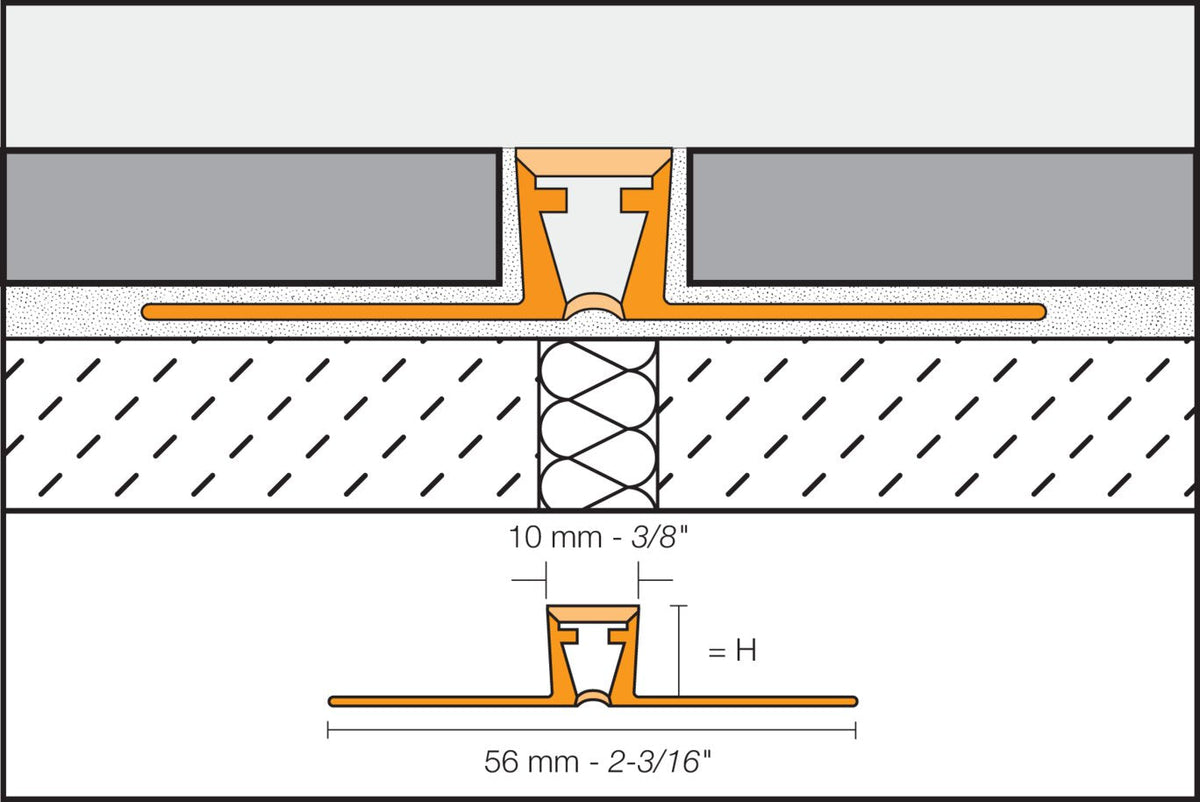

| Movement zone width | 10 mm (3/8 in) |
| Overall length | 98.5 in |
| Color/finish | Dark Anthracite |
| Applications | Residential to medium-duty commercial; light mechanical loads; ideal for offices and stores |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWB?
A: It is a movement joint profile that accommodates expansion and contraction in tiled surfaces to prevent cracking and delamination.
Q: Where can it be used?
A: Suitable for residential to medium-duty commercial floors and walls subject to light mechanical loads, such as offices and retail spaces.
Q: Do I still need to caulk the joint?
A: No—DILEX-BWB is designed to eliminate the need for caulking at tile movement joints.
Q: What is the width of the movement zone?
A: 3/8 inch (10 mm).
Q: What is the length of this trim?
A: 98.5 inches, as specified in the product title.
Sleek Structure, Seamless Stability
This trim draws a refined line through expansive tile fields, delivering a polished, continuous look while quietly managing movement beneath the surface. The 3/8-inch articulated zone becomes a discreet design accent that preserves the geometry of your floors. Pair it with dark grout for a modern, gallery-like aesthetic, or contrast it against pale stone for crisp definition. It’s the subtle, functional luxury that keeps spaces flawless and elevated.
Upgrade your tile installation with DILEX-BWB to achieve a sleek finish that resists cracks and eliminates caulking—add it to your project today.
