Schluter Systems DILEX-KSN 0.375-in W x 98.5-in L Grout Grey Aluminum Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001049892
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

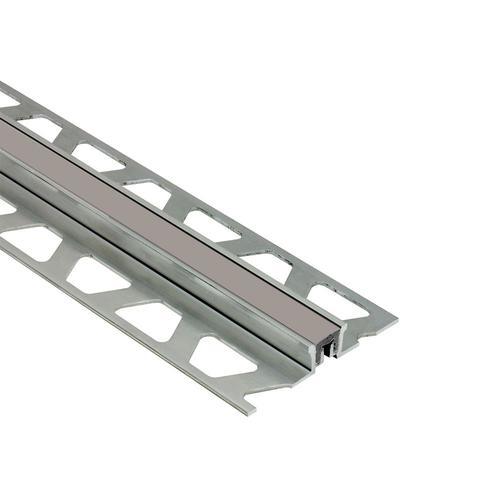

DILEX-KSN Aluminum Tile Movement Joint Trim, Grout Grey

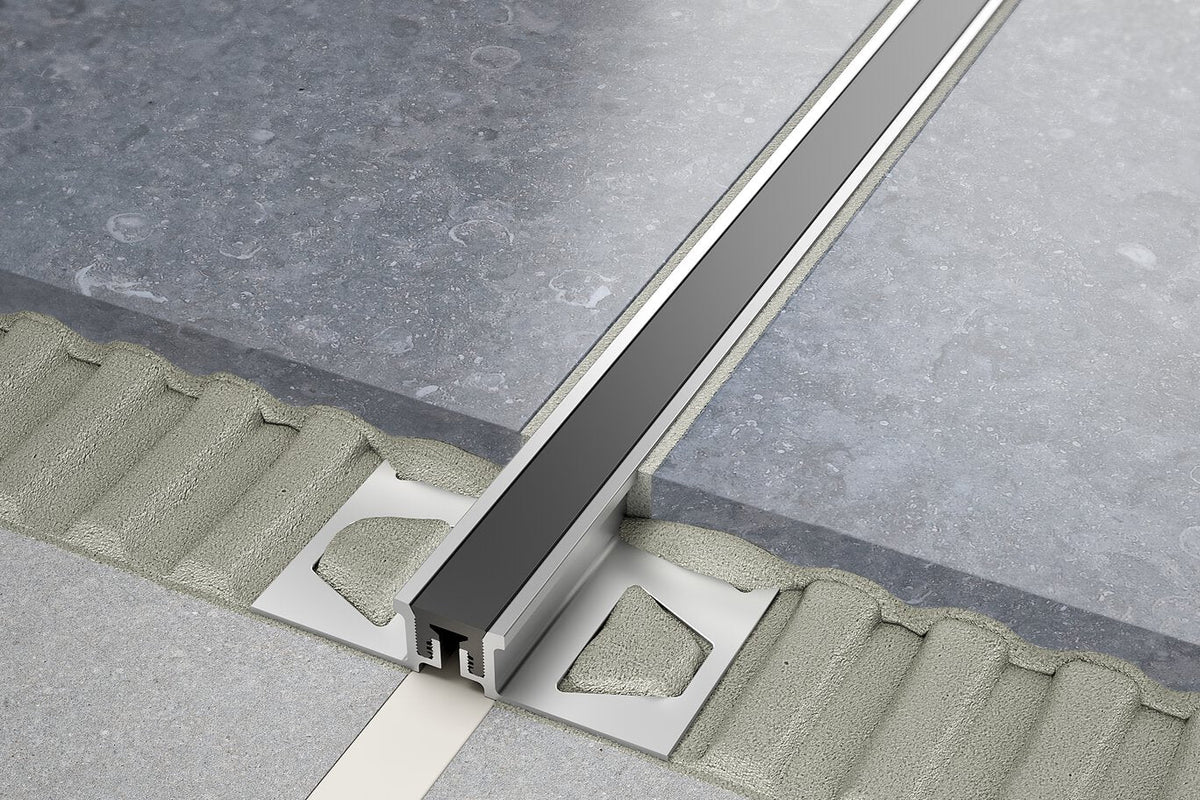

Schluter DILEX-KSN is a surface movement joint profile with aluminum anchoring legs and a replaceable 7/16-in soft thermoplastic rubber movement zone. It protects tile edges and accommodates movement in large tiled areas, helping prevent cracking and eliminating the need for caulking.
Key Features:
- Movement Accommodation: 7/16-in (11 mm) soft thermoplastic rubber zone absorbs tile expansion and contraction
- Durable Edge Protection: Aluminum anchoring legs safeguard adjacent tile edges in high-traffic areas
- Low Maintenance: No caulking required; movement zone is replaceable if damaged
- Professional-Grade Design: Trapezoid-perforated legs secure in mortar bond coat for reliable installation
- Color-Matched Aesthetics: Available in multiple colors to coordinate with common grout shades

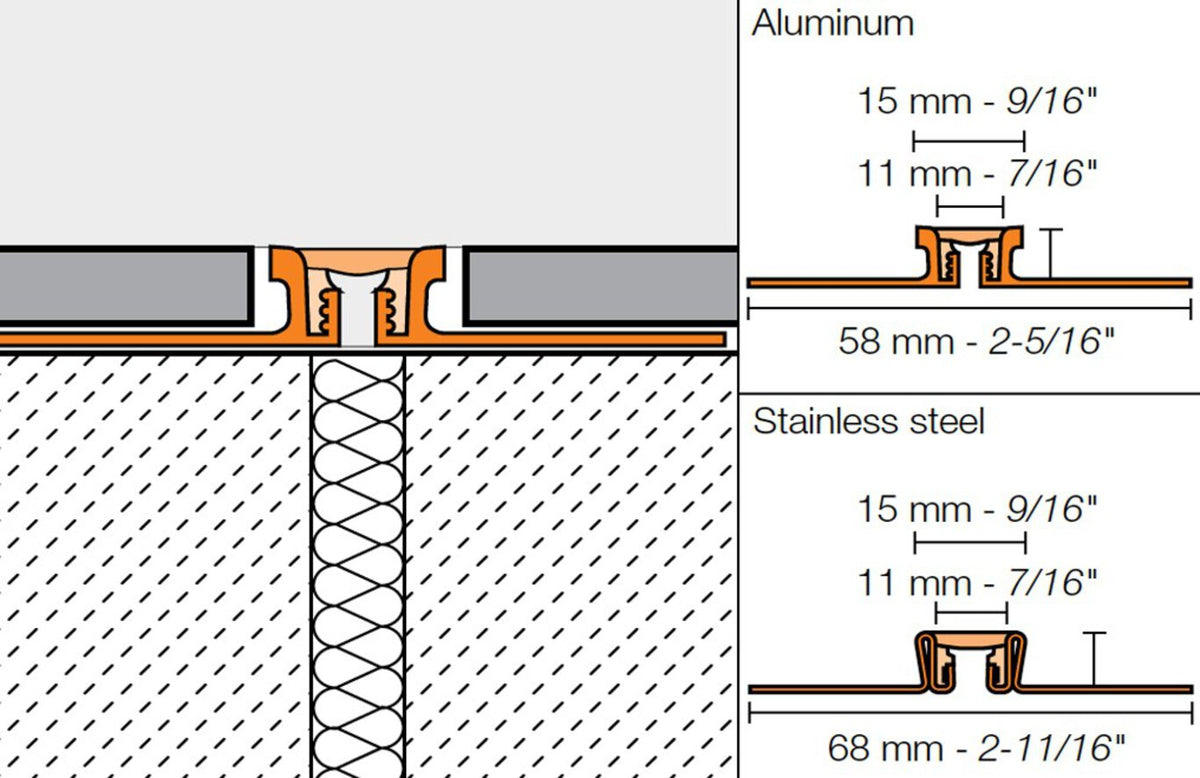

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |
| Anchoring leg material | Aluminum (also available in stainless steel variant) |
| Movement zone material | Soft thermoplastic rubber |
| Movement zone width | 7/16 in (11 mm) |
| Overall width (aluminum version) | 58 mm (2-5/16 in) |
| Visible top width | 15 mm (9/16 in) |
| Length | 98.5 in |
| Color | Grout Grey (insert) |
| Function | Surface movement joint; edge protection; eliminates need for caulking |
| Applications | Large tiled areas; suitable for commercial traffic areas |
Frequently Asked Questions (FAQ):
Q: What is the visible movement zone width?
A: The visible movement zone is 7/16 in (11 mm) wide.
Q: Is the movement insert replaceable?
A: Yes, the thermoplastic rubber movement zone can be replaced if damaged.
Q: Where is DILEX-KSN typically used?
A: In large tiled areas to accommodate movement and protect tile edges, including commercial spaces with heavy traffic.
Q: Does it require caulking?
A: No. The built-in movement zone eliminates the need for caulking.
Q: What materials are the anchoring legs made from?
A: DILEX-KSN is available with aluminum or stainless steel anchoring legs; this listing is for the aluminum version.
Seamless Strength with Refined Lines
This profile creates a tailored seam that feels intentional—an elegant pause between expansive fields of tile. The sleek aluminum flanges cradle a graphite-grey movement insert, delivering a crisp, architectural detail. Run it through grand entries or gallery halls to define planes while protecting edges. It’s a quiet luxury essential that marries endurance with impeccable finish.
Upgrade your installation with DILEX-KSN for lasting edge protection and a clean, maintenance-free movement joint.
