Schluter Systems DILEX-KSN 0.375-in W x 98.5-in L Cream Steel Tile Edge Trim
Published price — same for everyone
Out of stock — available on backorder
SKU 1001048920
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

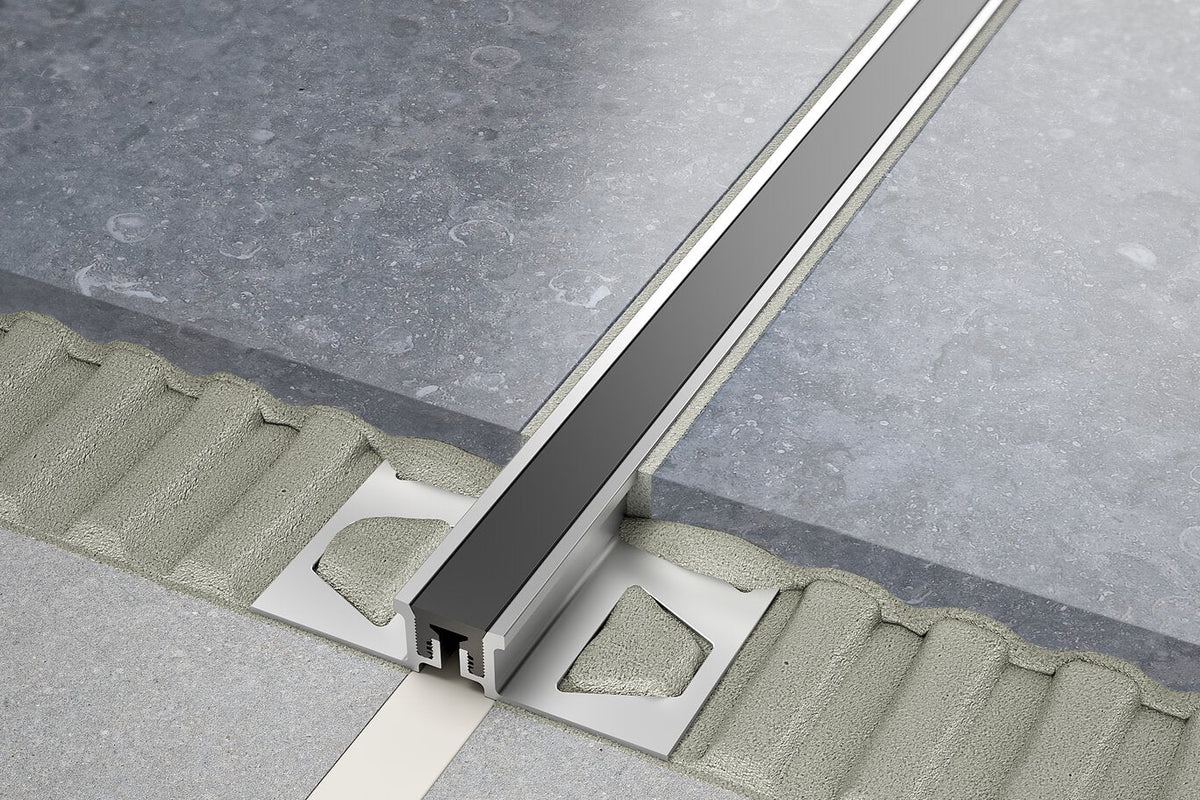

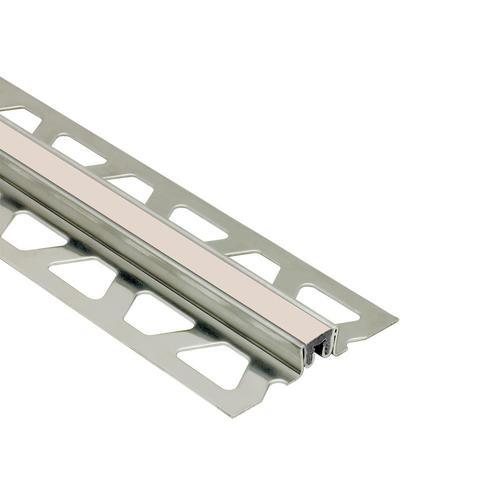

DILEX-KSN Steel Tile Movement Joint Edge Trim
A heavy-duty movement joint profile for tile installations, Schluter DILEX-KSN features trapezoid-perforated steel anchoring legs with a replaceable thermoplastic rubber movement zone. It protects tile edges and accommodates expansion in large tiled areas, ideal for commercial traffic zones.
Key Features:
- Movement Accommodation: 7/16-in soft thermoplastic rubber zone absorbs expansion and contraction to prevent tile cracking
- Durable Construction: Stainless steel anchoring legs provide secure edge protection under heavy commercial traffic
- Maintenance-Free Design: Eliminates the need for caulking with a long-lasting, replaceable center insert
- Professional Finish: Clean, cream-colored visible surface delivers a polished joint line
- Easy Integration: Anchoring legs embed into the mortar bond coat for reliable installation

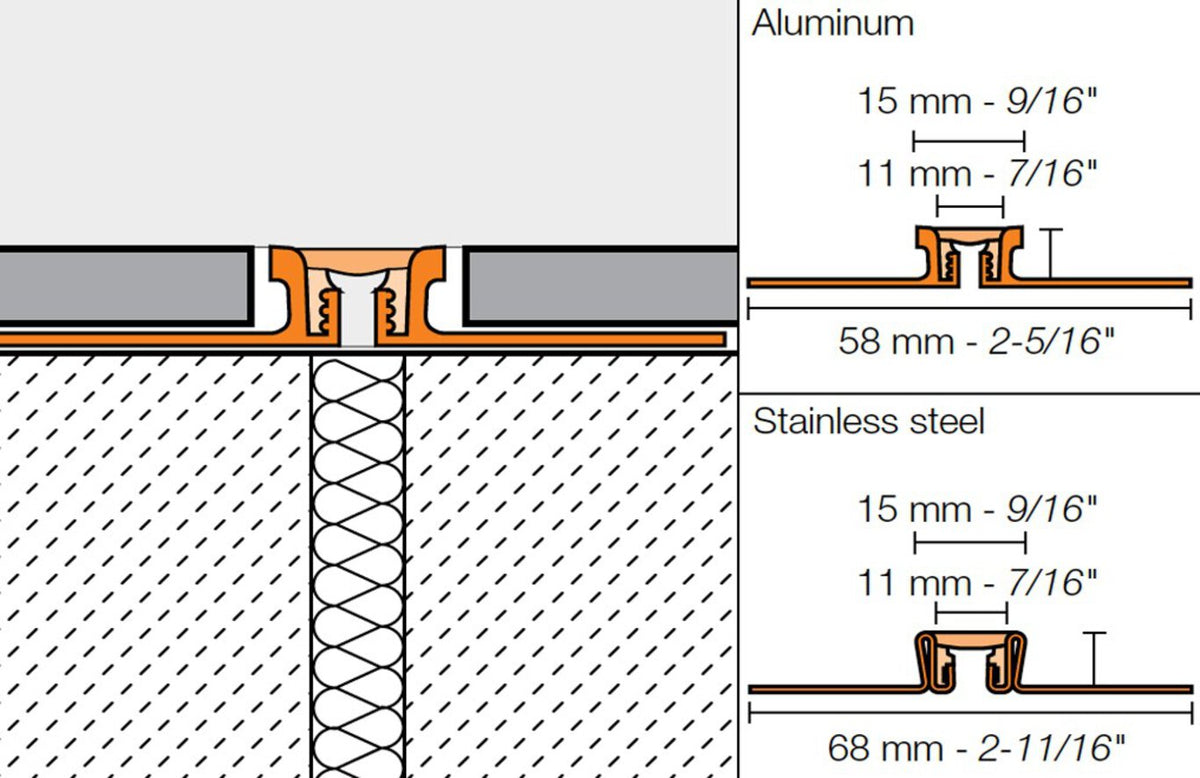

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-KSN |
| Anchoring legs material | Stainless steel or aluminum (variant: steel) |
| Visible surface color | Cream |
| Width (listed) | 0.375 in (approx. 3/8 in) |
| Length | 98.5 in |
| Movement zone width | 7/16 in (11 mm) |
| Top width (steel version) | 68 mm (2-11/16 in) |
| Top width (aluminum version) | 58 mm (2-5/16 in) |
| Core component | Soft thermoplastic rubber movement zone (replaceable) |
| Application | Surface and expansion joint; separates tile fields and protects edges; suitable for heavy-duty commercial traffic |
Frequently Asked Questions (FAQ):
Q: Can the movement zone be replaced if damaged?
A: Yes, the soft thermoplastic rubber movement zone is replaceable.
Q: Where is this profile typically used?
A: In large tiled areas and high-traffic commercial spaces such as warehouses, production facilities, and shopping malls.
Q: Does it require caulking?
A: No, DILEX-KSN eliminates the need for caulking.
Q: What materials are the anchoring legs made from?
A: Stainless steel or aluminum; this variant indicates steel.
Q: What is the width of the movement zone?
A: Approximately 7/16 inch (11 mm).
Sleek Expansion Control for Seamless Surfaces
This refined profile introduces a crisp, linear accent while quietly managing movement beneath expansive tile fields. The cream-toned center strip offers a subtle contrast, framed by resilient steel for a tailored finish. Use it to delineate large-format stone or porcelain, creating rhythm and balance across the floor. It’s a discreet luxury detail that preserves the beauty of high-performance spaces.
Protect your tile installation and achieve a polished finish—choose DILEX-KSN for reliable movement control and edge protection.
