Schlage

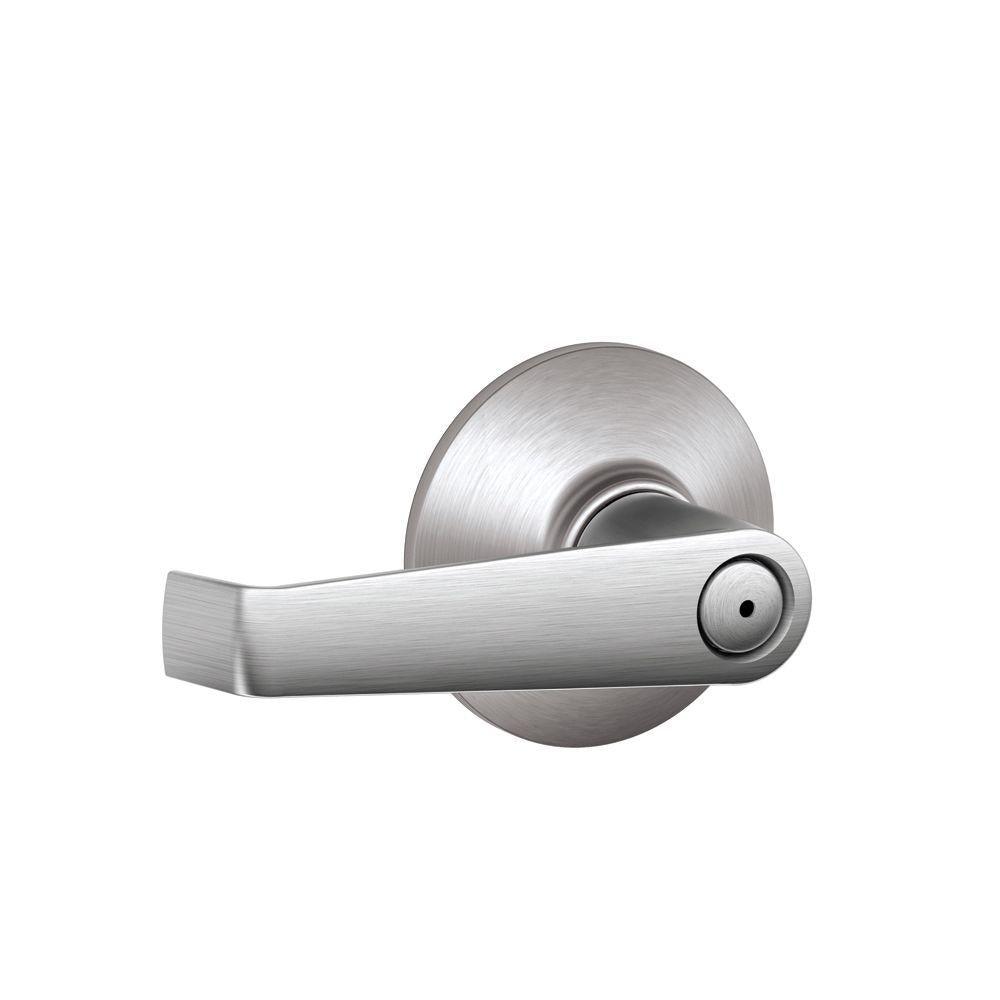

Elan Series Satin Chrome Commercial Bed and Bath Door Lever
from $25.70
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '100052180
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Schlage Elan Satin Chrome Bed and Bath Lever is perfect for use on doors where locking is needed. The Elan lever is sturdy and modest and becomes especially edgy when finished in Satin Chrome. Plus, it’s been designed and tested with strength and durability in mind.
Features
- Use with 1-3/8 in. to 1-3/4 in. door
- Works with right and left swing doors
- Guaranteed to fit on existing, standard pre-drilled doors
- Lever design pairs well with transitional styles and crisp, minimalist designs
- Finish pairs well with transitional and contemporary styles
- For more than 95-years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality
- Push-button locking provides additional privacy
- Lock and finish backed by limited lifetime warranty
- Easy installation with Phillips screwdriver
- Self-aligning screw holes make installation easy and hassle-free
- Universal latches slide easily into place and require no tools or manual adjustments
Features
| Item Weight | 2 |
| Minimum door thickness (in.) | 1.38 |
| Material | Metal |
| Lock Type | Unkeyed |
| Door Locks & Knobs Product Type | Privacy Levers |
| Application Type | Privacy |
| Commercial/Residential | Residential |
| Strike | Round corner |
| Returnable | 180-Day |
| Hardware Finish Family | Chrome |
| Finish | Satin Chrome |

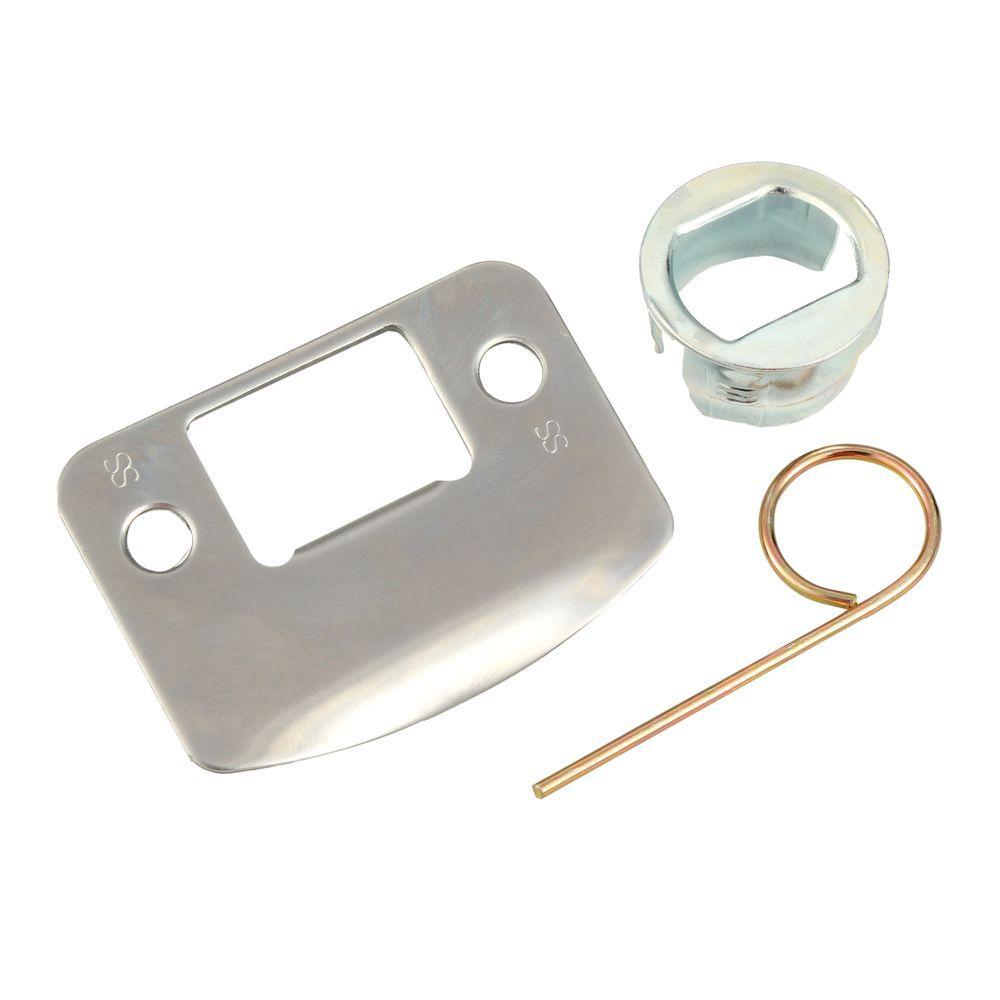

| Included | Hardware,Installation Instructions,Self Guiding Screws |
| Product Weight (lb.) | 2 |
| Door Handing | Universal |
| Lever style | Straight |
| Interior/Exterior | Interior |
| Features | Adjustable Backset,Easy Installation |
| Door Lock Style | Modern |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Lever material | Metal |
| Cross bore diameter (in.) | 2.13 |
| Throw length (in.) | .5 |
| Strike width (in.) | 1.63 |
| Assembled Height (in.) | 2.75 in |
| Lever grip length (in.) | 4.43 |
| Assembled Depth (in.) | 2.44 in |
| Strike height (in.) | 2.25 |
| Projection (in.) | 2.44 |
| Lever housing height (in.) | 2.75 |
| Lever housing width (in.) | 2.75 |
| Assembled Width (in.) | 5.32 in |
| Maximum door thickness (in.) | 1.75 |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | Lifetime Limited Mechanical & Finish Warranty |
