Leviton

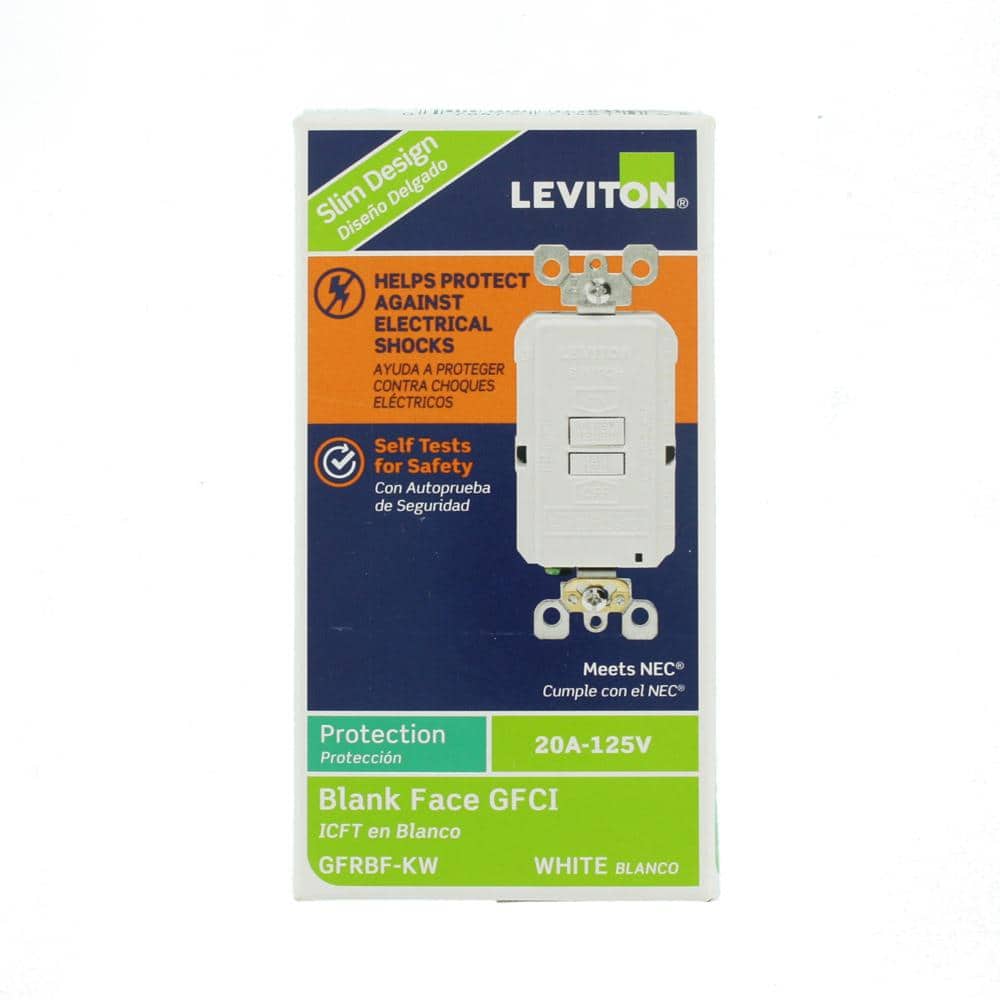

Leviton 20 Amp 125-Volt Combo Self-Test Blank Face GFCI Outlet, White
Published price — same for everyone
Out of stock — available on backorder
SKU R98-GFRBF-0KW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

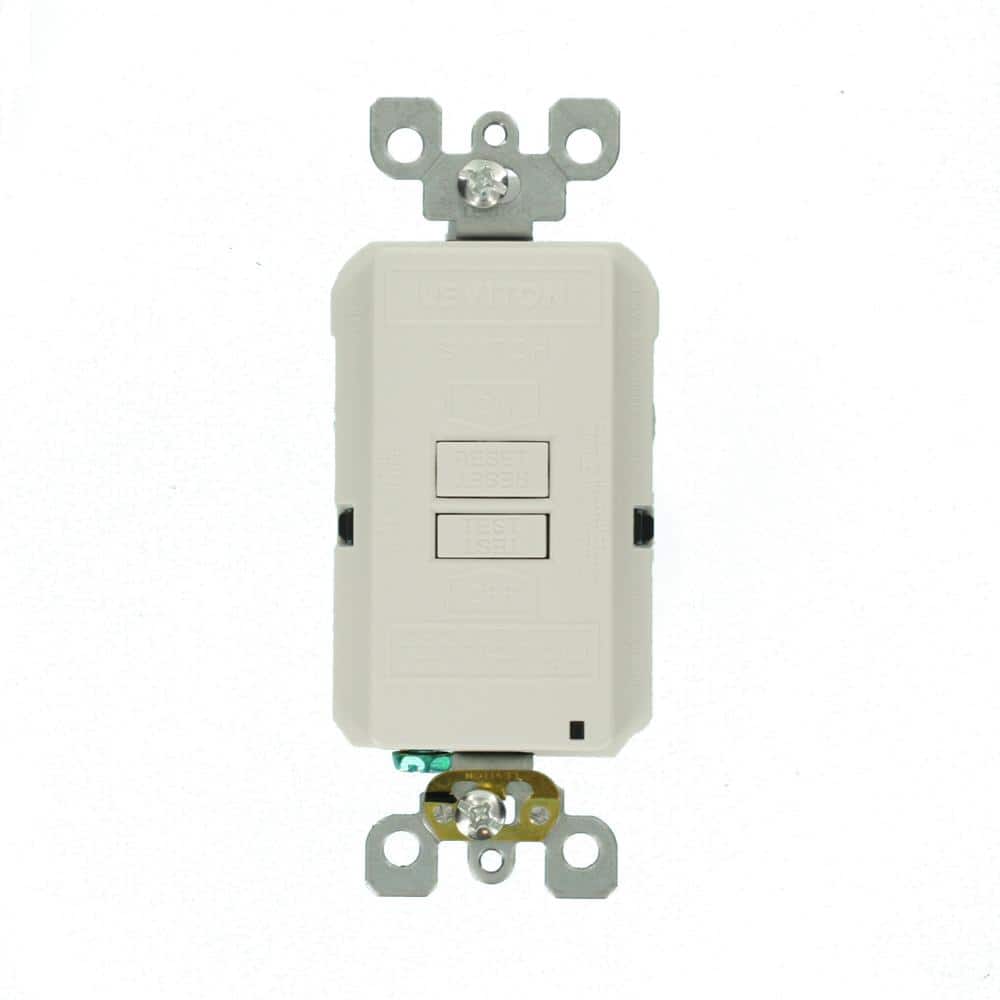

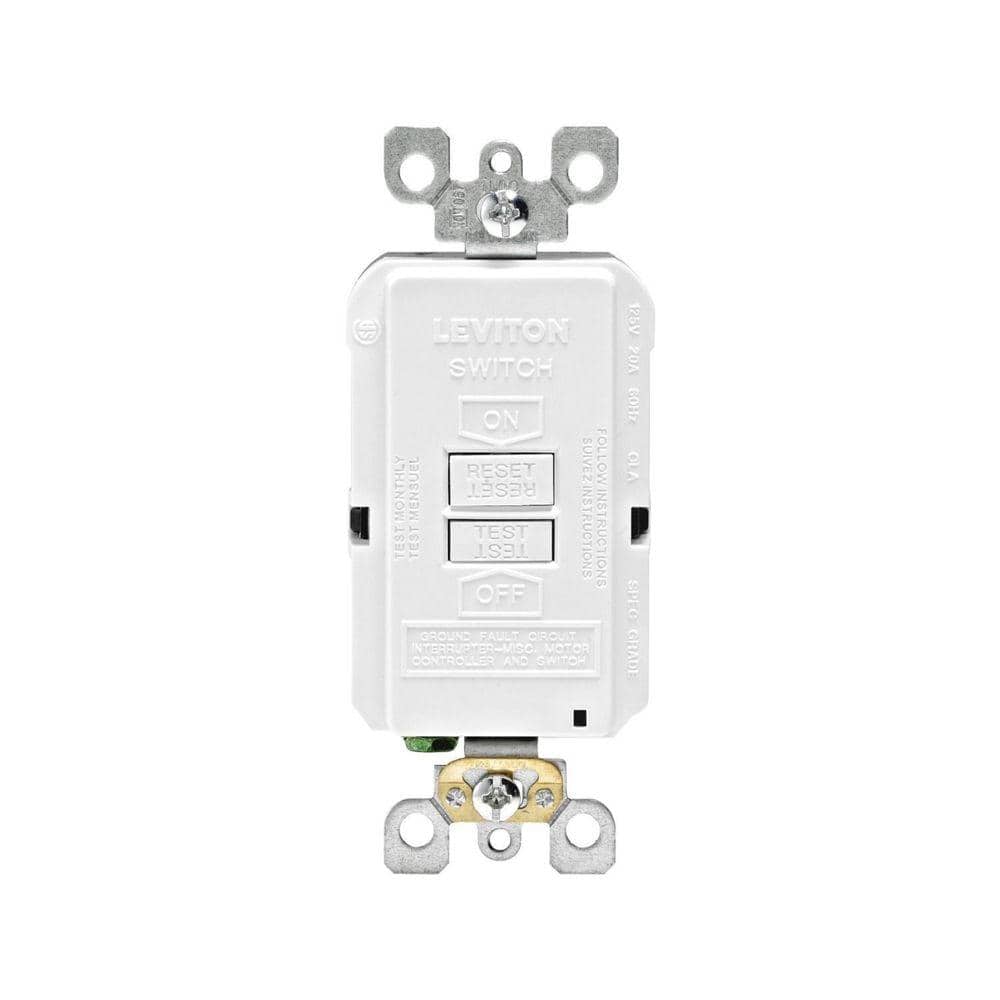

20A Self-Test Blank Face GFCI, White
Leviton’s SmartlockPro Blank Face GFCI provides 20A, 125V ground-fault protection without receptacle openings—ideal for dedicated loads or downstream protection. The self-test design continuously monitors for proper operation, while a patented reset lockout and slim profile simplify safe, code-compliant installations.
Key Features:
- Self-Test Safety: Automatically tests itself and adapts to more frequent testing if a potential issue is detected.
- Reset Lockout: Patented mechanism prevents reset if miswired or protection is compromised.

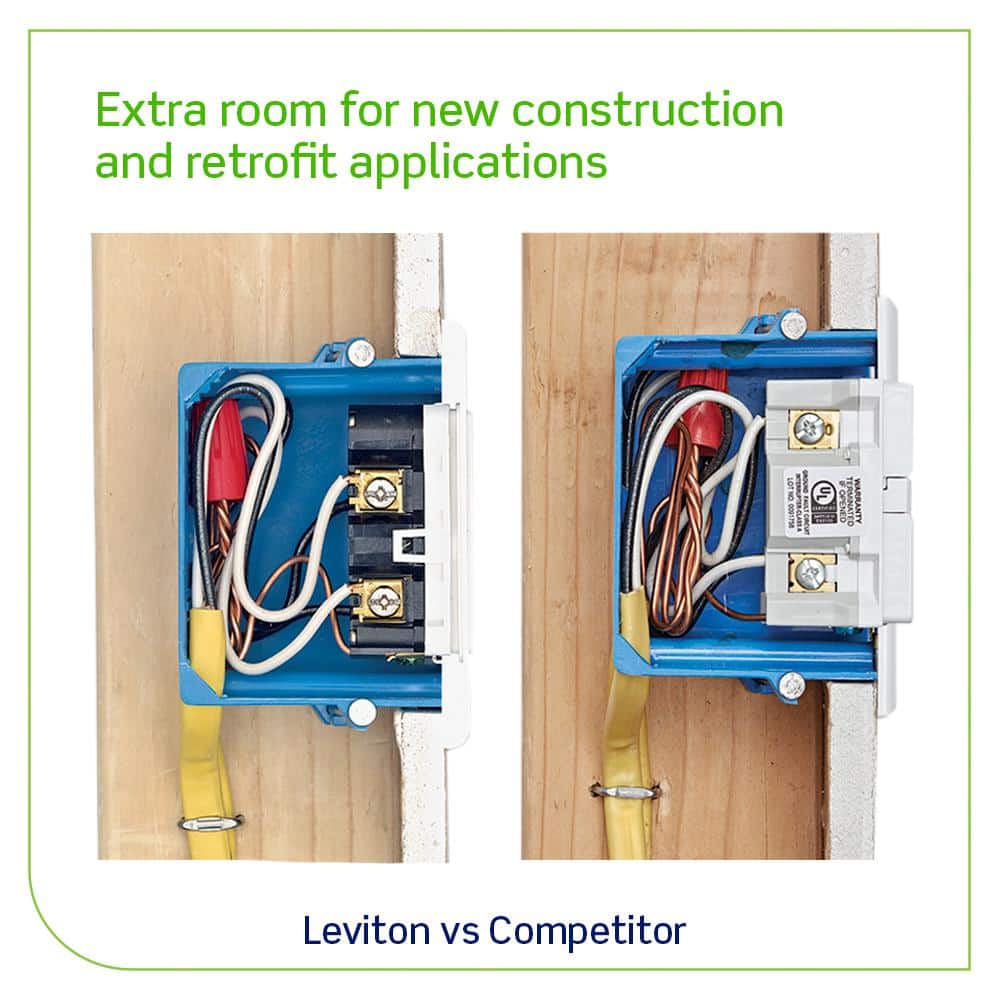

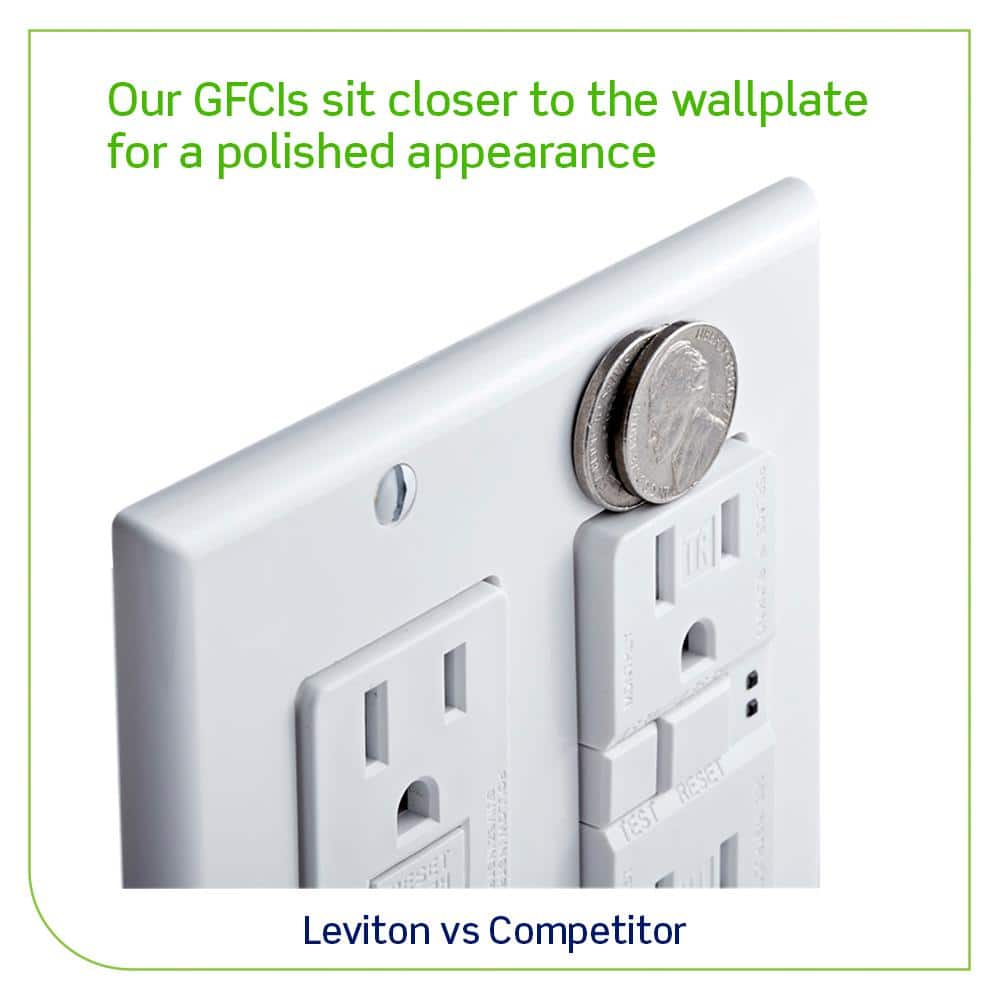

- Slim Profile: Reduced depth eases installation in shallow electrical boxes and retrofit applications.
- Robust Construction: Thermoplastic/polycarbonate body with surge-resistant electronics and brass self-grounding clip.
- Clear Status Indication: LED/status indicator provides quick feedback on power, protection, and line/load reversal.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 Amp |
| Voltage | 125 Volt |
| Color/Finish | White |
| Outlet Style | Faceless / Blank Face |
| NEMA Configuration | 5-20 / 5-20R |
| Number of Receptacles | 0 |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor |
| Material | Thermoplastic, Polycarbonate |
| Mounting Type | In-Wall |

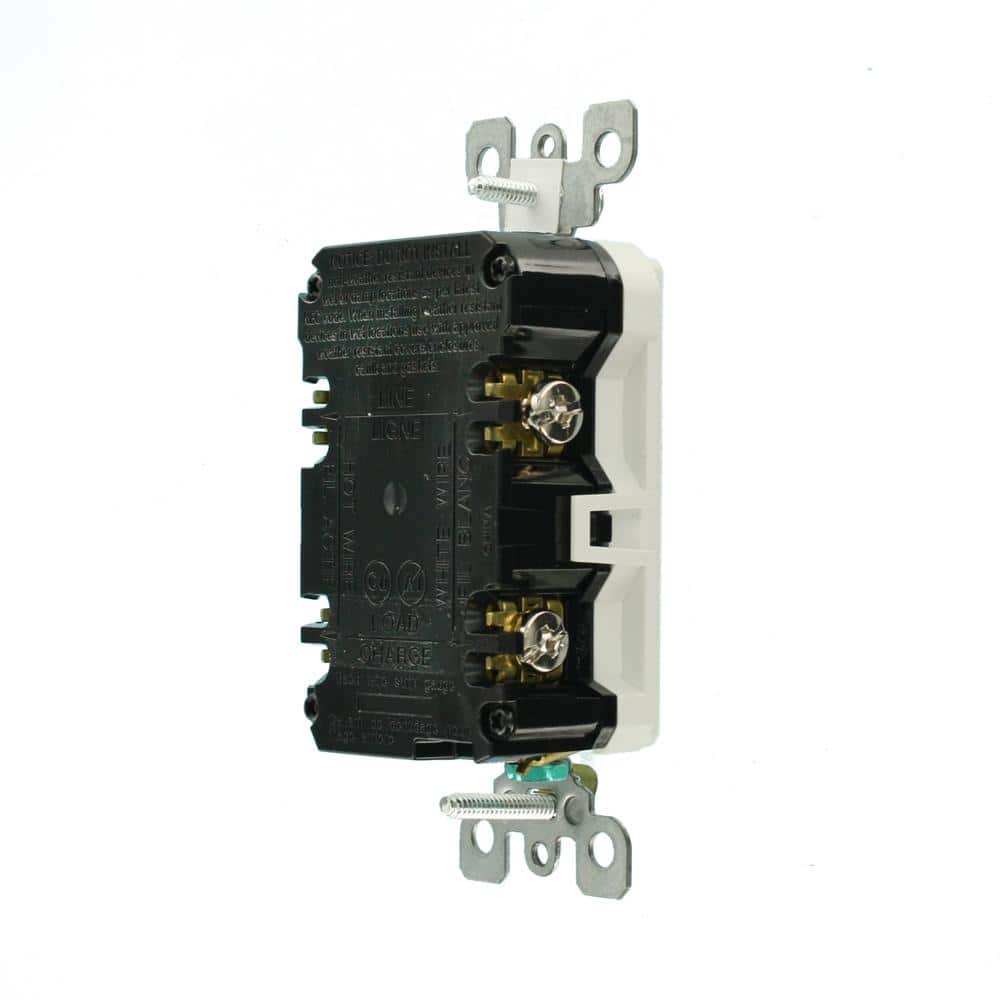

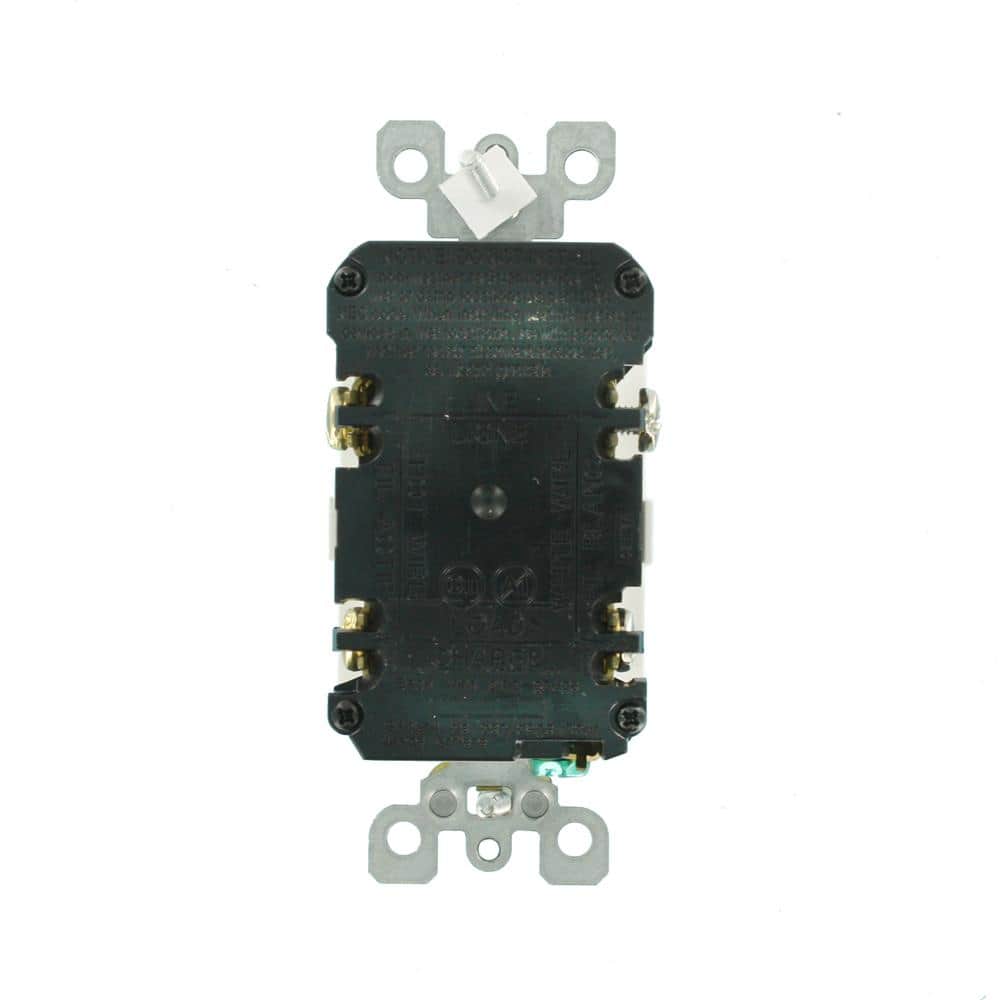

| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side |
| Package Quantity | 1 |
| Safety Rating | GFCI |
| Certifications and Listings | UL Listed, CSA Listed |
| Manufacturer Warranty | 2-Year Limited |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Product Depth | 1.02 in |
| Features | Self-test auto-monitoring; Patented reset lockout; Slim design; Status indicator light; Back and side wire capable; Surge and over-voltage resistant; Reduced nuisance tripping; Standard brass self-grounding clip; UL Fed Spec WC-596 rated |
Frequently Asked Questions (FAQ):
Q: What is a blank face GFCI used for?
A: It provides GFCI protection for a circuit without built-in receptacle outlets—commonly for hardwired loads like whirlpools, lighting, or to protect downstream outlets.
Q: Is a wall plate included?
A: No, a wall plate is not included and must be purchased separately.
Q: How is it wired?
A: It installs in-wall with side screw terminals; line and load terminals allow protection of downstream devices.
Q: Is it rated for indoor or outdoor use?
A: It is rated for indoor use.
Q: What certifications apply?
A: UL and CSA Listed; GFCI safety-rated and complies with NEC requirements.
Streamlined Safety with a Discreet, Faceless Profile
This blank-face GFCI melts into the wall with quiet confidence, giving kitchens and baths a seamless, gallery-like finish. Its ultra-slim silhouette and Decora styling keep the focus on your materials—stone, tile, lacquer—while delivering serious protection behind the scenes. Use it to safeguard a run of outlets or a spa tub without visual clutter. It’s that rare union of minimalism and luxury-grade performance.
Protect your circuits with a slim, self-testing GFCI—add this Leviton blank face unit to your cart today.
