Leviton
Leviton 20 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, Light Almond
Published price — same for everyone
Out of stock — available on backorder
SKU R96-GFNT2-0KT
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

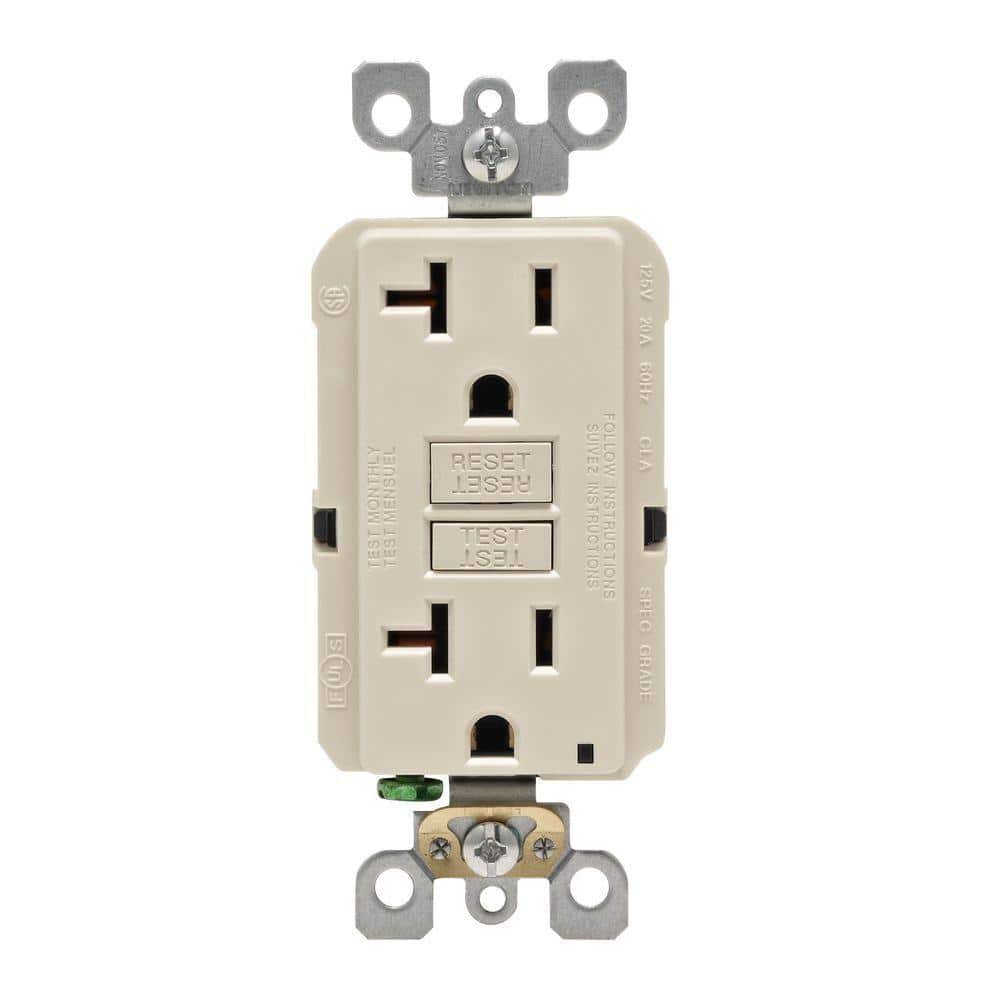

20A SmartlockPro Slim GFCI Duplex Outlet (Light Almond)
Leviton’s SmartlockPro self-test GFCI provides continuous ground-fault protection in a slim, easy-to-install duplex design. Auto-monitoring electronics test every few seconds and prevent reset if protection is compromised, while the light almond thermoplastic body blends with Decora wallplates.
Key Features:
- Auto Self-Test Protection: Continuously monitors and tests for ground faults to help ensure safety
- Reset Lockout Safety: Patented lockout prevents reset if the device isn’t wired or operating correctly

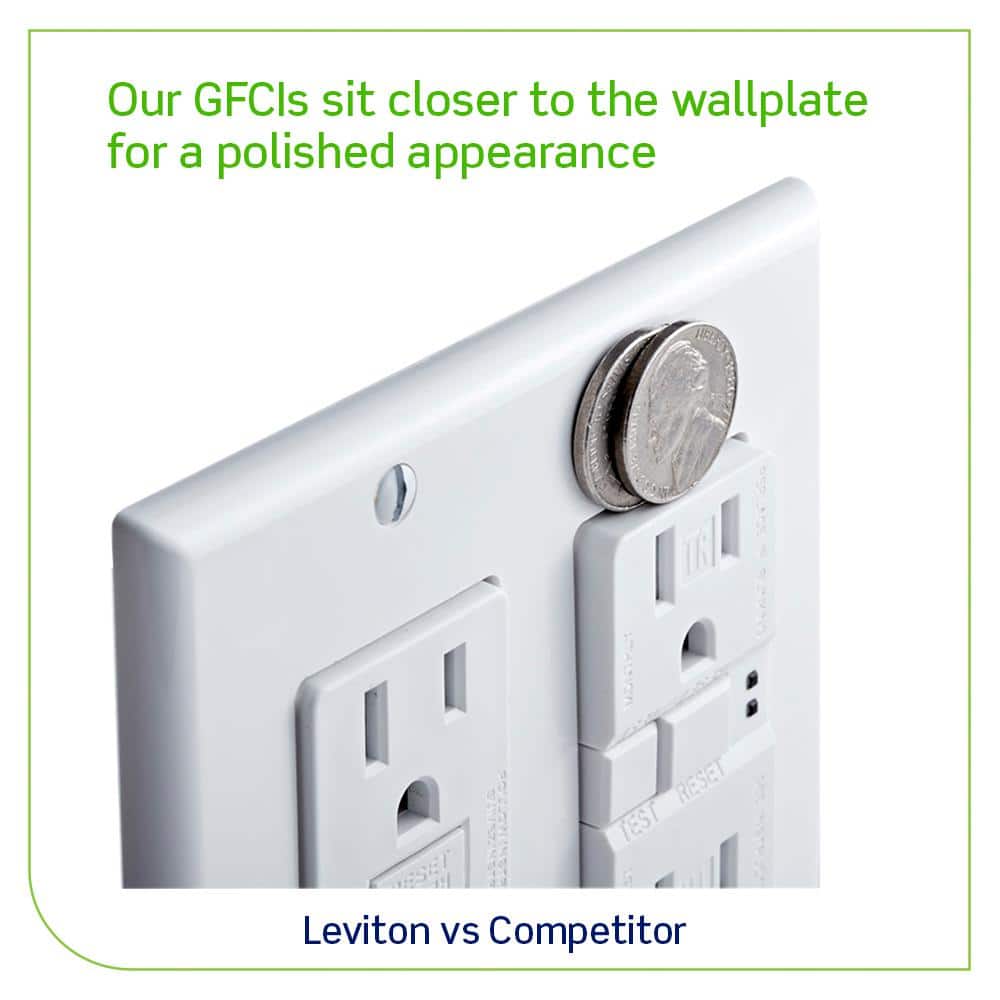

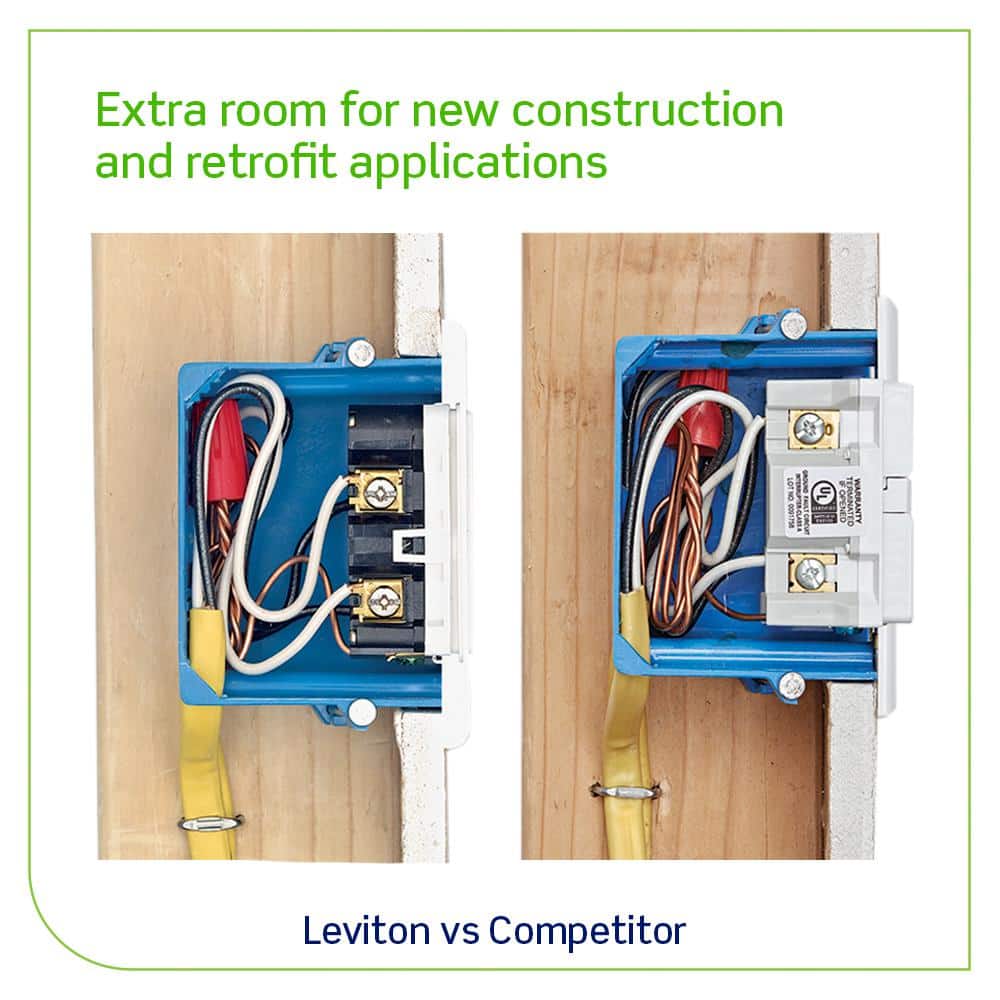

- Slim, Easy Installation: Reduced depth fits shallow boxes and offers back and side wiring options
- Durable Build: Thermoplastic/Polycarbonate construction with surge-resistant electronics for long life
- Status Indicator: LED provides clear power, protection, and line/load reversal feedback
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 125 V |
| Outlet Style | Duplex |
| Number of Receptacles | 2 |
| Color/Finish | Light Almond |
| Color Family | Beige |
| Material | Polycarbonate / Thermoplastic |
| Mounting Type | In-Wall |
| Indoor/Outdoor | Indoor |
| Grounding | Self-grounding clip |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side; back and side wire capable with external clamps |
| NEMA Configuration | NEMA 5-15R (standard duplex) [see review note] |
| Safety Rating | GFCI |
| USB Charging | No USB |
| Package Quantity | 1 |
| Certifications and Listings | UL Listed, CSA Listed; UL Fed Spec WC-596 rated |
| Manufacturer Warranty | 2-Year Limited |
| Product Depth | 1.02 in |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Features | Self-test, reset lockout, status indicator light, surge/over-voltage resistance, improved noise immunity |
Frequently Asked Questions (FAQ):
Q: Is a wallplate included?
A: No, the wallplate is sold separately but the outlet is compatible with all Decora wallplates.
Q: Can this be wired from the back or the side?
A: Yes, it supports both back and side wiring with screw terminals and external back wire clamps.
Q: What circuits is this rated for?
A: It is rated 20A, 125V; intended for indoor, in-wall installation.
Q: Is it UL listed?
A: Yes, it is UL and CSA listed and meets NEC requirements.
Q: Does it include a self-test feature?
A: Yes, it automatically self-tests; if a problem is detected it increases test frequency and prevents reset.
Slim Safety, Seamless Style
This GFCI’s refined, slim silhouette nestles close to the wall for a crisp, tailored finish. The light almond tone softens hard surfaces, pairing effortlessly with warm woods and elegant stone. Use it throughout kitchens and baths to unify the palette while elevating safety with barely-there hardware. It’s a quiet essential that brings polished, luxurious living to everyday spaces.
Upgrade to SmartlockPro protection today and enjoy a slimmer, safer, and cleaner-looking outlet in minutes.
