Leviton
Leviton 20 Amp 125-Volt Duplex SmarTest Self-Test SmartlockPro Tamper-Resistant GFCI Outlet, White
Published price — same for everyone
Out of stock — available on backorder
SKU R92-GFTR2-0KW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20A SmartlockPro Tamper-Resistant GFCI Outlet (White)
Leviton’s SmartlockPro GFCI provides continuous, auto-monitored ground fault protection with a slim profile for easier installation. The tamper-resistant, duplex receptacle self-tests and features a patented reset lockout for added safety in kitchens, baths, garages, and more.
Key Features:
- Auto-Monitoring Safety: Self-tests to confirm GFCI protection and locks out reset if protection is compromised

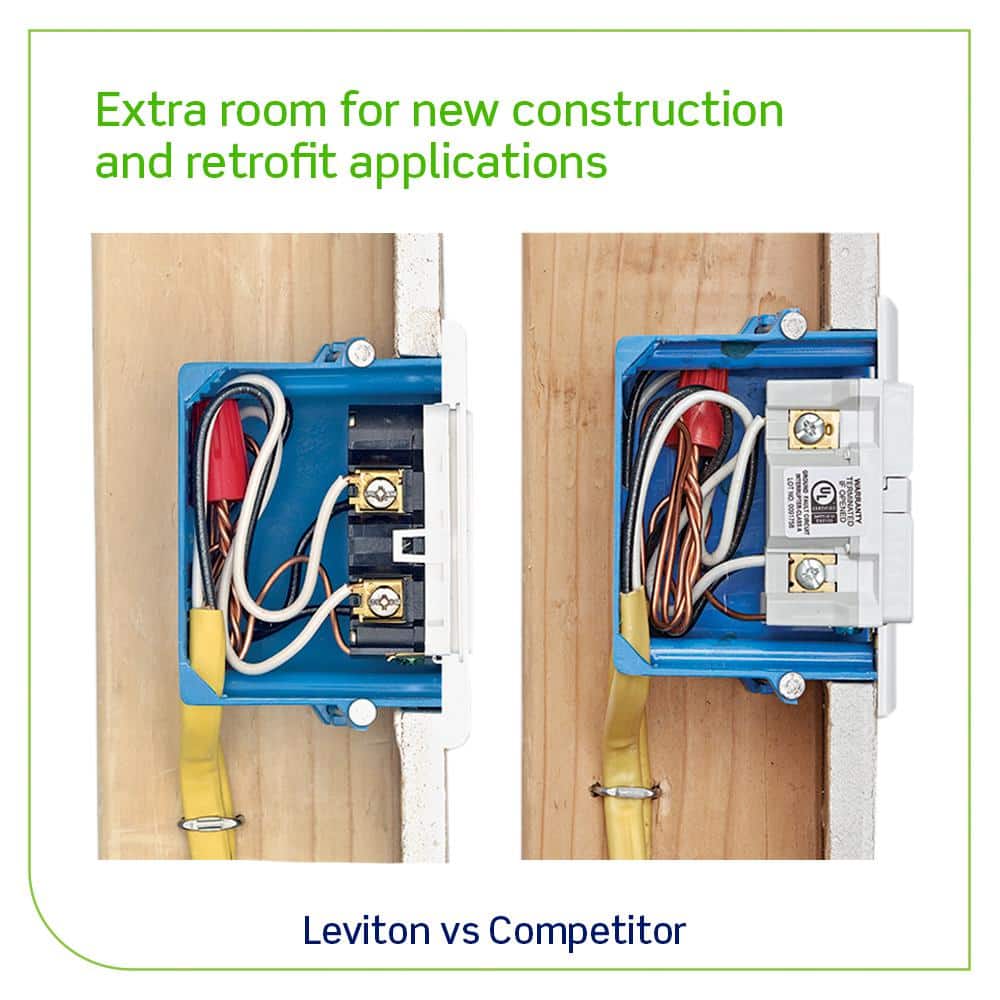

- Slim, Easy Install: Reduced depth fits shallow boxes; back and side-wire capable with external clamps
- Tamper-Resistant Design: Built-in shutters help prevent unwanted object insertion
- Durable Build: Thermoplastic/Polycarbonate construction with surge-resistant electronics for long life
- Clear Status Indication: LED provides power/protection status and line/load reversal notice
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 125 V |
| Outlet Style | Duplex |
| NEMA Configuration | NEMA 5-20R |
| Receptacle Configuration | 5-20 |
| Number of Receptacles | 2 |
| Color | White |
| Color Family | White |
| Durability | Tamper Resistant |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor |
| Mounting Type | In-Wall |
| Material | Polycarbonate; Thermoplastic outlet body |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side |
| Package Quantity | 1 |
| Safety Rating | GFCI |
| USB Connection | No USB |
| Certifications and Listings | CSA Certified; UL Listed; UL Federal Specification WC-596 rated |
| Manufacturer Warranty | 2-Year Limited |
| Product Depth | 1.02 in |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Features | Self-test (auto-monitoring); Patented reset lockout; Status indicator light; Back and side wire capable; External back wire clamps; Surge and over-voltage resistance; Improved high-frequency noise immunity; Standard brass self-grounding clip |
Frequently Asked Questions (FAQ):
Q: Is a wall plate included?
A: No, the wall plate is not included and must be purchased separately.
Q: Can this be installed outdoors?
A: It is rated for indoor use; use a weather-resistant GFCI and an in-use cover for outdoor applications.
Q: What wiring methods are supported?
A: Side screw terminals with external back-wire clamps support both side and back wiring; wire connection location is side.
Q: What loads is it compatible with?
A: It is a 20A, 125V NEMA 5-20R duplex receptacle suitable for 20A branch circuits.
Q: Does it meet safety standards?
A: Yes, it is UL Listed, CSA Certified, and GFCI safety rated, meeting UL self-test requirements.

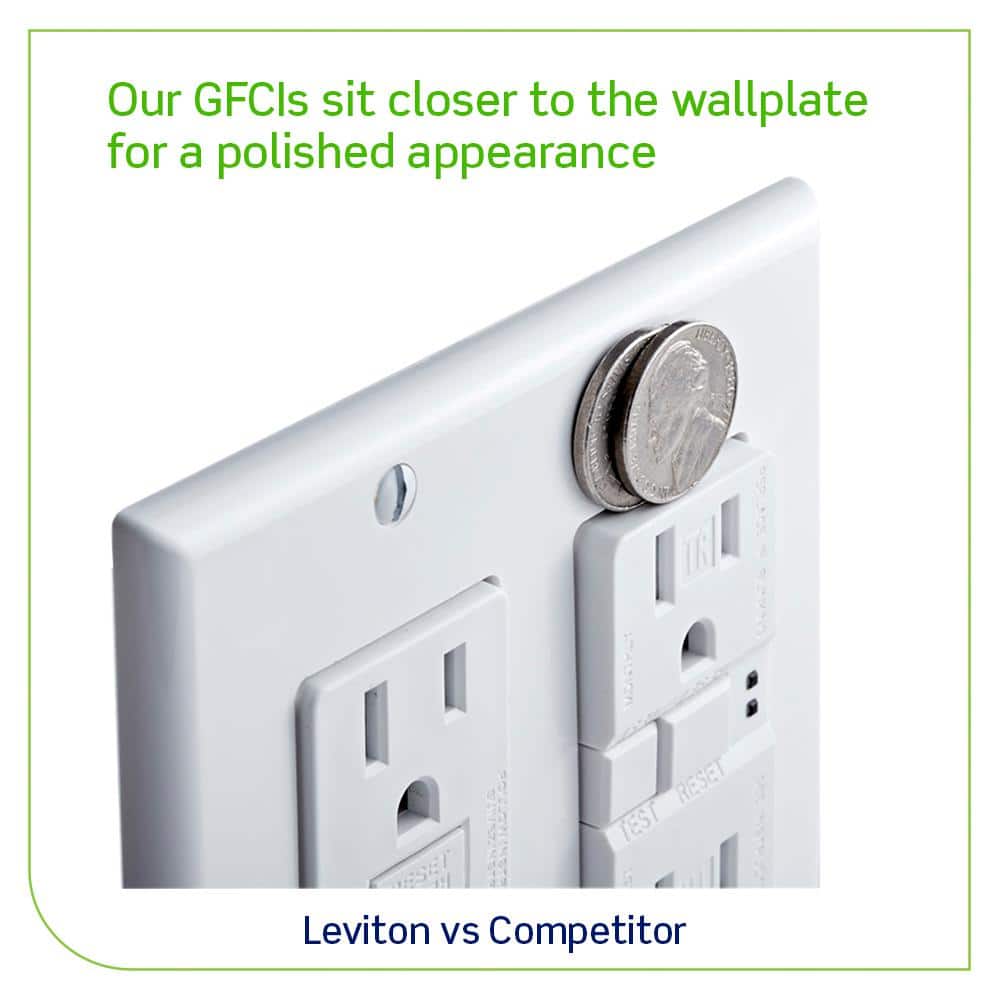

Streamlined Safety with a Sleek, Decora Profile
This GFCI’s slim silhouette nestles tight to the wall plate, delivering a crisp, tailored finish that elevates kitchens and baths. I love the clean Decora face with discreet test/reset keys—functional yet beautifully restrained. Pair it with matching Decora screwless plates for a seamless, gallery-like look along your backsplash. It’s an understated essential that marries luxury aesthetics with everyday protection.
Upgrade to SmartlockPro safety—install this slim, self-testing 20A GFCI today for reliable protection and a polished finish.
