Leviton
Leviton 20 Amp Commercial Grade Double-Pole Single Outlet, White (NEMA 6-20R, 250V)
Published price — same for everyone
Out of stock — available on backorder
SKU R52-05821-0WS
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

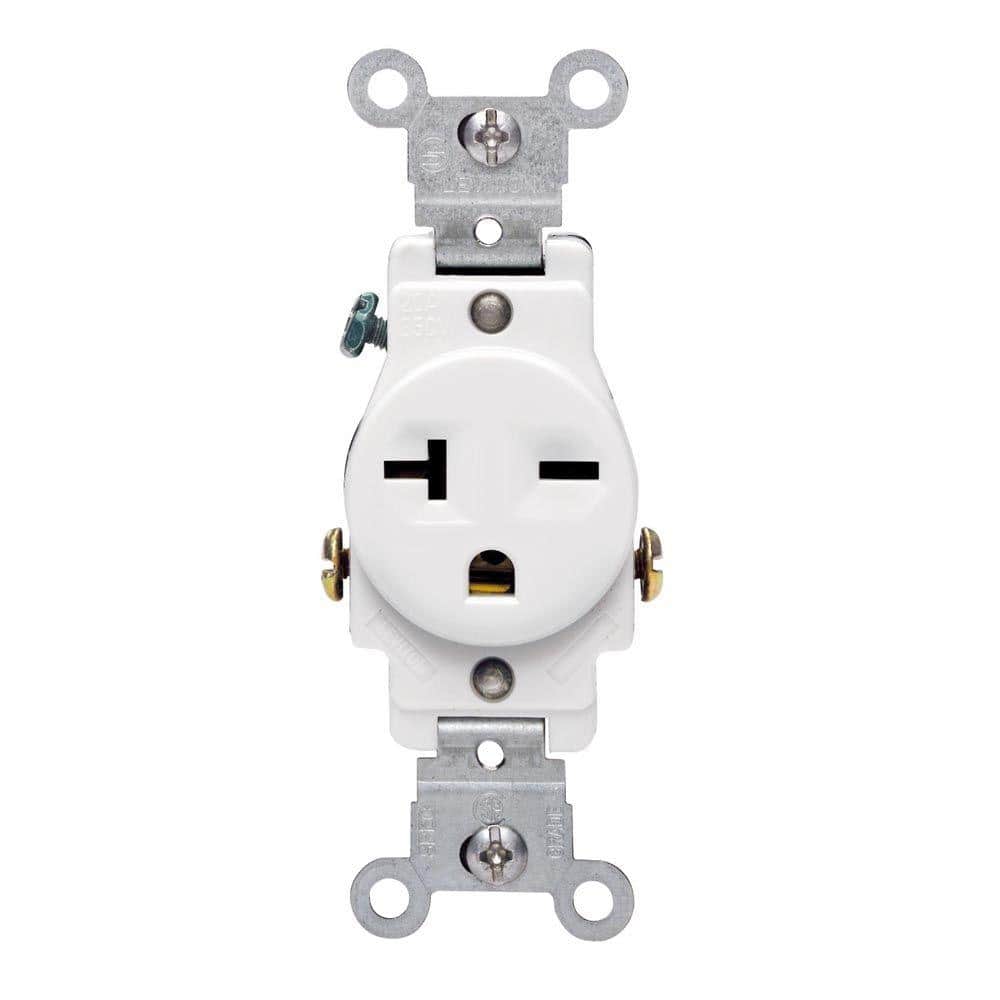

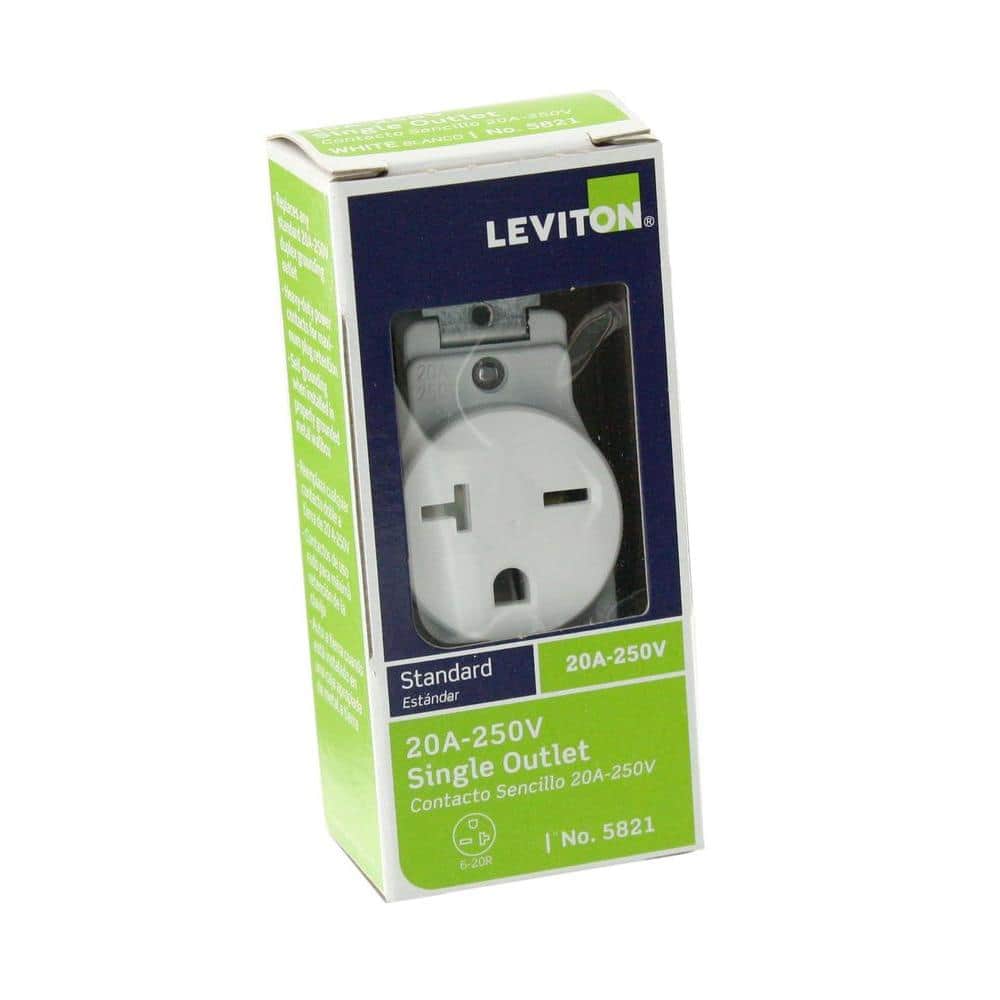

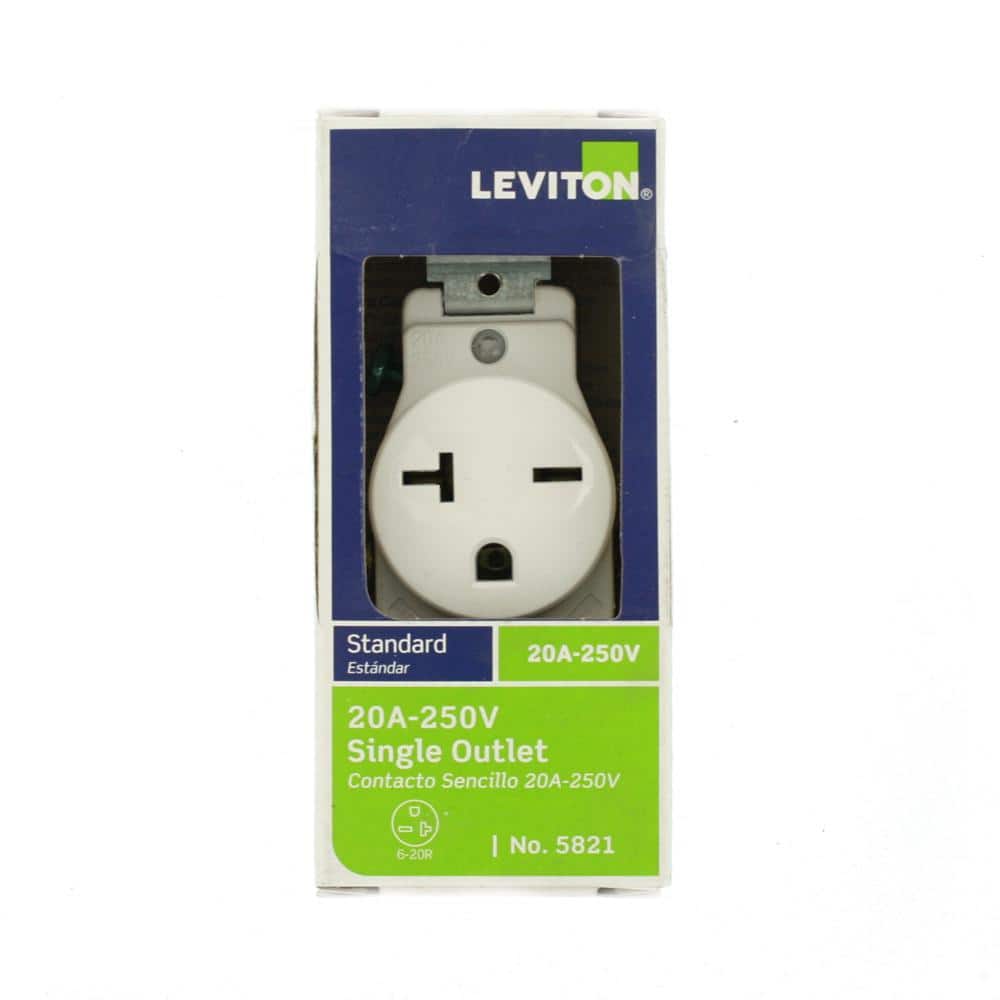

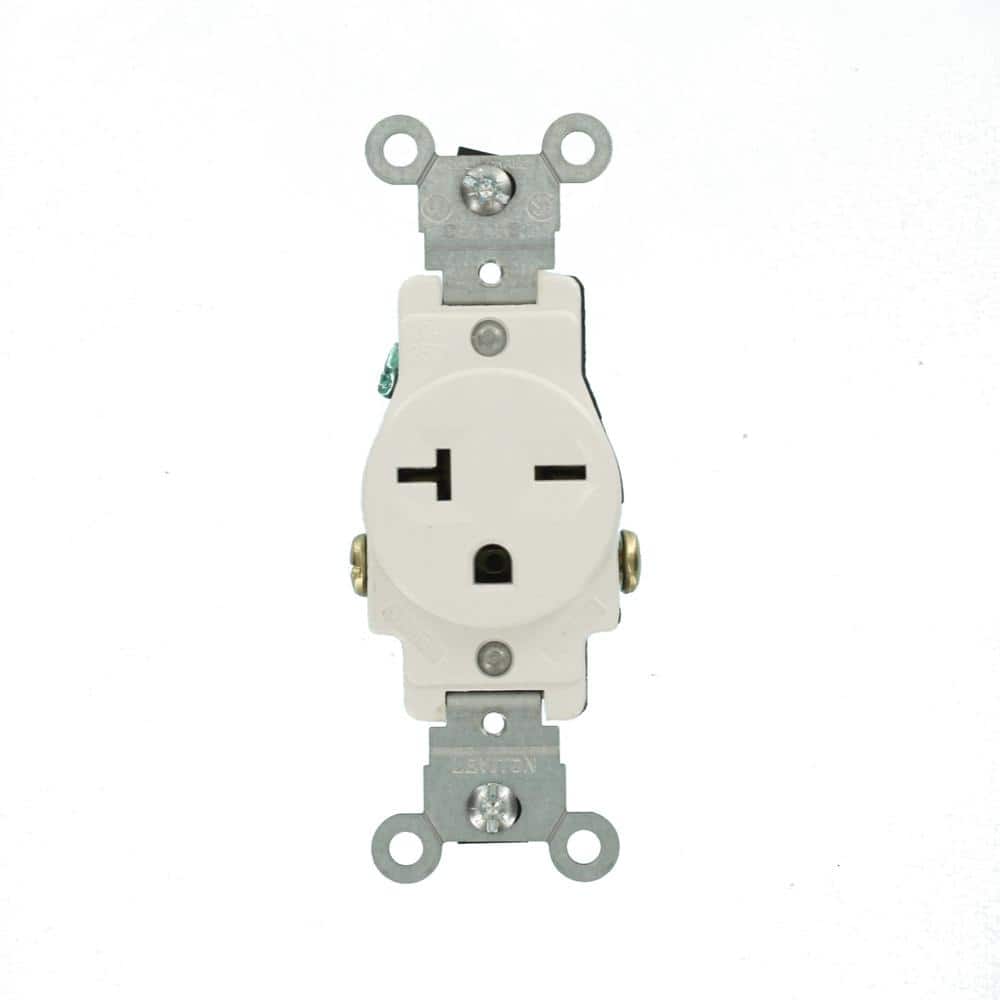

Leviton 20A 250V Single Outlet (6-20R)
This commercial-grade single receptacle delivers reliable 20A, 250V power in demanding environments. Built with a durable thermoplastic body and steel strap, it supports back and side wiring and a grounded NEMA 6-20R configuration for secure connections.
Key Features:
- Commercial Grade Build: Thermoplastic body with steel strap stands up to heavy-use environments
- 20A/250V Performance: NEMA 6-20R, 2-pole, 3-wire grounded for equipment requiring 250V

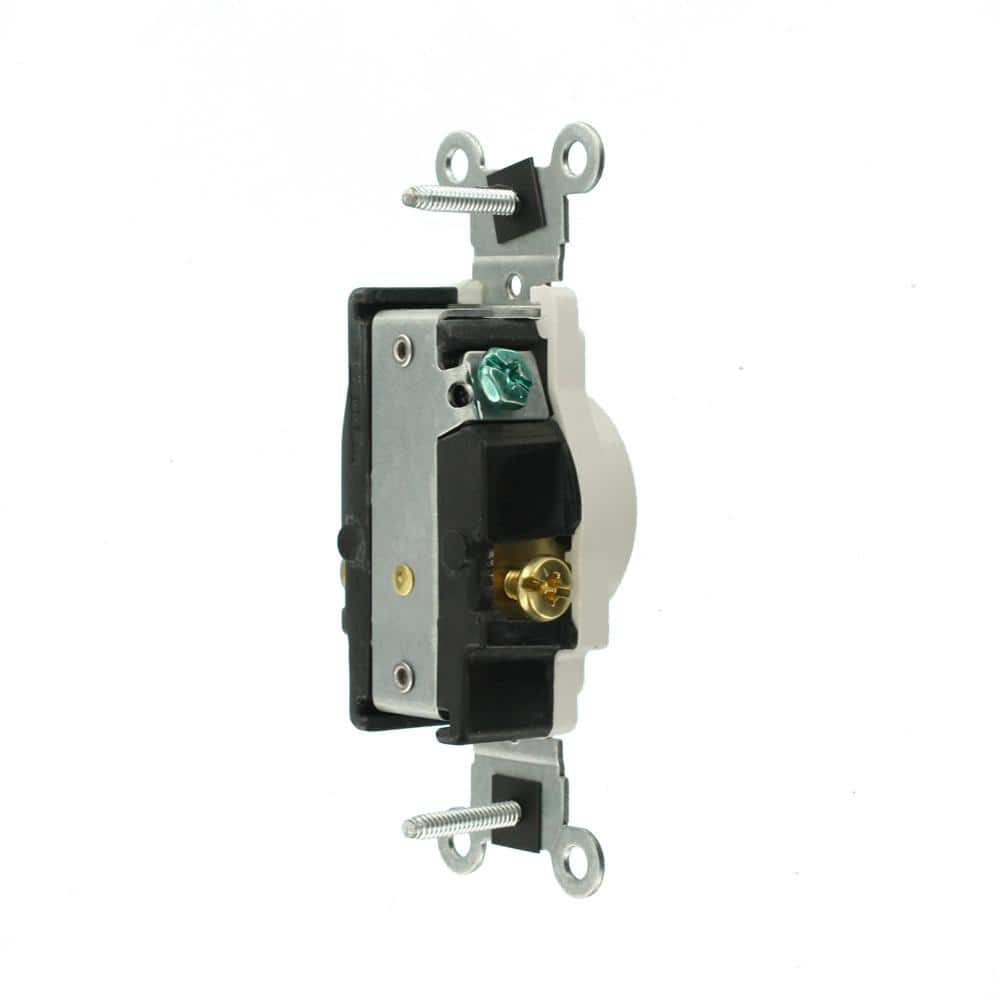

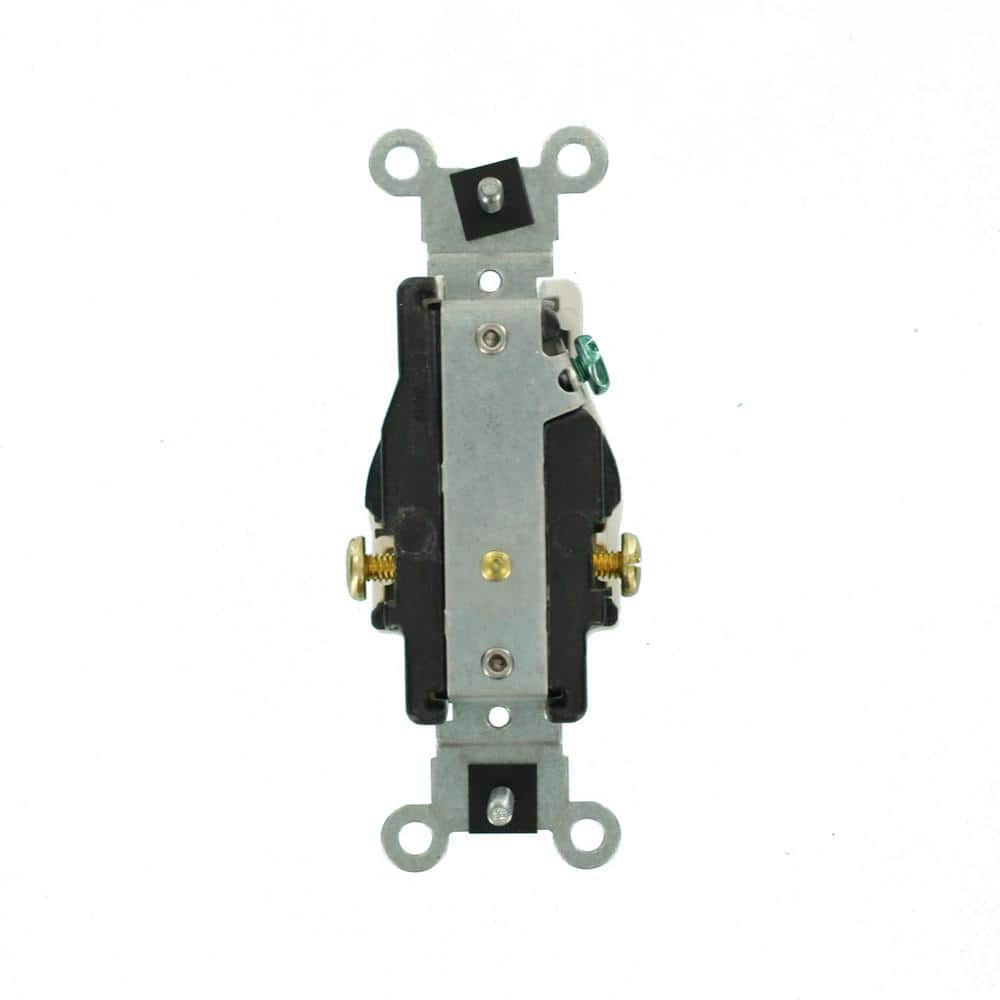

- Flexible Wiring: Back and side wired with screw terminals for fast, secure installation
- Clean, Durable Finish: Smooth, easy-to-clean white nylon face for high-traffic areas
- Code Compliance: UL and CSA listed for safety assurance
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 250 V |
| NEMA Configuration | 6-20R |
| Poles/Wires | 2-Pole, 3-Wire Grounding |
| Grounding | Grounded |
| Receptacle Type | Single outlet (round face) |
| Outlet Style | Not duplex; single receptacle |
| Material | Thermoplastic (nylon face) |
| Mounting Type | In-wall |
| Wiring | Back and side wired; screw terminals |
| Indoor/Outdoor | Indoor |
| Package Quantity | 1 |
| Certifications | UL Listed, CSA Listed |
| Dimensions (H x W x D) | 4.125 in x 1.375 in x 1.875 in |
| Color | White |
| Warranty | 5-year limited |
| Strap | Steel strap |
Frequently Asked Questions (FAQ):
Q: What plug types does this outlet accept?
A: It is a NEMA 6-20R receptacle designed for 250V, 20A plugs (6-20P).
Q: Is it suitable for residential or only commercial use?
A: It’s commercial grade and can be used in residential, commercial, or institutional settings where a 250V, 20A circuit is required.
Q: How is it wired?
A: It supports both back and side wiring using screw terminals and includes a grounding terminal.
Q: Is a wallplate included?
A: No. Wallplate is sold separately.
Q: Is it UL listed?
A: Yes, it is UL listed and CSA listed.
A Crisp, Industrial Accent with Purpose
This single receptacle brings a tailored, utilitarian elegance to workspaces and hobby rooms. The circular white face and precise slot geometry feel refined—engineered beauty at its best. Pair it with a minimalist white wallplate on a painted brick wall for a subtle, architectural moment. It’s the kind of elevated utility that makes a space feel both luxurious and hardworking.
Power your 250V equipment with confidence—add this Leviton 20A commercial-grade outlet to your cart today.
