Leviton 20 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White
Published price — same for everyone
Out of stock — available on backorder
SKU R12-GFNT2-0RW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20A SmartlockPro Slim Duplex GFCI Outlet
Leviton’s SmartlockPro Self-Test GFCI delivers continuous ground-fault protection in a slim, easy-to-install duplex outlet. Auto-monitoring electronics self-test, provide status indication, and lock out reset if protection is compromised—ideal for kitchens, baths, garages, and other indoor areas.
Key Features:

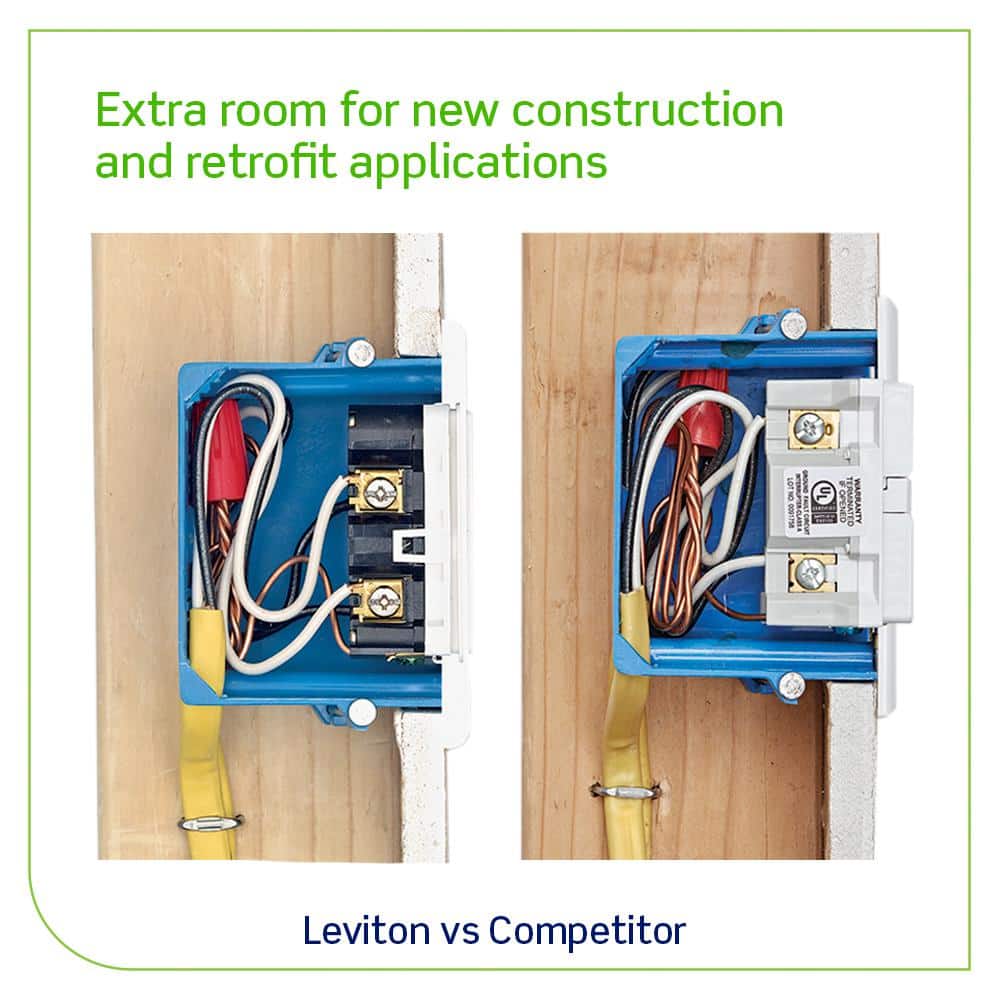

- Slim Profile Design: Reduced depth for easier installation in standard or shallow electrical boxes
- Self-Test Safety: Auto-monitoring exceeds UL requirements and locks out reset if protection is lost
- Clear Status Indication: LED/status feedback identifies power, protection, and line/load reversal
- Durable Build: Polycarbonate/nylon construction with surge-resistant electronics and self-grounding clip
- Flexible Wiring: Side and back wire capable with external back wire clamps for secure terminations
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Receptacles | 2 (Duplex) |
| Color/Finish | White |
| Color Family | White |
| Indoor/Outdoor | Indoor |
| Mounting Type | Screw-In |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side; back wire capable with clamps |
| Material | Polycarbonate; outlet face material: Nylon |
| Safety Rating | GFCI; Self-Test (auto-monitoring) |
| Grounding | Self-grounding clip |
| Outlet Style | Duplex Decora |
| USB | No USB |
| Package Quantity | 1 |
| Dimensions (H x W x D) | 3.81 in x 1.68 in x 1.02 in |
| Certifications/Listings | UL Listed, CSA Certified; UL Fed Spec WC-596 rated |
| Manufacturer Warranty | 2-Year Limited |
| Features | Patented reset lockout; status indicator light; surge and over-voltage resistance; improved noise immunity; reduced depth for easier installation |
Frequently Asked Questions (FAQ):
Q: Is a wall plate included?
A: No, the wall plate is not included.
Q: What wiring options does it support?
A: It supports side and back wiring with screw terminals and external back wire clamps.
Q: Where can this GFCI be used?
A: Indoor locations requiring GFCI protection such as bathrooms, kitchens, laundry rooms, and garages.
Q: What is the electrical rating?
A: 20A, 125V, NEMA 5-20R duplex receptacle.
Q: Does it require monthly testing?
A: It self-tests automatically, but manual testing with the TEST button is recommended per instructions.
A Sleek Safety Essential for Refined Spaces
This GFCI’s slim silhouette nestles into the wall for a clean, tailored look that elevates everyday spaces. The crisp white face and geometric lines pair seamlessly with Decora wall plates, creating a modern, unobtrusive accent. Use it to punctuate spa-like bathrooms or polished kitchens where performance and poise matter. Safety becomes a subtle luxury—quiet, reliable, and beautifully integrated.
Upgrade to SmartlockPro protection today for a slimmer, safer outlet that installs fast and looks flawless.
