Details

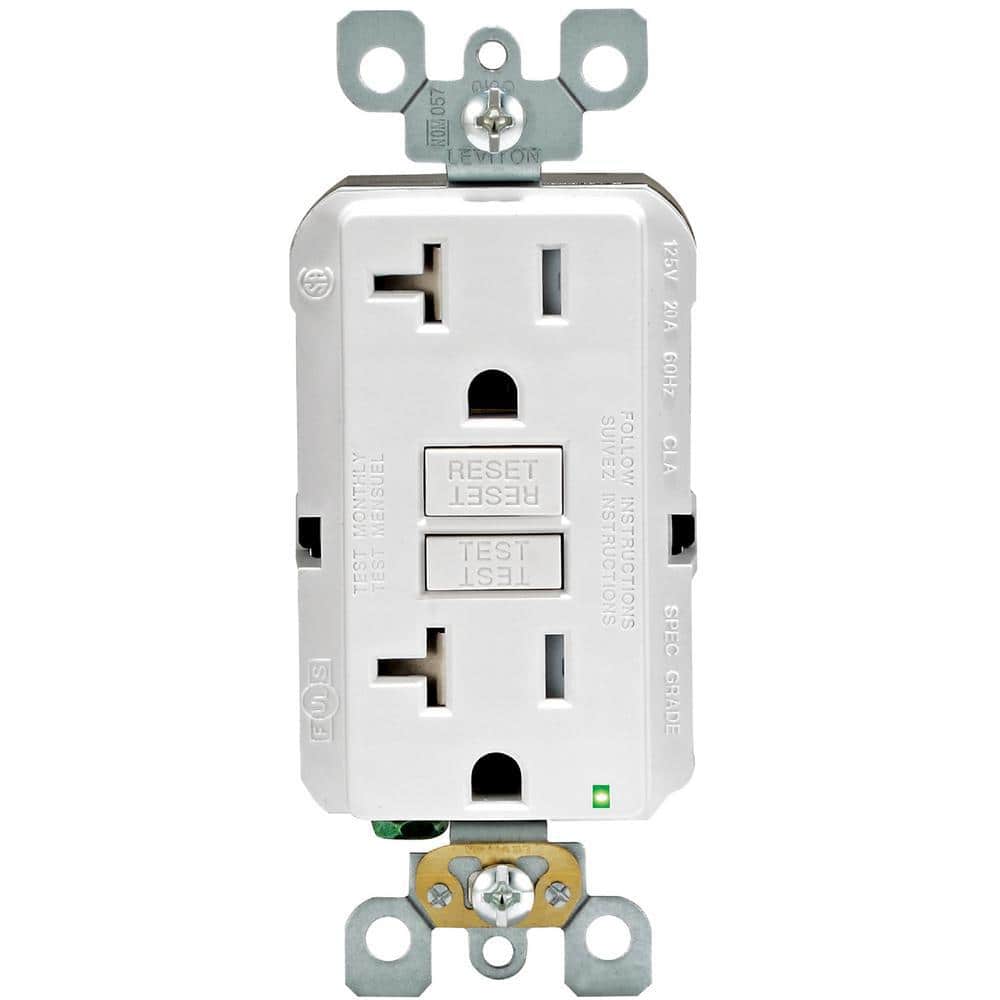

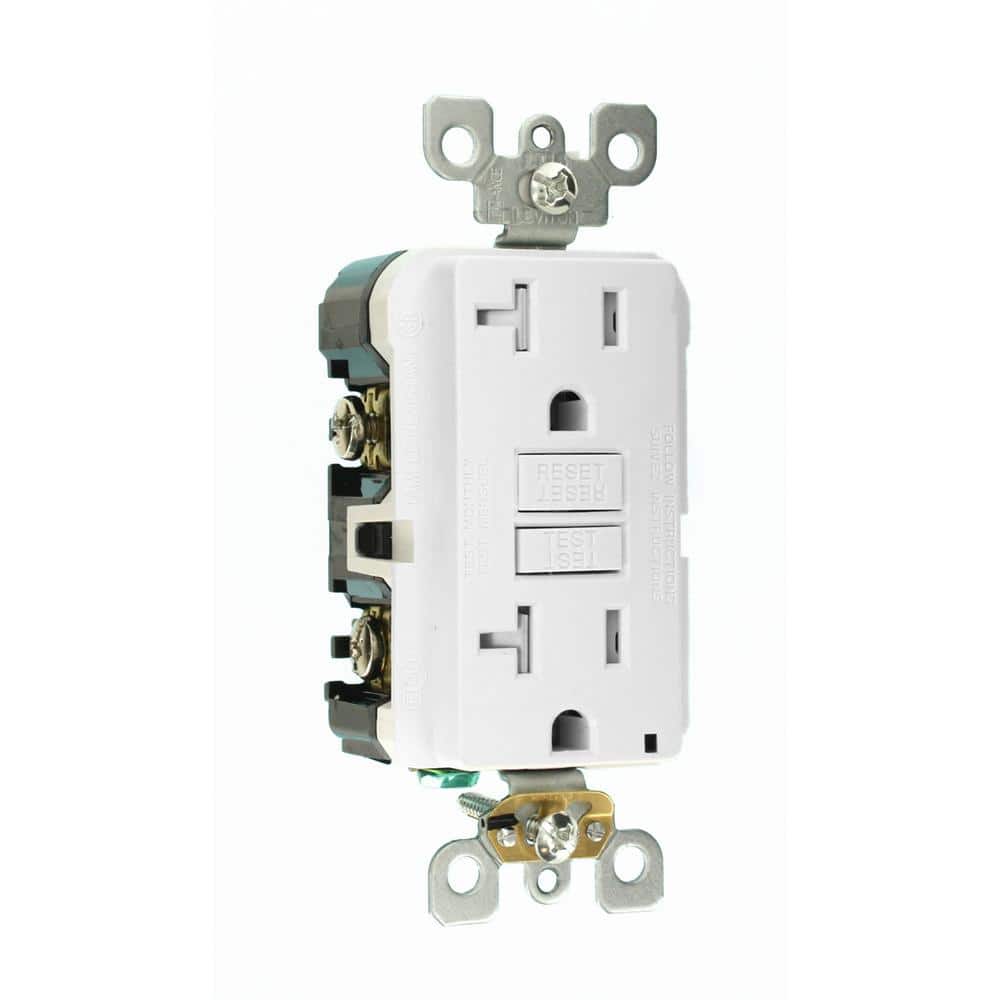

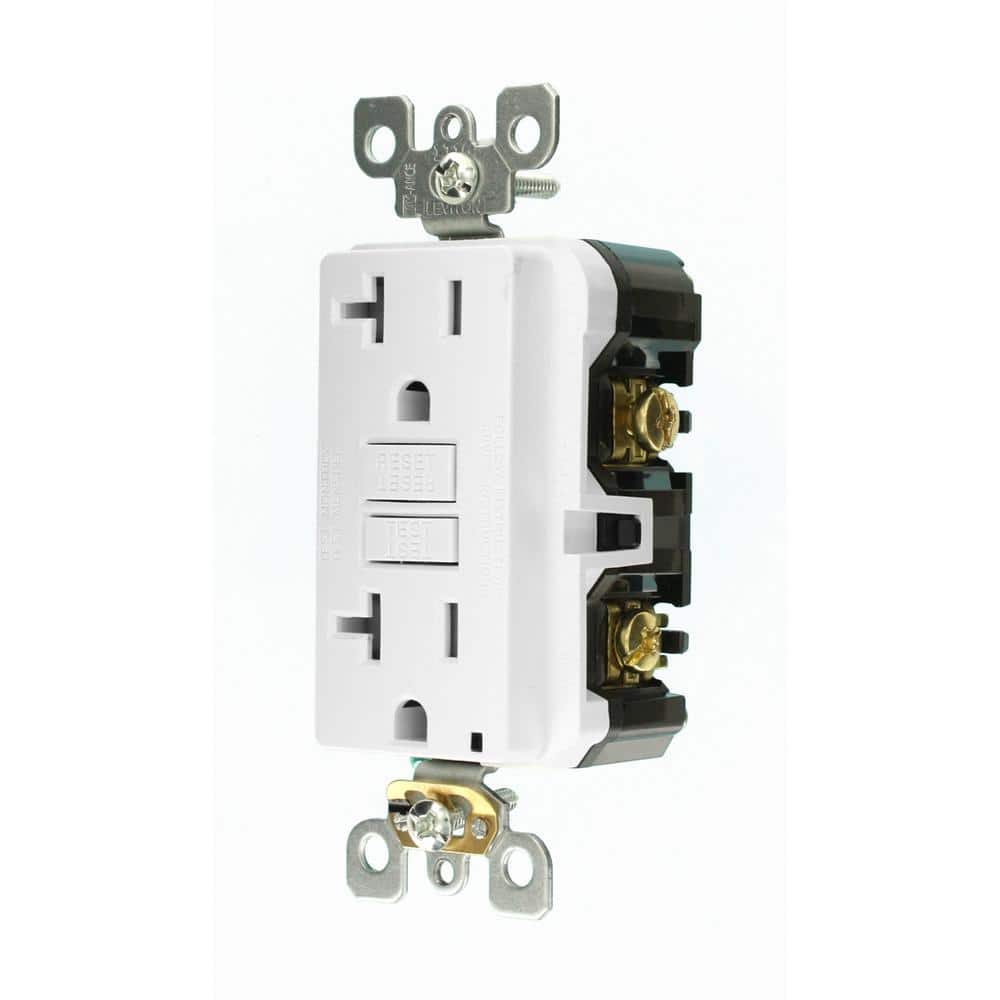

Leviton SmartlockPro 20A Tamper-Resistant GFCI Outlet (4-Pack)
Leviton’s SmartlockPro SmarTest GFCI outlets deliver continuous ground-fault protection with automatic self-testing and a patented reset lockout for added safety. The slim, duplex design installs easily in standard wall boxes and sits flush with Decora wall plates for a clean look. Ideal for kitchens, baths, garages, and other NEC-required locations.
Key Features:
- Continuous Self-Testing Protection: Auto-monitoring exceeds UL requirements and indicates status via LED
- Patented Reset Lockout: Prevents reset if protection is compromised or miswired

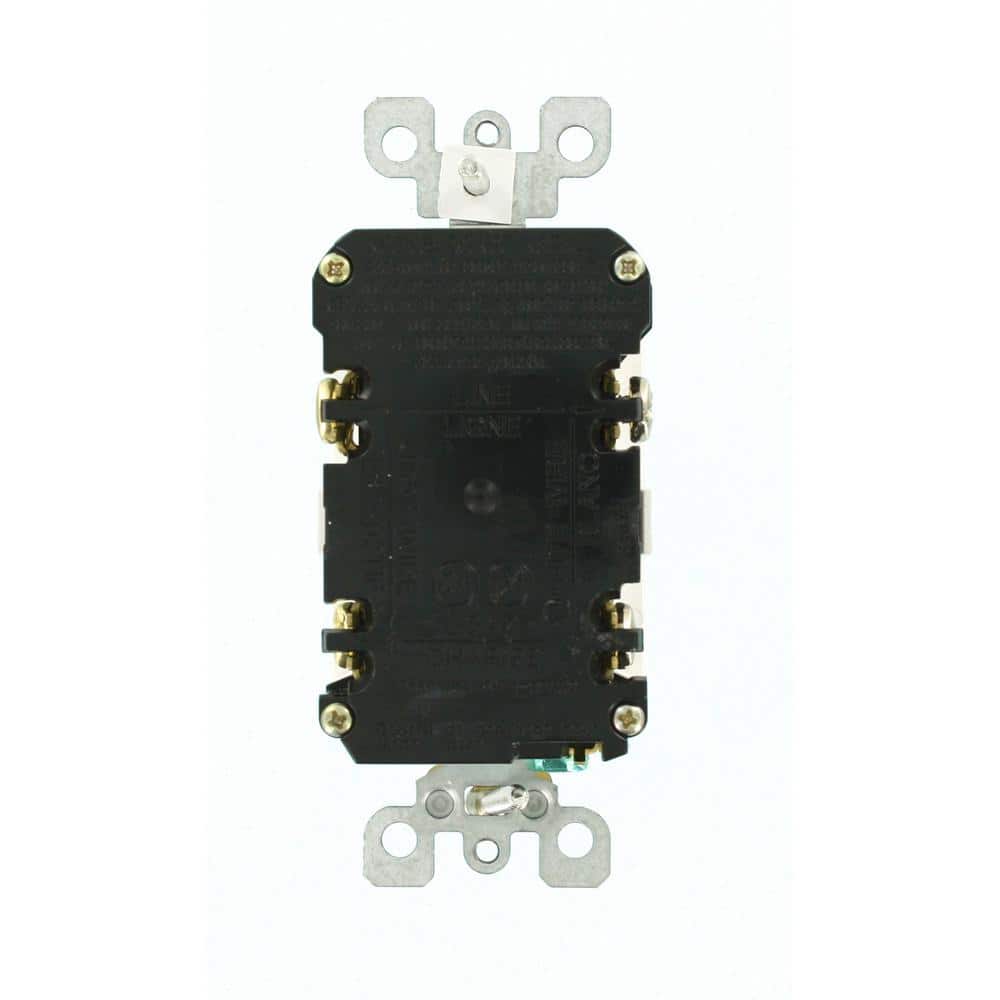

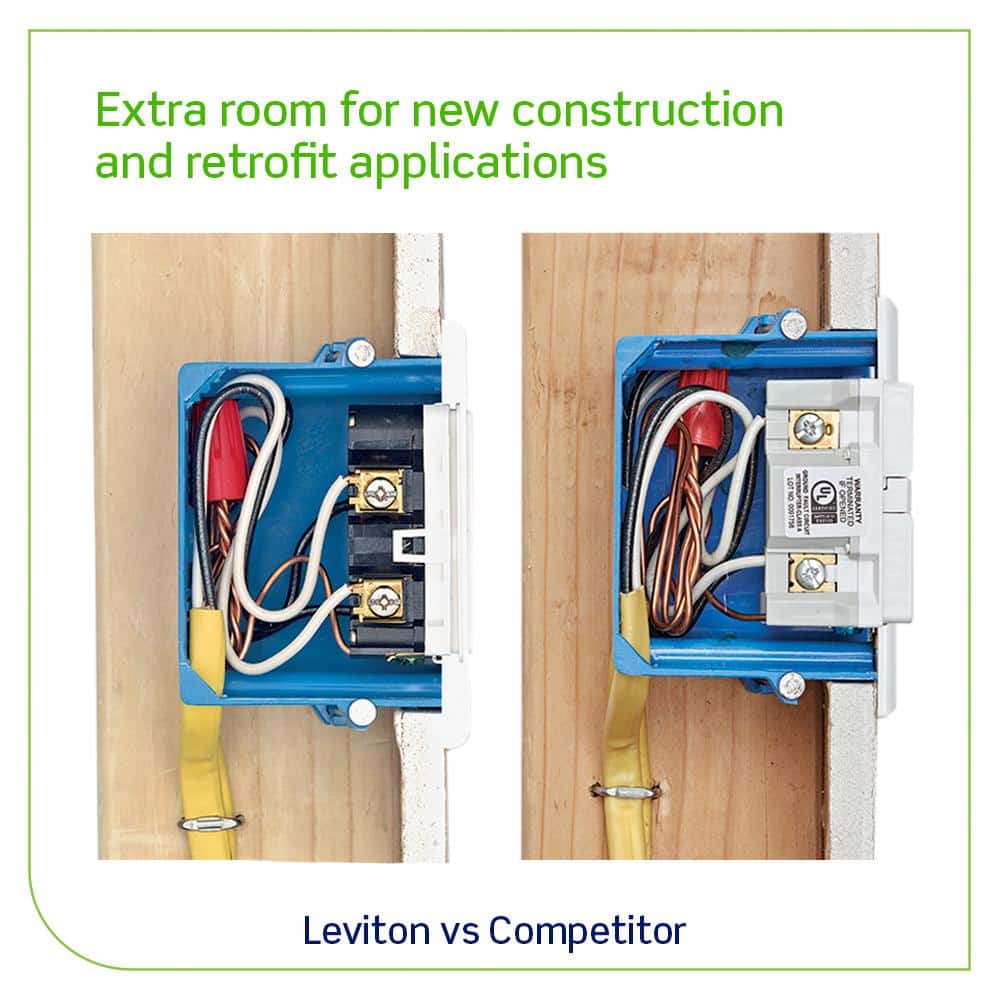

- Slim, Easy Installation: Reduced depth fits shallow boxes; back and side wire capable
- Tamper-Resistant Safety: Built-in shutters help prevent unwanted object insertion
- Durable, Spec-Grade Build: Advanced electronics resist surges; brass self-grounding clip
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 125 V |
| Outlet Style | Duplex |
| NEMA Configuration | NEMA 5-20R / Receptacle 5-20 |
| Number of Receptacles | 2 |
| Package Quantity | 4 |
| Durability | Tamper Resistant |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor |
| Material | Polycarbonate |
| Outlet Material | Nylon |
| Mounting Type | In-Wall |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal; back and side wire capable |
| USB Connection | No USB |
| Safety Rating | GFCI |
| Certifications and Listings | UL Listed, CSA Certified; UL Federal Specification WC-596 rated |
| Manufacturer Warranty | 2-Year Limited |
| Product Depth | 1.02 in |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Status Indicator | LED power/protection and line/load reversal indication |
| Features | Self-test SmarTest auto-monitoring; reset lockout; surge and over-voltage resistance; improved immunity to high-frequency noise |
Frequently Asked Questions (FAQ):
Q: Does this include wall plates?
A: No, wall plates are not included; use compatible Decora wall plates.
Q: Can it be wired from the back and the side?
A: Yes, terminals support back and side wiring with external back wire clamps for proper seating.
Q: Is this suitable for outdoor use?
A: It is rated for indoor use; use weather-resistant GFCIs for outdoor locations.
Q: What circuits is it compatible with?
A: NEMA 5-20R, 125-Volt circuits up to 20 Amps; grounded connection required.
Q: What certifications and warranty does it have?
A: UL Listed and CSA Certified; covered by a 2-year limited warranty.

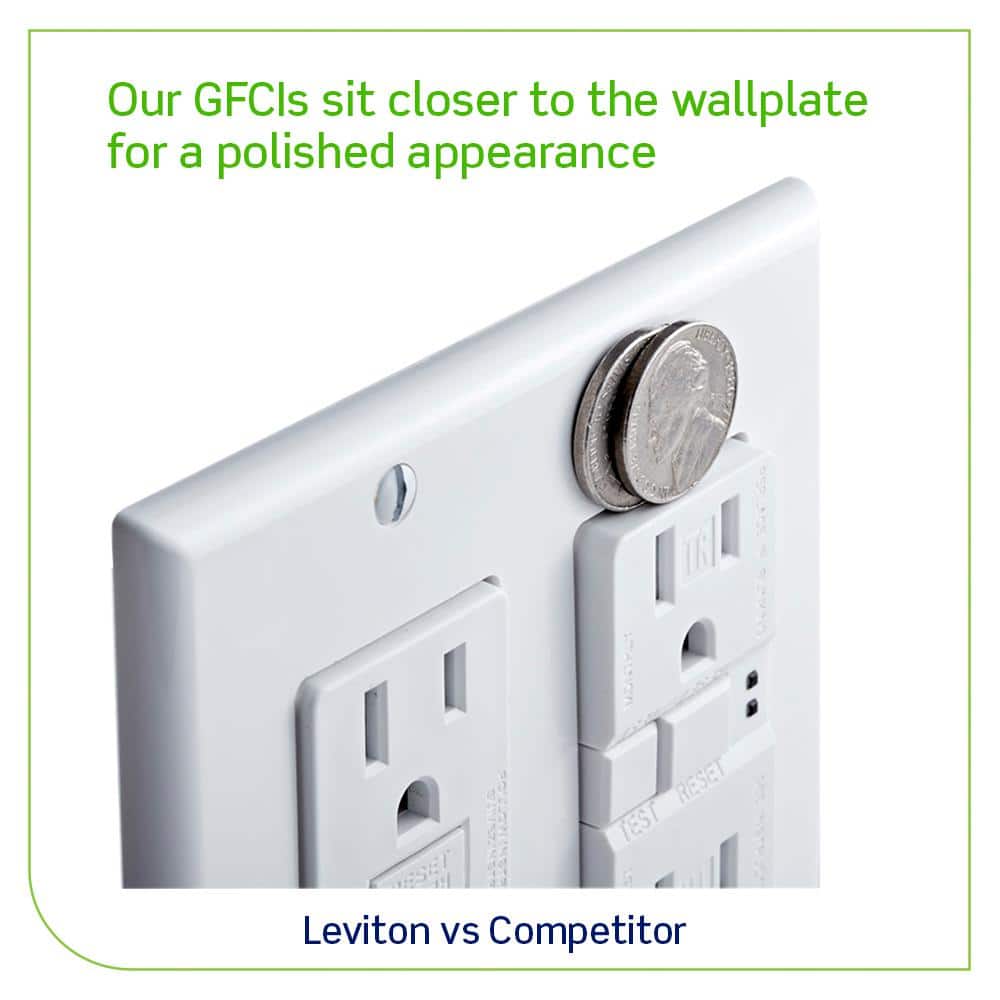

Safety with a Sleek, Low-Profile Presence
This GFCI’s streamlined silhouette nestles closer to the wall plate, lending a refined, tailored finish to kitchens and baths. The subtle LED and clean reset-test buttons feel modern without calling attention to themselves. Pair with crisp Decora plates for a seamless, gallery-like backdrop to your countertops. It’s an essential touch that marries luxury aesthetics with everyday protection.
Upgrade your safety and style—add this Leviton SmartlockPro 4-pack to your project today.
