2-1/4 in. Chrome Top Pivot Hinge, General and American
$7.90
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '203564285
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

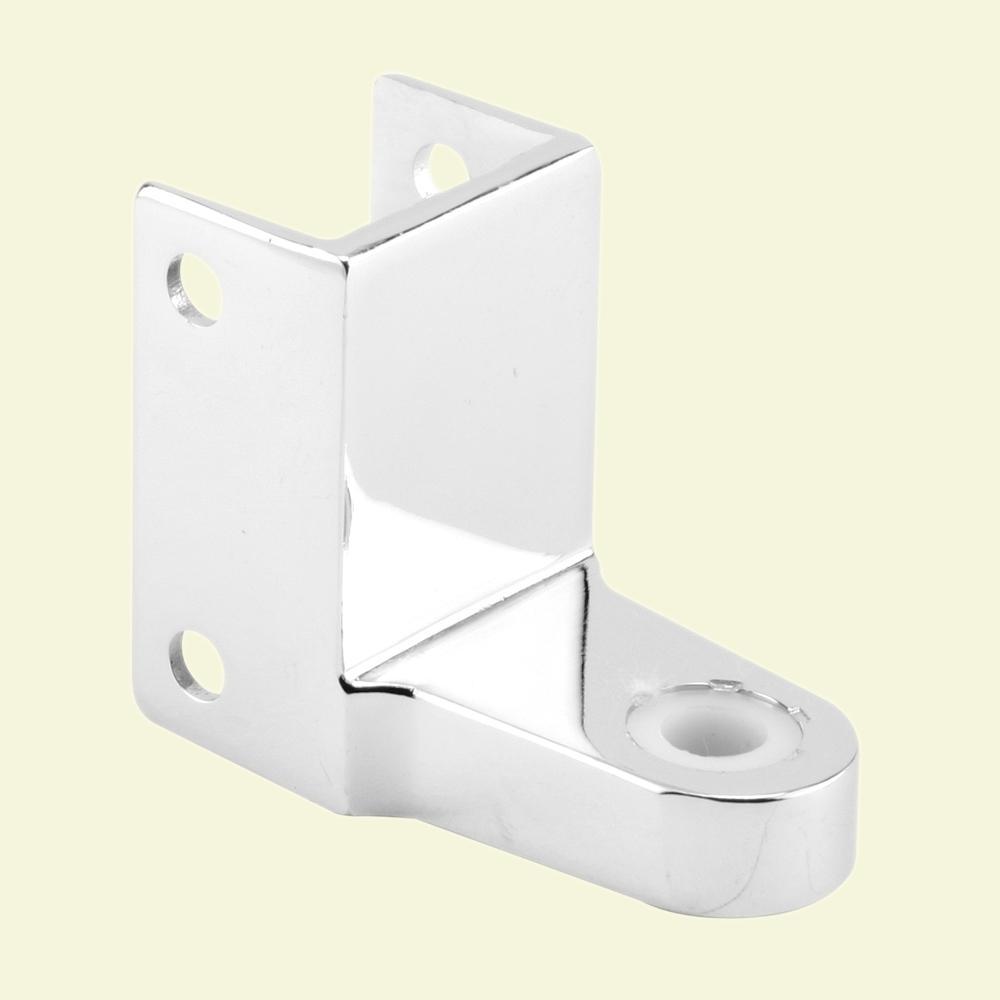

This top pivot hinge is constructed from zinc alloy and comes in a chrome plated finish. It is for 1-1/4 in. posts. This top pivot hinge replaces General and American Sanitary top hinges.
Features
- Used by general and American sanitary top hinge on toilet partition walls
- Designed to fit 1-1/4 in. partition panels
- Zinc alloy construction with a chrome finish
- Mounting holes are 1-1/2 in. on center
- Helps door self close
- No mounting hardware included
- Easy to install

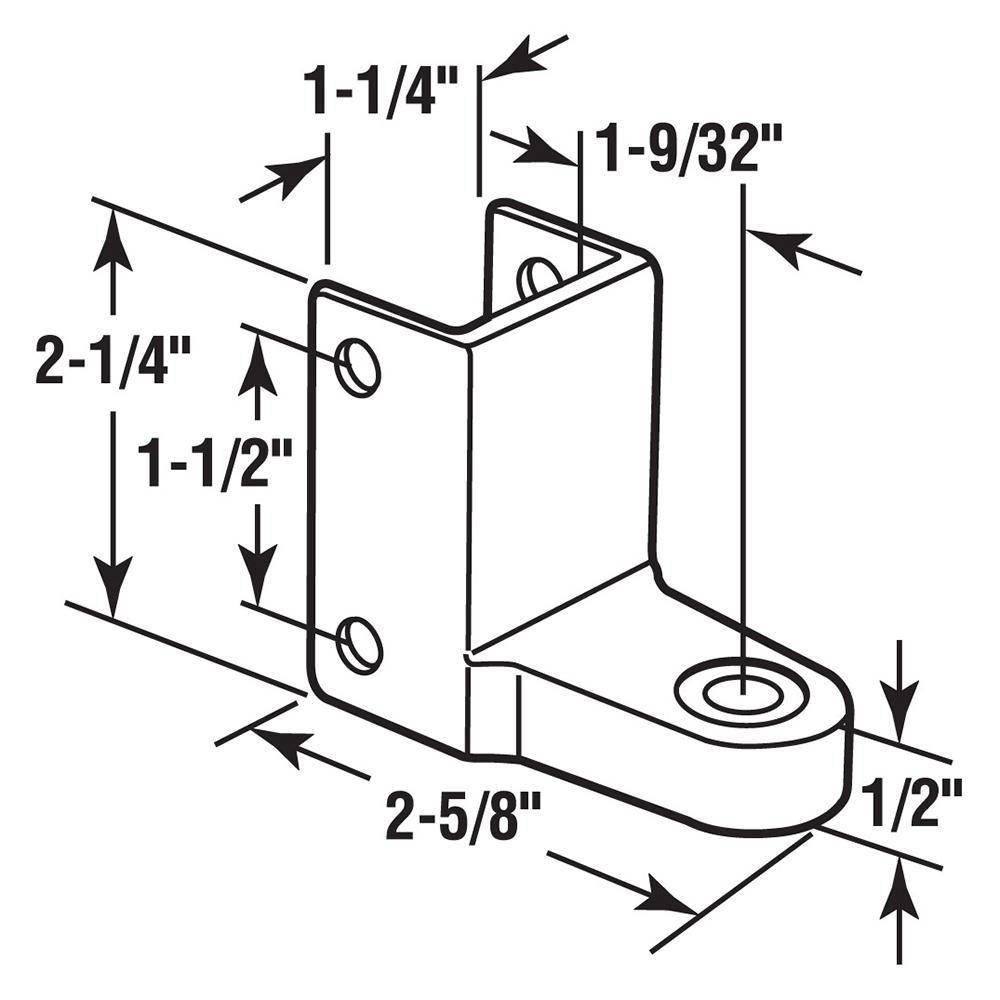

- For further dimensional information, please see the line drawing
Features
| Item Weight | 0.295 |
| Hinge Opening (Degrees) | 180 |
| Number of Holes | 4 |
| Material | Metal |
| Cabinet Frame Type | Face Frame |
| Hinge Type | Pivot |
| Features | No Additional Features |
| Finish | Chrome |
| Returnable | 180-Day |
| Hardware Finish Family | Chrome |
| Builders Hardware Product Type | Cabinet hinge |
| Package Quantity | 1 |
| Product Height (in.) | 2.25 |
| Product Width (in.) | 1.25 |
| Product Depth (in.) | 2.625 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
