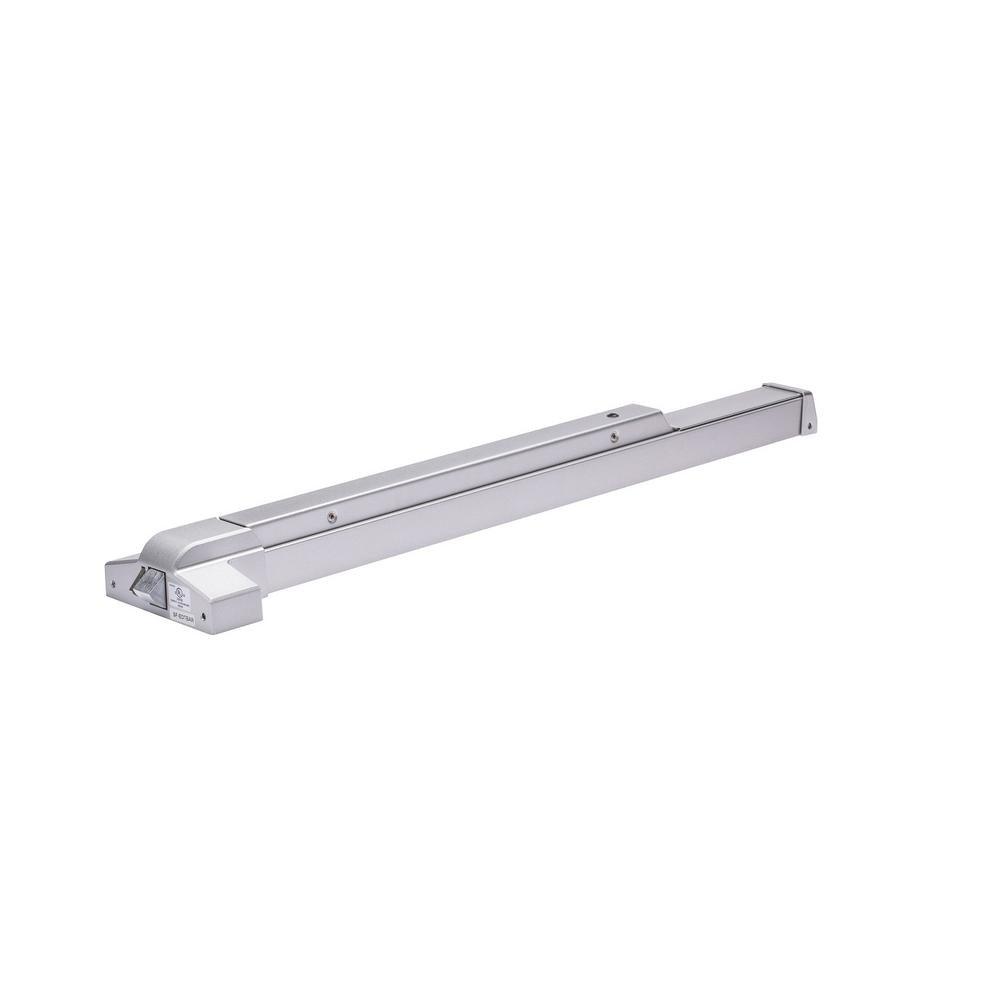

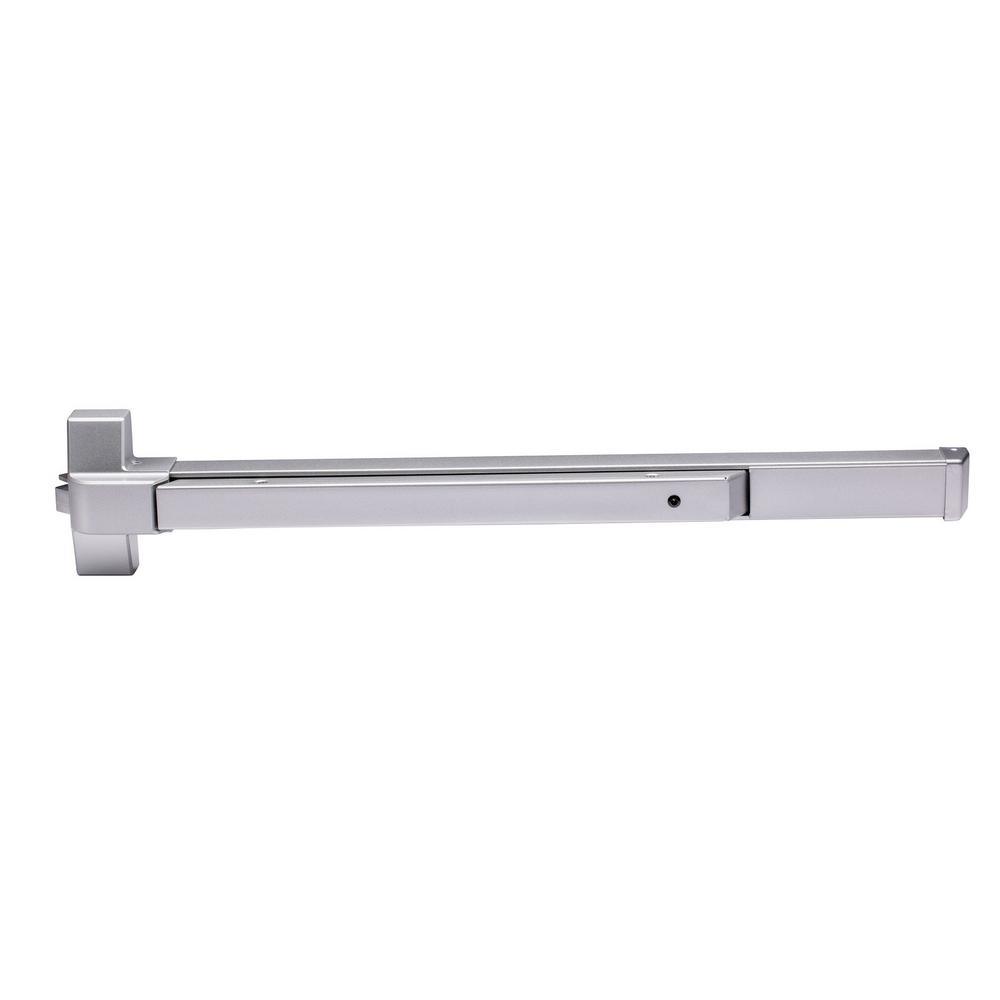

36 in. Aluminum Fire Rated Touch Bar Exit Device
$90.19
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 203384120
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Global Door Controls TH1100EDTBARF fire rated touch/panic bar is 36 in. long and comes in an aluminum finish. The exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum and stainless steel springs, it is durable enough for the most demanding applications and is a fire rated device. A rim cylinder is not included.
Features
- Rating: fire-rated

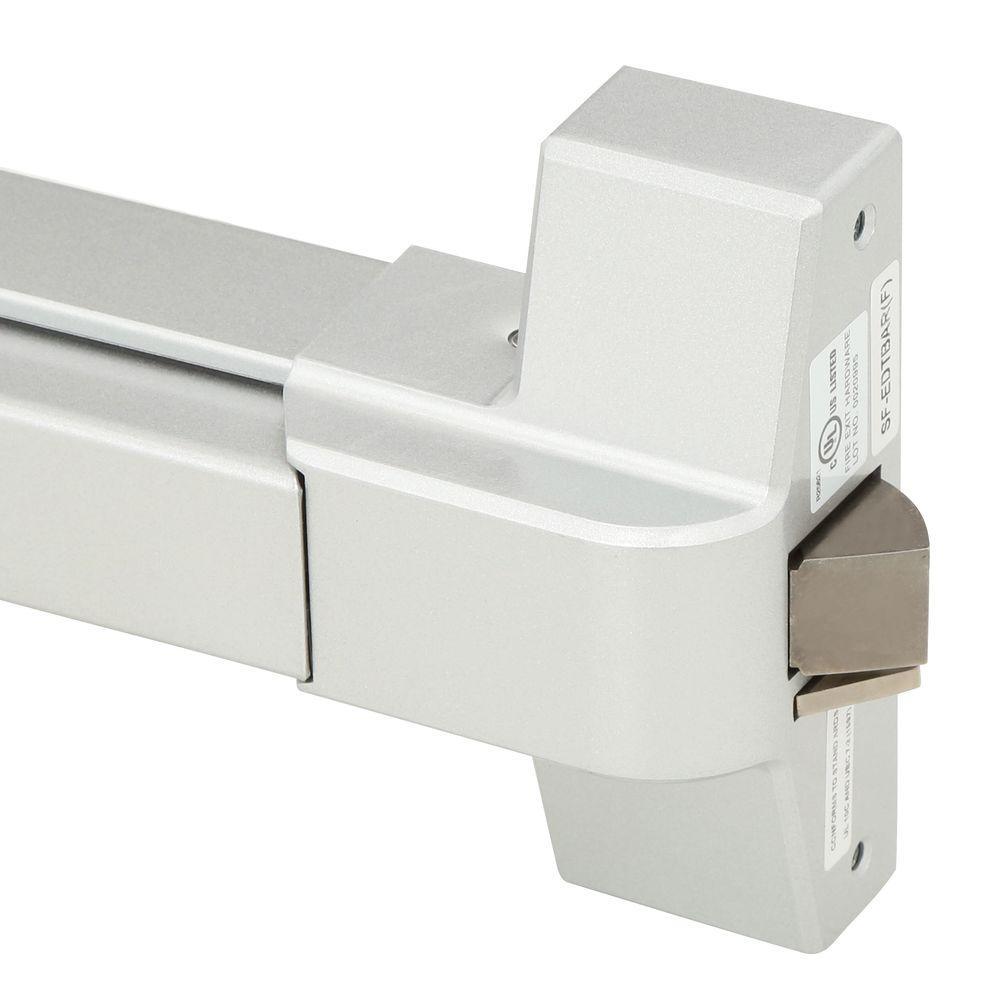

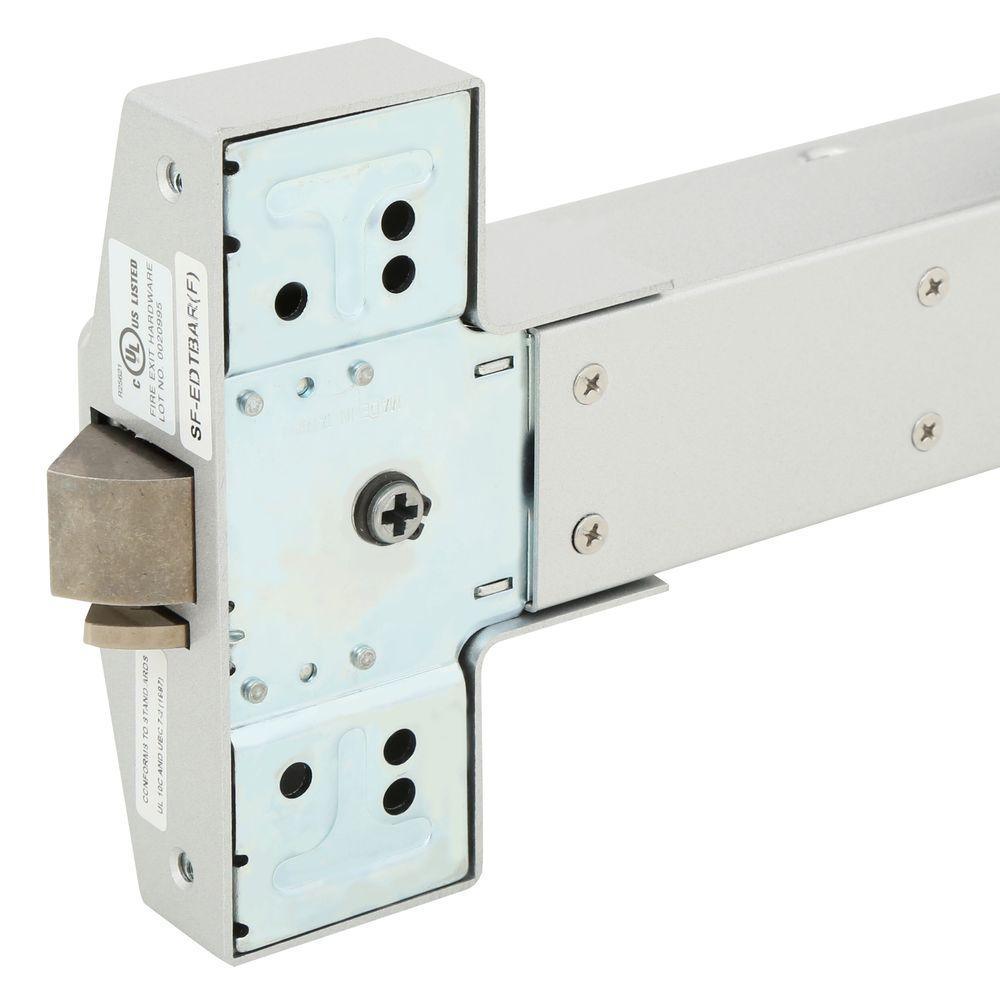

- Latch: stainless steel, 3/4 in. throw-5/8 in. dead latch

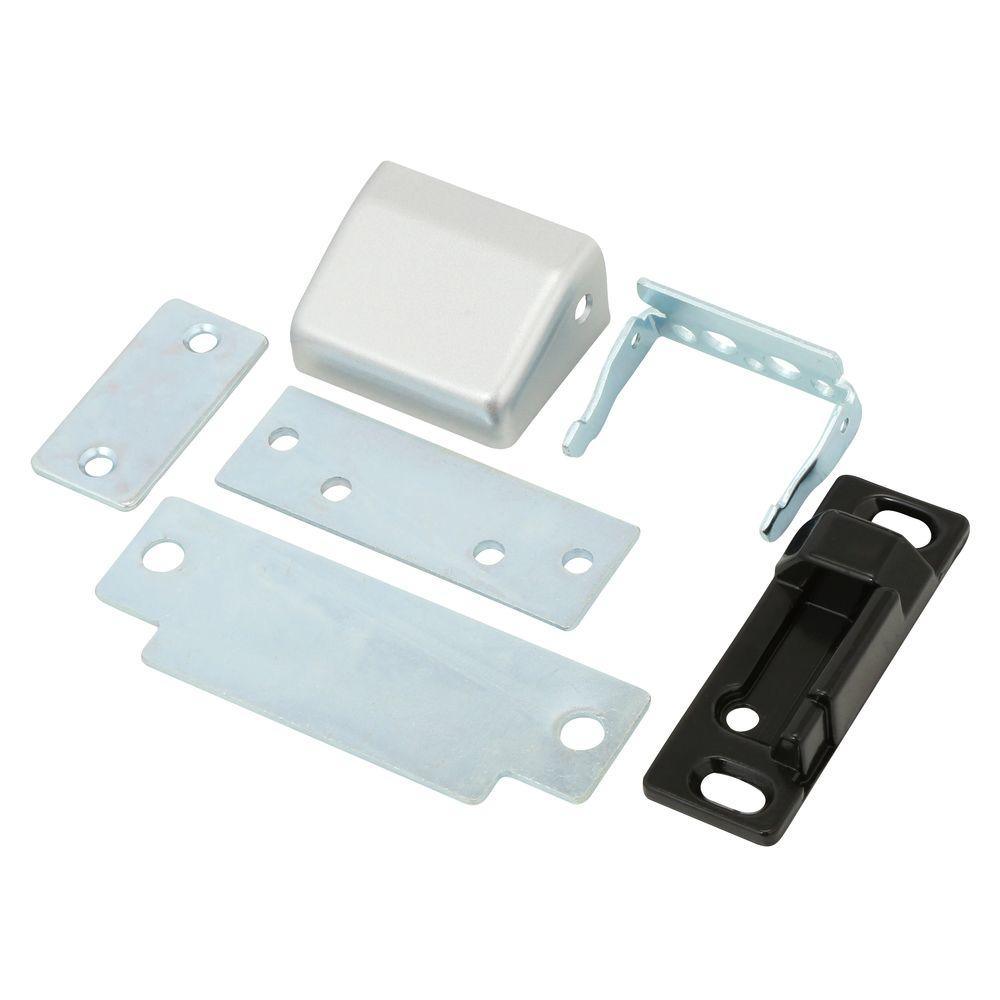

- Backset: 2-3/4 in., includes latch and strike filter plates
- Strike: surface mounted for 5/8 in. stop with shim
- Handing: reversible, non-handed
- Door width: 36 in., can be field sized to 30 in.
- Mounting height, recommended installation at 41 in. from finished floor to center of push rail
- Fasteners: furnished with sheet metal and machine screws
- Door width: 1-3/4 in. standard
- UL R25621
Features
| Item Weight | 6.54 |
| Door Handing | Universal |
| Function | Fire |
| Builders Hardware Product Type | Exit Devices |
| Finish | Aluminum |
| Material | Aluminum |
| Commercial/Residential | Commercial |
| Returnable | 180-Day |
| Hardware Finish Family | Silver |
| Product Height (in.) | 2 |
| Projection (in.) | 2.5 |
| Product Depth (in.) | 2.5 |
| Product Width (in.) | 36 |
| Manufacturer Warranty | 10 Year Warranty |
