DELTA

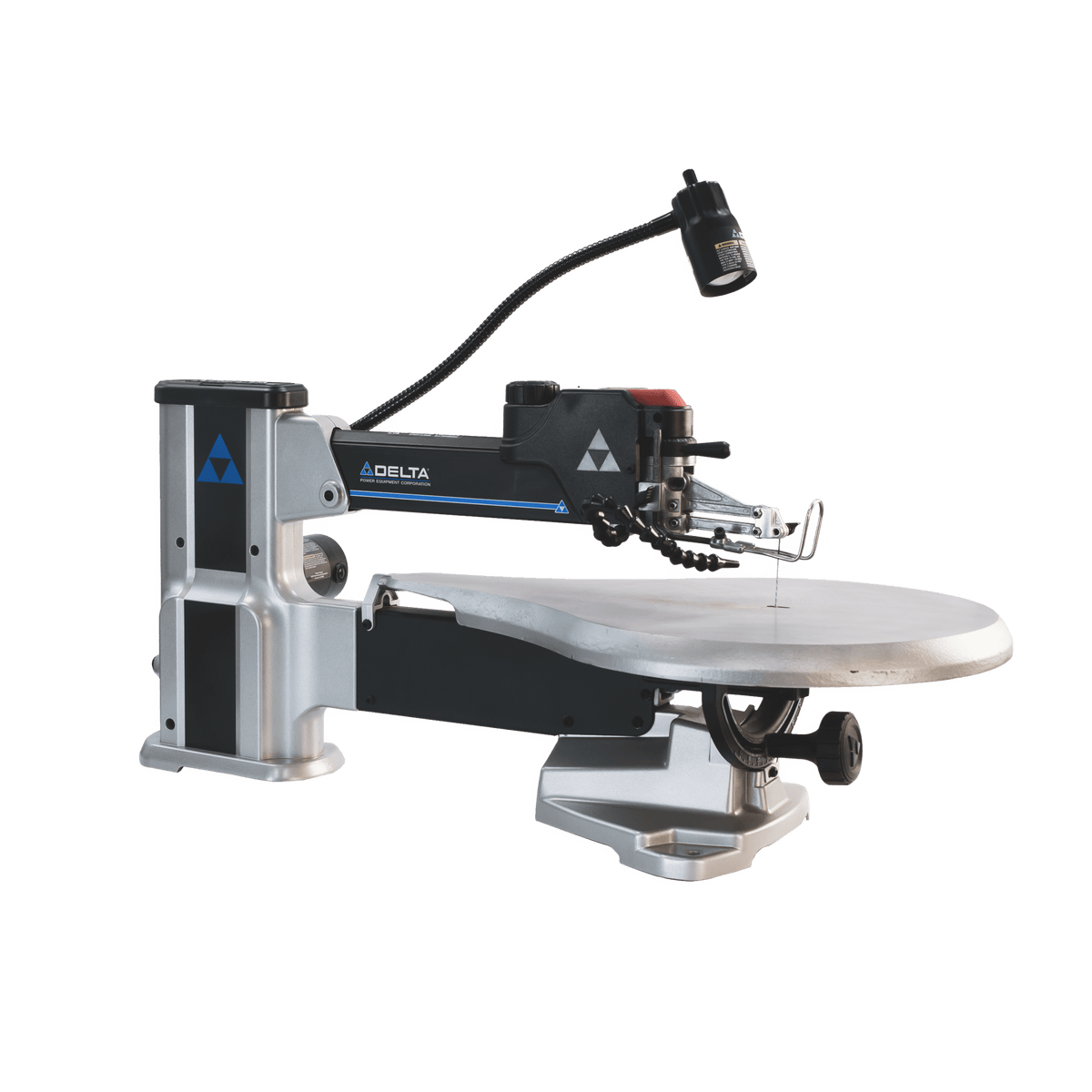

DELTA 20-in 1.3-Amp Variable Speed Scroll Saw
Out of stock — available on backorder
SKU 40-694
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20-in Variable-Speed Scroll Saw, 1.3-Amp
Precision scroll saw designed for intricate cuts with a 20-in throat and a smooth, low-vibration dual parallel-link arm. The cast-iron table bevels 0°–45° left and right, while front-mounted controls and tool-free blade changes keep workflow fast and accurate.
Key Features:
- Wide Speed Range: Electronic variable speed from 400–1,750 SPM for diverse materials and cut types.
- Low Vibration Accuracy: Dual parallel-link arm maintains blade perpendicularity to reduce over/under cutting.

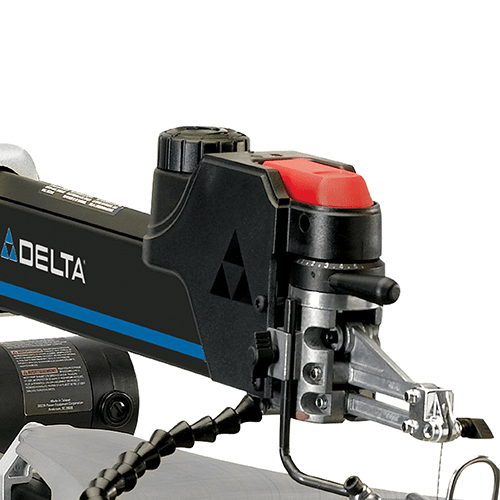

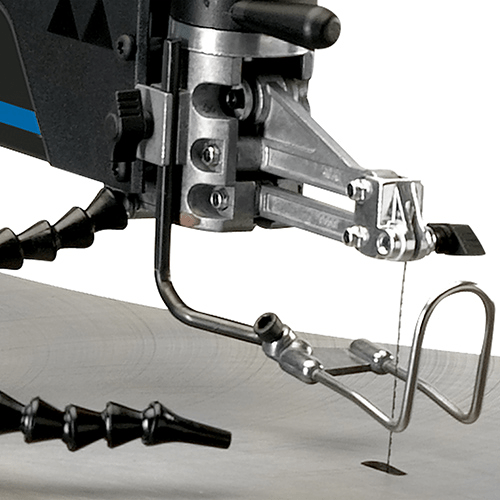

- Fast Blade Changes: Tool-free blade clamp and single-lever tensioning for quick swaps and optimized blade life.

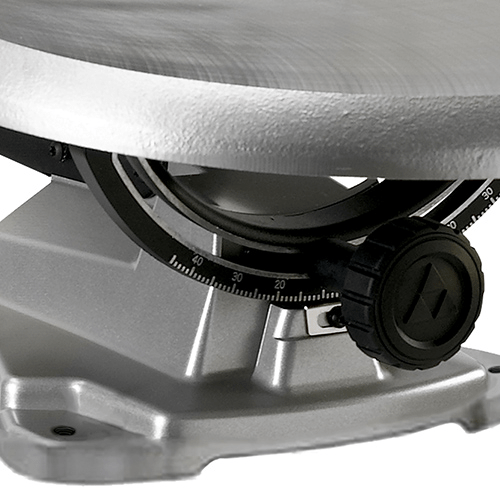

- Cast-Iron Support: Large table bevels 0°–45° left and right for precise angled cuts.
- User-Friendly Controls: Front-access on/off, speed dial, dust blower, and blade-tension lever for easy operation.
Specifications Table:
| Specification | Details |
|---|---|
| Category | Scroll Saws |
| Model | 40-694 |
| Throat Size | 20 in |
| Motor Amperage | 1.3 Amp |
| Speed Range | 400–1,750 SPM (electronic variable speed) |
| Arm Design | Dual parallel-link arm to reduce vibration and noise; keeps blade perpendicular |
| Table Material | Cast iron |
| Table Bevel Capacity | 0°–45° left and right |
| Blade Changes | Tool-free blade clamp |
| Blade Tensioning | Single lever, tool-free tensioning |
| Controls | Front-mounted on/off switch and speed dial |
| Dust Management | Flexible dust blower |
| Onboard Storage | On-tool blade storage; includes 2 straight blades |
Frequently Asked Questions (FAQ):
Q: What blades does it use?
A: It uses standard pinless scroll saw blades; the tool-free clamp allows quick blade changes.
Q: What is the speed range?
A: Electronic variable speed adjusts from 400 to 1,750 strokes per minute.
Q: Can the table tilt for bevel cuts?
A: Yes, the cast-iron table tilts 0°–45° both left and right.
Q: Is there onboard storage?
A: Yes, it includes an on-tool blade storage area and comes with 2 straight blades.
Q: How is dust managed?
A: A flexible dust blower is integrated to keep the cut line clear.
Quiet Precision, Sculptural Control
This scroll saw is a study in elegant utility, delivering whisper-quiet precision that lets craftsmanship shine. The sculpted dual-arm design minimizes vibration so delicate patterns emerge with crisp confidence. Style it with a clean, well-lit bench and let the cast-iron table’s satin surface anchor your maker’s studio. For those who prize thoughtful details, it’s a refined essential for luxurious, meticulous making.
Bring home DELTA’s 20-in variable-speed precision and craft cleaner, more accurate cuts on your next project.
