Details

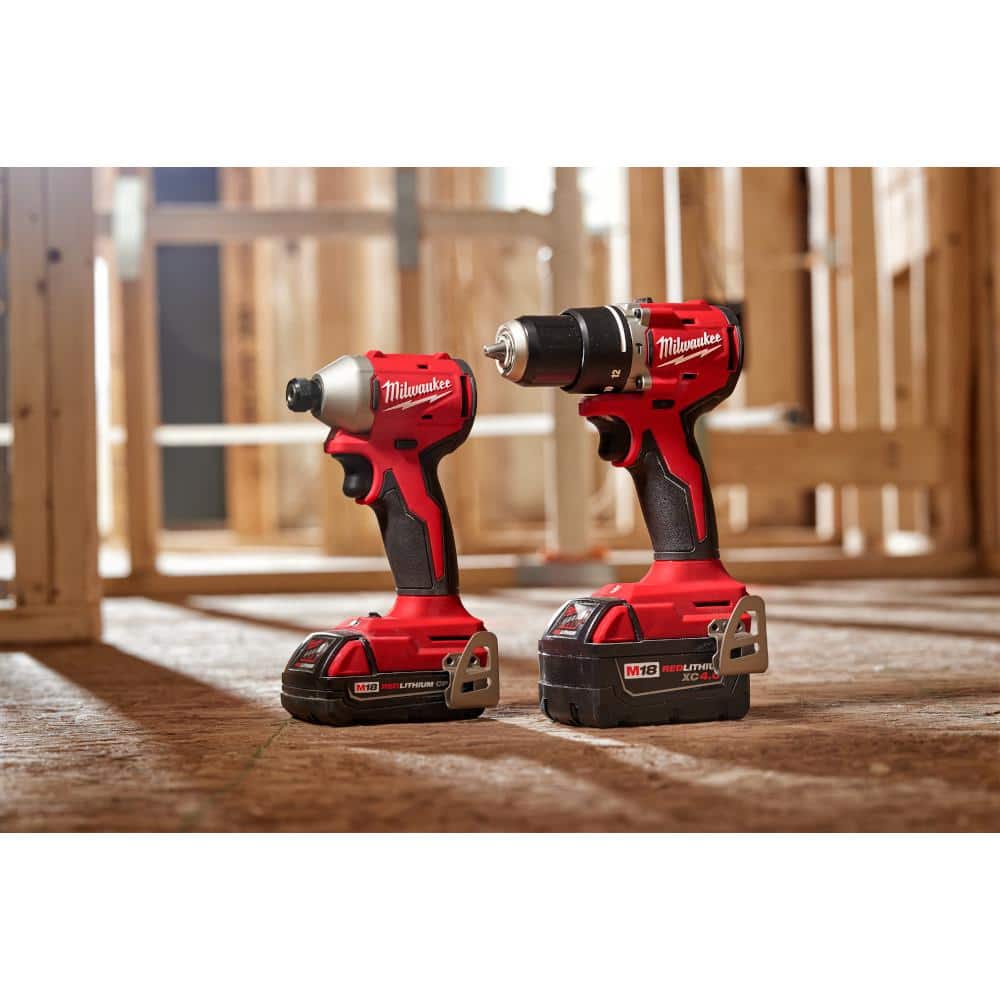

Milwaukee M18 Brushless Compact Drill/Impact Combo Kit with Batteries
This compact Milwaukee M18 brushless combo pairs a 1/2 in. hammer drill/driver and a 1/4 in. 3-speed impact driver for powerful fastening and drilling in tight spaces. REDLINK Intelligence and REDLITHIUM batteries deliver efficient performance and long run-time, while all‑metal gearcases and chucks stand up to jobsite abuse.
Key Features:

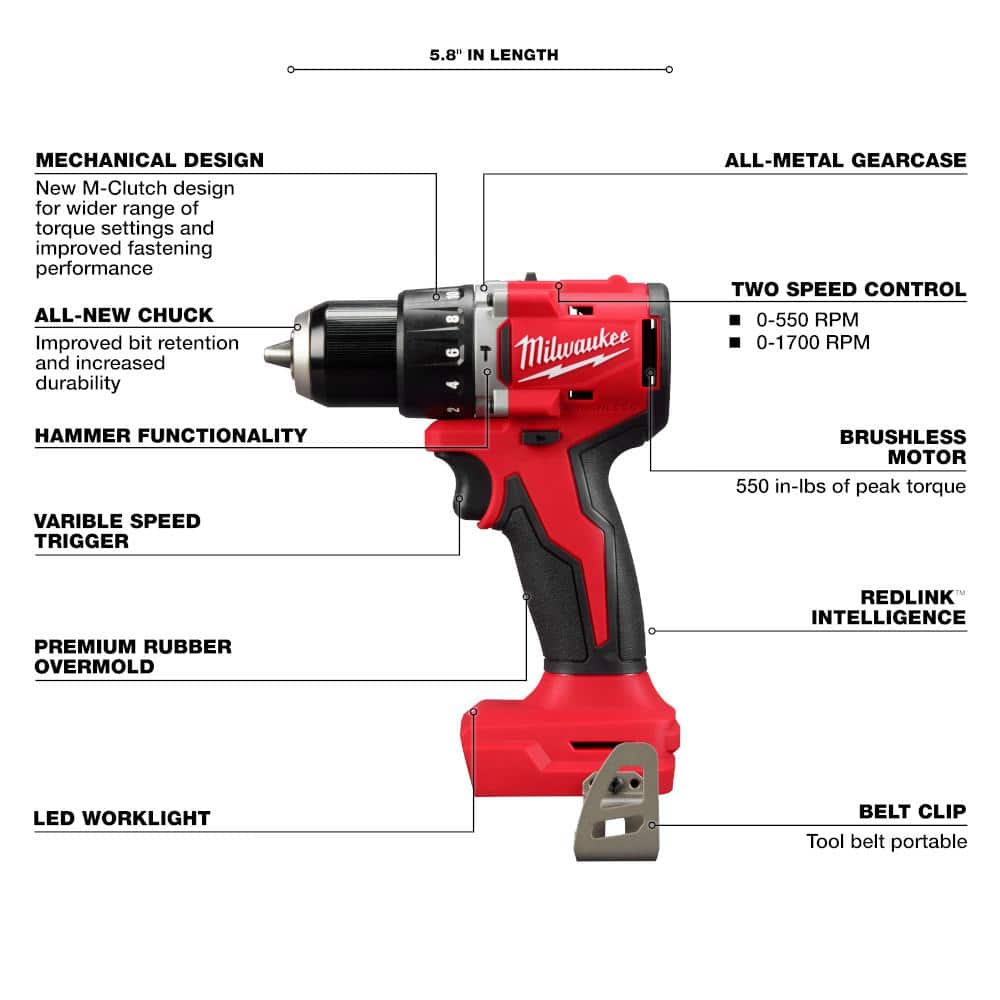

- Compact Brushless Power: 5.8 in. hammer drill and 4.4 in. impact driver reach tight spaces without sacrificing performance.
- REDLINK Intelligence: Optimizes tool and battery performance to prevent overload and extend life.
- Durable All‑Metal Construction: All‑metal gearcase and 1/2 in. metal chuck for professional durability.
- Versatile Speed Control: 2-speed hammer drill (0–550/0–1,700 RPM) and 3-mode impact driver up to 3,600 RPM for precise control.

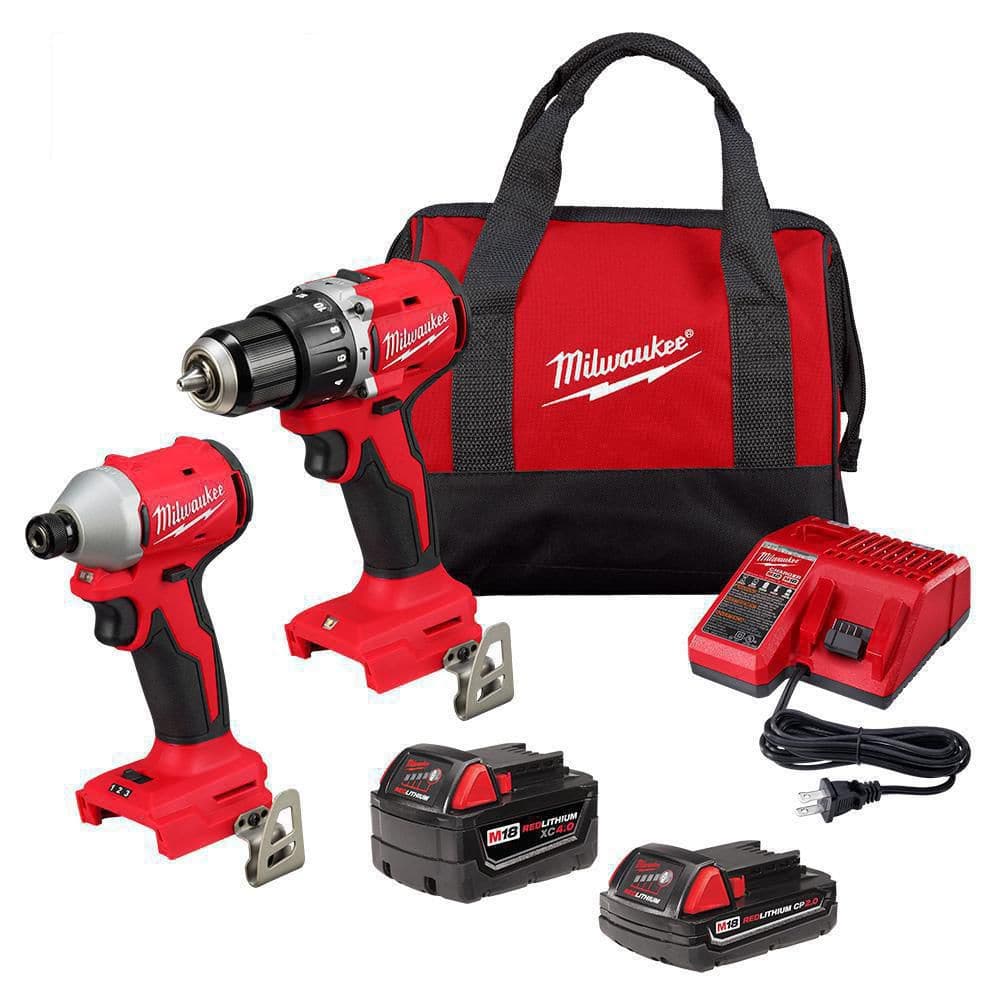

- Complete Kit: Includes XC4.0 and CP2.0 M18 REDLITHIUM batteries, M18/M12 multi‑voltage charger, and contractor bag.
Specifications Table:
| Specification | Details |
|---|---|
| Platform | Milwaukee M18 |
| Battery Power Type | Lithium Ion |
| Battery Voltage | 18V |
| Voltage (V) | 18 V |
| Motor Type | Brushless |
| Cordless/Corded | Cordless |
| Cordless Tool Type | Combo Kit |
| Number of Tools (Bonus Tool Not Included) | 2 |
| Tools Included | Hammer Driver Drill, Impact Driver |
| Power Tool Features | Variable Speed |
| Charger Included | Yes (M18 & M12 Multi‑Voltage Charger) |
| Included Accessories | M18 REDLITHIUM XC4.0 Battery, M18 REDLITHIUM CP2.0 Battery, Contractor Bag |
| Color Family | Red |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 5 Year Tool, 3 Year XC Battery, 2 Year CP Battery |

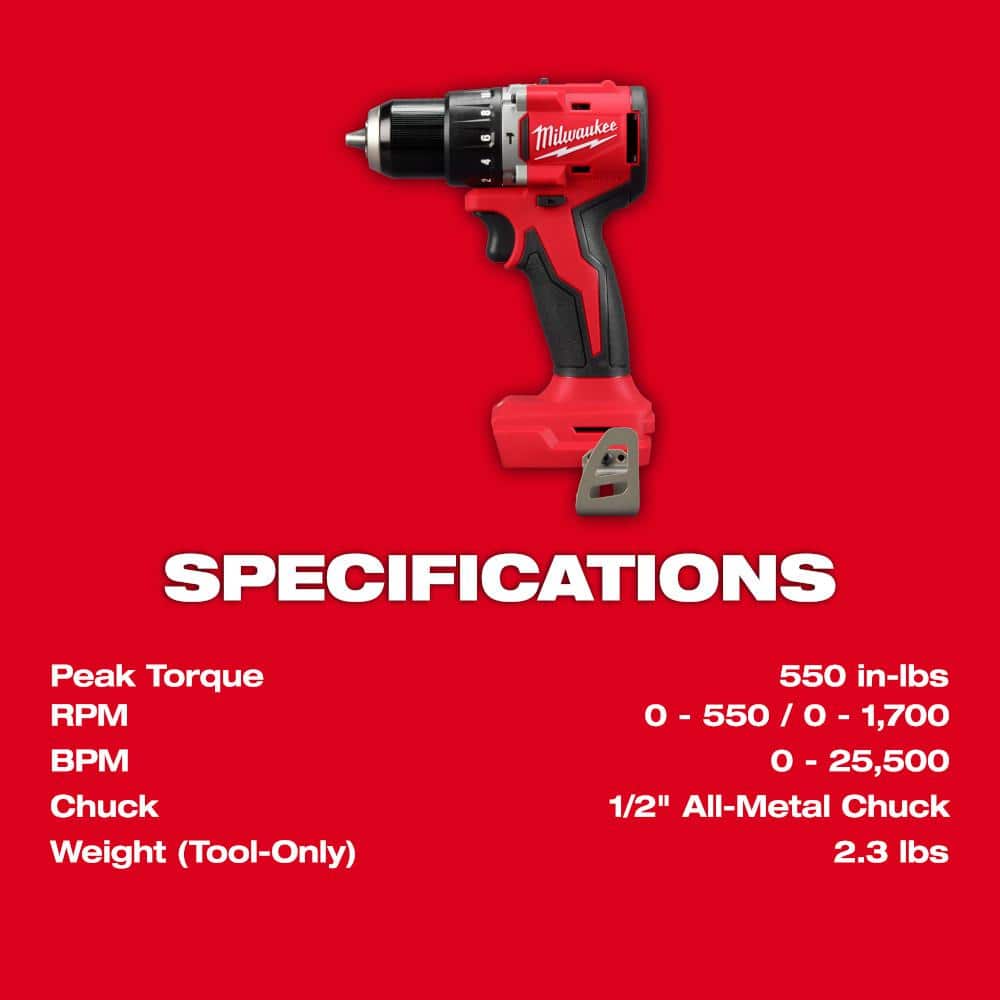

| Hammer Drill Length | 5.8 in. |
| Hammer Drill RPM | 0–550 / 0–1,700 RPM |

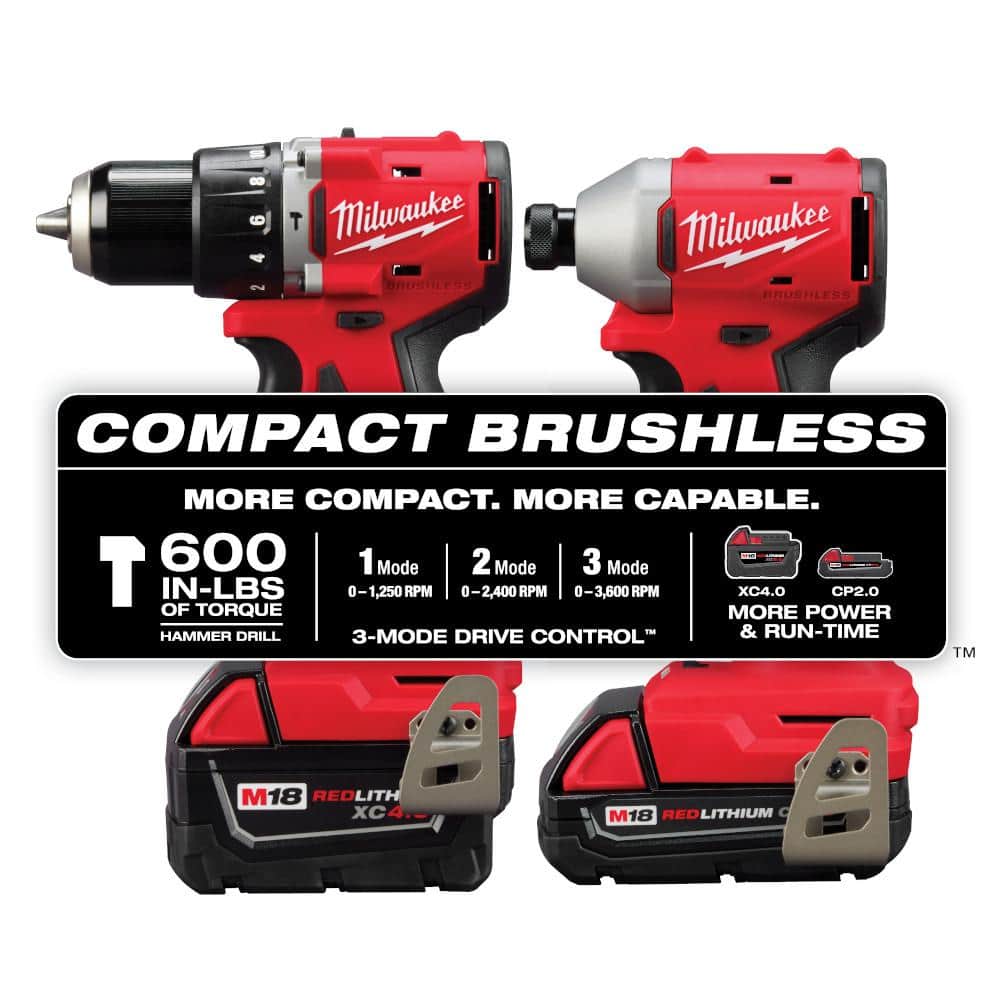

| Hammer Drill Peak Torque | 600 in‑lbs (illustrated) / 550 in‑lbs callout varies by source |
| Hammer Drill BPM | 0–25,500 |

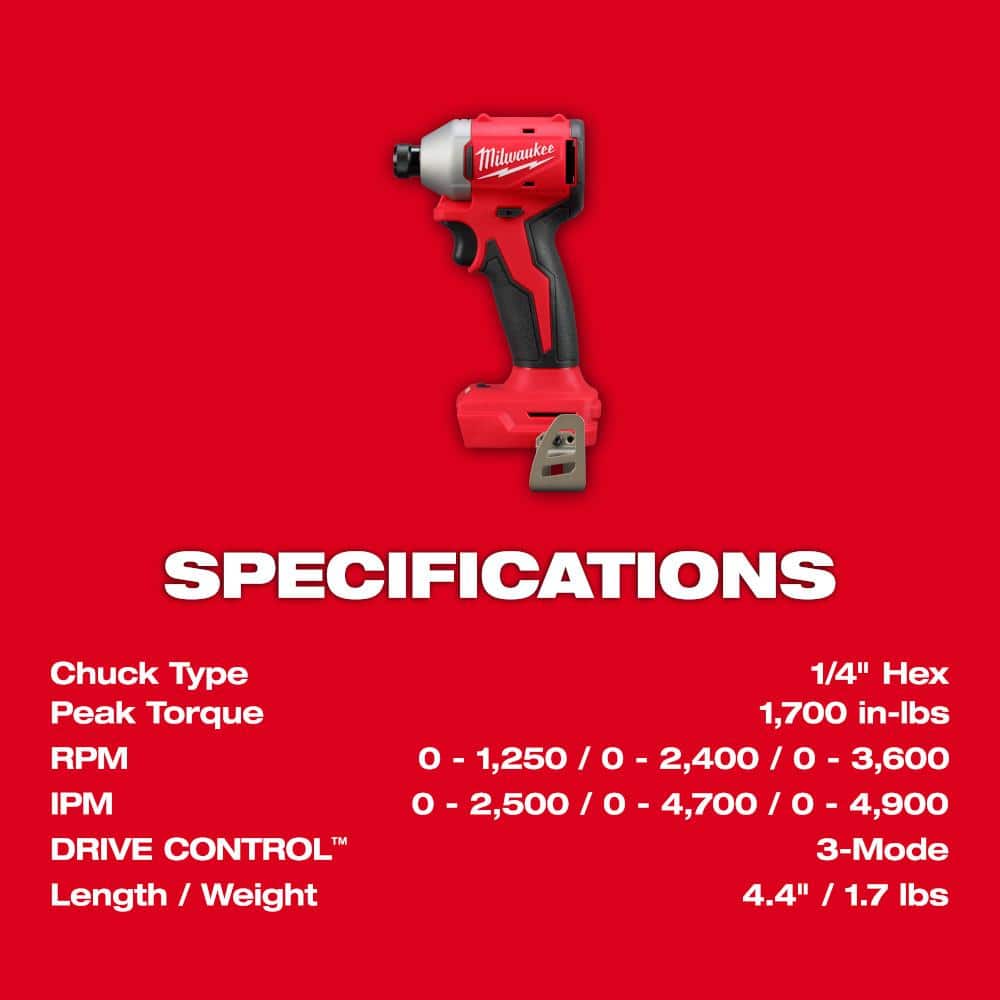

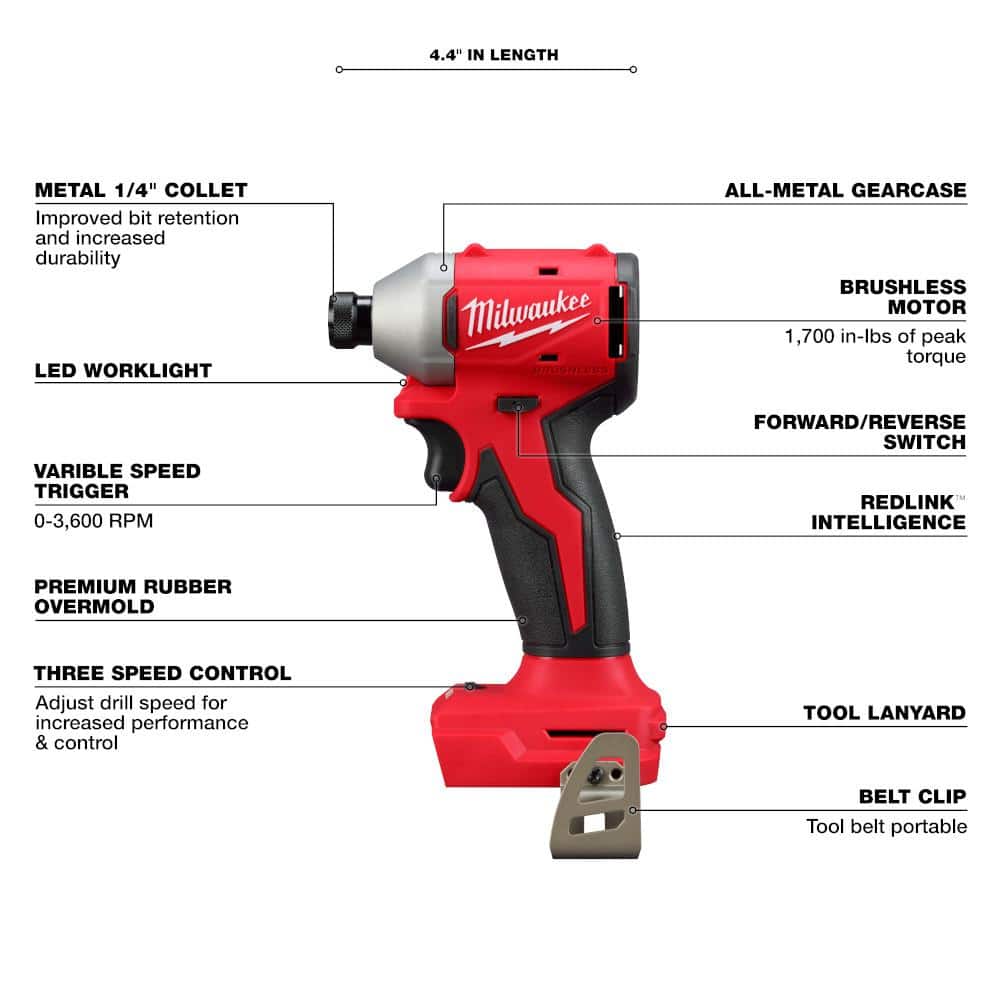

| Impact Driver Length | 4.4 in. |
| Impact Driver RPM | 0–1,250 / 0–2,400 / 0–3,600 |
| Impact Driver IPM | 0–2,500 / 0–4,700 / 0–4,900 |
| Impact Driver Peak Torque | 1,700 in‑lbs |
| Chuck/Collet | 1/2 in. metal chuck (drill); 1/4 in. hex collet (impact) |
Frequently Asked Questions (FAQ):
Q: How long do the batteries last?
A: Run-time varies by application; REDLITHIUM packs deliver more work per charge than standard lithium-ion batteries.
Q: Is the kit suitable for heavy-duty work?
A: Yes. The brushless motors and metal gearcases are built for demanding professional tasks.
Q: Can I drill into masonry?
A: Yes. Use the hammer drill mode for masonry drilling.
Q: What’s included in the box?

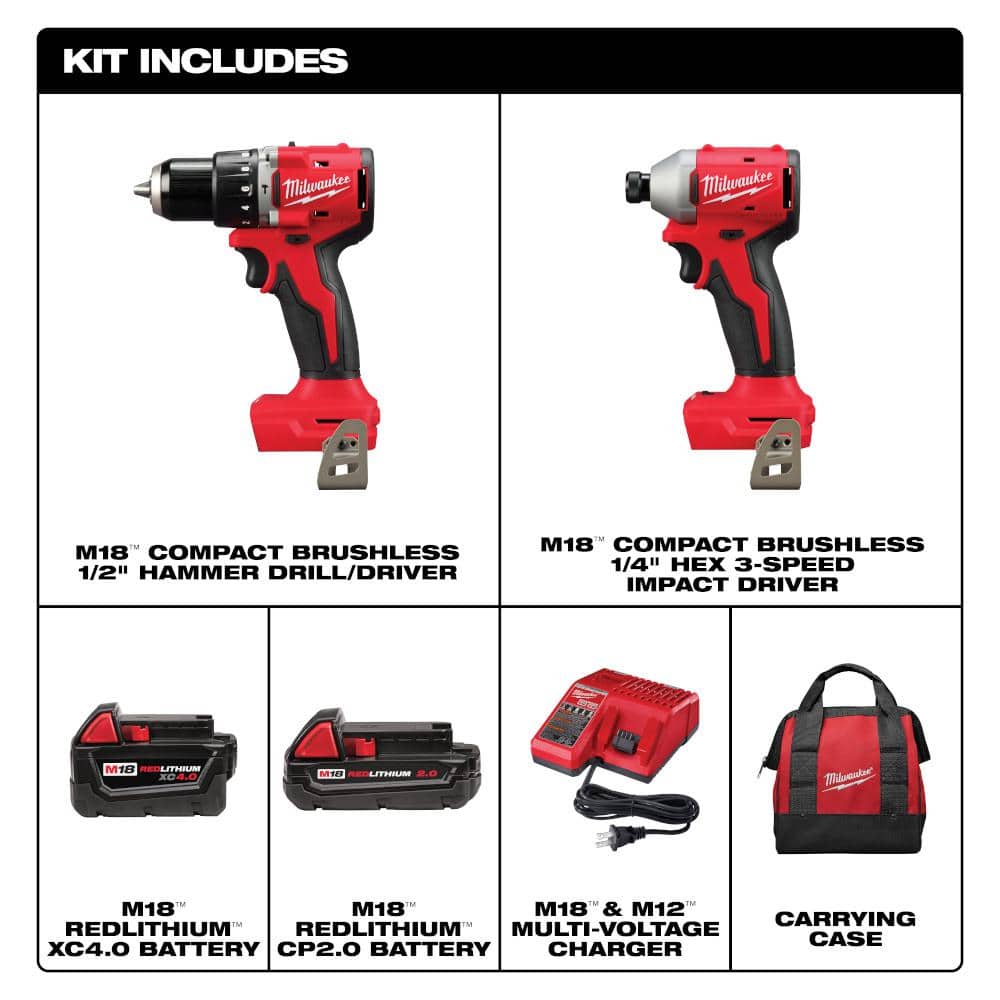

A: Hammer drill (3602-20), 3-speed impact driver (3651-20), M18 XC4.0 and CP2.0 batteries, M18/M12 charger, and contractor bag.
Q: What is the warranty?
A: 5-year tool warranty, 3-year XC battery, and 2-year CP battery.
Compact Strength, Elevated Craft
This sleek duo brings refined precision to any project space, from built-ins to bespoke furniture. The compact, brushless profile feels balanced in hand while the metal chuck and gearcase add a crisp, industrial note. Style it on a wall-mounted tool rail beside matte-black hardware and organized bits for a studio-worthy vignette. Consider it a quiet essential—power that looks as good as it performs.
Upgrade to the Milwaukee M18 compact brushless kit for pro-grade power in tight spaces—get yours today.
